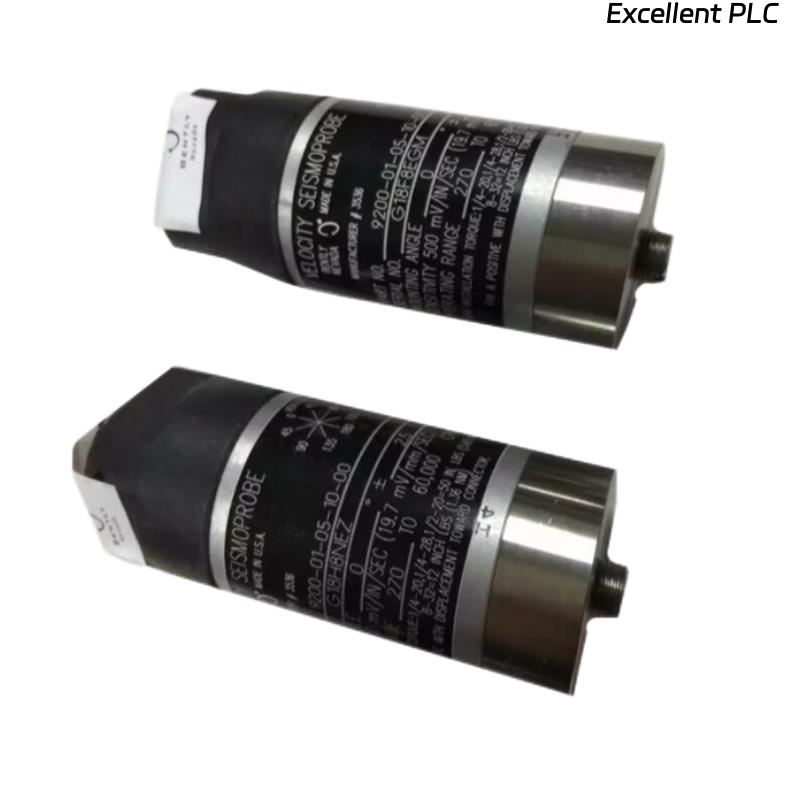

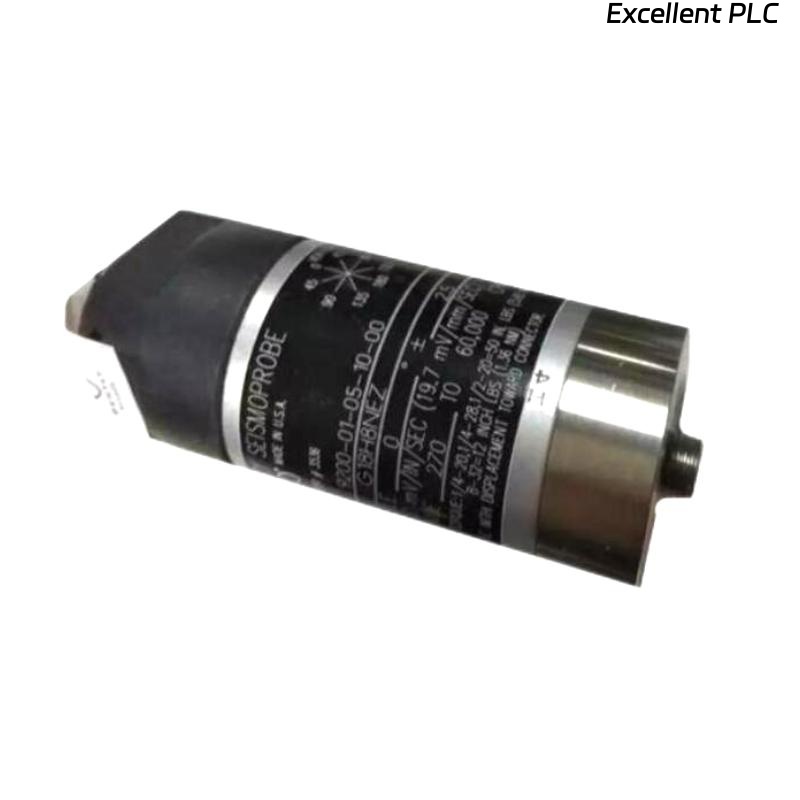

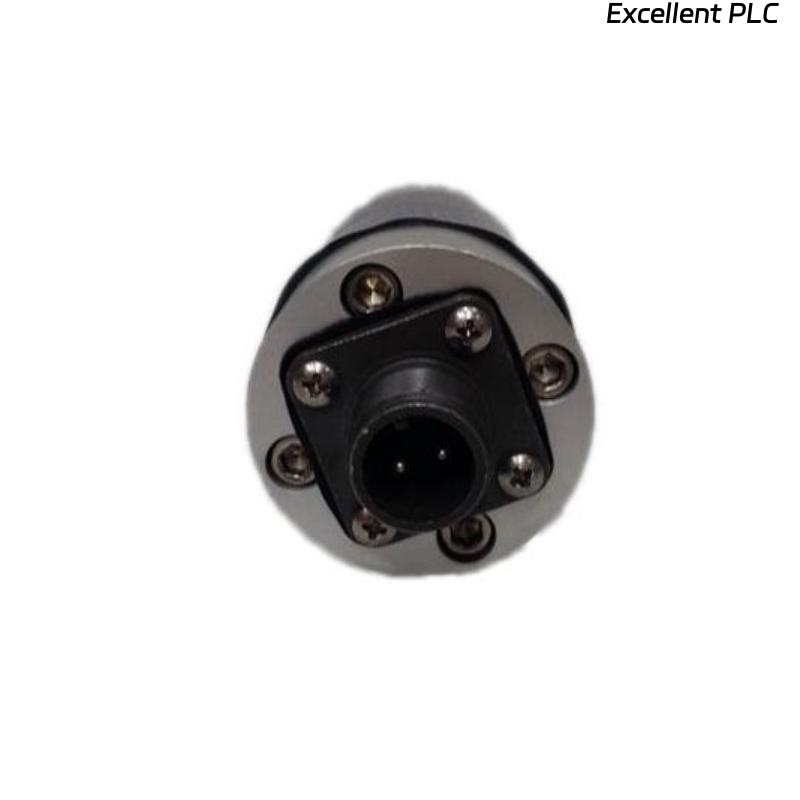

Bently Nevada 9200-06-02-01-00 Product Introduction
The Bently Nevada 9200-06-02-01-00 is a high-performance vibration monitoring module designed for critical machinery protection and condition monitoring. It is part of the Bently Nevada 9200 series, renowned for its reliability and precision in industrial applications. This module is engineered to provide accurate vibration measurements, enabling early detection of potential faults in rotating equipment such as turbines, compressors, and pumps. Its robust design ensures durability in harsh industrial environments, making it a trusted choice for asset protection.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 9200-06-02-01-00 |
| Input Voltage | 18-30 VDC |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Frequency Range | 10 Hz to 10 kHz |
| Output Signals | 4-20 mA, buffered sensor output |
| Sensor head diameter | 41.4mm |
| Weight | 0.3 kg |
| Enclosure Rating | IP66 (NEMA 4X) |
| Compliance | ATEX, IECEx, CE, SIL 2 |
Product Applications
The Bently Nevada 9200-06-02-01-00 is widely used in industries where machinery health is critical. Key applications include:
-
Oil & Gas: Monitoring compressors, pumps, and turbines to prevent unplanned downtime.
-
Power Generation: Protecting generators and steam turbines from vibration-related failures.
-
Chemical & Petrochemical: Ensuring safe operation of rotating equipment in hazardous environments.
-
Water & Wastewater: Monitoring pumps and motors to maintain efficiency.
-
Mining & Metals: Safeguarding crushers, conveyors, and other heavy machinery.
Product Advantages
-
High Accuracy: Provides precise vibration measurements for early fault detection.
-
Robust Design: Built to withstand extreme temperatures and harsh conditions.
-
Versatile Outputs: Supports 4-20 mA and buffered sensor outputs for integration with control systems.
-
Compliance: Meets ATEX, IECEx, and SIL 2 standards for safety-critical applications.
-
Easy Installation: Compact size and lightweight design simplify mounting and maintenance.
-
Reliability: Proven performance in critical machinery protection worldwide.
Frequently Asked Questions (FAQ)
-
What is the operating voltage range of the 9200-06-02-01-00?
The module operates on 18-30 VDC. -
Can this module be used in hazardous areas?
Yes, it is ATEX and IECEx certified for hazardous environments. -
What is the frequency range of the vibration measurements?
It covers 10 Hz to 10 kHz. -
Is the module compliant with SIL 2 standards?
Yes, it meets SIL 2 requirements for functional safety. -
What are the Sensor head diameter and weight of the module?
41.4mm and 0.3 kg . -
Does it support 4-20 mA output?
Yes, it provides a 4-20 mA output for integration with control systems. -
What is the enclosure rating?
IP66 (NEMA 4X) for dust and water resistance. -
Can it be used for steam turbine monitoring?
Yes, it is ideal for steam turbine vibration monitoring. -
What is the operating temperature range?
-40°C to +85°C (-40°F to +185°F). -
Is calibration required for this module?
Yes, periodic calibration is recommended for optimal performance.
Recommended Related Models
| Model Number | Description |
|---|---|
| 9200-05-01-01-00 | Vibration monitoring module with extended frequency range |
| 9200-06-01-01-00 | High-temperature version for extreme environments |
| 9200-07-02-01-00 | Dual-channel vibration monitoring module |
| 9200-08-01-01-00 | Explosion-proof version for hazardous areas |
| 9200-09-02-01-00 | Low-power consumption module for remote applications |
| 9200-10-01-01-00 | Enhanced accuracy module for critical machinery |
