Product Introduction:

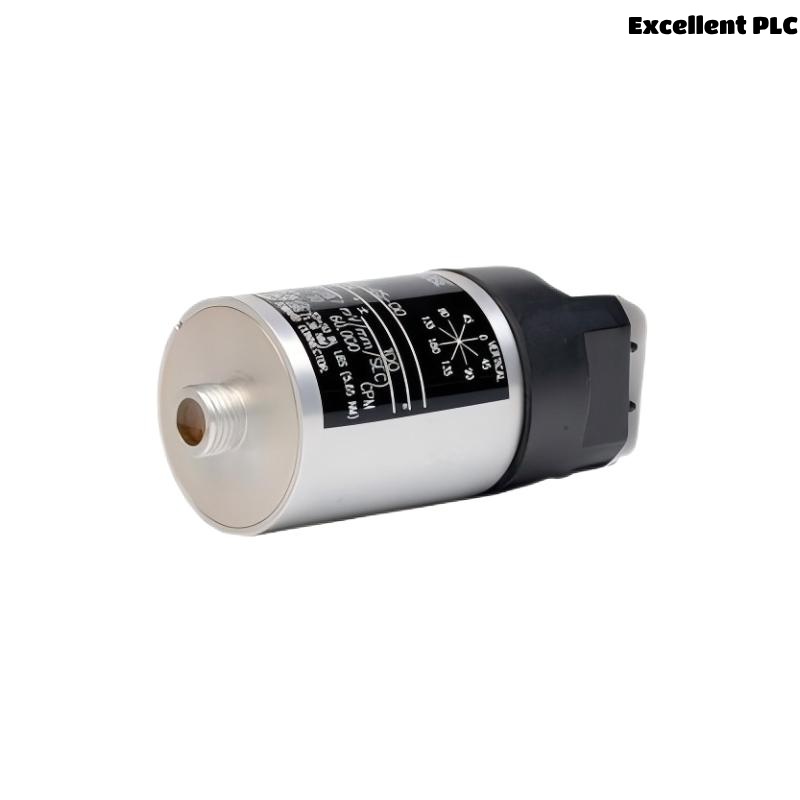

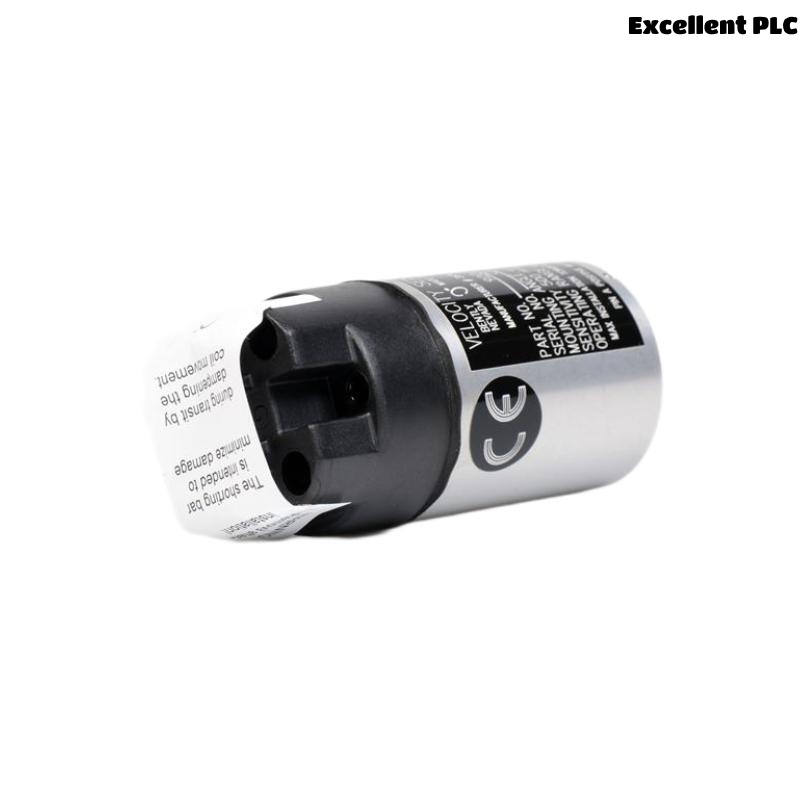

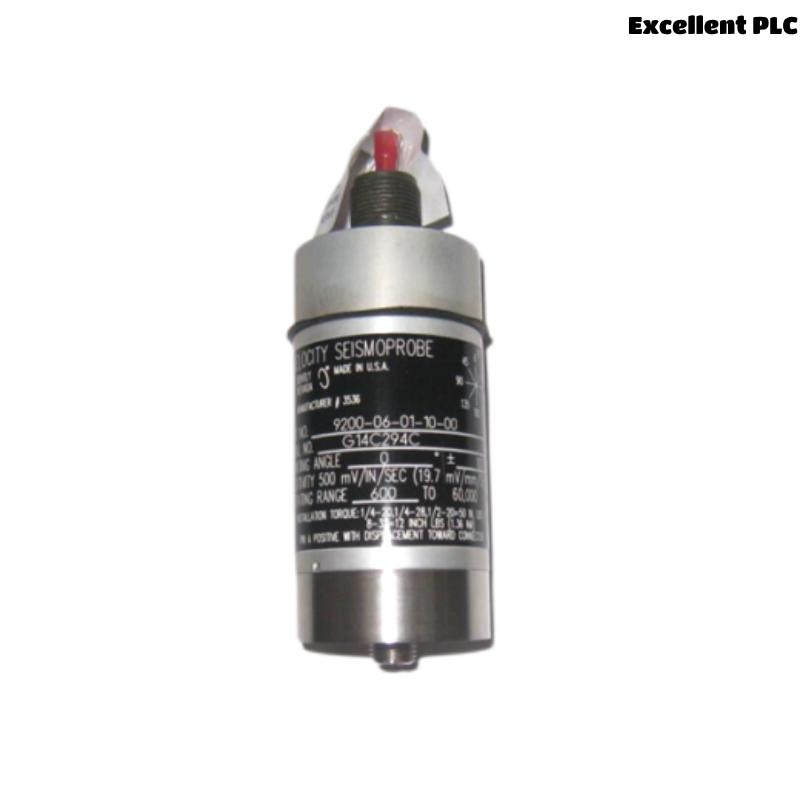

The Bently Nevada 9200-06-02-10-00 is a dual-wire velocity seismic sensor designed for precise measurement and monitoring of vibrations and seismic activity in various industrial applications. It is a critical component in machinery condition monitoring, predictive maintenance, and structural health monitoring. This sensor is engineered to provide highly accurate and real-time data, enabling industries to prevent failures, optimize performance, and improve safety by detecting abnormalities in machine or structural behavior.
With its dual-wire output configuration, the 9200-06-02-10-00 can be easily integrated into existing monitoring systems, making it ideal for both new and retrofitted applications. Its rugged design ensures durability and longevity, even in the harshest environmental conditions, ensuring that your machinery or infrastructure remains in optimal condition over time. Whether used for monitoring rotating machinery like turbines and pumps or assessing the seismic health of buildings and structures, this sensor offers reliable performance across a wide range of applications.
Product Parameters:
| Parameter | Specification |
|---|---|
| Model | 9200-06-02-10-00 |
| Dimensions (WxH) | 79.50 x 53.09 mm |
| Weight | 0.3 kg |
| Output Type | Dual-wire velocity |
| Power Supply | 24V DC |
| Measurement Range | ±12.5 mm/s |
| Frequency Response | 10 Hz to 1000 Hz |
| Temperature Range | -40°C to +85°C |
| Vibration Sensitivity | 2.5 mV/mm/s |
| Mounting | Surface mount or bolt mount |
| Protection Class | IP67 |
| Signal Output | 4-20 mA |
Product Applications:
The Bently Nevada 9200-06-02-10-00 dual-wire velocity seismic sensor is widely used across industries where vibration and seismic monitoring is crucial. Below are some of the key applications:
-
Machinery Health Monitoring: Used to monitor rotating equipment such as turbines, motors, and compressors, the sensor detects abnormal vibration patterns that could indicate mechanical problems or failures, allowing for early intervention and reducing costly repairs.
-
Predictive Maintenance: The sensor’s ability to detect small vibrations or changes in motion makes it invaluable for predictive maintenance programs. It helps identify potential equipment failures before they happen, thereby optimizing asset management and extending machinery life.
-
Seismic Monitoring for Structures: In construction and infrastructure sectors, the sensor is used to monitor the seismic vibrations impacting structures like bridges, dams, and high-rise buildings. It provides real-time feedback on the integrity of these structures and helps mitigate risks from seismic activity.
-
Industrial Safety Systems: The 9200-06-02-10-00 sensor integrates seamlessly into safety and alarm systems, providing alerts if vibration or seismic activity exceeds predefined thresholds, preventing damage to machinery and ensuring worker safety.
-
Energy and Power Generation: In power plants and energy facilities, this sensor is used to monitor the health of critical equipment, ensuring that turbines, generators, and pumps are operating efficiently and without risk of failure.
Product Advantages:
-
High Sensitivity: With a vibration measurement range of ±12.5 mm/s, the sensor provides highly sensitive data on even the slightest changes in vibration, enabling early fault detection and minimizing the risk of unexpected failures.
-
Rugged and Durable Design: The sensor’s IP67 protection class ensures full protection against dust and water, making it suitable for harsh environments and industrial applications where reliability and longevity are essential.
-
Wide Frequency Range: The 9200-06-02-10-00 offers a broad frequency response of 10 Hz to 1000 Hz, which allows it to detect both low-frequency vibrations and high-frequency events, providing comprehensive monitoring capabilities.
-
Easy System Integration: Its dual-wire output configuration and 4-20 mA signal make it easy to integrate into existing monitoring systems, saving time and reducing installation complexity.
-
Temperature Range: With an operational temperature range of -40°C to +85°C, this sensor can function in extreme environmental conditions, from freezing cold to high heat, ensuring reliable performance in various industrial settings.
-
Flexible Mounting: The sensor can be mounted either on a surface or via bolts, offering flexibility depending on the application and the specific machinery or structure being monitored.
FAQ:
Q1: What is the measurement range of the Bently Nevada 9200-06-02-10-00 sensor?
A1: The sensor has a measurement range of ±12.5 mm/s, ensuring it can detect both small and large variations in vibration.
Q2: How is the 9200-06-02-10-00 powered?
A2: The sensor requires a 24V DC power supply, which is typical for most industrial monitoring systems.
Q3: What are the mounting options for the sensor?
A3: The sensor can be mounted either via surface mounting or bolted onto equipment, offering flexibility depending on the installation environment.
Q4: What is the frequency response range of the 9200-06-02-10-00?
A4: The sensor has a frequency response range of 10 Hz to 1000 Hz, enabling it to monitor both low-frequency vibrations and high-frequency events.
Q5: What is the protection class of this sensor?
A5: The 9200-06-02-10-00 has an IP67 protection rating, meaning it is fully protected from dust and water, making it suitable for use in harsh conditions.
Q6: How much does the sensor weigh?
A6: The sensor weighs 0.3 kg, which makes it lightweight and easy to install.
Q7: Can the sensor be used in extreme temperatures?
A7: Yes, the sensor operates within a temperature range of -40°C to +85°C, making it suitable for both very hot and very cold environments.
Q8: What output does the sensor provide?
A8: The 9200-06-02-10-00 provides a 4-20 mA output signal, which is a standard output for industrial equipment, making integration with control systems straightforward.
Q9: Can this sensor be used for seismic activity detection?
A9: Yes, the sensor is designed to monitor seismic vibrations, making it ideal for structural health monitoring in bridges, buildings, and other critical infrastructure.
Q10: How does the 9200-06-02-10-00 contribute to predictive maintenance?
A10: The sensor continuously monitors vibrations, helping detect early signs of mechanical issues and providing data that can be used to schedule maintenance before failure occurs.
Recommended Models from the Same Series or Related:
| Model | Description | Measurement Range | Frequency Response |
|---|---|---|---|
| 9200-06-02-09-00 | High-sensitivity version for precise measurements | ±15 mm/s | 10 Hz to 1500 Hz |
| 9200-06-02-08-00 | Compact version for tight spaces | ±12.5 mm/s | 10 Hz to 800 Hz |
| 9200-06-02-07-00 | Extended version for larger systems | ±12.5 mm/s | 5 Hz to 1000 Hz |
| 9200-06-02-06-00 | Heavy-duty sensor for industrial use | ±10 mm/s | 10 Hz to 1000 Hz |
| 9200-06-02-05-00 | High-frequency sensor for detailed monitoring | ±12.5 mm/s | 20 Hz to 1500 Hz |
| 9200-06-02-04-00 | Multi-channel sensor for large installations | ±10 mm/s | 10 Hz to 2000 Hz |
