Product Introduction

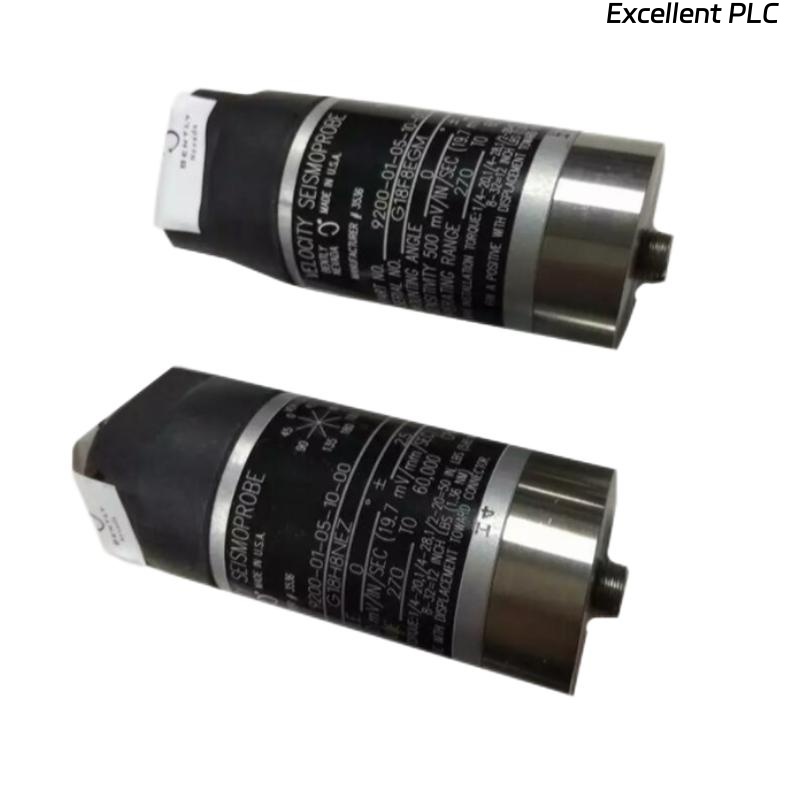

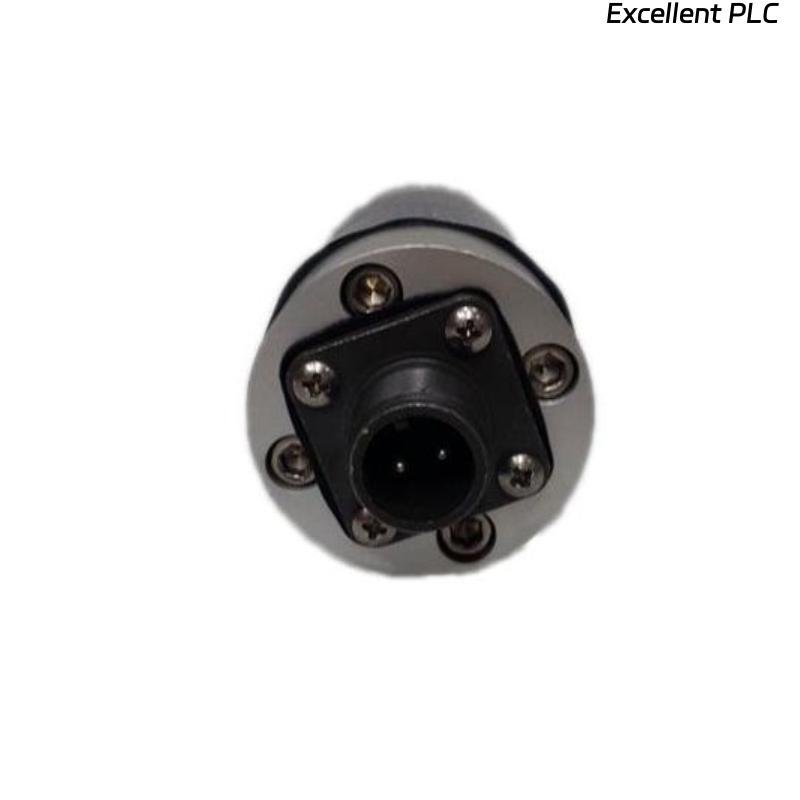

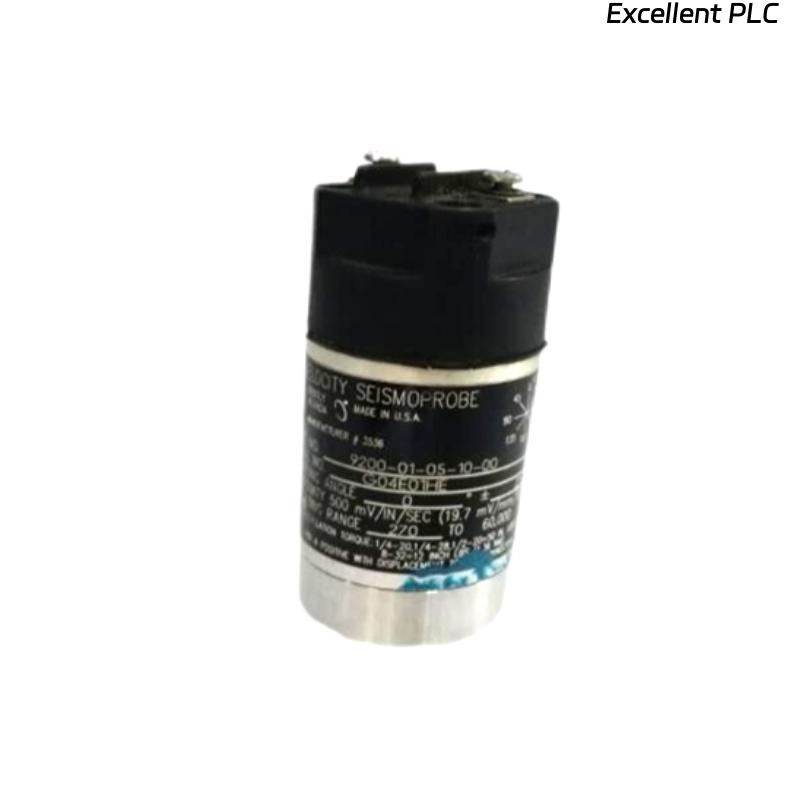

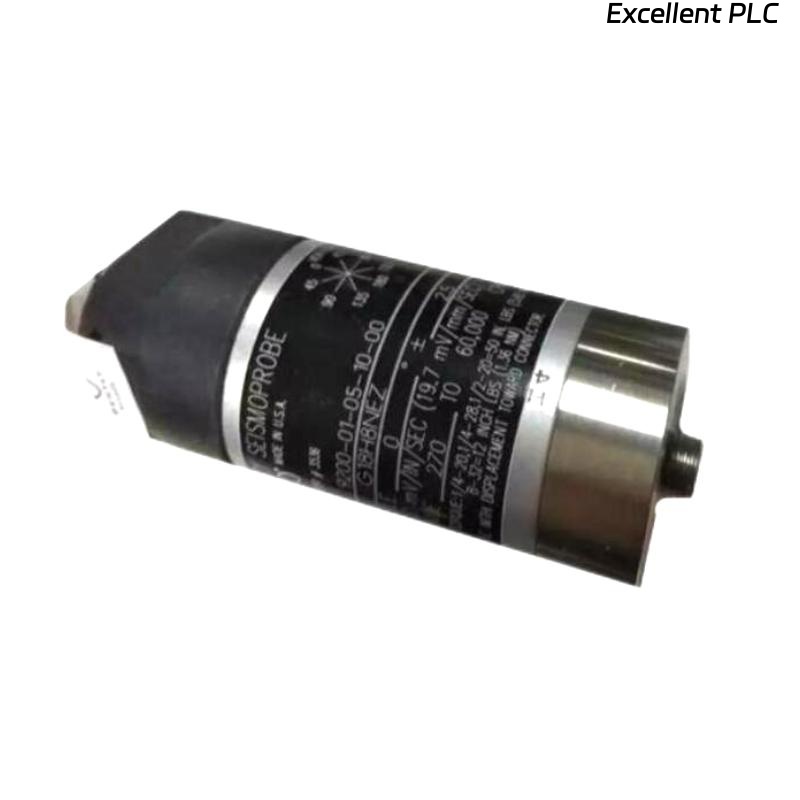

The Bently Nevada 9200-09-01-01-00 is a high-performance vibration monitoring transducer designed for industrial machinery protection and condition monitoring. It is part of the Bently Nevada 9200 series, renowned for its reliability in critical applications such as turbines, compressors, pumps, and motors. This transducer provides accurate vibration measurements, enabling early fault detection and preventing catastrophic machinery failures.
Product Parameters
Parameter | Specification |
---|---|
Model Number | 9200-09-01-01-00 |
Type | Vibration Transducer |
Measurement Range | 0-20 mm/s (velocity), 0-2000 µm (displacement) |
Frequency Range | 10 Hz to 1000 Hz |
Output Signal | 4-20 mA (loop-powered) |
Power Supply | 18-30 VDC |
Operating Temp. | -40°C to +85°C (-40°F to +185°F) |
Housing Material | Stainless Steel |
Ingress Protection | IP67 |
Sensor head diameter | 41.4mm |
Weight | 0.3 kg |
Certifications | ATEX, IECEx, CSA, CE |
Product Applications
The Bently Nevada 9200-09-01-01-00 is widely used in industries where machinery health monitoring is critical:
-
Oil & Gas: Monitoring turbines, compressors, and pumps.
-
Power Generation: Vibration analysis in steam and gas turbines.
-
Chemical & Petrochemical: Ensuring reliability of rotating equipment.
-
Mining & Metals: Protecting crushers, conveyors, and large motors.
-
Water & Wastewater: Monitoring pumps and blowers.
Product Advantages
-
High Accuracy: Provides precise vibration measurements for early fault detection.
-
Robust Construction: Stainless steel housing ensures durability in harsh environments.
-
Wide Compatibility: Works seamlessly with Bently Nevada monitoring systems.
-
Easy Installation: Compact design allows for flexible mounting.
-
Certified Safety: Complies with ATEX, IECEx, and other international standards.
-
Low Maintenance: Designed for long-term reliability with minimal servicing.
Frequently Asked Questions (FAQ)
Q1: What is the operating voltage range of the 9200-09-01-01-00?
A1: It operates on 18-30 VDC.
Q2: Can this sensor be used in hazardous areas?
A2: Yes, it is ATEX and IECEx certified for hazardous environments.
Q3: What is the frequency response range?
A3: It covers 10 Hz to 1000 Hz.
Q4: Does it measure displacement or velocity?
A4: It measures both velocity (mm/s) and displacement (µm).
Q5: What is the IP rating?
A5: It has an IP67 rating, making it dustproof and waterproof.
Q6: Is this sensor compatible with third-party monitoring systems?
A6: Yes, it provides a 4-20 mA output, which is industry-standard.
Q7: What is the expected lifespan of this transducer?
A7: With proper installation, it can last 5+ years in normal conditions.
Q8: Can it withstand high temperatures?
A8: Yes, it operates in -40°C to +85°C environments.
Q9: What is the weight of the sensor?
A9: It weighs 0.3 kg .
Q10: Does it require calibration?
A10: Periodic calibration is recommended for optimal performance.
