Product Introduction

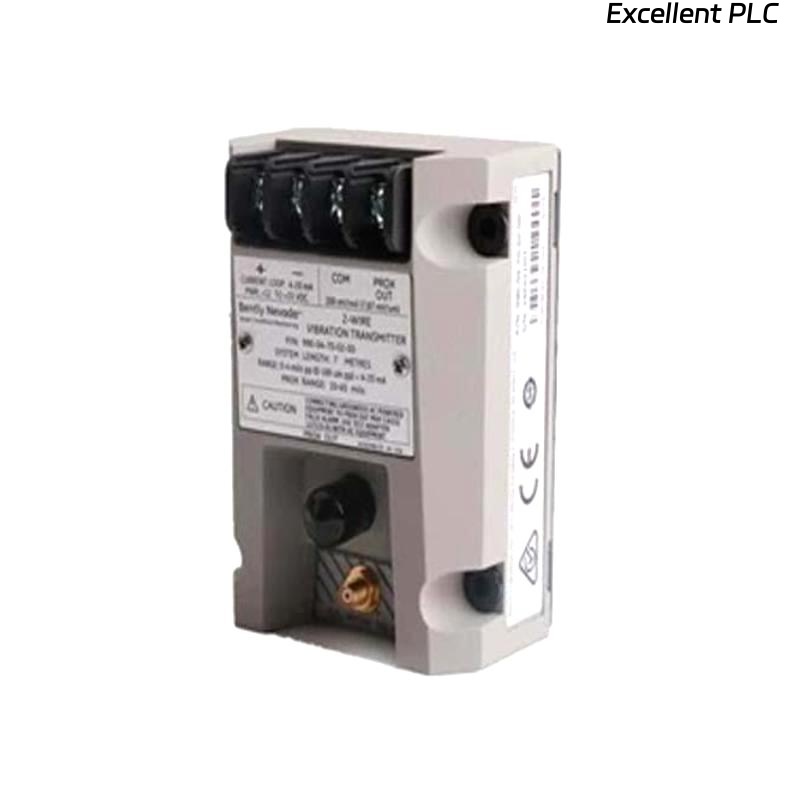

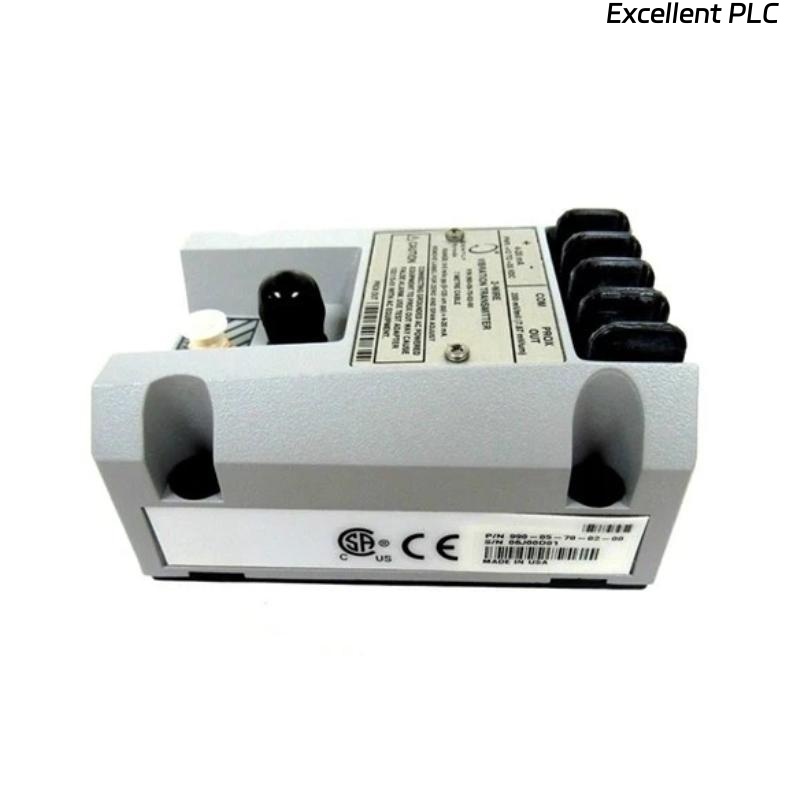

The Bently Nevada 990-05-50-03-00 990 Vibration Transmitter is a robust industrial-grade solution designed to monitor machine vibration levels and transmit the measured values as a 4-20 mA signal to control systems such as DCS, PLC, or SCADA. It offers a reliable way to integrate machinery health monitoring into process control loops, ensuring predictive maintenance and reducing the risk of unexpected equipment failures.
Built with high sensitivity and advanced filtering, the 990 transmitter is ideal for applications where continuous vibration monitoring is critical. Its compact design, ease of integration, and proven reliability make it widely used across oil & gas, power generation, chemical, and heavy machinery sectors.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | Bently Nevada 990-05-50-03-00 |
| Product Type | Vibration Transmitter |
| Input Signal | Compatible with seismic and velocity sensors |
| Output Signal | 4-20 mA DC proportional to vibration |
| Frequency Range | Typically 10 Hz to 1 kHz |
| Power Supply | 24 V DC nominal (loop powered) |
| Mounting Type | DIN rail or panel mount |
| Dimensions | 100.1 x 73.9 x 53.3 mm |
| Weight | 0.43 kg |
| Operating Temperature | -25 °C to +70 °C |
| Enclosure Protection | IP20 (standard); optional protective housing available |
| Accuracy | ±1% of full scale |
Product Applications
-
Rotating equipment such as pumps, motors, compressors, and fans.
-
Turbomachinery in oil & gas and power generation facilities.
-
Process industries for continuous vibration monitoring integrated with PLC/DCS systems.
-
Predictive maintenance systems, helping operators detect imbalance, misalignment, and bearing wear.
-
Remote monitoring, where real-time vibration data is transmitted directly to centralized control.
Product Advantages
-
Direct integration with control systems: Provides 4-20 mA output for seamless communication with DCS/PLC.
-
High reliability: Rugged design for harsh industrial environments.
-
Compact and versatile: Small footprint allows installation in tight spaces.
-
Proven accuracy: Stable vibration measurement over a broad frequency range.
-
Enhanced maintenance planning: Early detection of machinery problems reduces unplanned downtime.
-
Cost-effective monitoring: Provides essential vibration data without the complexity of full monitoring systems.
FAQ
Q1: What type of sensors can be connected to the 990 Vibration Transmitter?
A1: The unit is compatible with seismic transducers and velocity sensors designed for vibration monitoring.
Q2: Does the transmitter provide linear scaling of vibration levels?
A2: Yes, the 4-20 mA output is linearly proportional to the measured vibration velocity or displacement.
Q3: Can the 990 transmitter filter out low-frequency noise?
A3: Yes, it incorporates internal filtering to minimize the influence of non-relevant low-frequency signals.
Q4: How does the transmitter handle signal overload or excessive vibration levels?
A4: The output saturates at the maximum 20 mA level, indicating that the vibration exceeds the configured range.
Q5: Is it possible to adjust the measurement range?
A5: Yes, depending on the specific configuration, the transmitter can be ordered with different full-scale ranges.
Q6: What is the typical frequency response of the 990 transmitter?
A6: The standard response covers approximately 10 Hz to 1 kHz, suitable for most machinery applications.
Q7: Does the transmitter require external signal conditioning?
A7: No, it is a standalone loop-powered device that conditions and outputs the vibration signal directly.
Q8: How is calibration performed?
A8: Calibration is done using standard vibration test equipment and adjusting against known reference signals.
Q9: Can the transmitter be used in hazardous areas?
A9: It can be supplied in versions certified for hazardous environments, depending on the installation requirements.
Q10: What diagnostic features does the transmitter provide?
A10: It includes fault indication through signal output abnormalities, helping detect wiring or sensor issues.
Related Models
| Model Number | Description |
|---|---|
| 990-05-50-02-00 | Vibration transmitter, alternative range option |
| 990-05-70-01-00 | Extended frequency range vibration transmitter |
| 990-05-10-01-00 | Basic configuration vibration transmitter |
| 990-05-30-02-00 | Compact version for tight installations |
| 990-05-60-01-00 | High-output vibration transmitter |
| 990-05-80-02-00 | Hazardous area certified vibration transmitter |
