Product Introduction

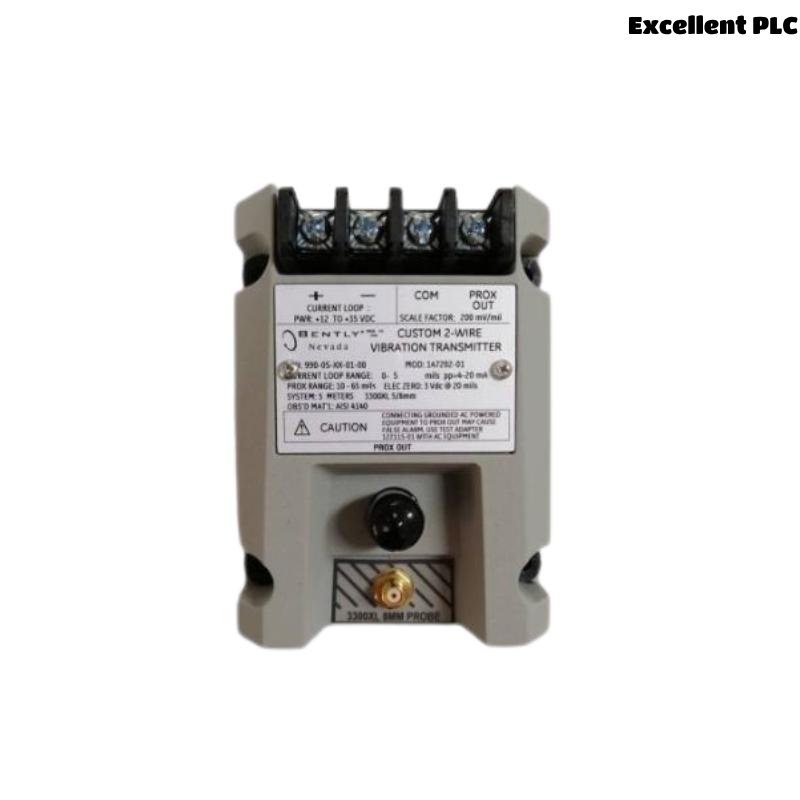

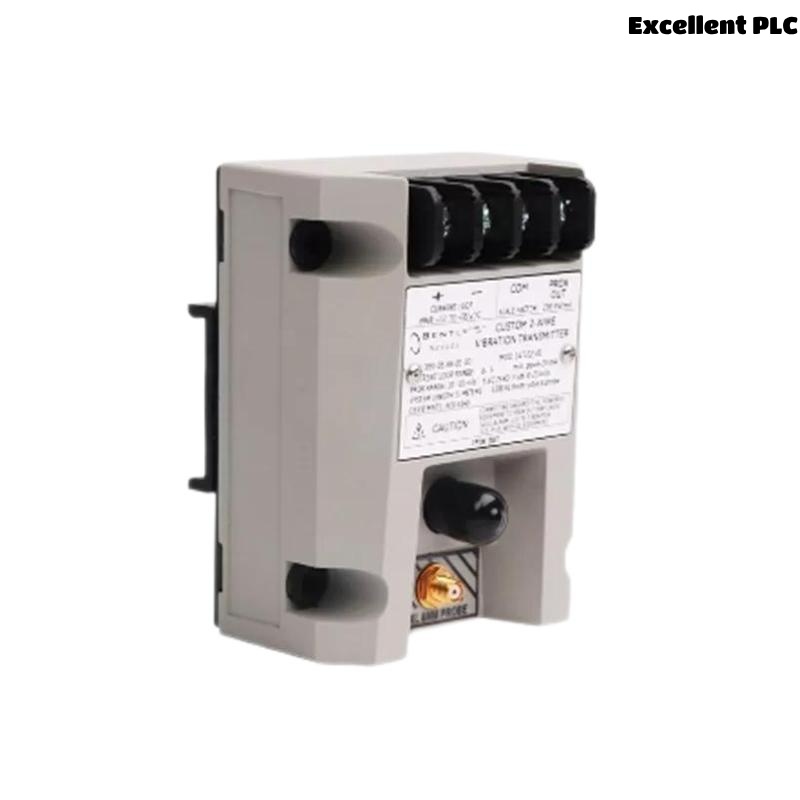

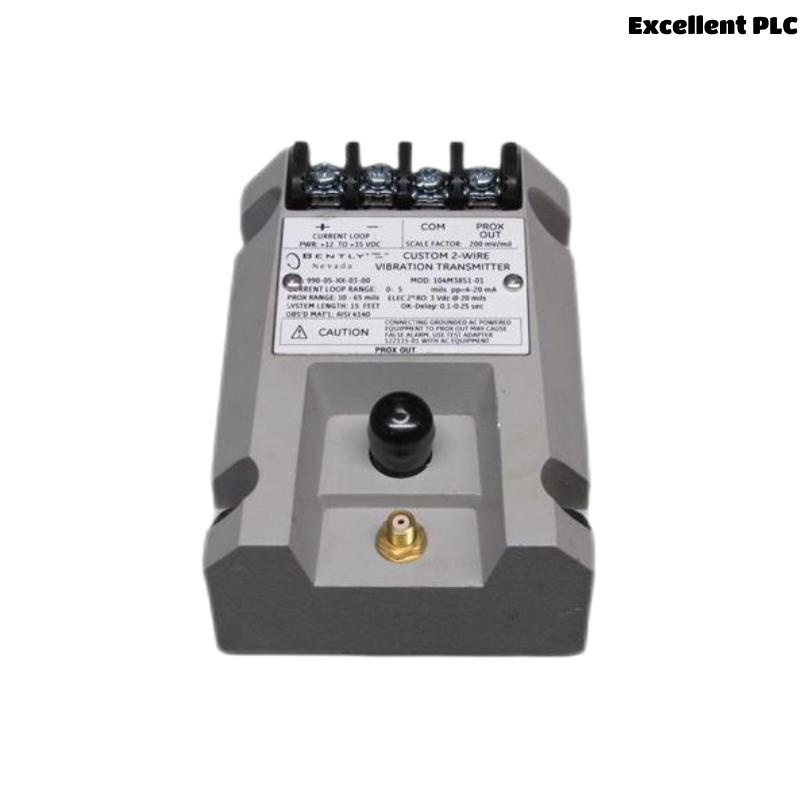

The Bently Nevada 990-05-XX-03-05 147202-01 Vibration Transmitter is part of the Bently Nevada 990 Series and is designed for continuous vibration monitoring in critical industrial machinery. As part of a predictive maintenance strategy, this device provides essential real-time feedback on the condition of equipment by measuring vibration levels, helping to prevent catastrophic failures caused by excessive vibrations. The 990-05-XX-03-05 model is ideal for monitoring rotating machinery such as motors, turbines, pumps, and compressors.
One of the standout features of this transmitter is its 4-20 mA analog output, allowing it to be easily integrated into existing control systems and PLCs (Programmable Logic Controllers). By providing a reliable and precise means of measuring vibrations, the 990-05-XX-03-05 contributes to improved operational efficiency, extended asset life, and reduced downtime across various industrial sectors.
Manufactured with high durability and accuracy, the device ensures optimal performance even in harsh environments, making it a valuable asset for companies focused on maximizing equipment uptime and reducing the costs associated with reactive maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Bently Nevada 990-05-XX-03-05 147202-01 |
| Dimensions (L x W x H) | 100.1 x 73.9 x 53.3 mm |
| Weight | 0.43 kg |
| Output | 4-20 mA Analog Output |
| Power Supply | 10 to 30 V DC |
| Operating Temperature Range | -40°C to +85°C |
| Vibration Input | 0-10 g (adjustable) |
| Accuracy | ±0.5% of Full Scale |
| Response Time | ≤ 3 seconds |
| Mounting Type | DIN Rail or Surface Mounting |
| Protection Rating | IP65 |
| Communication Protocol | Analog (4-20 mA) |
| Certification | UL, CE, RoHS |
Product Applications
The 990-05-XX-03-05 147202-01 Vibration Transmitter is used in a variety of industrial settings to monitor vibration levels and ensure the smooth operation of critical machinery. Some of the main applications include:
-
Turbine Monitoring: The device is widely used to monitor turbines, detecting vibrations that could indicate imbalance, misalignment, or bearing wear. Early detection of these issues helps avoid major failures and costly repairs.
-
Pump Systems: In pump applications, the 990-05-XX-03-05 helps to ensure that pumps operate within safe vibration thresholds, reducing the risk of cavitation, misalignment, or excessive wear.
-
Motor Protection: The transmitter is often used in motor protection systems, providing valuable data on vibration patterns that could signal issues like bearing damage or shaft misalignment.
-
Compressor Systems: The device plays a critical role in compressor monitoring by detecting abnormal vibrations that could lead to inefficiencies, power loss, or catastrophic failure.
-
Manufacturing Systems: In production environments, the device is used to monitor a wide range of machinery, from conveyor belts to high-speed motors, helping maintain operational stability.
-
HVAC Systems: In HVAC systems, the device helps monitor fans and blowers to ensure that any mechanical faults are detected before they lead to significant downtime or equipment damage.
Advantages
-
High Precision and Accuracy: The 990-05-XX-03-05 provides accurate vibration readings with an impressive ±0.5% of full-scale accuracy, ensuring that users get reliable data for preventive maintenance decisions.
-
Wide Operating Temperature Range: With an operating temperature range of -40°C to +85°C, this transmitter can be used in extreme environments, both hot and cold, ensuring performance in a variety of industrial settings.
-
Compact and Robust Design: The compact dimensions of 100.1 x 73.9 x 53.3 mm and durable design make it easy to install in space-constrained environments while still offering excellent protection against harsh conditions.
-
Easy Integration: With its standard 4-20 mA analog output, the 990-05-XX-03-05 is simple to integrate into existing control systems, PLCs, and SCADA systems.
-
IP65 Protection Rating: The device’s IP65 rating ensures that it is protected against dust and water ingress, making it suitable for use in industrial applications where exposure to harsh elements is a concern.
-
Low Power Consumption: The transmitter operates efficiently with a low power consumption of 10 to 30 V DC, helping to minimize energy usage in large systems.
-
Real-Time Vibration Monitoring: Continuous real-time monitoring enables early detection of vibration-related problems, which can be addressed before they result in significant machinery damage or failure.
-
Quick Response Time: The transmitter has a quick response time (≤ 3 seconds), allowing for immediate feedback on vibration changes, critical for preventing damage in high-speed equipment.
-
Global Certifications: Certified with UL, CE, and RoHS, the device meets international standards for safety and environmental compliance, making it suitable for use in global operations.
-
Enhanced Operational Efficiency: By preventing unexpected equipment failures and reducing downtime, the device helps improve the overall operational efficiency and reliability of industrial systems.
FAQs (Frequently Asked Questions)
-
What is the vibration input range of the 990-05-XX-03-05?
-
The device has an adjustable vibration input range of 0-10 g, making it suitable for a variety of applications.
-
-
What is the accuracy of the 990-05-XX-03-05 vibration transmitter?
-
The transmitter offers an accuracy of ±0.5% of full scale, ensuring precise and reliable vibration measurements.
-
-
What is the operating temperature range of the device?
-
The transmitter can operate in temperatures ranging from -40°C to +85°C, making it versatile for use in different environments.
-
-
What is the power supply requirement for the 990-05-XX-03-05?
-
The device operates on a 10 to 30 V DC power supply.
-
-
How is the 990-05-XX-03-05 connected to a control system?
-
The device provides a 4-20 mA analog output, which can be easily integrated into PLCs and control systems.
-
-
What is the response time of the 990-05-XX-03-05?
-
The response time of the transmitter is ≤ 3 seconds, providing quick feedback on vibration changes.
-
-
Can the transmitter be used in hazardous environments?
-
Yes, with its IP65 protection rating, the device is resistant to dust and water ingress, making it suitable for harsh industrial environments.
-
-
What mounting options are available for the device?
-
The 990-05-XX-03-05 can be mounted using DIN rail or surface mounting, depending on system requirements.
-
-
Is the 990-05-XX-03-05 compatible with other monitoring systems?
-
Yes, it is compatible with a wide range of control systems and PLCs, thanks to its 4-20 mA analog output.
-
-
What industries can benefit from using the 990-05-XX-03-05?
-
The device is ideal for industries such as power generation, oil and gas, manufacturing, and HVAC, where vibration monitoring is critical for maintaining machinery health.
-
