Product Overview

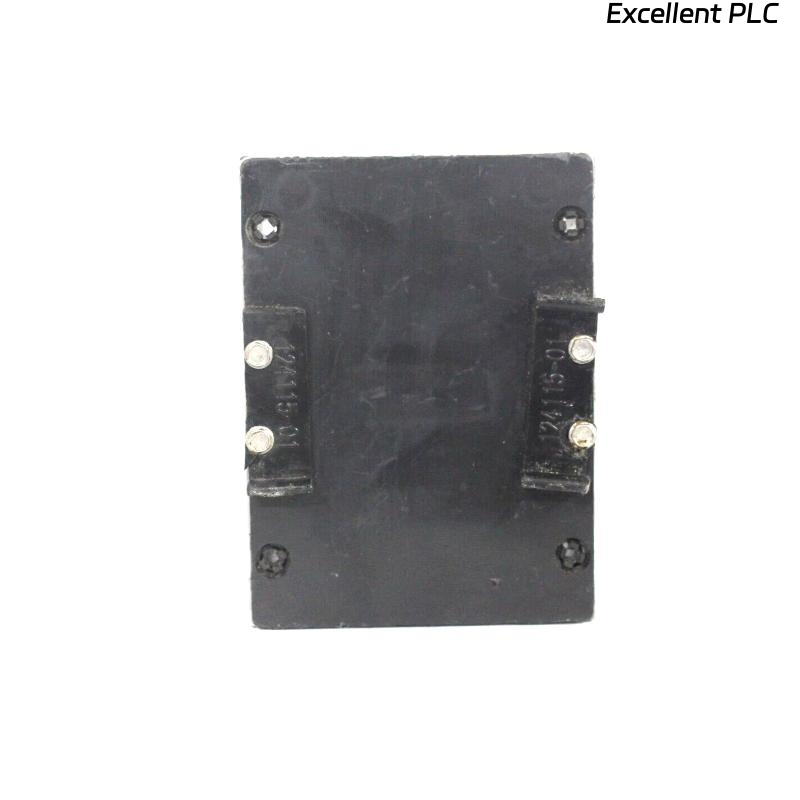

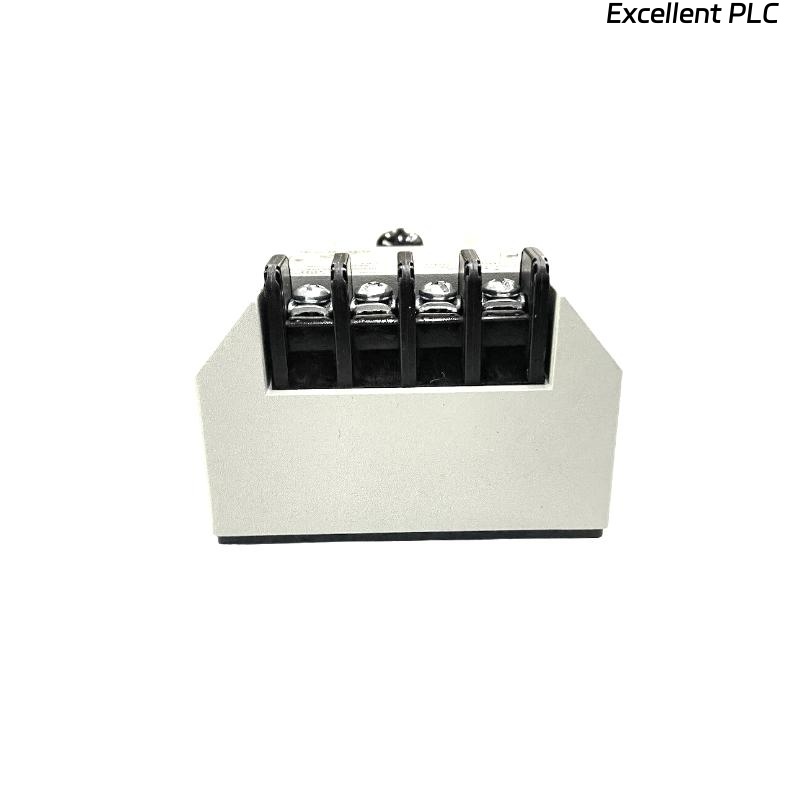

The Bently Nevada 991-25-50-03-05 991 Thrust Sensor is a precision, loop-powered transmitter engineered for monitoring thrust position in rotating machinery. It provides a 4–20 mA output proportional to the shaft thrust position, enabling reliable integration into control and protection systems without the need for complex rack-based monitoring.
Key Features
-
2-wire, loop-powered thrust sensor
-
4–20 mA output proportional to shaft thrust position
-
Compatible with Bently Nevada proximity probes and extension cables
-
PROX OUT terminal provides access to vibration and gap signals
-
Field calibration with zero and span adjustments
-
Fault detection with “Not OK” indication
-
Flexible mounting: DIN rail or bulkhead
-
Rugged construction for demanding industrial conditions
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 991-25-50-03-05 |
| Series | 991 Thrust Sensor |
| Product Type | Thrust Position Transmitter |
| Dimensions | 100.1 x 73.9 x 53.3 mm |
| Weight | 0.43 kg |
| Power Supply | +12 to +35 V DC |
| Output | 4–20 mA proportional to thrust position |
| Measurement Range | 0–2 mm (depending on probe configuration) |
| Frequency Response | DC to 600 Hz |
| Loop Accuracy | ±1.5% of full scale |
| Max Loop Resistance | 1,000 Ω at 35 V DC |
| Probe Compatibility | Bently Nevada proximity probes and extension cables |
| Operating Temperature – Transmitter | –35 °C to +85 °C |
| Operating Temperature – Probe | –52 °C to +177 °C |
| Relative Humidity | 0–100%, condensing |
| Mounting Options | DIN rail or bulkhead mounting |
Industry Applications
-
Steam turbines and gas turbines
-
Compressors and centrifugal pumps
-
Electric motors and generators
-
Thrust position monitoring in rotating machinery
-
Oil & gas and petrochemical facilities
-
Power generation and utilities
-
OEM machinery protection systems
Frequently Asked Questions (FAQ)
Q1: What does the 991-25-50-03-05 measure?
It measures shaft thrust position and provides a 4–20 mA proportional output.
Q2: Which probes are compatible with this transmitter?
It is compatible with Bently Nevada proximity probes and extension cables.
Q3: How is this sensor powered?
It is loop-powered with a DC supply of +12 to +35 V.
Q4: Does it include fault detection?
Yes, it has “Not OK” indication circuitry for probe or cable faults.
Q5: Can it provide vibration signals?
Yes, the PROX OUT terminal allows access to vibration and gap signals.
Q6: What mounting options are available?
It supports DIN rail and bulkhead mounting.
Q7: What industries use this device?
Commonly used in oil & gas, turbines, compressors, power generation, and OEM machinery.
Q8: Can it replace a full rack-based system?
Yes, it offers a cost-effective alternative to rack-based monitoring for thrust.
