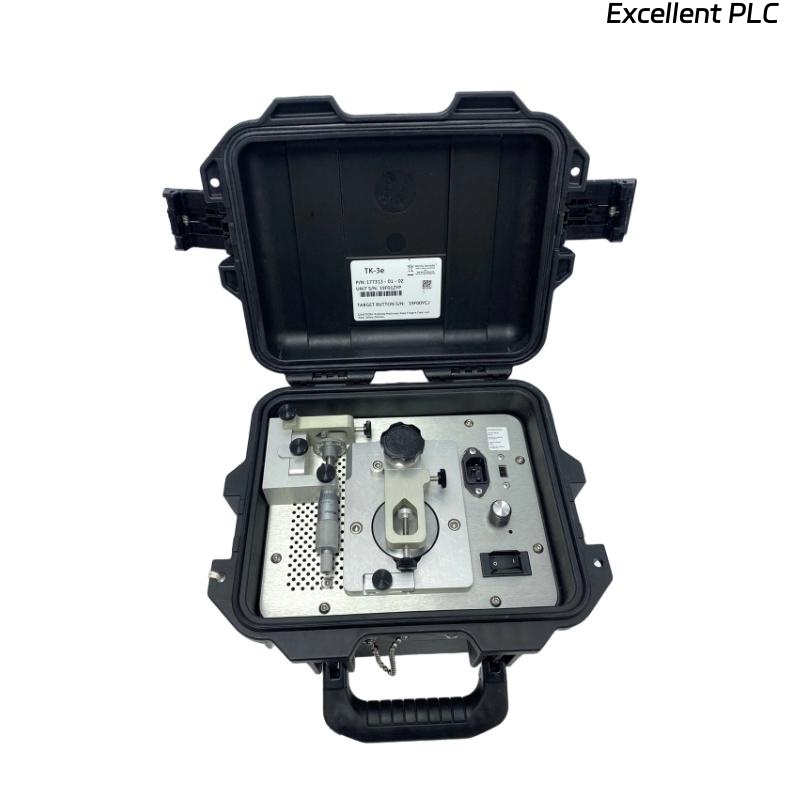

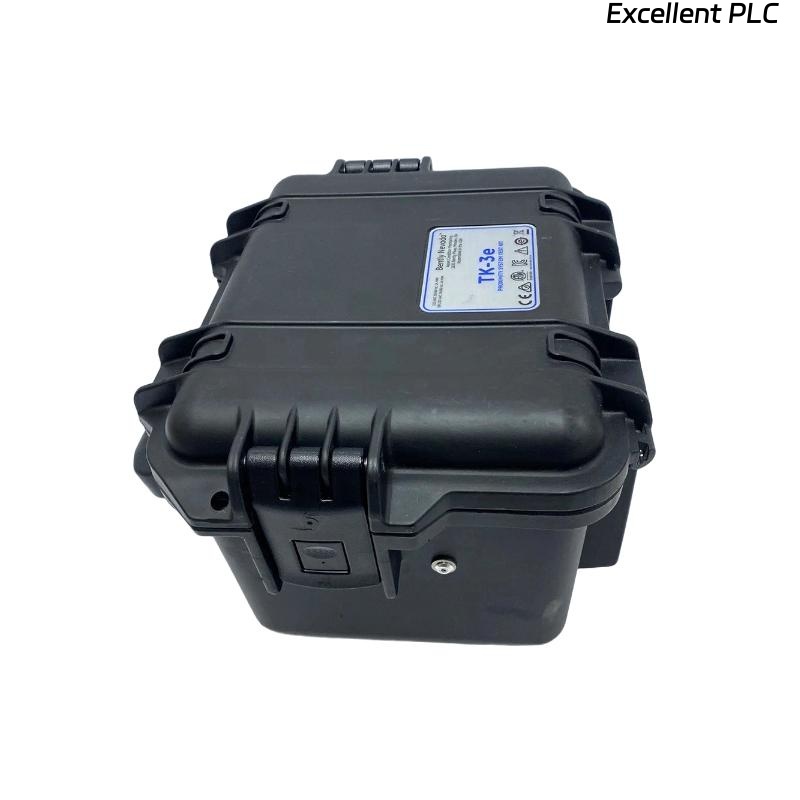

The Bently Nevada TK-3E 177313-01-02-00 Proximity System Test Kit is a specialized and portable testing solution engineered for verifying and calibrating Bently Nevada proximity probe systems. It provides precise electrical simulation of shaft movement, enabling engineers to test probes, extension cables, and proximitor sensors without requiring machinery to be operational.
This test kit is widely recognized as an indispensable tool for vibration monitoring specialists, maintenance engineers, and commissioning teams. It ensures that proximity transducer systems operate within factory specifications, thereby safeguarding the accuracy of vibration and displacement measurements essential for machinery protection and condition monitoring. Its robust design, high compatibility with multiple Bently Nevada systems, and reliable measurement capability make it a trusted field instrument for both troubleshooting and preventive maintenance.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | TK-3E 177313-01-02-00 |
| Product Type | Proximity System Test Kit |
| Measurement Function | Simulates shaft displacement for calibration and verification |
| Compatible Systems | Bently Nevada 3300, 3300 XL, 7200, and compatible probe systems |
| Signal Output | Standard displacement simulation signals |
| Power Supply | Internal rechargeable battery (AC power adapter optional) |
| Operating Temperature | 0 °C to +50 °C (32 °F to 122 °F) |
| Storage Temperature | -20 °C to +70 °C (-4 °F to 158 °F) |
| Relative Humidity | Up to 95% non-condensing |
| Display Type | Digital output for displacement simulation |
| Enclosure | Industrial-grade rugged housing |
| Dimensions | 195 × 299 × 248 mm |
| Weight | 5.22 kg |
Product Applications
The TK-3E 177313-01-02-00 is designed for a wide range of testing and maintenance applications:
-
Calibration of Probe Systems: Provides accurate verification of proximity probes, extension cables, and proximitor sensors.
-
Commissioning Support: Essential for validating proper installation of probe systems before equipment startup.
-
Troubleshooting and Diagnostics: Detects wiring faults, probe malfunctions, or incorrect proximitor response.
-
Preventive Maintenance: Ensures measurement reliability by identifying deviations before they affect vibration readings.
-
Training and Demonstration: Ideal for technical training environments to simulate real shaft movement scenarios.
-
System Quality Control: Used in industrial facilities and OEM workshops to validate equipment before handover.
Product Advantages
-
High Accuracy: Provides reliable simulation signals to confirm correct probe system performance.
-
Portable Design: Compact and lightweight, making it practical for field use and on-site troubleshooting.
-
Extended Compatibility: Works seamlessly with multiple Bently Nevada probe systems, including legacy and XL series.
-
Reduced Downtime: Enables fast system verification without halting machinery, minimizing operational disruption.
-
Durable Construction: Built with industrial-grade housing to withstand harsh plant conditions.
-
Versatile Usage: Suitable for commissioning, predictive maintenance, and educational purposes.
-
Cost Savings: Prevents unnecessary replacement of probes and reduces time spent on manual inspections.
FAQ
-
What is the primary technical function of the TK-3E 177313-01-02-00?
It simulates shaft displacement signals to verify calibration of Bently Nevada proximity probe systems. -
Which probe systems are compatible with this test kit?
It supports 3300, 3300 XL, 7200 series, and other compatible proximity transducer systems. -
How does the kit ensure calibration accuracy?
By generating precise electrical signals that replicate actual shaft movement conditions, ensuring transducer response remains within specifications. -
Can the TK-3E detect incorrect proximitor settings?
Yes, it can identify misconfigured or faulty proximitor sensors through signal response verification. -
Does the device require specialized software for operation?
No, it functions as a standalone hardware unit and does not require additional software for basic testing. -
How does it assist in troubleshooting probe wiring faults?
By simulating known displacement values, it can quickly highlight inconsistencies caused by damaged or misconnected probe wiring. -
Can the TK-3E be used for periodic calibration checks?
Yes, it is specifically designed for ongoing field calibration and preventive maintenance checks. -
What type of output does the test kit provide to the monitoring system?
It produces standard displacement simulation signals that the monitoring system interprets as shaft movement. -
How does the unit contribute to predictive maintenance programs?
It ensures accurate vibration data, which is essential for predictive maintenance and early detection of machine faults. -
Is the test kit suitable for both commissioning and field diagnostics?
Yes, it is versatile enough to be used in both initial commissioning phases and long-term field troubleshooting tasks.
