Product Introduction

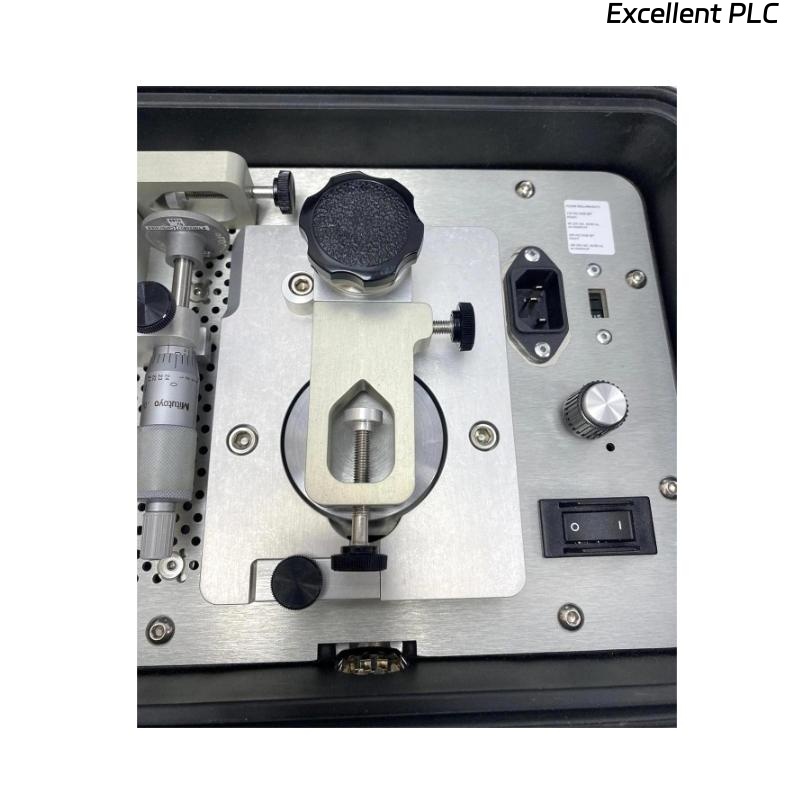

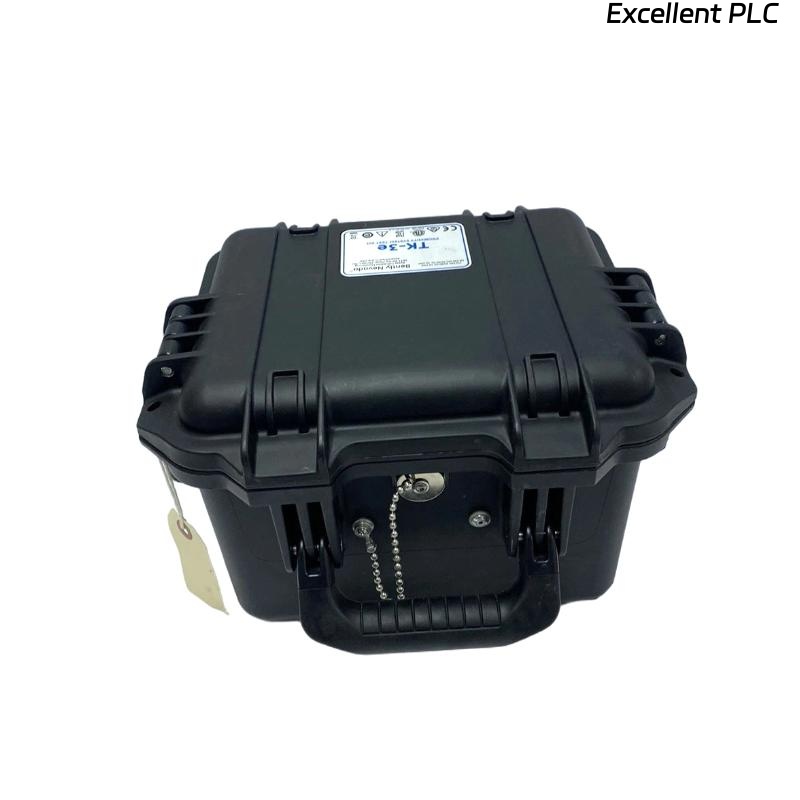

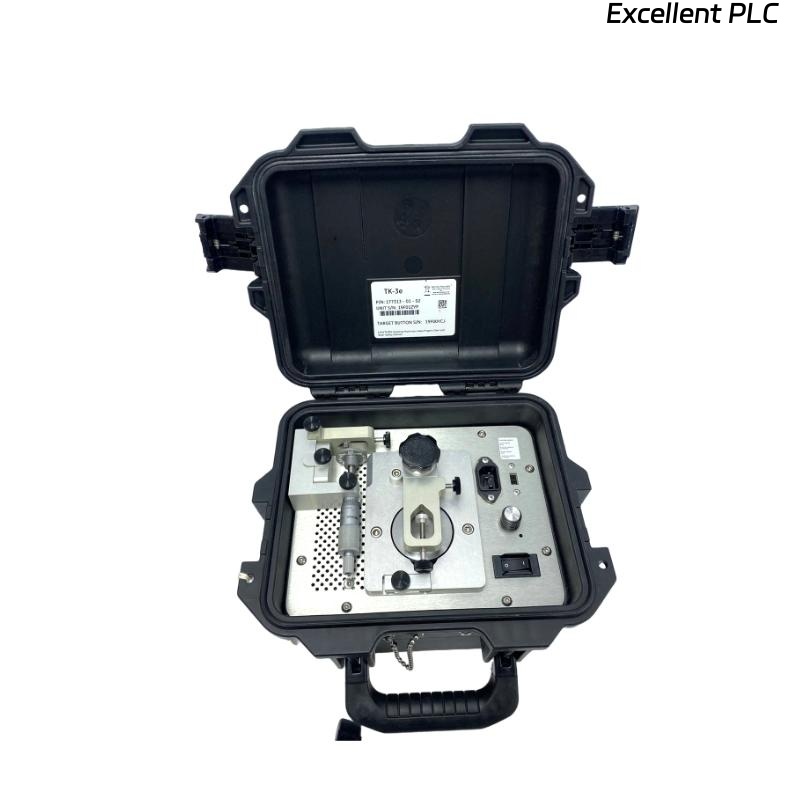

The Bently Nevada TK-3E 177313-02-03 Proximity System Test Kit is a precision instrument designed to provide comprehensive testing, calibration, and verification of proximity probe systems used in industrial machinery monitoring and protection. This test kit enables technicians to simulate and measure the signals of proximity sensors, ensuring accurate readings in turbines, compressors, pumps, and other critical rotating equipment. Engineered for both field and laboratory environments, the TK-3E 177313-02-03 combines rugged construction, reliable performance, and intuitive operation. Using this kit, maintenance teams can validate system functionality, minimize false alarms, and enhance machinery safety and operational reliability.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | TK-3E 177313-02-03 |
| Type | Proximity System Test Kit |
| Input Power | 110–240 VAC, 50/60 Hz |
| Output Signal Types | AC and DC simulated proximity signals |
| Output Amplitude | 0–10 V peak-to-peak adjustable |
| Frequency Range | 0.1 Hz – 10 kHz |
| Accuracy | ±0.05 % full-scale |
| Load Capability | Minimum 600 Ω impedance |
| Control Interface | Front-panel rotary knobs and push-buttons |
| Display | Digital readout for amplitude and frequency |
| Calibration Functions | Proximity probe testing, system simulation, loop verification |
| Indicators | LEDs for power, signal output, and fault detection |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | –20 °C to +60 °C |
| Protection | Over-voltage, short-circuit, and thermal protection |
| Mounting | Portable bench-top unit with handle |
| Dimensions | 195 × 299 × 248 mm |
| Weight | 5.22 kg |
| Certifications | CE, UL, RoHS compliant |
Applications
The TK-3E 177313-02-03 is used extensively in industrial machinery maintenance and monitoring:
-
Turbomachinery Systems: Calibration and verification of proximity probes on turbines, compressors, and pumps.
-
Power Generation: Testing proximity sensor outputs in generators, motors, and auxiliary equipment.
-
Oil & Gas Industry: Validating sensor accuracy in pumps, compressors, and drilling systems.
-
Petrochemical and Chemical Plants: Ensuring reliable proximity system performance in reactors, distillation columns, and mixers.
-
Automated Manufacturing: Supports predictive maintenance by confirming sensor and loop performance.
-
Field and Laboratory Use: Portable design allows testing in controlled lab settings or industrial field environments.
Advantages
-
High Precision: ±0.05 % full-scale output provides accurate proximity system verification.
-
AC and DC Signal Simulation: Enables comprehensive testing of all proximity probe types.
-
Wide Frequency Range: 0.1 Hz to 10 kHz accommodates slow and high-speed rotating machinery.
-
Portable and Durable: Rugged bench-top design with handle allows field deployment.
-
Digital Readout: Real-time display of amplitude and frequency simplifies calibration.
-
User-Friendly Controls: Front-panel knobs and push-buttons provide straightforward signal adjustment.
-
Built-in Protection: Over-voltage, short-circuit, and thermal safeguards protect both the kit and connected systems.
-
Efficient Maintenance: Streamlines verification, reduces false alarms, and minimizes downtime.
FAQ
-
What types of signals can the TK-3E 177313-02-03 generate?
It provides AC and DC simulated proximity signals to accurately replicate sensor behavior for testing purposes. -
What is the frequency range of the output signals?
The output signals range from 0.1 Hz to 10 kHz, suitable for both low-speed and high-speed machinery. -
How accurate are the generated signals?
Outputs are precise to ±0.05 % full-scale, ensuring reliable verification of proximity sensors and systems. -
Can multiple proximity probes be tested simultaneously?
Yes, the kit can drive sensors with a minimum load impedance of 600 Ω, supporting single or multi-channel testing. -
What input power is required for operation?
The kit operates on 110–240 VAC, 50/60 Hz, making it compatible with industrial power systems worldwide. -
Is the kit suitable for field use?
Yes, the portable bench-top design with handle and a weight of 5.5 kg allows convenient field deployment. -
Does it include protection features?
Yes, it has over-voltage, short-circuit, and thermal protection to safeguard the instrument and connected equipment. -
How are signal amplitude and frequency controlled?
The front-panel rotary knobs and push-buttons allow precise adjustment of output signals without software. -
Can it verify the integrity of a proximity sensor loop?
Yes, it supports loop verification, enabling technicians to check system continuity and sensor response. -
Does the test kit provide a display for monitoring output signals?
Yes, digital readouts display both amplitude and frequency, allowing real-time calibration and testing.
Related Models (Same Series or Similar)
| Model | Function | Input Power | Output Type | Weight |
|---|---|---|---|---|
| TK-3E 177313-02-01 | Proximity System Test Kit | 110–240 VAC | AC/DC Signals | 5.4 kg |
| TK-3E 177313-01-01 | Proximity System Test Kit | 110–240 VAC | AC/DC Signals | 5.2 kg |
| TK-3E 177313-01-02 | Proximity System Test Kit | 110–240 VAC | AC/DC Signals | 5.3 kg |
| TK3-2E 177313-02-02 | Calibration Instrument | 110–240 VAC | Sine, Square, Pulse | 4.6 kg |
| TK3-2E 14700-01 | Calibration Instrument | 110–240 VAC | Sine, Square, Pulse | 4.5 kg |
| TK3-2D 14701-01 | Vibration Calibrator | 110–240 VAC | Sine, Square, Pulse | 4.6 kg |
