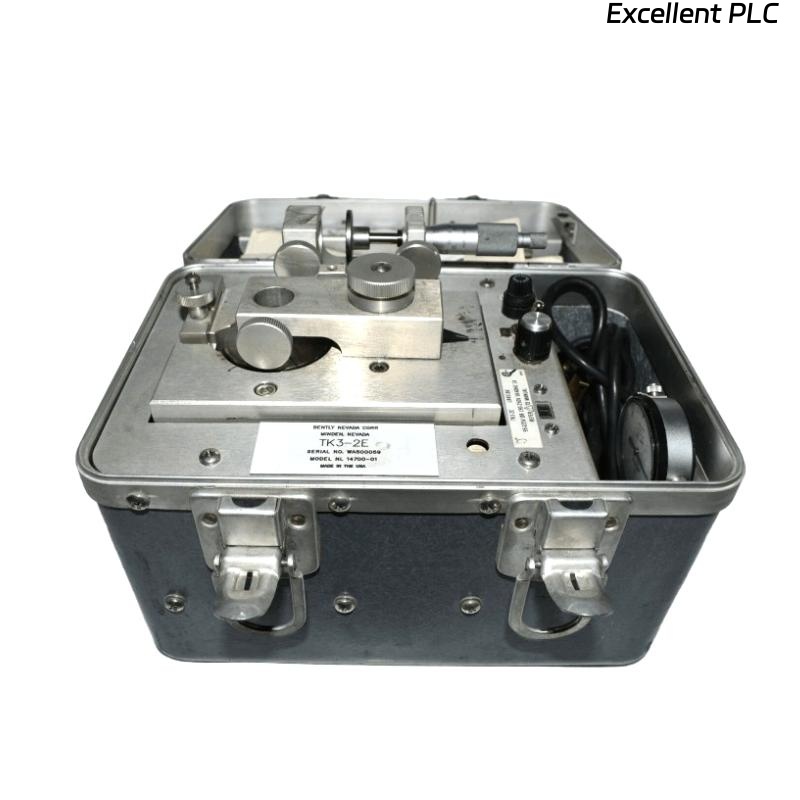

Bently Nevada TK3-2E 14700-01 Calibration Instrument

Product Introduction

The Bently Nevada TK3-2E 14700-01 Calibration Instrument is a precision device engineered for the calibration and verification of vibration, proximity, and temperature monitoring sensors used in industrial machinery protection systems. This instrument provides accurate reference signals to ensure that machinery protection devices, including Bently Nevada 3500 series monitors, operate reliably within specified tolerances. The TK3-2E 14700-01 is built for rugged industrial environments and provides repeatable, high-precision outputs for field or laboratory calibration. Its design simplifies sensor verification, reduces maintenance downtime, and improves overall system accuracy.

---

Technical Specifications

---

Applications

The TK3-2E 14700-01 is used for accurate calibration and testing in various industrial applications:

• Turbomachinery Maintenance: Ensures vibration and proximity sensors on turbines and compressors provide accurate readings.

• Power Generation Plants: Validates the performance of monitoring instruments across generators, turbines, and auxiliary systems.

• Oil & Gas Industry: Provides calibration for vibration and temperature sensors in pumping, compression, and refining operations.

• Chemical and Petrochemical Facilities: Confirms sensor accuracy in reactors, distillation columns, and high-speed rotating equipment.

• Automated Manufacturing: Verifies sensor signals for predictive maintenance and quality assurance.

• Laboratory and Field Testing: Portable design allows for field calibration or controlled lab verification.

---

Advantages

• High Precision: ±0.05 % full-scale accuracy guarantees reliable calibration for critical monitoring systems.

• Multiple Signal Types: Offers sine, square, and pulse waveforms to accommodate various sensor testing requirements.

• Wide Frequency Range: Covers 0.1 Hz to 10 kHz, suitable for slow-rotating and high-speed machinery applications.

• Portable and Rugged: Compact bench-top design for field or lab use with durable construction for industrial conditions.

• Integrated Readout: Digital voltage and frequency display simplifies calibration and verification procedures.

• Flexible Control: Front-panel controls allow fine adjustments without additional tools or software.

• Protective Design: Built-in over-voltage and short-circuit protection safeguard both the instrument and connected sensors.

• Reduced Downtime: Quick calibration and verification reduce maintenance downtime and improve system reliability.

---

FAQ

1. What types of signals can the TK3-2E 14700-01 generate for calibration?
   It provides sine wave, square wave, and pulse outputs, enabling calibration of a wide range of vibration and proximity sensors.

2. What is the frequency range supported by this instrument?
   The output frequency ranges from 0.1 Hz to 10 kHz, covering both low-speed and high-speed machinery monitoring applications.

3. How accurate are the calibration outputs?
   The instrument delivers signals with ±0.05 % full-scale accuracy, ensuring precise sensor verification and system testing.

4. Can it drive multiple sensors at the same time?
   Yes, it is capable of driving sensors with a minimum load impedance of 600 Ω, suitable for single or multiple sensor loops depending on system requirements.

5. What input power is required for operation?
   It operates on a standard 110–240 VAC, 50/60 Hz power supply, making it compatible with global industrial power systems.

6. Is the device portable for field calibration?
   Yes, the compact bench-top design and moderate weight of 4.5 kg make it easily portable for field or lab use.

7. Does the instrument include built-in protection features?
   Yes, it incorporates over-voltage and short-circuit protection to safeguard both the instrument and connected sensors during calibration.

8. How are the output signals controlled and adjusted?
   Signal amplitude and frequency are adjusted using front-panel rotary and push-button controls, allowing precise fine-tuning without external software.

9. Can the TK3-2E 14700-01 be used for temperature sensor verification?
   Yes, it supports excitation and verification for temperature sensors as part of a system calibration routine.

10. Does the instrument provide digital readout for calibration monitoring?
    Yes, it features a digital display showing both output voltage and frequency, enabling accurate verification and monitoring during calibration procedures.

---
