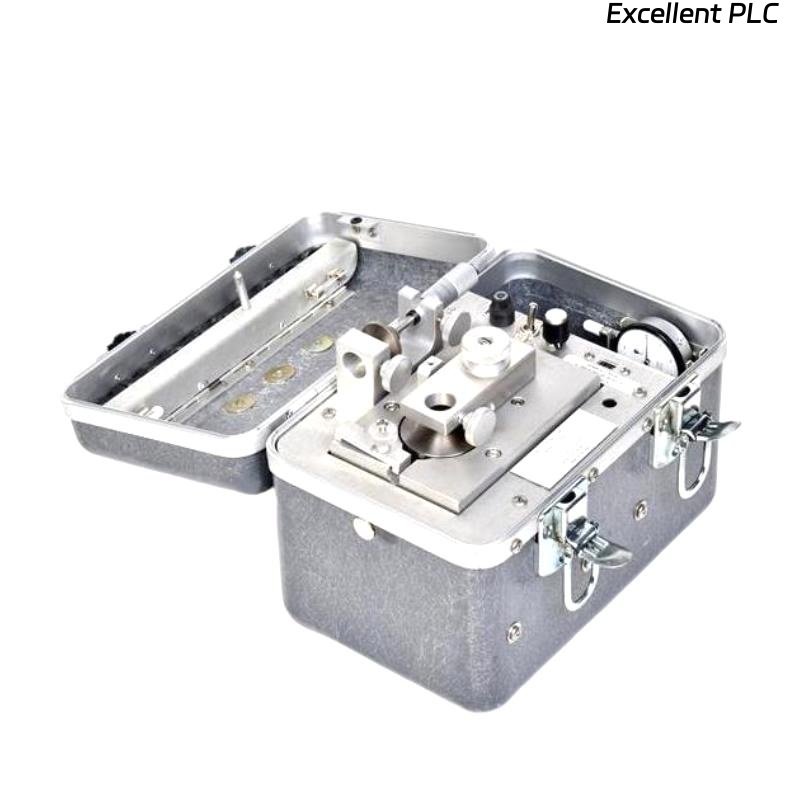

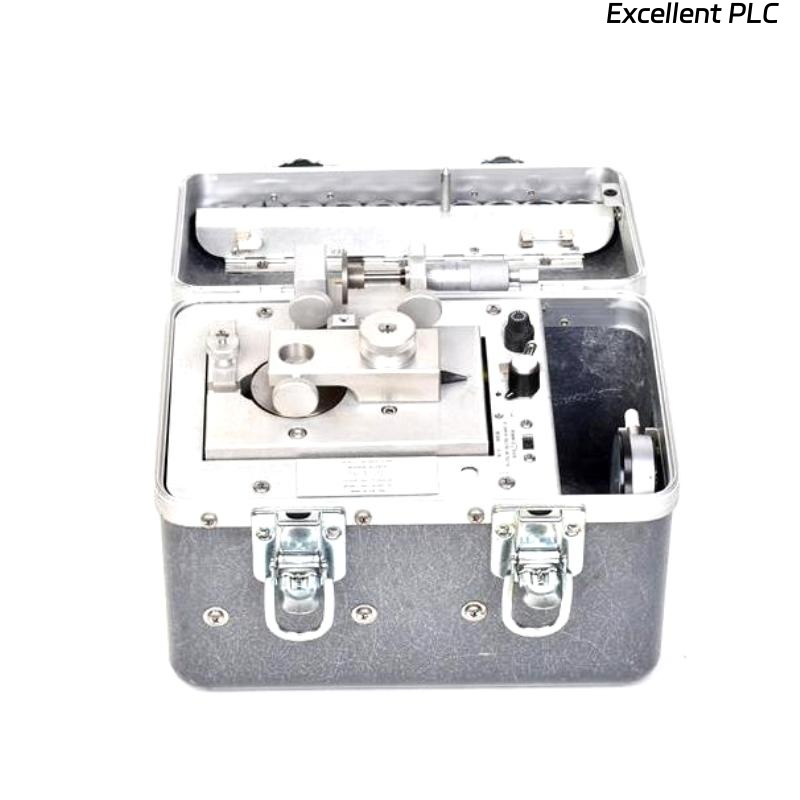

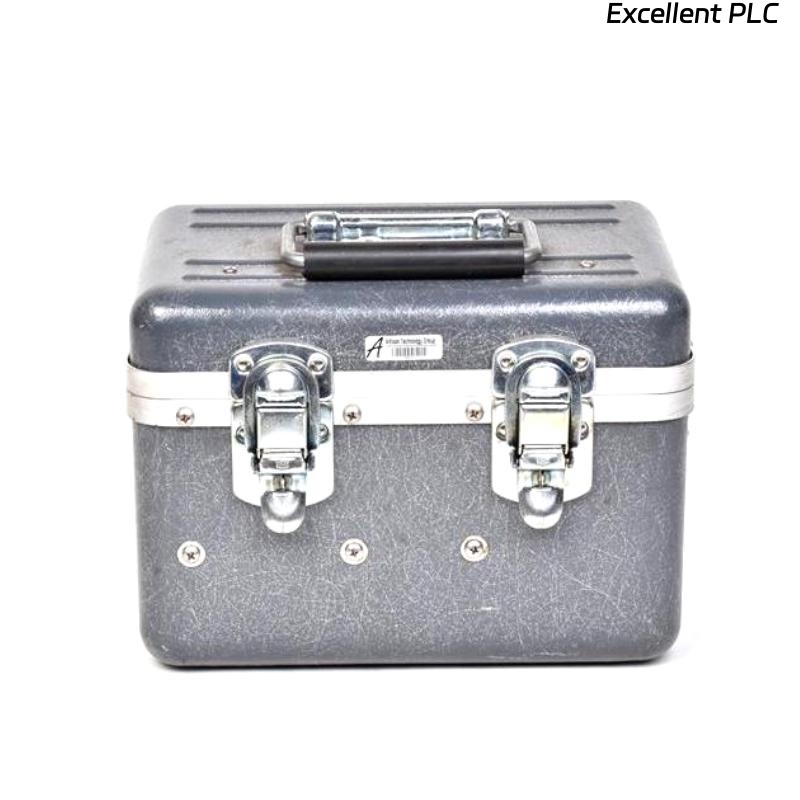

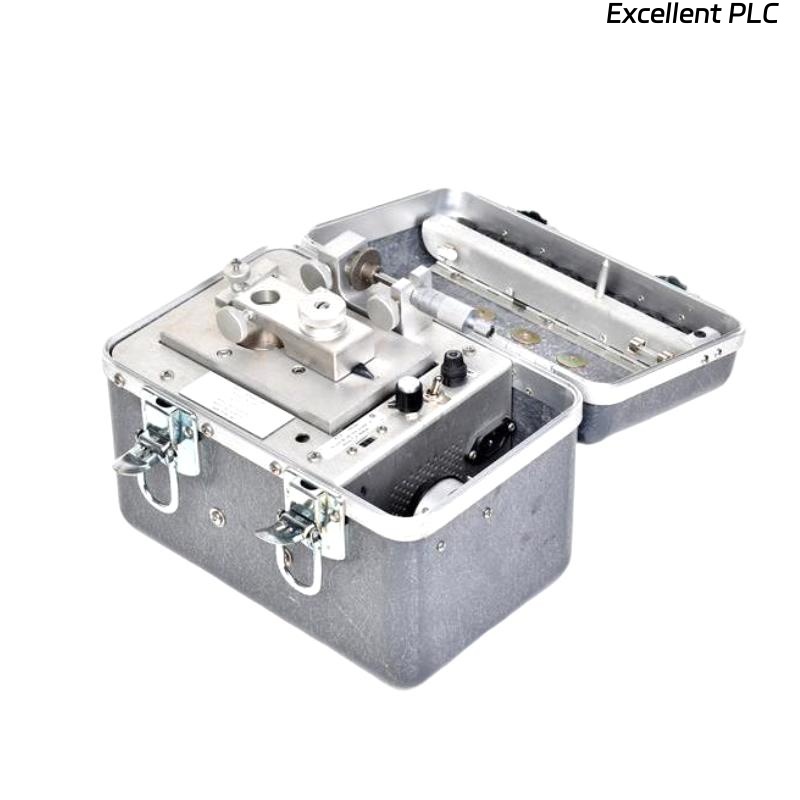

Bently Nevada TK3-2E 177313-02-02 Calibration Instrument

Product Introduction

The Bently Nevada TK3-2E 177313-02-02 Calibration Instrument is a precision device designed to provide accurate calibration for vibration, proximity, and temperature sensors used in machinery protection and condition monitoring systems. This instrument ensures that sensors and monitoring modules operate within strict tolerance ranges, improving the reliability and safety of industrial equipment. Engineered for both field and laboratory use, the TK3-2E 177313-02-02 features robust construction, repeatable signal outputs, and intuitive controls, enabling technicians to verify and adjust sensor performance quickly and efficiently. Its design supports industrial environments such as power generation, petrochemical, and manufacturing facilities.

Technical Specifications

Applications

The TK3-2E 177313-02-02 is applied in industries requiring precise sensor calibration:

• Turbomachinery Maintenance: Verifies turbine and compressor vibration and proximity sensors.

• Power Generation: Calibrates monitoring instruments for generators, turbines, and auxiliary systems.

• Oil & Gas Facilities: Supports calibration for pumps, compressors, and refining equipment sensors.

• Petrochemical Plants: Ensures accurate readings for temperature and vibration monitoring in reactors and distillation units.

• Automated Manufacturing: Facilitates calibration of sensors for predictive maintenance and process quality assurance.

• Laboratory and Field Testing: Provides portable, reliable calibration in both controlled and industrial environments.

Advantages

• High Precision: ±0.05 % full-scale accuracy ensures reliable calibration for critical monitoring systems.

• Multiple Signal Types: Supports sine, square, and pulse waveforms for versatile sensor testing.

• Wide Frequency Range: From 0.1 Hz to 10 kHz, suitable for slow and fast-rotating machinery.

• Portable and Rugged: Compact bench-top design allows field and laboratory use.

• Digital Readout: Displays voltage and frequency for accurate monitoring and adjustment.

• User-Friendly Controls: Front-panel knobs and buttons allow quick fine-tuning without additional software.

• Built-in Protection: Over-voltage, short-circuit, and thermal safeguards protect the instrument and connected sensors.

• Reduced Maintenance Downtime: Streamlines calibration tasks, reducing equipment downtime and improving operational reliability.

FAQ

1. What types of calibration signals does the TK3-2E 177313-02-02 provide?
   It generates sine wave, square wave, and pulse outputs suitable for vibration, proximity, and temperature sensor calibration.

2. What is the frequency range of the outputs?
   The instrument supports a frequency range from 0.1 Hz to 10 kHz, accommodating a wide variety of industrial machinery monitoring needs.

3. How accurate are the calibration outputs?
   Output signals have an accuracy of ±0.05 % full-scale, ensuring precise sensor verification.

4. Can it drive multiple sensors simultaneously?
   Yes, it can drive sensors with a minimum load impedance of 600 Ω, suitable for single or multi-sensor loops.

5. What input power is required?
   The instrument operates on 110–240 VAC, 50/60 Hz, making it suitable for global use.

6. Is the instrument portable for field use?
   Yes, its bench-top design and weight of 4.6 kg allow easy portability for field or lab calibration.

7. Does it include protective features?
   Yes, it has built-in over-voltage, short-circuit, and thermal protection to safeguard both the instrument and sensors.

8. How are output signals adjusted?
   Front-panel rotary knobs and push-buttons allow precise control of voltage and frequency outputs.

9. Can it calibrate temperature sensors?
   Yes, it provides excitation and verification for temperature sensors as part of a full system calibration.

10. Does it provide a display for calibration monitoring?
    Yes, digital readouts display voltage and frequency, allowing accurate calibration verification in real-time.
