Product Introduction

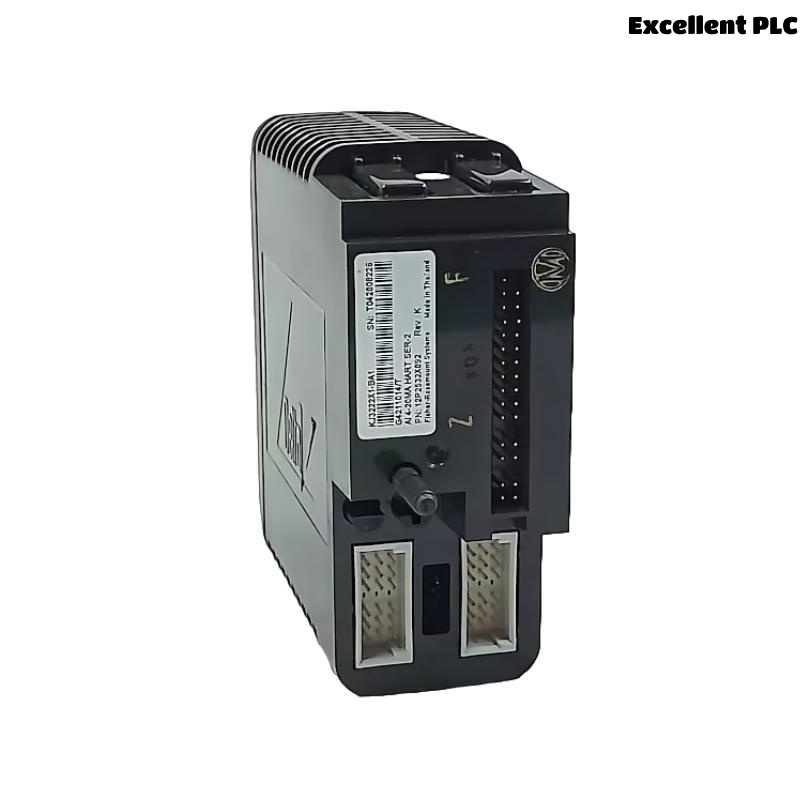

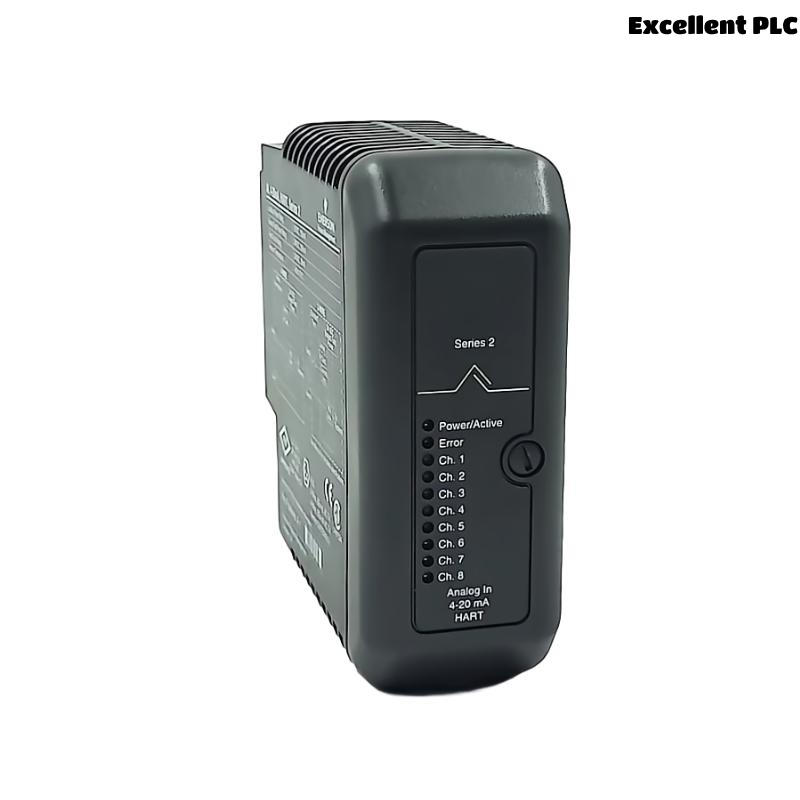

The Emerson CE4003S2B3 KJ3222X1-BA1 Analog Input Module is a high-precision signal acquisition component designed for use within the Emerson DeltaV distributed control system (DCS). This module is engineered to interface with various analog sensors and transducers, converting low-level process signals into digital data for accurate process monitoring and control.
With superior signal conditioning, galvanic isolation, and noise immunity, the CE4003S2B3 KJ3222X1-BA1 ensures reliable performance in harsh industrial environments. Its ability to handle a wide range of input signals makes it suitable for diverse applications in oil & gas, power generation, chemical processing, and pharmaceutical manufacturing. The module supports advanced diagnostics and is fully compatible with redundant DeltaV architectures, ensuring high availability for critical process control systems.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | Emerson CE4003S2B3 KJ3222X1-BA1 |
| Product Type | Analog Input Module |
| System Platform | Emerson DeltaV Distributed Control System |
| Input Channels | 8 isolated analog input channels |
| Input Signal Range | 0–10 V, ±10 V, 0–20 mA, 4–20 mA |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1% of reading |
| Galvanic Isolation | 1500 V RMS channel-to-system isolation |
| Diagnostics | Channel diagnostics and self-test capability |
| Update Rate | High-speed acquisition for real-time control |
| Communication Interface | DeltaV I/O bus |
| Redundancy Support | Fully compatible with redundant configurations |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Power Supply Requirement | 24 VDC nominal |
| Mounting Type | DeltaV I/O Carrier Mounted |
| Compliance Standards | CE, UL, CSA, ATEX, IECEx |
| Dimensions (H x W x D) | 107 x 41 x 105 mm |
| Weight | 0.18 kg |
Product Applications
The Emerson CE4003S2B3 KJ3222X1-BA1 is widely used in industrial process control systems where accurate analog signal acquisition is required. Applications include:
-
Process Monitoring: Acquires data from temperature, pressure, flow, and level sensors.
-
Oil & Gas Operations: Interfaces with transmitters for upstream, midstream, and downstream control.
-
Power Generation: Used for turbine and boiler process variable monitoring.
-
Chemical and Petrochemical Plants: Handles diverse analog signals for continuous and batch process control.
-
Pharmaceutical Manufacturing: Provides accurate data acquisition for validated process control systems.
-
General Industrial Automation: Suitable for any application requiring precise analog input measurement.
Product Advantages
-
High-Precision Acquisition: 16-bit resolution and ±0.1% accuracy ensure reliable measurements.
-
Versatile Signal Support: Handles both voltage and current inputs, including 4–20 mA loops.
-
Advanced Diagnostics: Built-in channel diagnostics enhance system reliability and maintenance.
-
Galvanic Isolation: 1500 V RMS isolation improves safety and protects control electronics.
-
Seamless DeltaV Integration: Designed for direct compatibility with Emerson DeltaV DCS platforms.
-
Redundancy-Ready: Fully supports redundant configurations for high-availability systems.
FAQ
-
How many channels does the CE4003S2B3 KJ3222X1-BA1 support?
It provides 8 isolated analog input channels for versatile signal acquisition. -
What signal ranges are compatible with this module?
It supports 0–10 V, ±10 V, 0–20 mA, and 4–20 mA analog signals. -
What is the resolution of the A/D conversion?
The module offers 16-bit resolution for accurate process measurements. -
Does it provide galvanic isolation?
Yes, it features 1500 V RMS channel-to-system isolation to protect the control system. -
Is the module compatible with redundant DeltaV systems?
It fully supports redundant controller and I/O configurations. -
Can it detect wiring faults in 4–20 mA loops?
Yes, it includes diagnostics for open circuits and out-of-range signals. -
Does the CE4003S2B3 support hot-swapping?
It can be replaced during operation without shutting down the system. -
What is the typical accuracy of the module?
The module provides ±0.1% of reading accuracy for precise control. -
What industries commonly use this module?
It is widely used in oil & gas, power generation, chemical, and pharmaceutical plants. -
Does the module include built-in diagnostics?
Yes, it has self-test and channel diagnostics to ensure reliable operation.
