Product Introduction

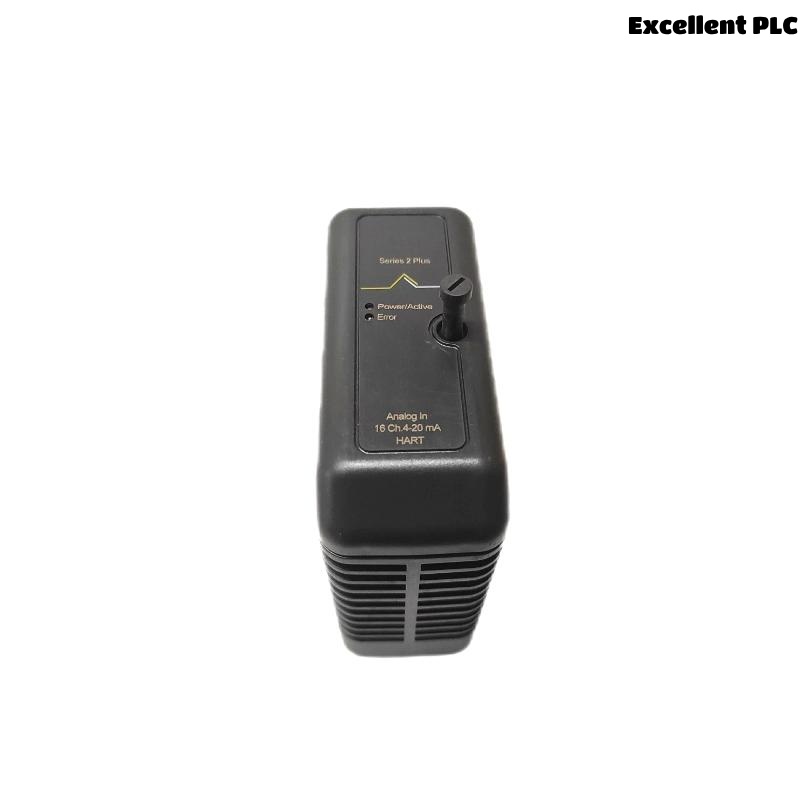

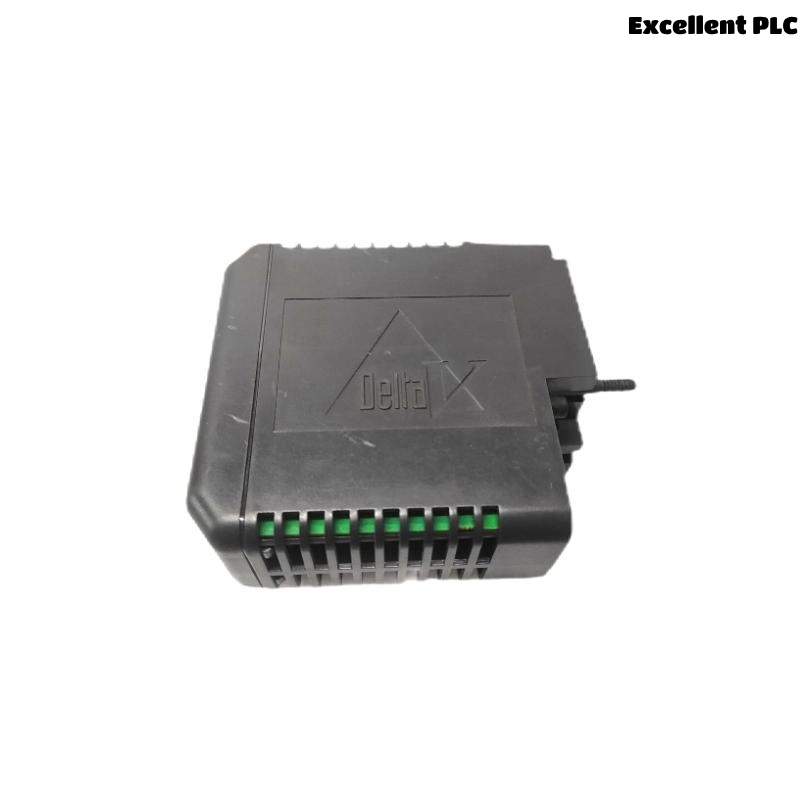

The Emerson KC3010X1-BA1 Analog Input Module is a high-performance input module designed to capture and convert analog signals for use within distributed control systems (DCS) and programmable logic controllers (PLC). Engineered to deliver high accuracy, reliability, and flexibility, this module is widely deployed in industrial automation environments, particularly in sectors like oil and gas, power generation, petrochemicals, and manufacturing.
This module supports multiple analog input channels and offers advanced filtering, diagnostics, and configurable ranges, enabling robust and noise-resistant data acquisition. Built to meet Emerson’s rigorous quality standards, it integrates seamlessly with Ovation and DeltaV control systems, among others.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | KC3010X1-BA1 |
| Manufacturer | Emerson |
| Product Type | Analog Input Module |
| Input Type | Analog, configurable (Voltage / Current) |
| Input Channels | 8 channels (differential) |
| Input Signal Range | 0–10 VDC, ±10 VDC, 0–20 mA, 4–20 mA |
| Input Impedance | > 250 kΩ (Voltage), 250 Ω (Current) |
| Resolution | 16-bit ADC |
| Accuracy | ±0.1% of full scale |
| Sampling Rate | 10 samples/sec per channel |
| Isolation Voltage | 1500 VDC (channel to logic isolation) |
| Calibration | Auto and manual calibration support |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN Rail or Panel Mounted |
| Compatibility | Ovation™ / DeltaV™ Systems |
| Power Supply | 24 VDC nominal |
| Power Consumption | < 3 W |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.3 kg |
| Approvals/Certifications | CE, UL, CSA, RoHS |
Product Applications
-
Process Industries: Accurate signal acquisition from field instruments in industries such as chemicals, refining, and food processing.
-
Energy Sector: Used in power generation plants to monitor analog parameters like temperature, pressure, or voltage.
-
Oil and Gas: Installed in upstream and downstream control environments to manage sensor feedback.
-
Water Treatment: Monitors pH, flow, and other analog values from field sensors.
-
Factory Automation: Enables real-time monitoring and control of machines and production lines.
-
Pharmaceutical Manufacturing: Ensures precise and clean analog data collection for quality and compliance.
Product Advantages
-
High Accuracy and Resolution: Delivers 16-bit precision with minimal error for reliable data capture.
-
Multi-Range Support: Accepts various signal types—voltage and current—for flexible deployment.
-
Rugged and Reliable: Designed to operate in harsh industrial conditions with wide temperature and humidity tolerance.
-
Built-In Diagnostics: Offers real-time status monitoring and fault indication, aiding in proactive maintenance.
-
Low Power Consumption: Energy-efficient design with low thermal output.
-
Seamless Integration: Fully compatible with Emerson’s Ovation and DeltaV control systems for streamlined engineering and commissioning.
-
Compact Form Factor: Saves space in control panels and enclosures, supporting both DIN and panel mounting.
Frequently Asked Questions (FAQ)
-
What type of signals does the KC3010X1-BA1 support?
It supports both voltage and current analog signals, including 0–10V, ±10V, 0–20mA, and 4–20mA. -
Can the module be used in a DeltaV system?
Yes, it is fully compatible with both Ovation™ and DeltaV™ systems. -
How many channels does the KC3010X1-BA1 have?
It provides 8 analog input channels in differential mode. -
Is the module isolated?
Yes, it provides 1500 VDC isolation between input channels and logic. -
Does it support hot-swapping?
Depending on the backplane and system configuration, hot-swapping is supported in certain Emerson systems. -
Is there a built-in calibration function?
Yes, the module supports both automatic and manual calibration options. -
What’s the resolution of the input?
The module features a 16-bit analog-to-digital converter for high resolution. -
Can I use it for both current and voltage inputs simultaneously?
Inputs are configurable per channel, allowing mixed signal types with appropriate configuration. -
Does it come with diagnostics?
Yes, it includes built-in diagnostics for channel health and error detection. -
What are the certification standards?
It complies with CE, UL, CSA, and RoHS standards for safety and environmental compliance.
Related Models (Same Series or Compatible)
| Model | Description | Input Type | Channels | System Compatibility |
|---|---|---|---|---|
| KC3011X1-BA1 | Analog Input, High-Density | Voltage/Current | 16 | Ovation™, DeltaV™ |
| KC3020X1-BA1 | Analog Output Module | Voltage/Current Output | 8 | Ovation™, DeltaV™ |
| KC3010X1-BB1 | Analog Input, Extended Temp. Range | Voltage/Current | 8 | Ovation™, DeltaV™ |
| KC3030X1-BA1 | Thermocouple Input Module | Type J/K/T/B/E/N/R/S | 8 | Ovation™, DeltaV™ |
| KC3040X1-BA1 | RTD Input Module | RTD (Pt100, Pt1000) | 8 | Ovation™, DeltaV™ |
| KC3050X1-BA1 | High-Speed Analog Input | Voltage only | 8 | Ovation™, DeltaV™ |
