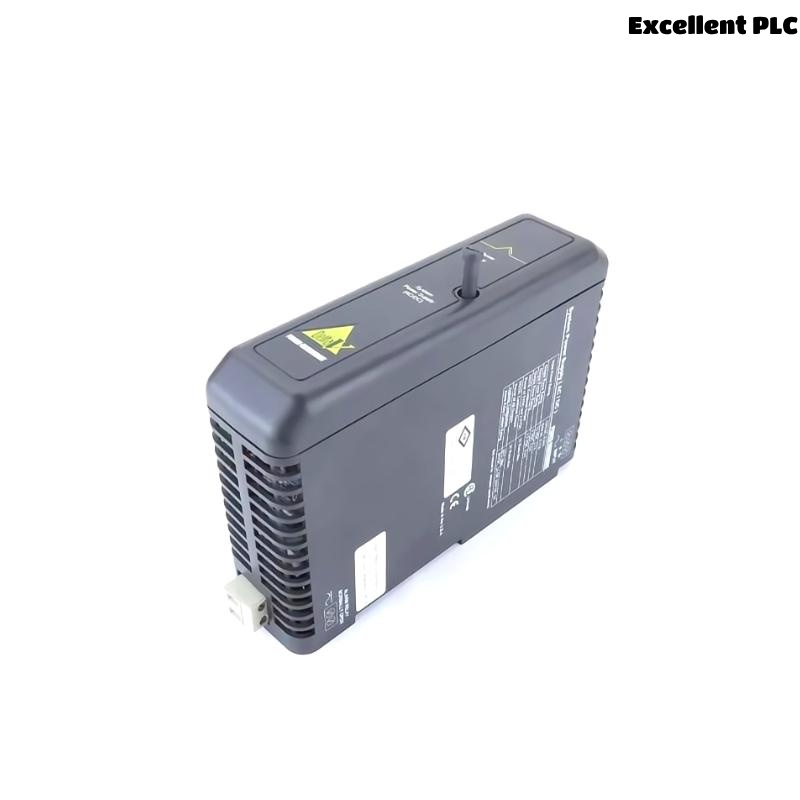

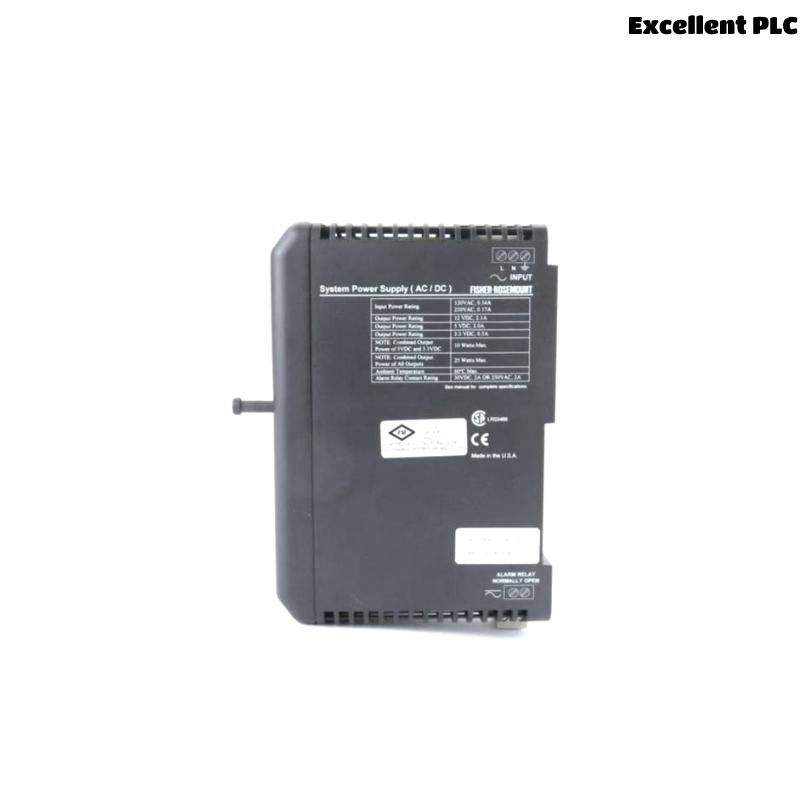

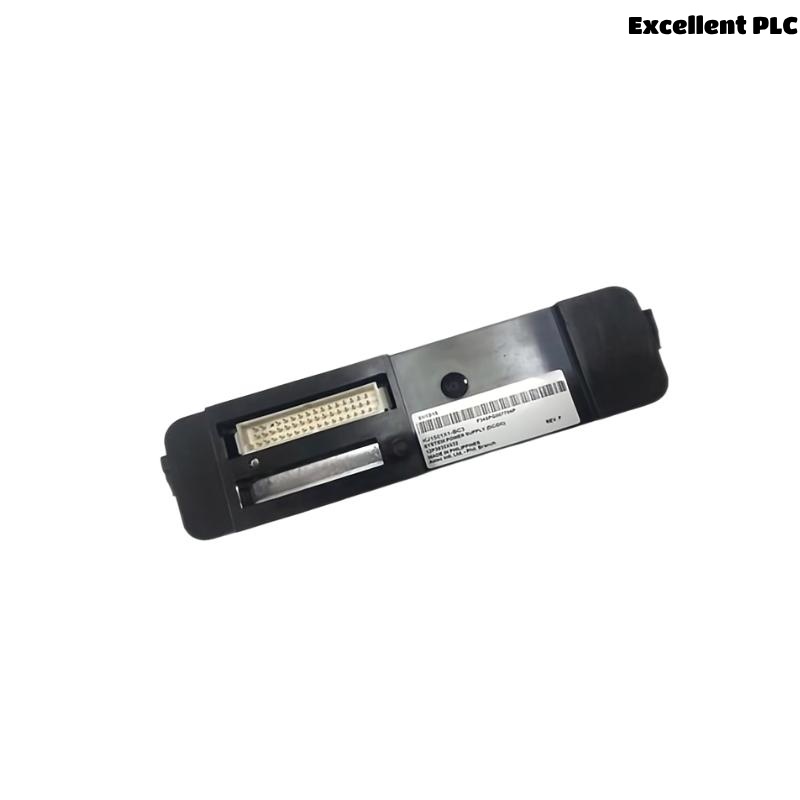

Emerson KJ1501X1-BA1 Power Supply Module

Product Introduction

The Emerson KJ1501X1-BA1 is a reliable and robust power supply module specifically designed for use with the DeltaV Distributed Control System (DCS). It serves as a critical component to deliver regulated DC power to control modules and field devices within the DeltaV architecture, ensuring stable and consistent operation of the control system.

This power supply module converts incoming AC power to a reliable 24 V DC output, tailored to meet the stringent demands of industrial automation environments. It features built-in protections against common power disturbances, including overload, short circuit, and overvoltage conditions, safeguarding downstream equipment and enhancing system reliability.

Designed with high efficiency and durability in mind, the KJ1501X1-BA1 supports continuous operation in harsh industrial settings, withstanding wide temperature ranges and electrical noise. The module is engineered to be easily integrated into Emerson’s DeltaV racks, facilitating straightforward installation and maintenance.

Technical Specifications

Applications

The Emerson KJ1501X1-BA1 power supply module is widely used across industries where Emerson DeltaV control systems are deployed. Typical applications include:

• Powering DeltaV controller and I/O modules in process automation plants.

• Supplying stable DC power to distributed control racks in chemical and petrochemical plants.

• Supporting power needs in oil and gas production and refining facilities.

• Providing reliable power for water and wastewater treatment automation.

• Use in pharmaceutical and food processing industries where process control is critical.

• Industrial environments requiring high system uptime and fail-safe power delivery.

Advantages

• Reliable Power Delivery: Provides a stable and consistent 24 V DC output, critical for control system reliability.

• Robust Protection: Equipped with overload, short circuit, and overvoltage protection to prevent damage to connected equipment.

• Wide Input Voltage Range: Can operate across 100-240 V AC, accommodating global power standards.

• Compact Design: Slim module fits neatly into Emerson DeltaV racks, saving space.

• High Efficiency: Optimized to reduce heat generation and energy loss.

• Wide Operating Conditions: Designed to function under a broad temperature and humidity range.

• Ease of Integration: Fully compatible with DeltaV system architecture, enabling plug-and-play installation.

• Industry Certifications: Meets stringent industrial safety and quality standards.

Frequently Asked Questions (FAQ)

1. What is the output voltage and current of the KJ1501X1-BA1?
   The module outputs a regulated 24 V DC at a maximum current of 5 A.

2. Can this power supply operate with different input voltages?
   Yes, it supports an input voltage range from 100 to 240 V AC at 50/60 Hz.

3. Is the module designed for use outside Emerson DeltaV systems?
   It is specifically designed and optimized for Emerson DeltaV systems but can be used in compatible rack configurations.

4. What protection features does this power supply offer?
   It has built-in overload, short circuit, and overvoltage protection.

5. What are the physical dimensions of this power supply?
   It measures 125 x 105 x 40 mm.

6. How is the module mounted?
   It is rack-mounted within the Emerson DeltaV control system racks.

7. What is the operating temperature range?
   It is rated for operation between 0 °C and 60 °C.

8. Does this module have any certifications?
   Yes, it holds CE, UL, and CSA certifications.

9. Can this module handle power surges or spikes?
   It includes overvoltage protection to help mitigate damage from power surges.

10. What is the typical lifespan or maintenance interval for this power supply?
    With proper installation and operating conditions, it is designed for continuous long-term operation with minimal maintenance.
