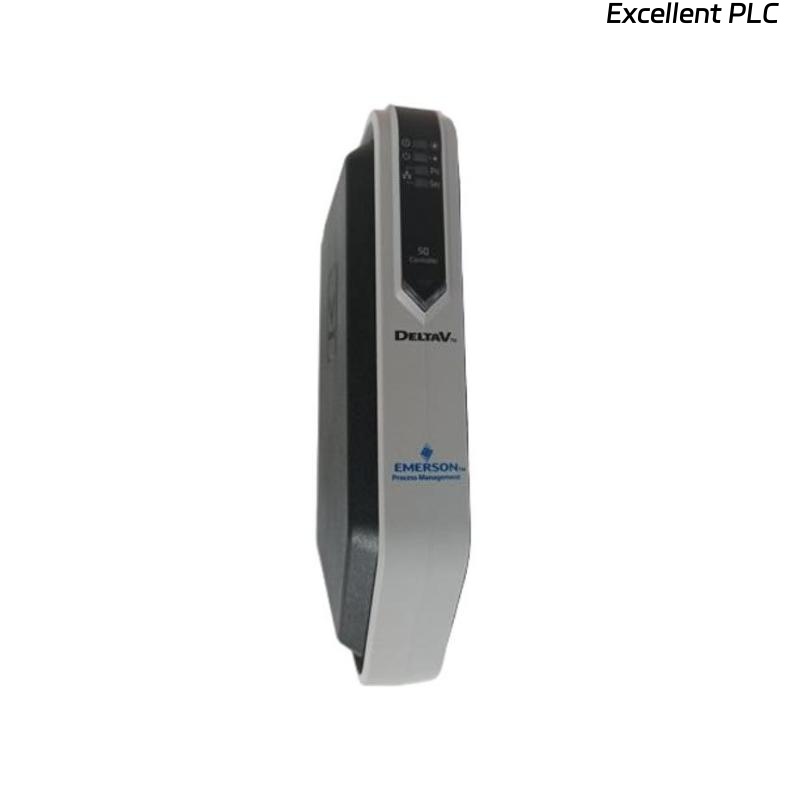

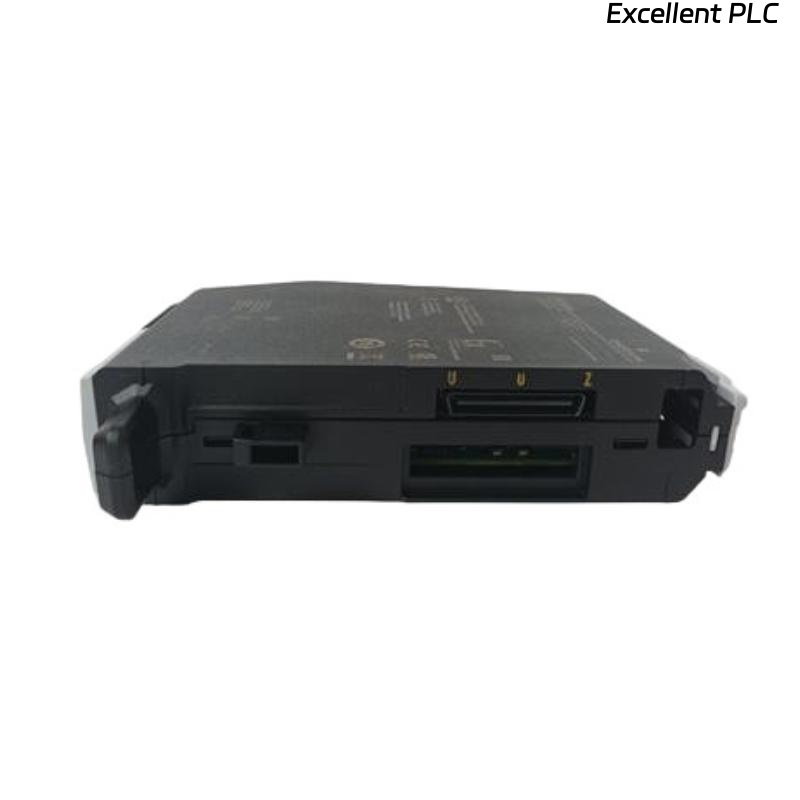

The Emerson KJ1501X1-BC4 Power Module is a vital component of the DeltaV™ distributed control system. It supplies regulated power to the DeltaV CHARM I/O modules, ensuring stable and reliable operation. Designed for high efficiency and robust performance, this module supports critical automation processes across various industrial sectors.
Key Features
-
Provides stable, regulated power for DeltaV CHARM I/O modules
-
High efficiency with low power loss
-
Compact design for easy integration in control cabinets
-
Designed to operate reliably under industrial conditions
-
Supports wide temperature and humidity ranges
-
Meets industrial safety and electromagnetic compatibility standards
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ1501X1-BC4 |
| Module Type | Power Supply Module |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Output Voltage | 24 VDC ±5% |
| Output Current | Up to 5 A |
| Efficiency | Typically >85% |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95%, non-condensing |
| Dimensions | 125 x 105 x 40 mm |
| Weight | 1.03 kg |
| Safety Certifications | UL, CE, cUL |
Industry Applications
-
Distributed control systems (DCS) power supply
-
Process automation in oil & gas, chemical, power generation, and manufacturing
-
Providing reliable power for DeltaV CHARM I/O modules
-
Industrial environments requiring robust and efficient power modules
Product Advantages
-
Ensures continuous and stable power delivery for critical control components
-
Compact and efficient design reduces cabinet space and energy consumption
-
Wide input voltage range allows global application
-
Robust construction for long-term reliability in harsh environments
-
Compliance with key industrial standards guarantees safe operation
Frequently Asked Questions (FAQ)
-
What input voltage range does the KJ1501X1-BC4 support?
It supports 100-240 VAC at 50/60 Hz. -
What output voltage and current does the module provide?
24 VDC ±5%, up to 5 A output current. -
Can this power module operate in harsh environments?
Yes, it is designed to operate reliably from 0°C to 60°C and withstands industrial conditions. -
Is the module compatible with DeltaV CHARM I/O modules?
Yes, it is specifically designed to power DeltaV CHARM modules. -
What are the module dimensions?
Approximately 125mm x 105mm x 40 mm. -
Does it have safety certifications?
Yes, it holds UL, CE, and cUL certifications. -
What is the efficiency of the power module?
Typically greater than 85%. -
Is the power module fan-cooled or convection-cooled?
It is convection-cooled for silent and maintenance-free operation. -
Can it be used worldwide?
Yes, the wide input voltage range makes it suitable for global use. -
What is the expected lifespan of this power module?
When used according to specifications, it offers long-term reliable service typical of Emerson products.
