Product Introduction

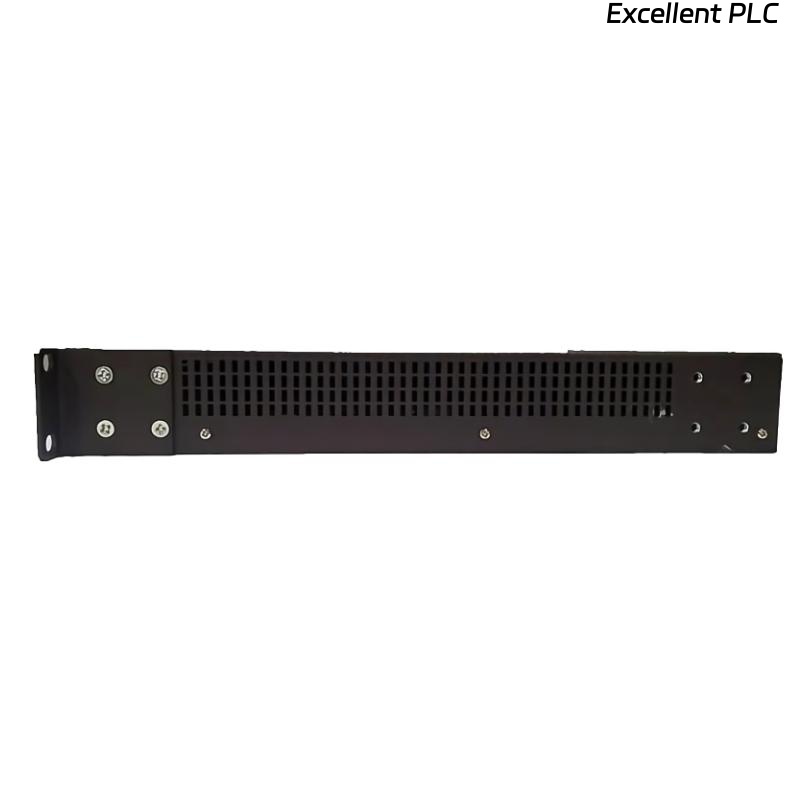

The Emerson KJ1611X1-FD1 Network Switch Module is a robust, industrial-grade Ethernet communication device designed for use in demanding process automation and distributed control systems. As a core component in Emerson’s DeltaV architecture, this managed switch module ensures high-speed, reliable, and deterministic data communication across the system’s network infrastructure. It supports advanced networking features like redundancy, diagnostics, VLAN tagging, and secure traffic segmentation—making it ideal for real-time industrial control environments.
Tailored to meet the needs of critical infrastructure such as oil & gas plants, power stations, and chemical manufacturing, the KJ1611X1-FD1 module provides unparalleled communication stability and integrity. With Emerson’s engineering excellence behind it, this module is designed to deliver consistent performance under extreme environmental and electrical conditions.
Product Specifications
| Parameter | Details |
|---|---|
| Model | KJ1611X1-FD1 |
| Product Type | Network Switch Module |
| Number of Ports | 8 x 10/100 Mbps Ethernet ports |
| Switching Capacity | 1.6 Gbps |
| Forwarding Rate | Wire-speed on all ports |
| Redundancy Protocols | Supports redundant ring and dual-network topology |
| VLAN Support | IEEE 802.1Q VLAN tagging |
| QoS Support | Yes (Layer 2 prioritization) |
| Network Diagnostics | Real-time link status and traffic monitoring |
| Supported Standards | IEEE 802.3, 802.1D, 802.1Q, 802.1p |
| EMI/RFI Protection | Integrated shielding |
| Power Input | 24 VDC (Nominal) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | DIN-rail or panel mount |
| Compliance Certifications | CE, UL, FCC, CSA, RoHS |
| Dimensions (L x W x H) | 240 x 100 x 30 mm |
| Weight | 0.65 kg |
Product Applications
-
Distributed Control Systems (DCS): Seamlessly connects controllers, I/O devices, and operator workstations in Emerson DeltaV environments.
-
Industrial Ethernet Segmentation: Ensures secure and manageable data flow across plant-wide Ethernet backbones.
-
Redundant Network Infrastructure: Supports dual-ring or dual-homed topologies for mission-critical control systems requiring high availability.
-
Process Industries: Used in oil & gas, petrochemicals, pharmaceuticals, water treatment, and food processing facilities.
-
Power Generation: Maintains control system communications in thermal, nuclear, and renewable energy plants.
-
Remote I/O and Field Device Integration: Acts as a bridge between control networks and fieldbus or remote I/O nodes.
Product Advantages
-
Industrial Reliability: Engineered for 24/7 operations in harsh and electrically noisy environments.
-
High-Speed Communication: Delivers full wire-speed switching to prevent delays and bottlenecks.
-
Advanced Diagnostics: Built-in traffic and port status monitoring for real-time troubleshooting.
-
Redundancy Support: Enables fault-tolerant architectures that automatically recover from network failures.
-
Seamless DeltaV Integration: Certified for compatibility with Emerson’s DeltaV control system platform.
-
Flexible Configuration: Supports VLANs, Quality of Service (QoS), and port prioritization for deterministic traffic flow.
FAQ
-
Does the KJ1611X1-FD1 support VLAN tagging for traffic segmentation?
Yes, it fully supports IEEE 802.1Q VLAN tagging, allowing for secure and isolated network segments. -
Can the switch be integrated into redundant network topologies?
Absolutely. It supports dual-homed and redundant ring configurations to enhance network availability. -
What kind of traffic prioritization does the module support?
The module supports Layer 2 Quality of Service (QoS) to ensure time-critical control data is prioritized. -
Is the switch managed or unmanaged?
The KJ1611X1-FD1 is a fully managed switch with configurable features via Emerson system tools. -
How does the module handle link failure detection and recovery?
It supports real-time diagnostics and can trigger redundancy mechanisms in milliseconds. -
What protocols does the KJ1611X1-FD1 support for industrial networking?
It supports standard IEEE 802.3, 802.1D for bridging, 802.1Q for VLANs, and 802.1p for priority. -
Can the module be configured remotely?
Yes, configuration and diagnostics can be accessed through integrated system software tools. -
Is the switch compatible with third-party Ethernet devices?
Yes, it is fully compliant with standard Ethernet protocols and can interoperate with other industrial switches. -
Does the module support port mirroring for network analysis?
Yes, port mirroring is supported for diagnostics and traffic analysis using network monitoring tools. -
What kind of electromagnetic protection is built into the unit?
The switch includes built-in EMI/RFI shielding to protect against industrial electrical interference.
