Product Overview

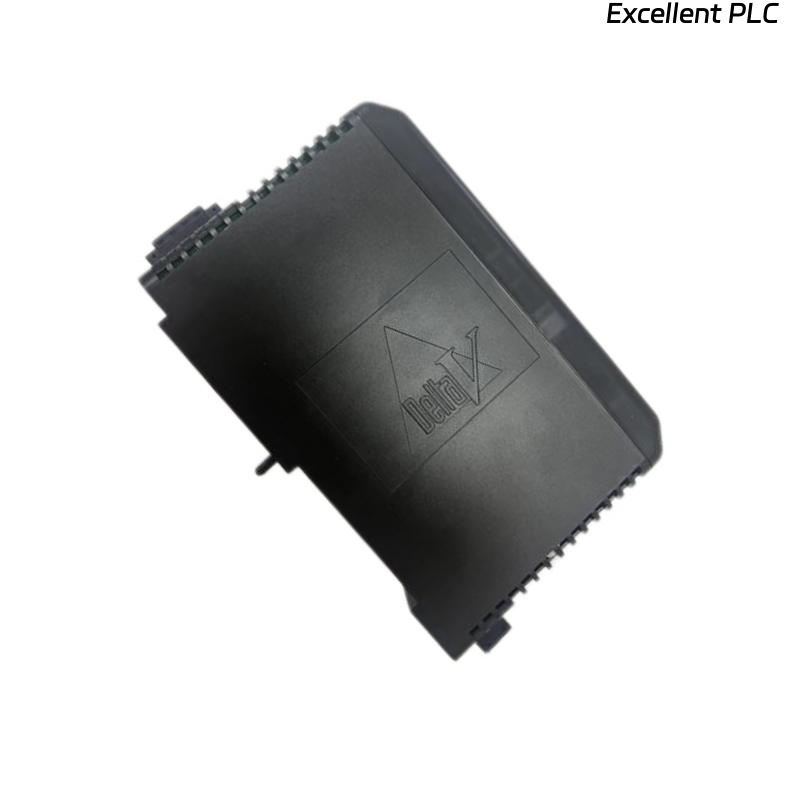

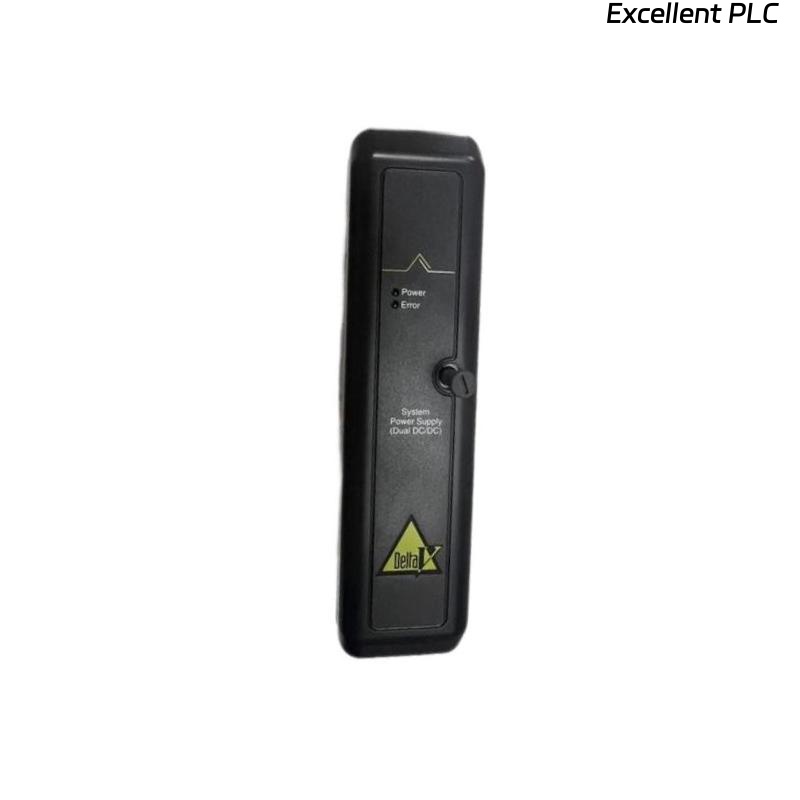

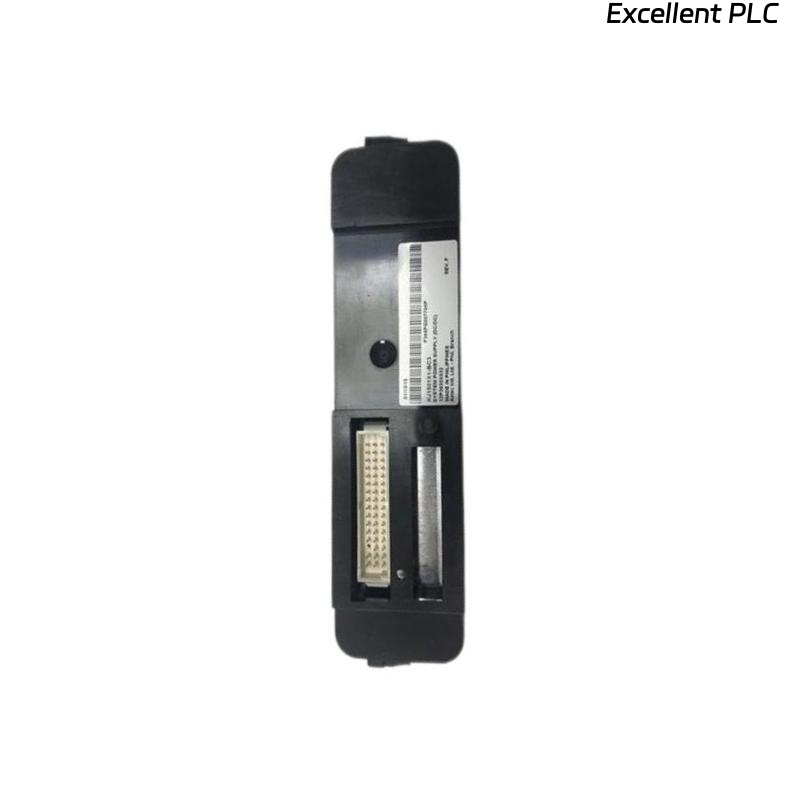

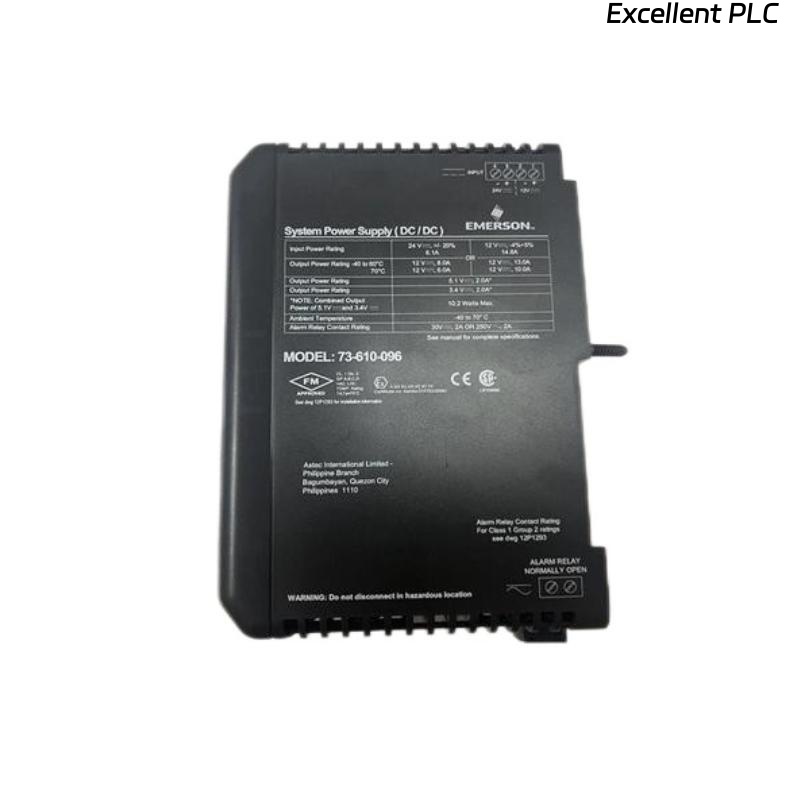

The Emerson KJ2001X1-BA1 Power Module is an integral component of the DeltaV™ distributed control system (DCS). It supplies regulated power to DeltaV controllers and I/O cards, ensuring consistent and reliable performance across the system. Designed for high reliability and seamless integration, this module contributes to the overall robustness and uptime of industrial automation infrastructures.
Key Features
-
Delivers regulated power for DeltaV control system components
-
Hot-swappable to minimize downtime during maintenance
-
Built-in diagnostics and LED status indicators
-
Easy installation via plug-and-play configuration
-
Designed for high availability in demanding environments
-
Compatible with multiple DeltaV chassis configurations
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ2001X1-BA1 |
| Module Type | Power Supply Module |
| Function | Provides regulated power to DeltaV modules |
| Input Voltage | 24 VDC nominal (18–30 VDC range) |
| Output Voltage | Regulated per DeltaV system requirements |
| Output Power | Up to 25 W |
| Ripple/Noise | < 50 mVp-p |
| Efficiency | ≥ 85% typical |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95%, non-condensing |
| Hot-Swappable | Yes |
| Mounting Type | System carrier or backplane |
| Status Indicators | Power and fault LEDs |
| Compliance | CE, UL, CSA, RoHS |
| Dimensions | 125 x 105 x 40 mm |
| Weight | 1.03 kg |
Industry Applications
-
Distributed control systems (DCS)
-
Process automation and monitoring
-
Energy and utilities (oil & gas, power plants)
-
Manufacturing (pharmaceuticals, chemicals)
-
Water treatment and environmental systems
Product Advantages
-
Reliable power supply to critical system components
-
Supports uninterrupted operation during module replacement
-
Quick installation with minimal configuration
-
Compact and lightweight design saves panel space
-
Certified for industrial safety and EMC standards
-
Integral diagnostics improve maintenance efficiency
Frequently Asked Questions (FAQ)
-
What is the function of the KJ2001X1-BA1?
It provides regulated DC power to DeltaV controllers and I/O modules. -
Can it be hot-swapped during system operation?
Yes, the module supports hot-swapping. -
What type of input power does it accept?
It accepts 24 VDC nominal, with a range of 18–30 VDC. -
Does it require external configuration?
No, it’s plug-and-play with automatic system recognition. -
What is the typical output power?
Up to 25 watts. -
Is it compatible with all DeltaV systems?
Yes, it integrates with most DeltaV controller and I/O carriers. -
How does the module indicate faults?
Via integrated LED indicators for power and error status. -
Is it designed for industrial environments?
Yes, with wide temperature and humidity tolerances. -
What are its dimensions?
Approximately 125mm x 105mm x 40 mm. -
What certifications does it carry?
CE, UL, CSA, and RoHS compliant.
