Product Introduction

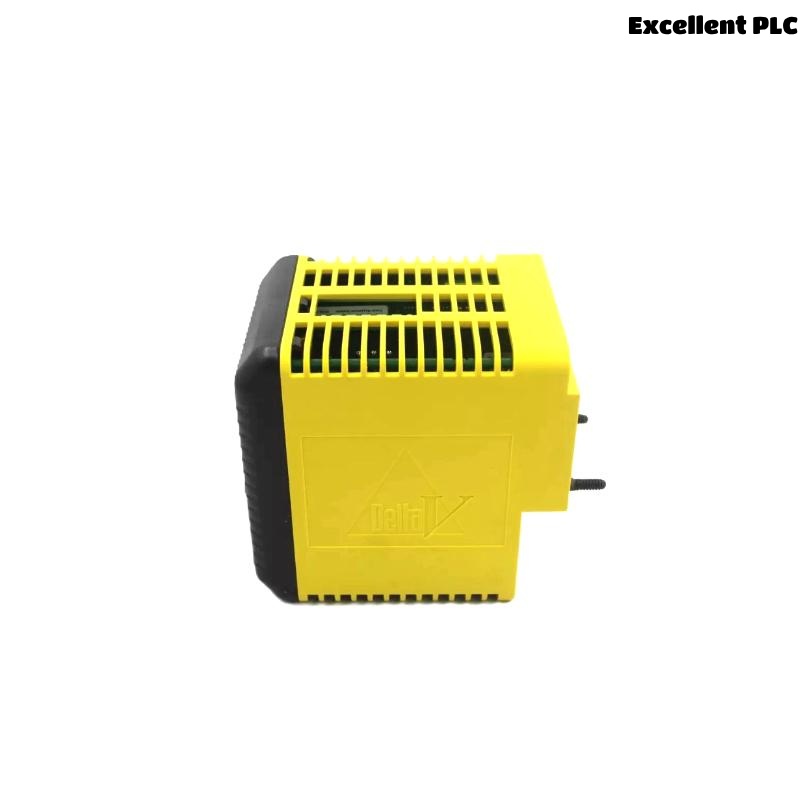

The Emerson KJ2201X1-BA1 12P3162X102 Smart Logic Solver is a critical component within the Fisher ROC800 series of control systems, designed for advanced logic control in process automation environments. This Smart Logic Solver (SLS) module offers robust safety and control logic processing capabilities, enabling high-integrity decision making in complex industrial operations.
It is engineered to integrate seamlessly into Emerson’s distributed control systems, providing reliable and deterministic performance essential for mission-critical applications. The SLS supports complex interlock management, safety shutdowns, and logic sequencing with flexibility and precision.
Built with redundancy and diagnostic features, the KJ2201X1-BA1 supports continuous system availability and simplifies maintenance efforts, making it ideal for industries with strict uptime requirements such as oil & gas, petrochemical, power generation, and manufacturing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Smart Logic Solver (SLS) Module |
| Model Number | KJ2201X1-BA1 12P3162X102 |
| Type | Smart Logic Solver / Safety Logic Controller |
| CPU | Embedded high-performance microprocessor |
| Memory | Non-volatile memory for program storage and retention |
| Communication Interfaces | ROCNet Ethernet, Serial link |
| Input Voltage | 24 V DC |
| Power Consumption | Approximately 12 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions (HxWxD) | 83.8 × 105.5 × 110 mm |
| Weight | 1.2 kg |
| Mounting | DIN rail or panel mount within ROC800 system chassis |
| Certifications | CE, UL, CSA, SIL 2/3 compliant |
Applications
The Emerson KJ2201X1-BA1 Smart Logic Solver finds application in various demanding industrial environments, including:
-
Oil & Gas Industry: Used in safety instrumented systems (SIS) for emergency shutdowns and critical alarm handling.
-
Petrochemical Plants: Controls interlocks and safety logic for complex chemical processing operations.
-
Power Generation: Manages turbine control logic, boiler safety interlocks, and distributed control tasks.
-
Water Treatment: Ensures safe operation and sequencing in treatment plants.
-
Manufacturing: Controls critical safety logic for high-speed automated production lines.
-
Pharmaceutical Industry: Enables compliance with safety regulations through rigorous logic validation.
-
Refineries: Oversees safety shutdown systems and critical process logic.
Advantages
-
High Reliability and Safety Compliance: Certified to SIL 2 and SIL 3, ensuring dependable performance in safety-critical applications.
-
Real-time Deterministic Control: Provides rapid response to input changes, ensuring timely safety actions.
-
Robust Communication: Multiple communication protocols including ROCNet Ethernet enable seamless system integration.
-
Compact and Modular Design: Fits into ROC800 chassis with easy installation and maintenance.
-
Advanced Diagnostics: Built-in diagnostics reduce troubleshooting time and improve uptime.
-
Non-volatile Memory: Retains program data during power loss, preventing control interruptions.
-
Wide Operating Temperature Range: Designed for harsh industrial environments.
-
Flexible Application: Suitable for both safety and complex control logic.
-
Industry-standard Certifications: CE, UL, CSA approval facilitates global deployment.
-
Integrated System Compatibility: Works with Emerson’s broader automation solutions, facilitating unified control architectures.
Frequently Asked Questions (FAQ)
-
Q: What is the main function of the KJ2201X1-BA1 Smart Logic Solver?
A: It executes safety and control logic within Emerson’s ROC800 control systems to manage critical automation tasks. -
Q: Which certifications does this module hold?
A: It is certified for CE, UL, CSA, and meets SIL 2/3 safety integrity levels. -
Q: What communication interfaces does the KJ2201X1-BA1 support?
A: The module supports ROCNet Ethernet and serial link communication protocols. -
Q: What is the operating temperature range?
A: The device operates reliably between 0°C and +60°C. -
Q: Can the module be used in safety instrumented systems (SIS)?
A: Yes, it is designed to meet stringent SIS requirements with SIL 2 and SIL 3 compliance. -
Q: How is the module powered?
A: It requires a 24 V DC power supply. -
Q: What are the physical dimensions and weight of the module?
A: Dimensions are 83.8 × 105.5 × 110 mm, and it weighs 1.2 kg. -
Q: Is the memory volatile? Will data be lost on power failure?
A: No, it uses non-volatile memory to retain program data during power outages. -
Q: What industries commonly use this Smart Logic Solver?
A: Oil & gas, petrochemical, power generation, manufacturing, water treatment, and pharmaceuticals. -
Q: Does the module support remote diagnostics?
A: Yes, it supports remote diagnostics and status monitoring through Emerson’s control network.
Related or Similar Modules (Same Series/Function)
| Model Number | Description | Type |
|---|---|---|
| KJ2201X1-BA2 | Enhanced Smart Logic Solver Module | Safety Logic Controller |
| KJ2202X1-BA1 | ROC800 Digital Input Module | I/O Module |
| KJ2203X1-BA1 | ROC800 Digital Output Module | I/O Module |
| KJ2204X1-BA1 | ROC800 Analog Input Module | I/O Module |
| KJ2205X1-BA1 | ROC800 Analog Output Module | I/O Module |
| KJ2233X1-BA1 | ROC800 Ethernet Communication Module | Communication Module |
Popular Emerson Automation Products (Same Brand)
| Model Number | Description | Type |
|---|---|---|
| KJ3201X1-BA1 | DeltaV Controller | Process Controller |
| KJ5501X1-BA1 | DeltaV I/O Module | Input/Output Module |
| KJ3001X1-BA1 | Fisher Fieldbus Interface Module | Communication Interface |
| KJ2001X1-BA1 | DeltaV Power Supply | Power Module |
| KJ2101X1-BA1 | DeltaV Analog Output Module | Analog Output |
| KJ2301X1-BA1 | DeltaV Digital Input Module | Digital Input |
