Product Introduction

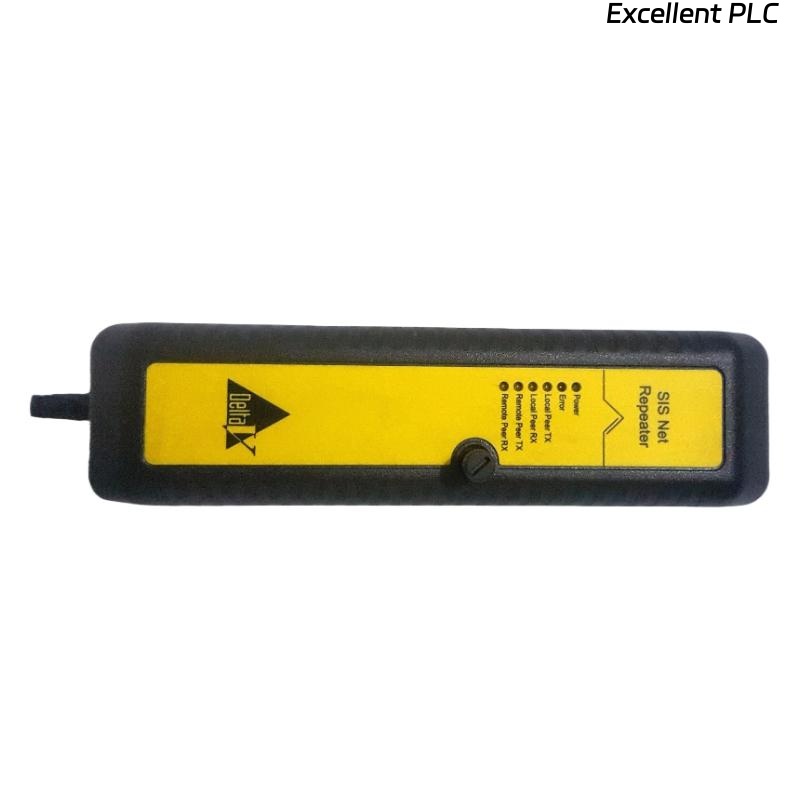

The Emerson KJ2222X1-BA1 is a Safety Instrumented System (SIS) network repeater designed to enhance the reliability and performance of communication systems in critical safety applications. This repeater acts as an intermediary between safety devices and control systems, ensuring that communication signals are transmitted accurately over long distances or through challenging industrial environments. By extending the range of SIS communication networks, the KJ2222X1-BA1 ensures seamless, high-quality data transfer between remote safety devices and central monitoring/control systems.
The KJ2222X1-BA1 is specifically engineered for use in environments where redundancy, safety, and high reliability are required. It supports Fieldbus and HART communication protocols and ensures data integrity by amplifying and regenerating signals to ensure accurate and timely safety information. Its compact design (107 x 41 x 105 mm) and lightweight construction (0.18 kg) allow it to be easily integrated into existing safety and control systems without occupying significant space.
This device is perfect for industries such as oil and gas, chemical processing, power generation, and manufacturing, where safety-critical applications require uninterrupted communication and data reliability.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.18 kg |
| Input Voltage | 24 V DC |
| Power Consumption | 5 W |
| Communication Protocols | Fieldbus, HART |
| Mounting | DIN Rail |
| Operating Temperature | -20°C to +60°C |
| Redundancy | Yes |
| Network Type | SIS (Safety Instrumented System) |
| Environmental Protection | IP20 |
Product Applications
The Emerson KJ2222X1-BA1 SIS network repeater is used in safety-instrumented systems (SIS) to ensure that critical data is transmitted reliably across the network. Its main applications include:
-
Safety Instrumented Systems (SIS): The KJ2222X1-BA1 acts as a crucial component in SIS, enabling uninterrupted and redundant signal communication between safety devices (e.g., emergency shutdown systems, safety relays, and sensors) and control systems. This ensures the integrity and safety of the entire system, especially in high-risk industrial environments.
-
Emergency Shutdown (ESD) Systems: In applications that require emergency shutdown (ESD) systems, the KJ2222X1-BA1 helps maintain communication between control systems and critical safety devices. This ensures that shutdown signals are transmitted without fail, preventing accidents and ensuring personnel and equipment safety.
-
Process Control Systems: In process industries such as oil refineries, chemical plants, and power generation facilities, where redundant and fault-tolerant communication is vital, the KJ2222X1-BA1 extends the range of Fieldbus and HART communication networks, facilitating the safe and reliable operation of industrial control systems.
-
Industrial Automation: The repeater is used in automation systems to ensure that control signals from remote instruments or sensors are amplified and accurately transmitted back to the control system. This enables the effective monitoring and control of industrial processes.
-
Remote Monitoring: For applications where devices are located far from control panels, such as offshore oil rigs, remote facilities, and large industrial plants, the KJ2222X1-BA1 acts as a signal booster to ensure communication between safety instruments and control systems across long distances.
Product Advantages
-
Signal Amplification and Regeneration: The KJ2222X1-BA1 amplifies and regenerates signals, ensuring that data is accurately transmitted across long distances, making it ideal for remote installations and complex systems that require high communication reliability.
-
Compact and Lightweight Design: With a compact size of 107 x 41 x 105 mm and a weight of only 0.18 kg, the KJ2222X1-BA1 is ideal for installations where space is limited, making it easy to integrate into control systems without occupying excessive space.
-
Redundant Operation for Enhanced Reliability: The repeater supports redundant configurations, ensuring that the communication network remains operational even if one part of the network fails. This redundancy is vital for safety-critical applications where communication loss could result in hazardous situations.
-
Wide Temperature Range: Operating in temperatures ranging from -20°C to +60°C, the KJ2222X1-BA1 can function reliably in harsh industrial environments, ensuring robust performance even in extreme conditions.
-
Multiple Communication Protocols: The KJ2222X1-BA1 supports both Fieldbus and HART protocols, ensuring compatibility with a wide range of industrial control systems and enabling seamless integration into existing infrastructures.
-
DIN Rail Mounting: Designed for DIN rail mounting, the KJ2222X1-BA1 is easy to install and maintain. Its simple mounting mechanism saves time during installation and enables easy relocation or replacement when necessary.
-
Environmental Protection: With an IP20 rating, the repeater provides basic protection against dust and environmental contaminants, ensuring durability and longevity in industrial environments.
-
Power Efficiency: Consuming only 5 W of power, the KJ2222X1-BA1 offers an energy-efficient solution, reducing operational costs while maintaining high performance.
-
High-Quality Data Transmission: By ensuring the integrity and accuracy of safety signals, the repeater helps safeguard critical operations and ensures the continuous and reliable flow of data in safety systems.
Frequently Asked Questions (FAQ)
-
What are the dimensions of the Emerson KJ2222X1-BA1 SIS network repeater?
-
The KJ2222X1-BA1 has dimensions of 107 x 41 x 105 mm.
-
-
How much does the KJ2222X1-BA1 weigh?
-
The KJ2222X1-BA1 weighs 0.18 kg.
-
-
What communication protocols are supported by the KJ2222X1-BA1?
-
The repeater supports Fieldbus and HART communication protocols.
-
-
What is the power consumption of the KJ2222X1-BA1?
-
The KJ2222X1-BA1 consumes 5 W of power.
-
-
Can the KJ2222X1-BA1 be used in outdoor environments?
-
The KJ2222X1-BA1 has an IP20 rating, which protects it against dust and contaminants, but it is not fully sealed for outdoor use. It should be installed in protected environments.
-
-
What is the operating temperature range of the KJ2222X1-BA1?
-
The operating temperature range is from -20°C to +60°C.
-
-
Can the KJ2222X1-BA1 be used for safety instrumented systems (SIS)?
-
Yes, the KJ2222X1-BA1 is specifically designed for use in SIS to ensure the reliable transmission of safety signals.
-
-
How does the KJ2222X1-BA1 extend the range of safety networks?
-
The repeater amplifies and regenerates signals, allowing them to travel over longer distances without degradation or loss of data integrity.
-
-
What is the mounting mechanism for the KJ2222X1-BA1?
-
The KJ2222X1-BA1 is designed for DIN rail mounting, making it easy to integrate into control cabinets.
-
-
In what industries can the KJ2222X1-BA1 be used?
-
The KJ2222X1-BA1 is ideal for industries such as oil and gas, chemical processing, power generation, and manufacturing.
-
Recommended Models from the Same Series
| Model | Description | Parameters |
|---|---|---|
| KJ2222X1-BA1 | SIS Network Repeater | Total Length: 105 mm, Weight: 0.18 kg |
| KJ2223X1-BA1 | Fieldbus Repeater for safety systems | Total Length: 110 mm, Weight: 0.19 kg |
| KJ2224X1-BA1 | Dual Protocol SIS Network Repeater | Total Length: 110 mm, Weight: 0.19 kg |
| KJ2222X2-BA1 | Advanced SIS Repeater with Redundancy | Total Length: 120 mm, Weight: 0.22 kg |
| KJ2223X2-BA1 | Dual Communication SIS Repeater | Total Length: 115 mm, Weight: 0.20 kg |
| KJ2222X3-BA1 | Multi-channel SIS Network Repeater | Total Length: 125 mm, Weight: 0.24 kg |
