Product Introduction

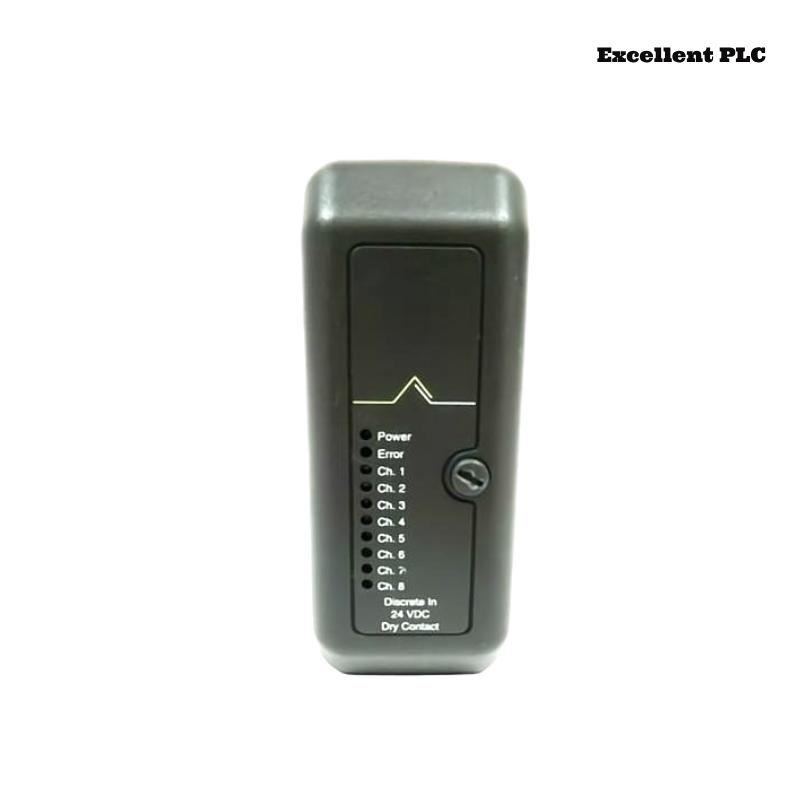

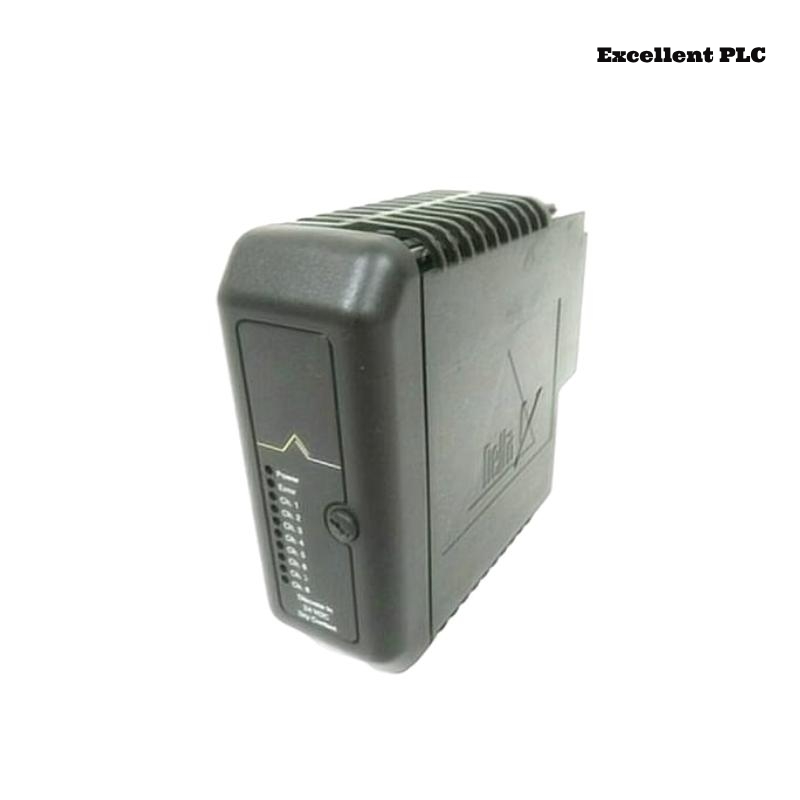

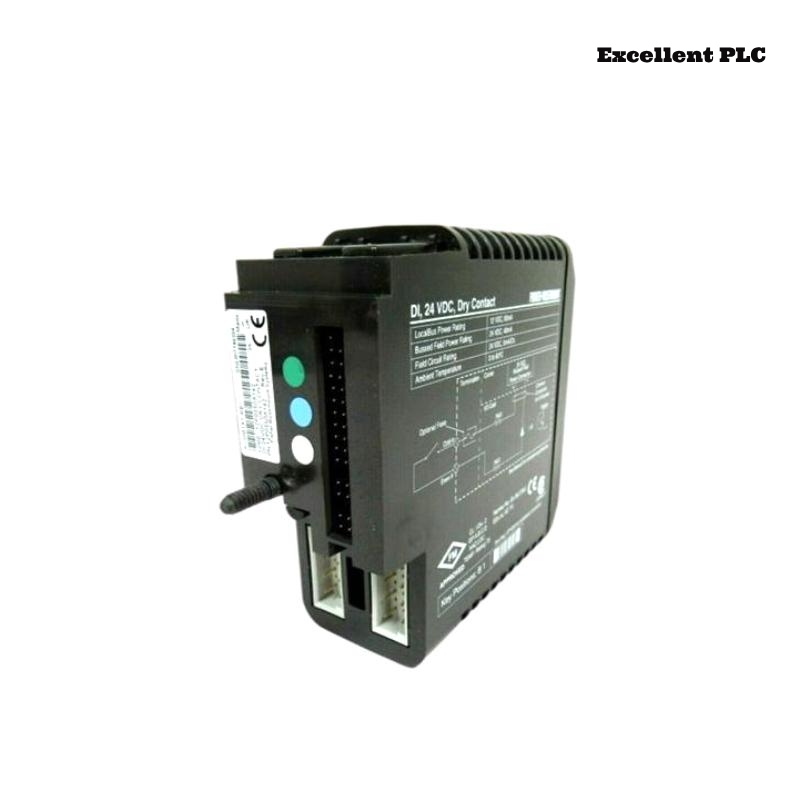

The Emerson KJ3001X1-BB1 12P0550X142 Dry Contact Module is a high-reliability industrial control module designed for use in Emerson’s DeltaV control system. It provides dry contact input capabilities, making it ideal for interfacing with external mechanical or relay-based switches. With high signal integrity and noise immunity, this module ensures accurate status monitoring in critical process control applications.
This module is specifically engineered for harsh industrial environments, featuring robust electrical isolation and fault-tolerant architecture. It plays a crucial role in monitoring on/off states of field devices such as limit switches, push buttons, relay outputs, and emergency stop circuits.
The KJ3001X1-BB1 module integrates seamlessly with Emerson’s DeltaV distributed control system (DCS), providing real-time input processing, diagnostics, and redundancy options. Its compact design and high-density channel support make it a cost-effective solution for industries requiring reliable and scalable I/O processing.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Emerson Electric Co. |
| Series | DeltaV |
| Model | KJ3001X1-BB1 12P0550X142 |
| Type | Dry Contact Input Module |
| Number of Channels | 16 (Individually Isolated) |
| Input Type | Dry Contact (Mechanical or Relay Input) |
| Voltage Rating | 24V DC Nominal |
| Input Resistance | 10 kΩ Typical |
| Signal Isolation | 1500V Between Channels and System |
| Response Time | <2 ms |
| Module Dimensions | 107 x 41 x 105 mm |
| Weight | 0.4 kg |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% RH (Non-Condensing) |
| Power Consumption | 3.5 W |
| Certifications | CE, UL, CSA, ATEX, RoHS |
| Mounting | DIN Rail or Panel Mount |
| Diagnostic Features | Fault Detection, Status LEDs, Self-Testing |
Applications
The Emerson KJ3001X1-BB1 Dry Contact Module is widely used in various industrial sectors, including:
-
Power Plants – Used for switchgear monitoring and status detection.
-
Oil & Gas Industry – Helps in monitoring safety circuits, valve position feedback, and emergency shutdown systems.
-
Manufacturing Automation – Detects mechanical switch positions and machine status.
-
Chemical & Petrochemical Plants – Monitors relay-based alarms, process control valves, and safety interlocks.
-
Water and Wastewater Treatment – Provides real-time feedback on pump control and pressure monitoring.
-
Mining & Metal Processing – Ensures safety relay operation and conveyor belt monitoring.
-
Pharmaceutical Industry – Integrates into batch processing and cleanroom environmental control.
-
Railway and Transportation – Utilized in signal relay monitoring and control panel feedback.
Advantages of Emerson KJ3001X1-BB1
-
High Reliability – Built for continuous operation in harsh industrial environments.
-
Robust Electrical Isolation – Ensures high immunity to electrical noise and voltage spikes.
-
Fast Response Time – Provides real-time status updates with <2 ms response time.
-
Scalability – Seamless integration with Emerson DeltaV DCS, allowing system expansion.
-
Enhanced Diagnostics – Features status LEDs, self-checking functions, and fault detection.
-
Compact Design – High-density channel design reduces panel space requirements.
-
Easy Installation – DIN rail and panel mounting options for quick deployment.
-
Certified for Hazardous Areas – Approved for use in ATEX and hazardous industrial zones.
Latest News and Updates
-
“Emerson Introduces Next-Generation I/O Modules for Enhanced Process Automation” – Industrial Control Today
-
“KJ3001X1-BB1: The Future of High-Performance Dry Contact Monitoring” – Automation Insights
-
“Enhancing Safety and Reliability with Emerson’s Latest DeltaV Modules” – Process Control Engineering Journal
-
“How the KJ3001X1-BB1 Module Improves Monitoring in Critical Infrastructure” – Power & Energy Review
Frequently Asked Questions (FAQ)
-
What type of input signals does the KJ3001X1-BB1 support?
-
It supports dry contact inputs, including mechanical switches, relay outputs, and push buttons.
-
-
What is the power supply requirement for this module?
-
It operates on a 24V DC nominal power supply.
-
-
Can this module be used in hazardous environments?
-
Yes, it has ATEX certification for use in hazardous areas.
-
-
What is the maximum number of input channels?
-
The module has 16 individually isolated input channels.
-
-
Does this module provide electrical isolation?
-
Yes, it offers 1500V isolation between channels and the system.
-
-
What is the response time of the module?
-
The response time is less than 2 milliseconds.
-
-
How is the module mounted?
-
It can be DIN rail or panel mounted.
-
-
Does the KJ3001X1-BB1 integrate with the DeltaV DCS?
-
Yes, it is designed exclusively for Emerson DeltaV systems.
-
-
What kind of diagnostics does this module support?
-
It includes fault detection, LED status indicators, and self-diagnostics.
-
-
What is the operating temperature range?
-
The module operates between -40°C to 70°C (-40°F to 158°F).
Related Emerson DeltaV Series Models
| Model | Type | Number of Channels | Input Type | Application |
|---|---|---|---|---|
| KJ3001X1-BB1 | Dry Contact Module | 16 | Dry Contact | Switch and Relay Monitoring |
| KJ3002X1-BG1 | Digital Input Module | 32 | 24V DC | High-Speed Digital Input |
| KJ3204X1-BA1 | Analog Input Module | 8 | 4-20mA | Process Control Signals |

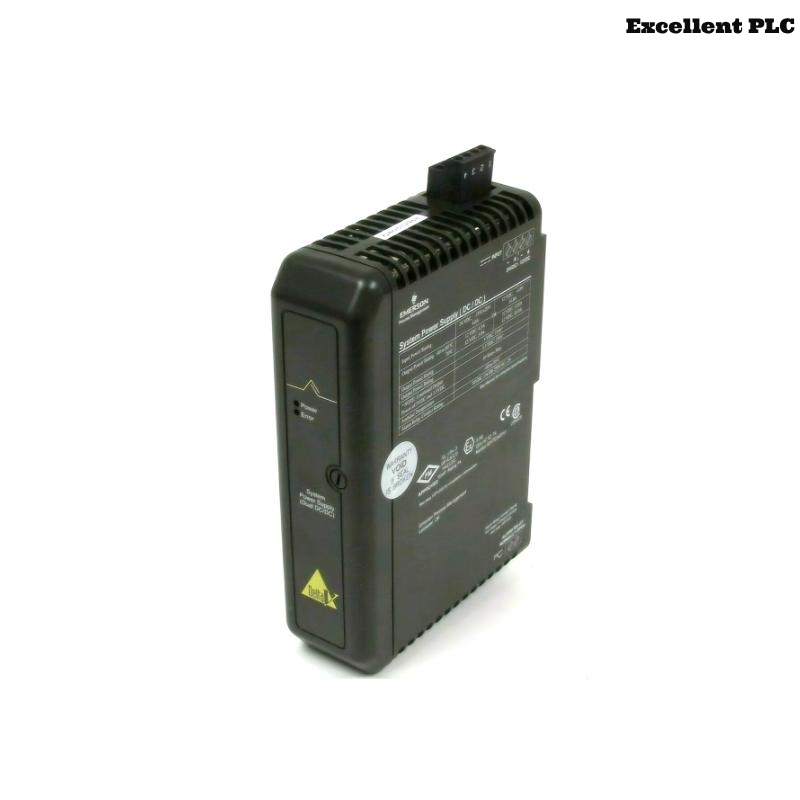

| KJ4001X1-CC1 | Power Supply Module | N/A | N/A | DeltaV System Power |
| KJ3222X1-BA1 | Analog Output Module | 8 | 4-20mA | Industrial Actuator Control |
| KJ2101X1-BA1 | Communication Module | N/A | Ethernet | Network Connectivity |
| KJ3005X1-BA1 | Relay Output Module | 16 | Relay | Motor and Valve Control |
| KJ1501X1-BA1 | HART Interface Module | N/A | HART | Smart Instrumentation |
Popular Emerson Automation Models
| Model | Type | Voltage Range | Features |
|---|---|---|---|
| DeltaV PK Controller | PLC Controller | 24V DC | High-speed industrial automation |
| AMS 6500 | Vibration Monitoring | 24V DC | Predictive Maintenance |
| Ovation OCR400 | Redundant Controller | 24V DC | Power Plant Automation |
| RX3i CPE330 | PAC Controller | 24V DC | Modular Process Control |
| DeltaV CHARM | Field I/O Module | 24V DC | Smart Distributed I/O |
| S-Series Workstation | HMI Operator Station | 120V AC | Human-Machine Interface |
| CSI 2140 | Machinery Health Analyzer | Battery Powered | Portable Condition Monitoring |
| ROC800 Series | Remote Operations Controller | 12-24V DC | Oil & Gas Field Automation |
