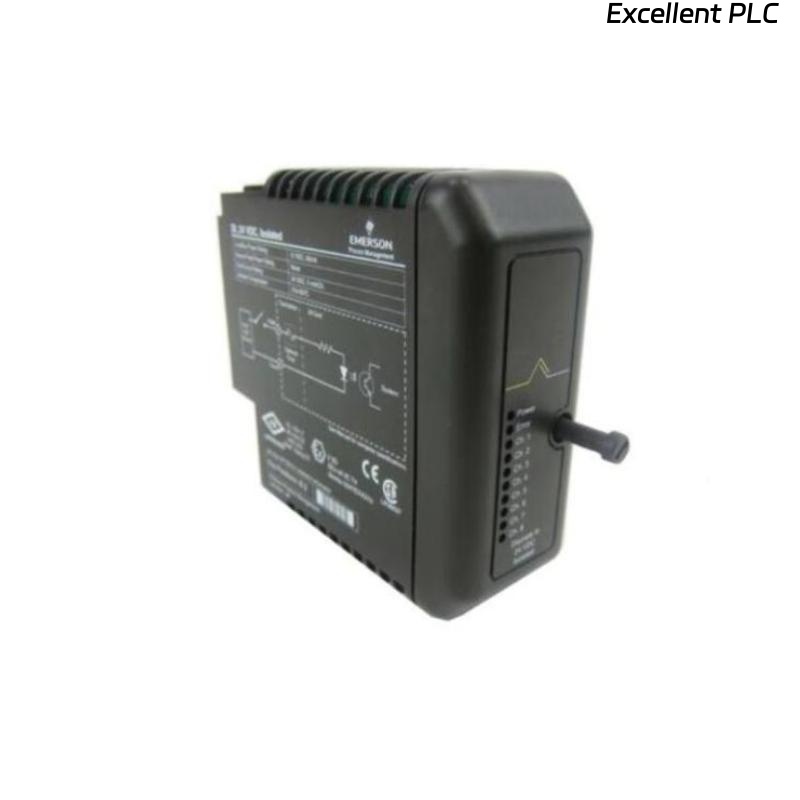

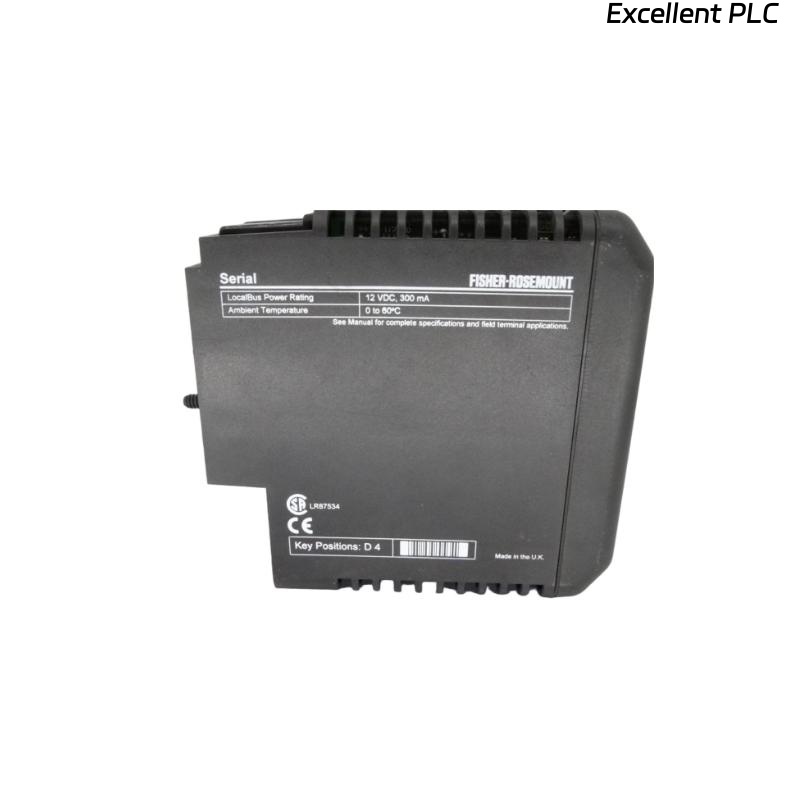

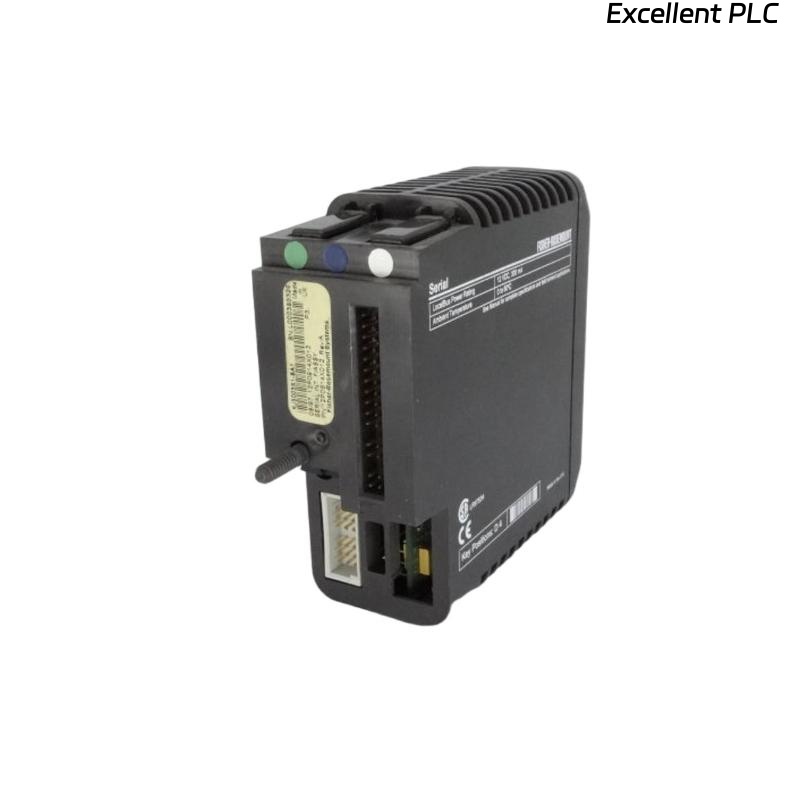

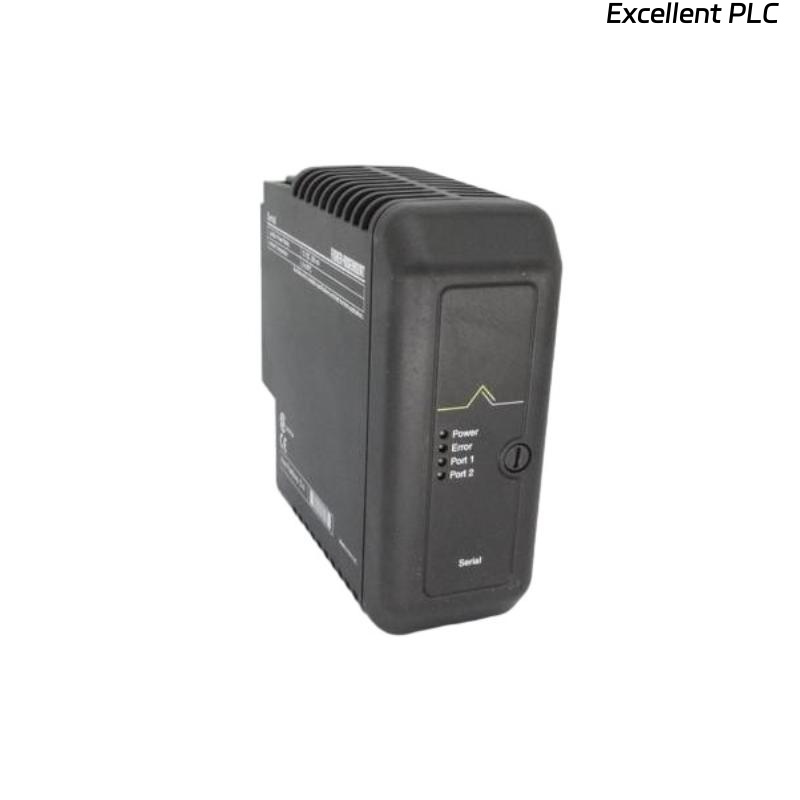

Emerson KJ3003X1-BA1 Serial Interface Card

Product Overview

The Emerson KJ3003X1-BA1 Serial Interface Card is a key component in the DeltaV™ control system architecture, designed to enable serial communication between the control system and field devices using standard RS-232, RS-422, or RS-485 protocols. It supports both Modbus RTU and ASCII protocols, facilitating seamless integration with third-party instruments and legacy systems. With a compact form factor and robust communication capabilities, the KJ3003X1-BA1 offers efficient data exchange and enhanced interoperability.

Key Features

• Supports RS-232, RS-422, and RS-485 communication standards

• Compatible with Modbus RTU and Modbus ASCII protocols

• Enables direct serial integration with third-party field devices

• Supports up to two serial ports per module

• Configurable baud rate and parity settings

• Hot-swappable for uninterrupted system operations

• LED indicators for communication status and activity

• Compatible with DeltaV controllers and expansion carriers

Technical Specifications

Industry Applications

• Oil & Gas

• Power Generation

• Chemical Processing

• Pharmaceutical Manufacturing

• Pulp & Paper

• Water and Wastewater Treatment

• Food and Beverage Automation

Product Advantages

• Facilitates integration with legacy serial devices

• Supports flexible communication setups via dual ports

• Enhances DeltaV system connectivity with external equipment

• Reliable operation in industrial environments

• Easy installation and hot-swappable maintenance

• Optical isolation ensures signal integrity and noise immunity

Frequently Asked Questions (FAQ)

1. What communication standards does the KJ3003X1-BA1 support?
   RS-232, RS-422, and RS-485.

2. Which communication protocols are compatible with this module?
   It supports Modbus RTU and Modbus ASCII.

3. Can the module operate with two serial ports simultaneously?
   Yes, it has two independently configurable serial ports.

4. Is the card hot-swappable?
   Yes, it can be replaced without system shutdown.

5. What is the maximum supported baud rate?
   Up to 115.2 kbps.

6. Can it be configured for different parity settings?
   Yes, it supports None, Even, and Odd parity configurations.

7. Is this card suitable for third-party equipment integration?
   Yes, it is designed for seamless third-party and legacy system interfacing.

8. Does it include diagnostic or status indicators?
   Yes, LEDs indicate port activity and status.

9. Is the module compatible with standard DeltaV I/O carriers?
   Yes, it integrates with DeltaV I/O carriers and baseplates.

10. What kind of isolation is used?
    Optical isolation is used to ensure communication reliability.
