Product Overview

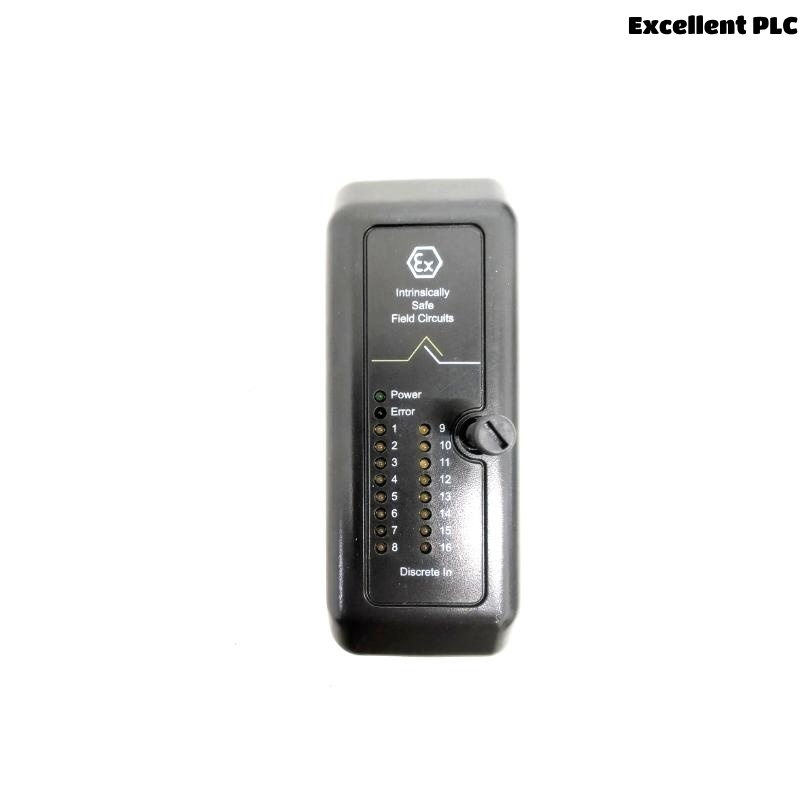

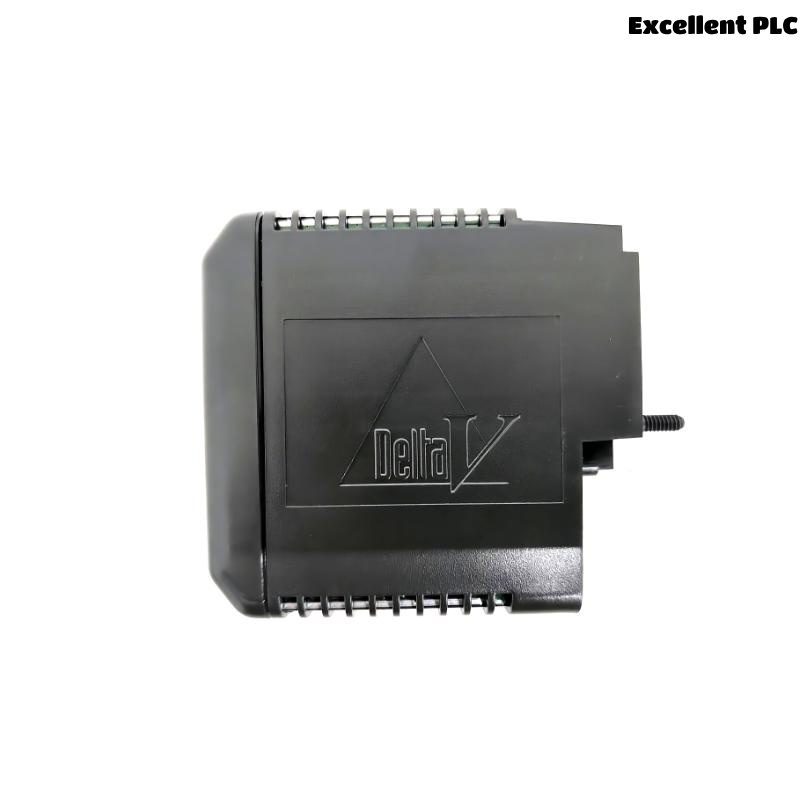

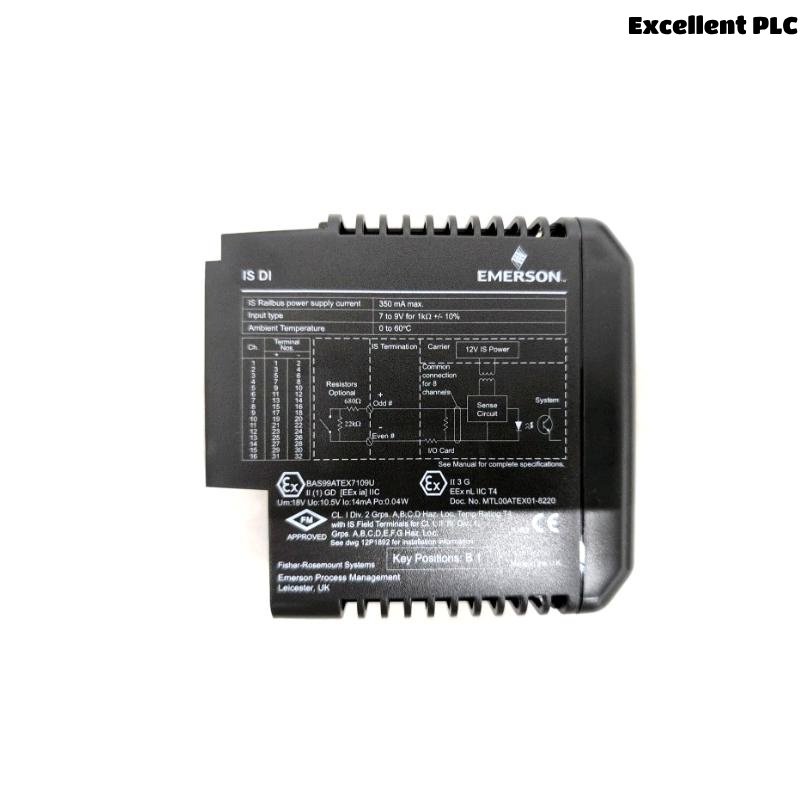

The Emerson KJ3101X1-BB1 is a Safe Discrete Input (DI) module engineered for use within DeltaV SIS (Safety Instrumented System) platforms. It plays a pivotal role in capturing digital input signals from field devices such as push buttons, limit switches, or emergency stop switches in safety-critical applications. The module is TÜV-certified for use in SIL 3 safety instrumented functions, ensuring reliable operation in high-integrity environments.
As part of the DeltaV distributed control system, this card is optimized for seamless integration into safety loops, offering built-in diagnostics, signal line monitoring, and failsafe input status detection. It is widely adopted in industries such as oil & gas, petrochemical, power generation, pharmaceuticals, and others where personnel and equipment safety are paramount.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Safe Discrete Input Card |
| Model Number | KJ3101X1-BB1 |
| Manufacturer | Emerson |
| System Compatibility | DeltaV SIS |
| Function | 16-channel Safe Discrete Input module |
| Number of Channels | 16 input channels |
| Signal Type | Dry contact or NAMUR sensor input |
| Fail-Safe Mode | Programmable (De-energize-to-trip or Energize-to-trip) |
| Input Voltage Range | 8 VDC to 30 VDC |
| Isolation | Channel-to-bus isolation |
| Diagnostics | Line fault detection (short/open) |
| TÜV Certification | Yes, up to SIL 3 per IEC 61508 |
| Redundancy Support | Yes, via 2oo3 voting or redundant architecture |
| Power Dissipation | Approx. 4.2 W |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Shock & Vibration | IEC 60068-2 compliant |
| Mounting Type | Standard DeltaV carrier |
| Module Dimensions (HxWxD) | 200 x 130 x 45 mm |
| Weight | 0.7 kg |
| Compliance | CE, ATEX, IECEx, FM |
Applications
-
Emergency Shutdown Systems (ESD) – Capturing safety-critical input signals for immediate process shutdowns.
-
Fire & Gas Detection – Input monitoring from flame detectors, gas sensors, and manual call points.
-
High Integrity Pressure Protection Systems (HIPPS) – Interfaces with pressure switch signals in overpressure protection loops.
-
Turbomachinery Control – Monitoring operational limits and protective trip conditions for turbines.
-
Pharmaceutical Production – Safety interlocks for cleanroom processes and containment systems.
-
Refineries and Petrochemical Plants – Safe zone monitoring and emergency action systems.
Advantages
-
SIL 3 Certified: Fully certified for use in high-integrity safety instrumented systems as per IEC 61508 standards.
-
Real-Time Fault Diagnostics: Advanced line monitoring for wire breaks, short circuits, and sensor failures helps ensure system availability.
-
DeltaV Native Integration: Seamlessly integrates with DeltaV SIS for fast commissioning, easy troubleshooting, and minimal engineering overhead.
-
Flexible Input Types: Supports both dry contacts and NAMUR sensors, reducing the need for signal converters.
-
Failsafe Configurability: Each channel can be individually programmed for trip logic, enhancing application flexibility.
-
Compact Form Factor: Slim design saves cabinet space while maintaining mechanical robustness.
-
Extended Environmental Tolerance: Operates in extreme industrial conditions, suitable for remote installations and hazardous zones.
Frequently Asked Questions (FAQ)
-
Q: What is the primary use of the Emerson KJ3101X1-BB1 card?
A: It is used to monitor discrete input signals from field devices in safety instrumented systems, especially in high-risk industrial environments. -
Q: Is the module certified for use in SIL-rated applications?
A: Yes, it is TÜV-certified for up to SIL 3 applications under IEC 61508. -
Q: What types of sensors can be connected to this input card?
A: It supports dry contact switches and NAMUR sensors. -
Q: Can I configure the fail-safe behavior for each input?
A: Yes, each channel supports customizable logic such as de-energize-to-trip. -
Q: What systems is this module compatible with?
A: It is designed specifically for use with Emerson DeltaV SIS systems. -
Q: Is this card hot-swappable?
A: No, the system must be powered down when inserting or removing the module to maintain safety compliance. -
Q: Does it support redundancy?
A: Yes, it can be used in redundant configurations for critical safety applications. -
Q: What environmental conditions can it tolerate?
A: It operates from -40°C to +70°C and in up to 95% humidity. -
Q: How are diagnostic messages communicated?
A: Faults and diagnostic alerts are reported directly through the DeltaV system interface. -
Q: How many channels does this module support?
A: The card offers 16 individually monitored input channels.
