Product Introduction:

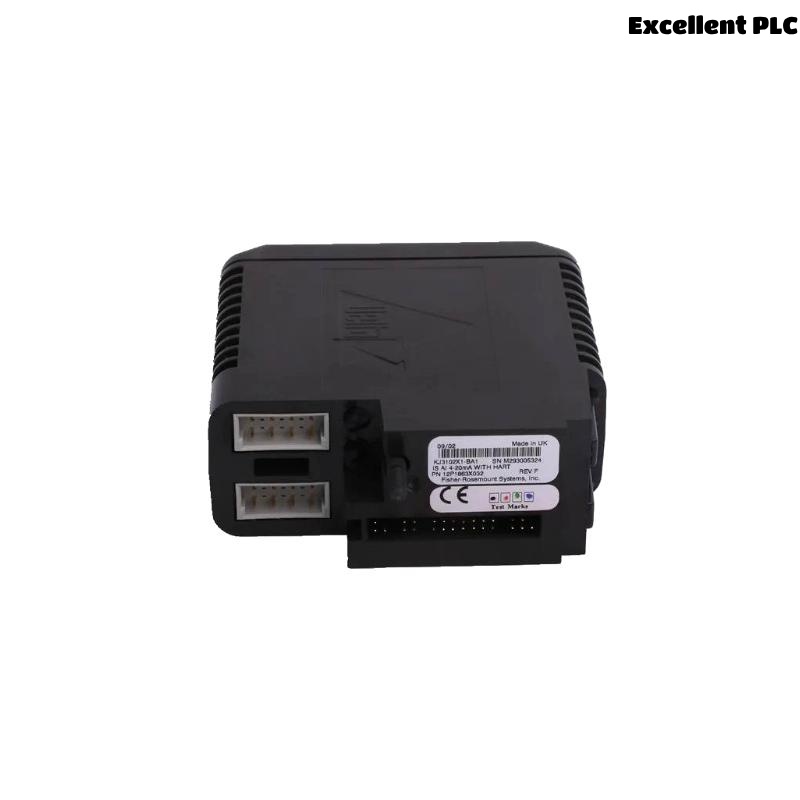

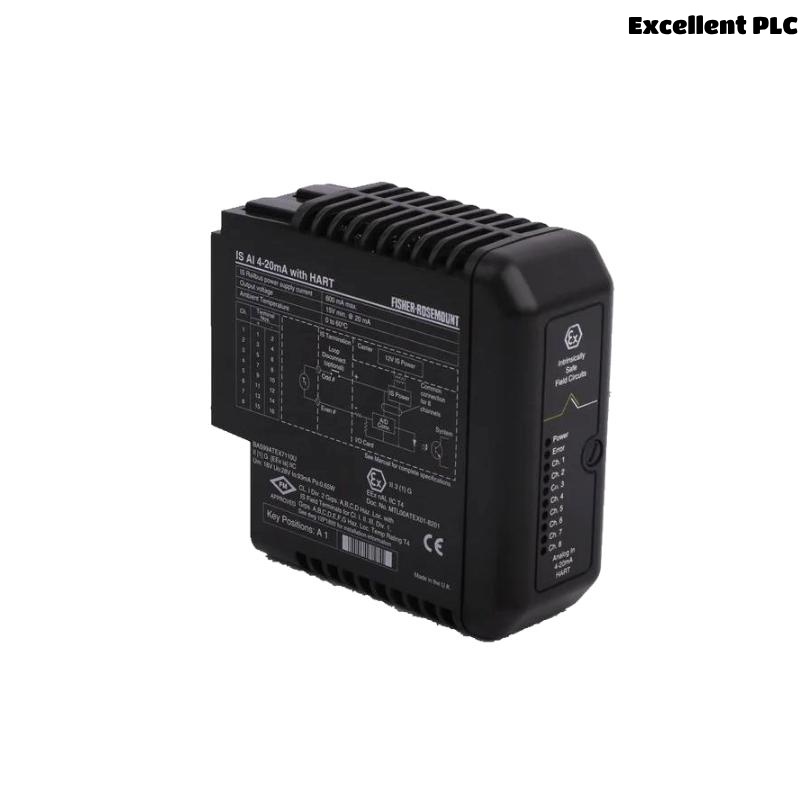

The Emerson KJ3102X1-BA1 Analog Input Module is a robust and high-performance component within Emerson’s DeltaV™ distributed control system (DCS). Specifically engineered to handle analog process signals, this module facilitates precise and reliable acquisition of current loop inputs, typically 4–20 mA, and also supports HART (Highway Addressable Remote Transducer) communication protocol for enhanced field device interaction.
Product Specifications:
| Parameter | Details |
|---|---|
| Product Name | KJ3102X1-BA1 Analog Input Module |
| Manufacturer | Emerson |
| Product Type | Analog Input Module |
| Input Signal | 4–20 mA with HART communication |
| Number of Channels | 8 channels |
| Power Supply | 24 V DC |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5% to 95% non-condensing |
| Shock Resistance | 10 g (11 ms, ½ sine wave) |
| Vibration Resistance | 1 mm peak-to-peak (2 to 13.2 Hz), 0.7 g (13.2 to 150 Hz) |
| Dimensions (L x W x H) | 44 × 102 × 108 mm |
| Weight | 0.22 kg |
| Certifications | CE |
Applications:
The KJ3102X1-BA1 is well-suited for a variety of industrial applications, including:
-
Process Control: Monitoring and controlling analog signals in various industrial processes.
-
Data Acquisition: Collecting and processing data from sensors and field devices.
-
Industrial Automation: Integrating into automated systems for manufacturing and production.
-
Energy Management: Monitoring energy consumption and optimizing usage.
-
Environmental Monitoring: Measuring environmental parameters like temperature and humidity.
Product Advantages:
-
High Precision: Offers accurate analog signal processing for reliable measurements.
-
HART Communication: Supports HART protocol for enhanced device communication.
-
Robust Design: Built to withstand harsh industrial environments.
-
Compact Size: Space-saving design suitable for various installations.
-
Easy Integration: Seamlessly integrates with Emerson’s DeltaV system.
Frequently Asked Questions (FAQ):
-
What is the primary function of the KJ3102X1-BA1?
It serves as an analog input module, processing 4–20 mA signals with HART communication for industrial automation systems. -
How many input channels does it support?
The module supports 8 analog input channels. -
What type of signals does it process?
It processes 4–20 mA analog signals and supports HART communication. -
What are the operating temperature limits?
The module operates within a temperature range of -40°C to +70°C. -
Is it compatible with the DeltaV system?
Yes, it is designed for seamless integration with Emerson’s DeltaV distributed control system. -
What are its dimensions and weight?
Dimensions are 44 × 102 × 108 mm, and it weighs 0.22 kg. -
What certifications does it have?
The module is CE certified. -
What is the power supply requirement?
It requires a 24 V DC power supply. -
Does it support HART communication?
Yes, it supports HART protocol for enhanced device communication. -
Can it be used in harsh industrial environments?
Yes, its robust design allows it to operate reliably in challenging industrial conditions.
