Product Introduction

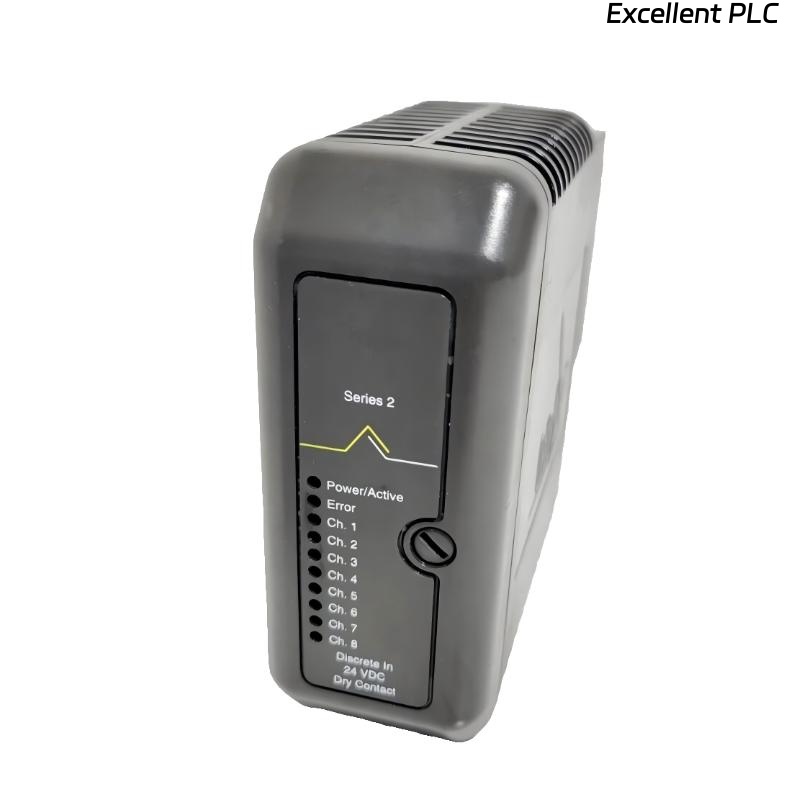

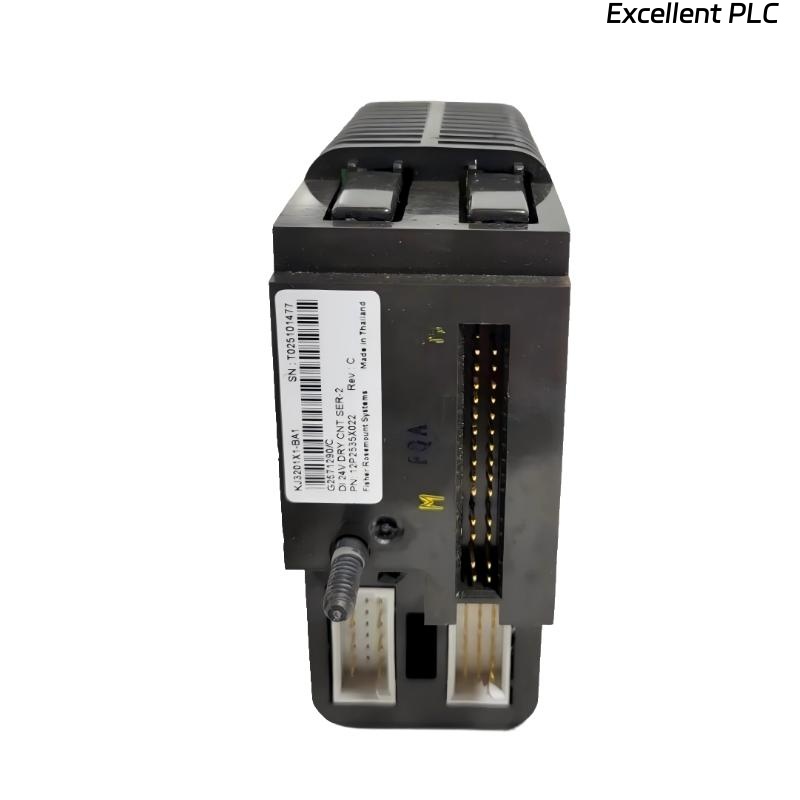

The Emerson KJ3201X1-BJ1 8 Channel Dry Contact Card is a discrete signal interface module designed to acquire and process dry contact status signals within Emerson industrial control systems. It is commonly used to monitor on/off states from field devices such as limit switches, push buttons, relay contacts, and interlock circuits. The module converts these physical contact states into stable digital signals for processing by the controller.
Built for industrial reliability, the KJ3201X1-BJ1 features robust electrical isolation and strong resistance to electrical noise, ensuring accurate signal detection even in harsh environments. Its compact mechanical design allows it to be installed in high-density control cabinets without compromising accessibility or wiring clarity. The module is fully compatible with Emerson I/O architectures and supports deterministic signal acquisition for critical control and monitoring tasks.
Product Specifications
| Parameter |
Specification |
| Model |
KJ3201X1-BJ1 |
| Product Type |
Dry Contact Input Module |
| Number of Channels |
8 |
| Input Signal Type |
Dry contact (voltage-free) |
| Input Logic Levels |
Open / Closed contact |
| Input Voltage |
External supply via field wiring |
| Input Current |
≤5 mA per channel |
| Isolation Type |
Channel-to-system isolation |
| Scan Time |
≤5 ms |
| Input Filtering |
Software-configurable debounce |
| Diagnostic Functions |
Channel status monitoring, wiring fault indication |
| Operating Temperature |
0°C to 60°C |
| Storage Temperature |
-40°C to 85°C |
| Shock Resistance |
15 g, 11 ms |
| Vibration Resistance |
5–9 Hz: 3.5 mm, 9–150 Hz: 0.5 g² |
| Installation Method |
Backplane-mounted I/O slot |
| Dimensions |
107 × 41 × 105 mm |
| Weight |
0.18 kg |
Product Applications
-
Status monitoring of limit switches and position sensors
-
Acquisition of push-button and selector switch signals
-
Monitoring relay and contactor auxiliary contacts
-
Interlock and permissive signal detection
-
Alarm and trip input processing
-
Machine safety and control logic inputs (non-SIL)
-
Discrete feedback in process and manufacturing systems
Product Advantages
-
Reliable Signal Detection: Optimized for accurate dry contact state recognition.
-
Fast Response: Short scan time ensures timely input updates for control logic.
-
Electrical Isolation: Protects the control system from field-side disturbances.
-
Noise Immunity: Effective filtering minimizes false triggering from contact bounce.
-
Compact Design: Ideal for high-density I/O installations.
-
Integrated Diagnostics: Continuous channel status monitoring simplifies troubleshooting.
-
System Compatibility: Seamless integration with Emerson control and I/O platforms.
Frequently Asked Questions (Technical)
-
What type of field devices can be connected to this module?
It supports dry contact devices such as limit switches, push buttons, relay contacts, and interlock switches.
-
Does the KJ3201X1-BJ1 supply voltage to the field contacts?
No, the module is designed for voltage-free dry contacts and relies on external field wiring.
-
Is input debouncing supported?
Yes, software-configurable input filtering is available to suppress contact bounce.
-
Can the module detect wiring faults?
It provides basic diagnostics for abnormal channel behavior and status inconsistencies.
-
Is each channel electrically isolated?
Yes, channel-to-system isolation is implemented to improve signal integrity.
-
Is the KJ3201X1-BJ1 discontinued?
No, this model is currently not discontinued and remains supported within Emerson systems.
-
Is there an alternative or replacement model available?
Yes, the KJ3201X1-BK1 can be used as a compatible alternative with enhanced diagnostic features.
-
How fast does the module detect a contact state change?
Typical scan time is less than 5 milliseconds, depending on system configuration.
-
Can this module be used in electrically noisy environments?
Yes, it is designed with filtering and isolation to operate reliably in industrial noise conditions.
-
Is this module suitable for safety-rated applications?
It can be used in safety-related logic when properly engineered, but it is not a standalone SIL-certified safety module.
Recommended Related Models (Same Series or Function)
| Model |
Function |
Dimensions (mm) |
Weight (kg) |
| KJ3201X1-BJ2 |
Dry Contact Input Module (Enhanced Diagnostics) |
107 × 41 × 105 |
0.19 |
| KJ3005X1-BA1 |
Digital Input Module |
107 × 41 × 105 |
0.95 |
| KJ3006X1-BB1 |
High-Density Digital Input Module |
108 × 42 × 106 |
1.00 |
| KJ3202X1-AA1 |
Universal Discrete Input Module |
109 × 43 × 107 |
0.92 |
| KJ3210X1-CA1 |
Redundant Discrete Input Module |
112 × 46 × 110 |
1.10 |
| KJ3220X1-BB1 |
Isolated Digital Input Module |
110 × 45 × 108 |
1.05 |
Popular Emerson Models (Same Brand)
| Model |
Function |
Dimensions (mm) |
Weight (kg) |
| KJ3007X1-BB1 |
Digital Output Module |
107 × 41 × 105 |
1.05 |
| KJ3101X1-BB1 |
Analog Input Module |
107 × 41 × 105 |
1.30 |
| KJ3102X1-BB2 |
Analog Output Module |
107 × 41 × 105 |
1.36 |
| KJ3201X1-AA1 |
Communication Interface Module |
115 × 50 × 110 |
0.85 |
| KJ3402X1-CA1 |
Advanced Controller Module |
140 × 65 × 130 |
0.55 |
| KJ3601X1-DA1 |
Redundant Network Interface Module |
135 × 60 × 125 |
0.60 |
