Product Introduction

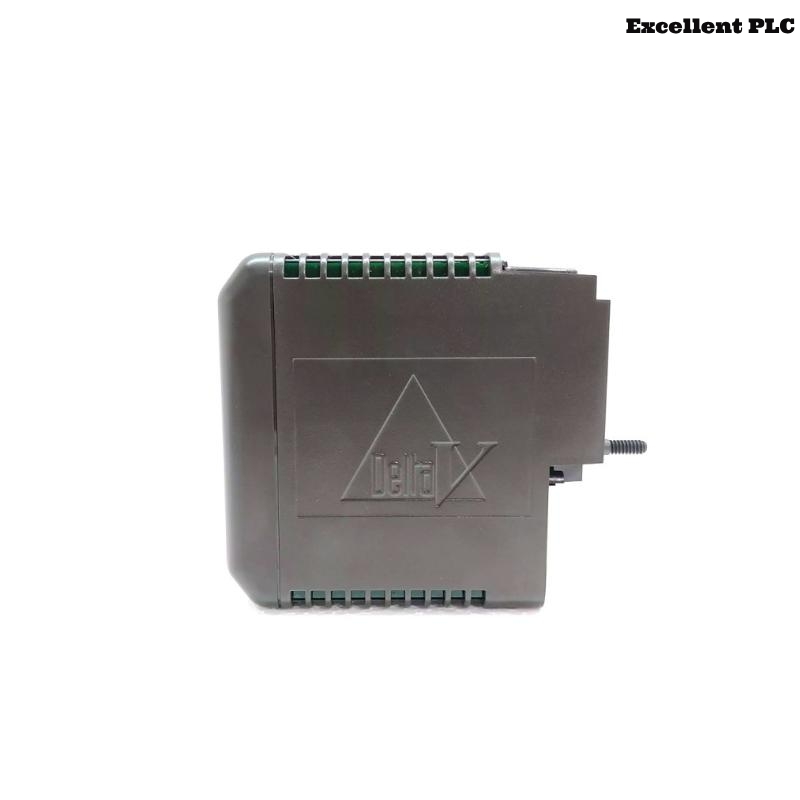

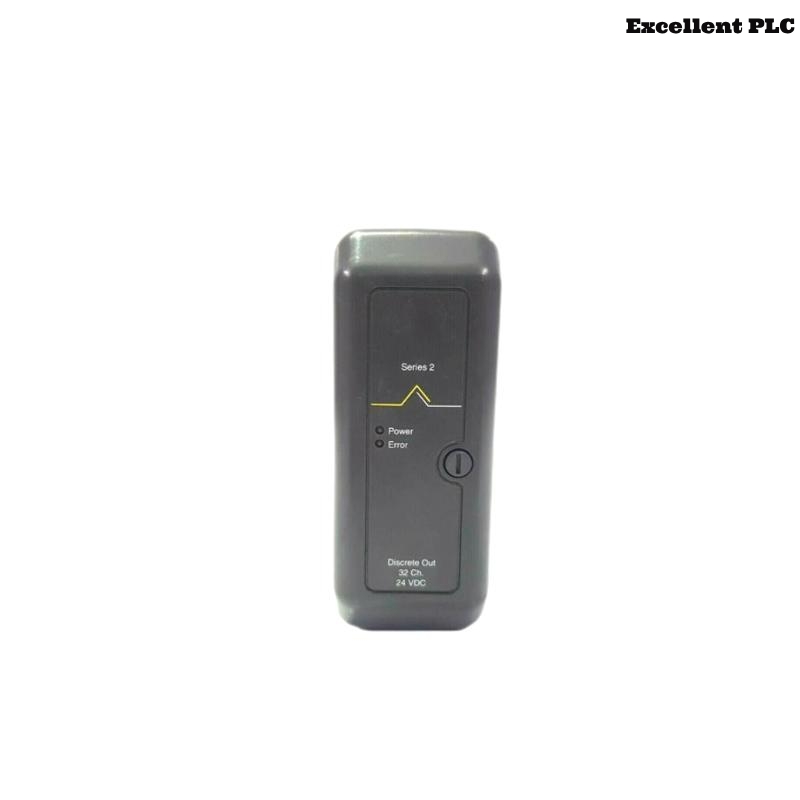

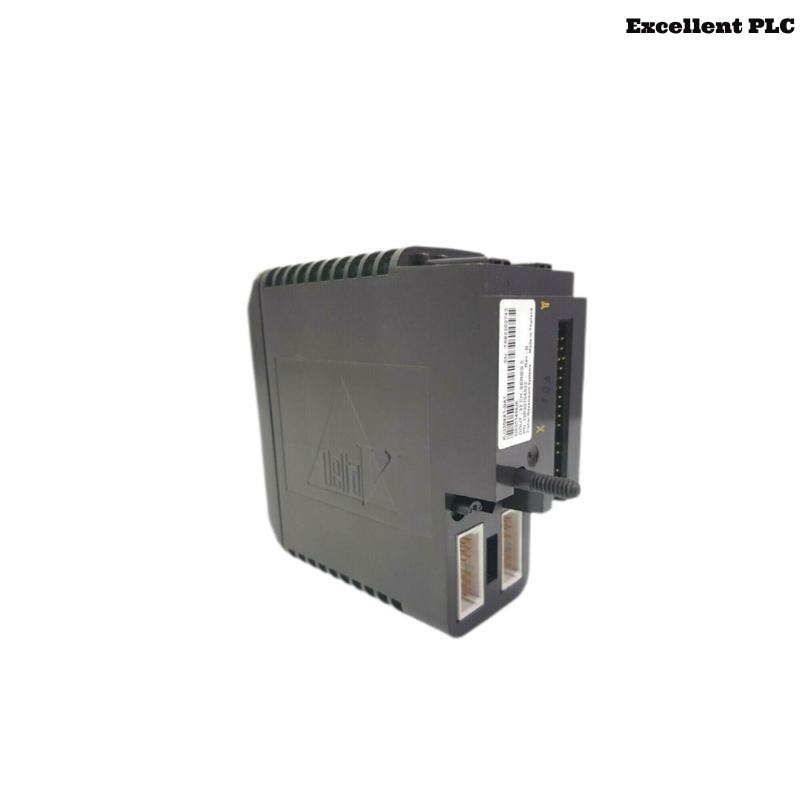

The Emerson KJ3204X1-BA1 is a discrete output module designed for the Ovation and DeltaV control systems, primarily used in distributed control systems (DCS). Engineered for reliability and flexibility, this module handles binary output signals to actuators, relays, solenoids, and similar on/off control devices. It serves as a vital part of Emerson’s DeltaV SIS and process automation architecture, ensuring seamless integration and safe operations in critical industrial environments. The module provides high immunity to electrical noise, fault diagnostics, and hot-swap capabilities, which allow for maintenance without system shutdown. It is typically mounted on a carrier or terminal block in the system chassis and communicates via the I/O bus to the system controller.
Product Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Emerson |
| Part Number | KJ3204X1-BA1 |
| Module Type | Discrete Output Module |
| Channels | 16 Channels |
| Output Type | Sourcing (Positive Logic) |
| Voltage Range | 10.8 VDC to 13.2 VDC |
| Output Voltage (nominal) | 12 VDC nominal |
| Maximum Output Current/Channel | 0.5 A (500 mA) per channel |
| Total Module Current | 8 A max |
| Load Type | Resistive or inductive |
| Output Delay | < 1 ms typical |
| Isolation | 250 V channel-to-bus |
| Diagnostics | Open wire detection, short circuit protection |
| Hot Swappable | Yes |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.181 kg |
| Mounting Type | DIN Rail or Chassis Backplane |
| Compliance | CE, ATEX, UL, CSA, RoHS |
Product Applications
The KJ3204X1-BA1 is designed for a wide range of automation and safety-critical applications in industries such as:
-
Oil & Gas: Controls valves, actuators, and solenoids in upstream and downstream systems.
-
Power Generation: Used in turbine control, protection systems, and auxiliary controls.
-
Chemical and Petrochemical: Interfaces with field devices for batch, continuous, and discrete processes.
-
Water & Wastewater: Operates remote pumps, valves, and alarms.
-
Pharmaceutical Manufacturing: Supports GxP-compliant automation platforms.
-
Pulp & Paper: Drives discrete field devices such as feeders, motors, and conveyors.
Product Advantages
-
High Reliability: Built to operate in harsh industrial conditions with high MTBF ratings.
-
Modular Design: Easily replaceable without affecting adjacent modules or requiring shutdown.
-
Integrated Diagnostics: Real-time feedback on channel health improves troubleshooting and reduces downtime.
-
Safe Field Wiring: Isolation ensures protection against surges and transients.
-
Compatibility: Seamless integration with DeltaV and Ovation systems.
-
Compact Form Factor: Saves space in control cabinets without compromising performance.
-
Flexibility: Suitable for various output device types including inductive loads.
-
Energy Efficient: Low power consumption with current limiting per channel.
-
Industry Certifications: Global compliance with safety and environmental standards.
-
Hot Swap Capability: Maintenance and replacement possible without halting plant operation.
Frequently Asked Questions (FAQ)
-
What is the output voltage of the Emerson KJ3204X1-BA1?
The output voltage is nominally 12 VDC within a range of 10.8 to 13.2 VDC. -
How many discrete outputs does this module support?
It supports 16 discrete output channels. -
Is the KJ3204X1-BA1 hot-swappable?
Yes, it can be replaced while the system remains operational. -
Can the module handle inductive loads like solenoid valves?
Yes, it supports both resistive and inductive load types. -
What happens in the case of a short circuit?
The module includes built-in short-circuit protection and diagnostic feedback. -
What kind of isolation is provided?
Each channel has 250 V channel-to-bus isolation for safety and noise immunity. -
Which control systems is it compatible with?
It is compatible with Emerson DeltaV and Ovation control systems. -
What is the maximum current supported per channel?
Each output channel can source up to 0.5 A. -
Is the module compliant with international safety standards?
Yes, it complies with CE, ATEX, UL, CSA, and RoHS standards. -
How is the module mounted in the system?
It can be mounted via DIN rail or chassis backplane depending on system design.
Related Models from the Same Series or System
| Model Number | Description | Channels | Output Type | Voltage |
|---|---|---|---|---|
| KJ3221X1-BA1 | Discrete Input Module | 16 | Sink | 24 VDC |
| KJ3241X1-BA1 | Analog Output Module | 8 | 4-20 mA | – |
| KJ3202X1-BA1 | High-Density Digital Output Module | 32 | Sourcing | 12/24 VDC |
| KJ3002X1-BB1 | HART Analog Input Module | 8 | Analog | – |
| KJ4001X1-BE1 | Control Processor | – | – | – |
| KJ3222X1-BA1 | Isolated Digital Input Module | 16 | Isolated | 24 VDC |
