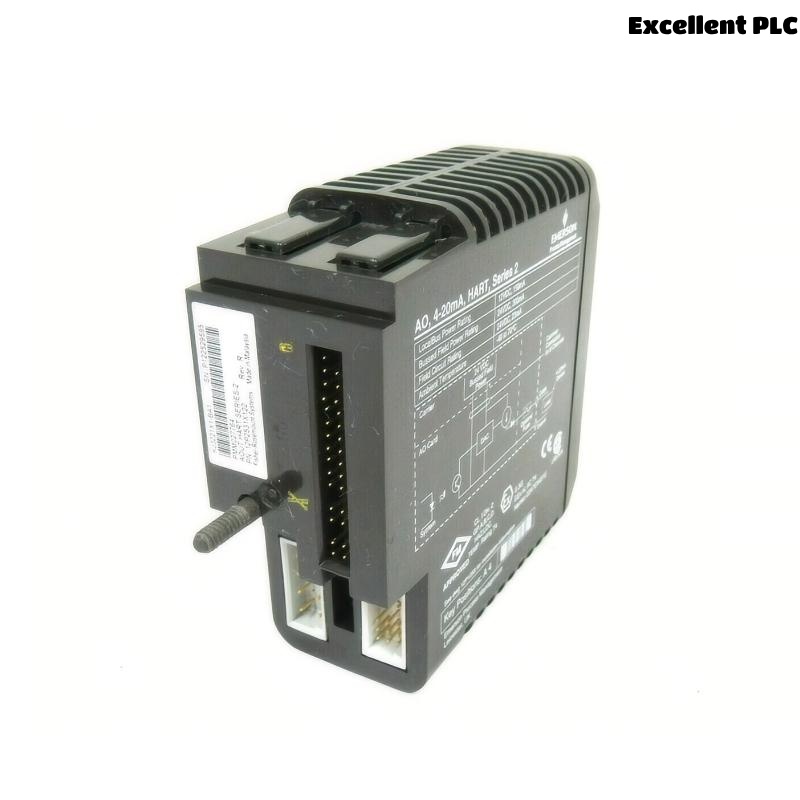

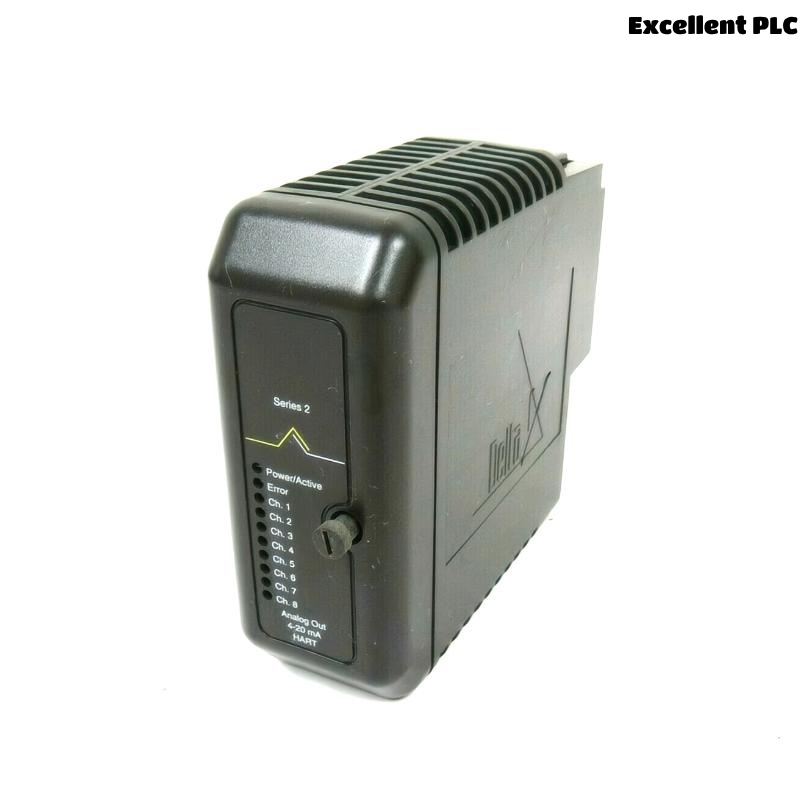

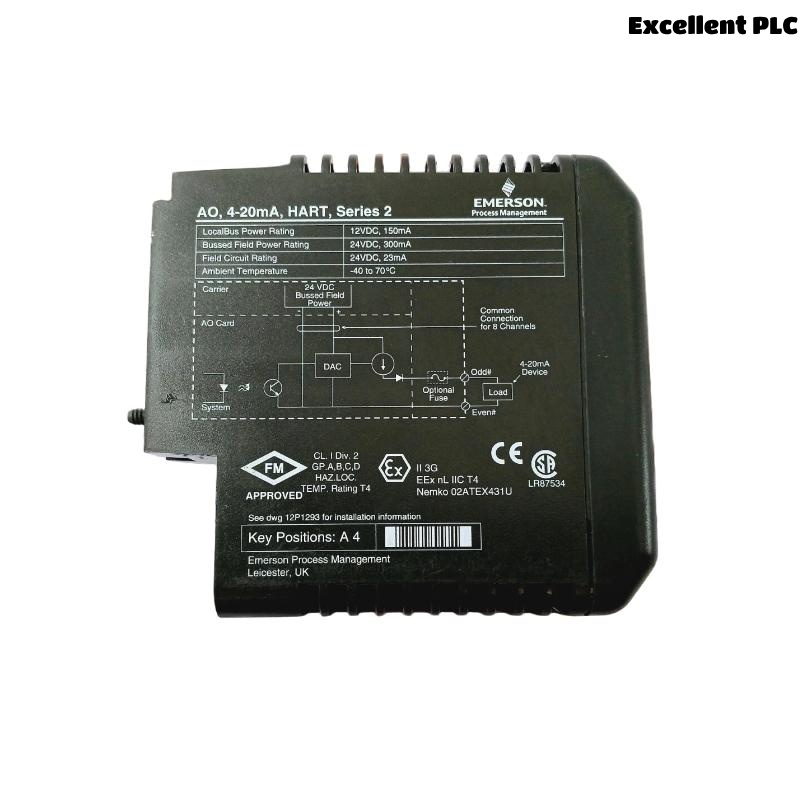

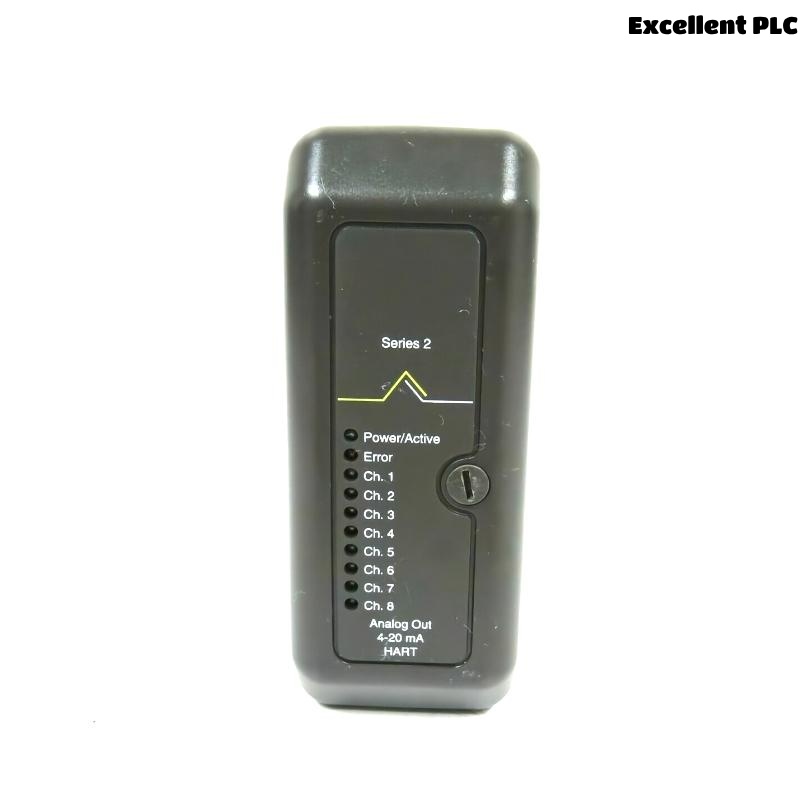

Emerson KJ3221X1-BA1 12P2531X122 Analog Output Module

Product Introduction

The Emerson KJ3221X1-BA1 12P2531X122 Analog Output Module is a precision-engineered device within the Emerson DeltaV distributed control system (DCS). It is designed to deliver accurate and reliable analog output signals to field devices such as control valves, actuators, and variable speed drives. This module translates digital control instructions into precise current signals, which are crucial for maintaining stable and efficient process control.

With advanced features including fault diagnostics, loop supervision, and robust electrical isolation, the KJ3221X1-BA1 provides dependable performance in challenging industrial environments. This module is widely used in sectors like power generation, oil and gas, chemical processing, and manufacturing, where precise analog control directly influences operational safety and productivity.

Product Specifications

Product Applications

• Industrial Valve Control: Enables precise modulation of control valves and actuators for fluid flow regulation.

• Process Automation: Converts control system commands into analog signals to adjust process variables in real time.

• Power Plants: Controls turbine governors and generator excitation systems with high accuracy.

• Oil & Gas Processing: Interfaces with field devices on platforms and refineries to maintain safe operations.

• Chemical and Petrochemical Industry: Supports analog control loops critical for hazardous and precise processes.

• Manufacturing Lines: Provides analog outputs for motor drives and process equipment in production systems.

Product Advantages

• High Accuracy and Resolution: 12-bit DACs deliver precise analog signals with minimal error.

• Robust Diagnostics: Continuous loop supervision and fault detection minimize downtime and improve safety.

• Flexible Output Configuration: Supports both 0–20 mA and 4–20 mA current output standards to suit various applications.

• Strong Electrical Isolation: 1500V RMS isolation protects the control system from electrical interference.

• Rapid Signal Updates: Fast update rate supports dynamic and responsive control strategies.

• Seamless Emerson Integration: Optimized for DeltaV systems, ensuring quick configuration and reliable operation.

FAQ

1. How many analog output channels does the KJ3221X1-BA1 support, and are they isolated?
   The module provides 8 analog output channels, each electrically isolated from one another and from the control system to prevent interference and ensure safe operation.

2. What output current ranges are available on this module?
   It supports configurable output ranges of both 0–20 mA and 4–20 mA, allowing compatibility with a broad range of industrial devices.

3. What is the resolution and accuracy of the output signals?
   The module uses 12-bit DACs, delivering high-resolution signals with an accuracy typically around ±0.05% of the full scale.

4. Does the module include fault detection or diagnostic features?
   Yes, it provides channel fault detection including open and short circuit detection, loop supervision, and internal self-tests to maintain system reliability.

5. How fast does the module update the analog output signals?
   Output channels update approximately every 50 milliseconds, providing timely response for most industrial control needs.

6. What level of electrical isolation does the module provide?
   Each output channel has 1500V RMS isolation from the control circuits and other channels, protecting the system from electrical noise and surges.

7. Can the output channels be configured independently?
   Yes, each channel’s output range and parameters can be configured independently to suit specific application requirements.

8. Is this module compatible with redundant control system setups?
   The module is designed to integrate fully with Emerson DeltaV redundant architectures, supporting high-availability systems.

9. What maximum load impedance can the module’s outputs drive?
   The outputs can drive loads up to 750 ohms without performance degradation.

10. How does the module communicate diagnostic information to the control system?
    It reports diagnostic status and faults through the DeltaV system’s communication protocols, enabling real-time monitoring and proactive maintenance.

Related Models (Same Series)

Popular Emerson Models (Same Brand)

FAQ

1. How many analog output channels does the KJ3221X1-BA1 support, and are they isolated?
   The module provides 8 analog output channels, each electrically isolated from one another and from the control system to prevent interference and ensure safe operation.

2. What output current ranges are available on this module?
   It supports configurable output ranges of both 0–20 mA and 4–20 mA, allowing compatibility with a broad range of industrial devices.

3. What is the resolution and accuracy of the output signals?
   The module uses 12-bit DACs, delivering high-resolution signals with an accuracy typically around ±0.05% of the full scale.

4. Does the module include fault detection or diagnostic features?
   Yes, it provides channel fault detection including open and short circuit detection, loop supervision, and internal self-tests to maintain system reliability.

5. How fast does the module update the analog output signals?
   Output channels update approximately every 50 milliseconds, providing timely response for most industrial control needs.

6. What level of electrical isolation does the module provide?
   Each output channel has 1500V RMS isolation from the control circuits and other channels, protecting the system from electrical noise and surges.

7. Can the output channels be configured independently?
   Yes, each channel’s output range and parameters can be configured independently to suit specific application requirements.

8. Is this module compatible with redundant control system setups?
   The module is designed to integrate fully with Emerson DeltaV redundant architectures, supporting high-availability systems.

9. What maximum load impedance can the module’s outputs drive?
   The outputs can drive loads up to 750 ohms without performance degradation.

10. How does the module communicate diagnostic information to the control system?
    It reports diagnostic status and faults through the DeltaV system’s communication protocols, enabling real-time monitoring and proactive maintenance.

Related Models (Same Series)

Popular Emerson Models (Same Brand)
