Product Introduction

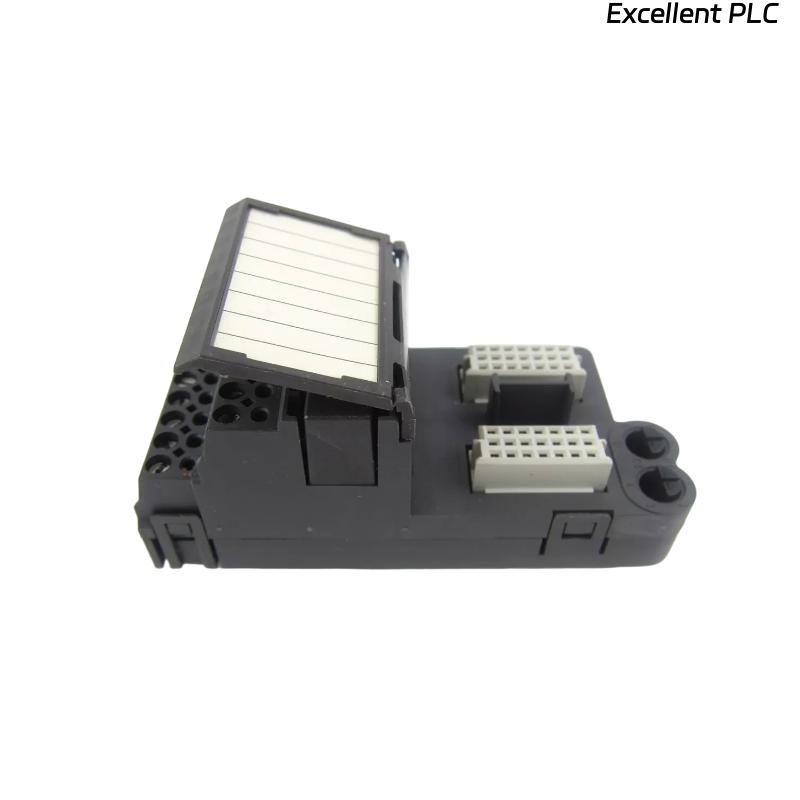

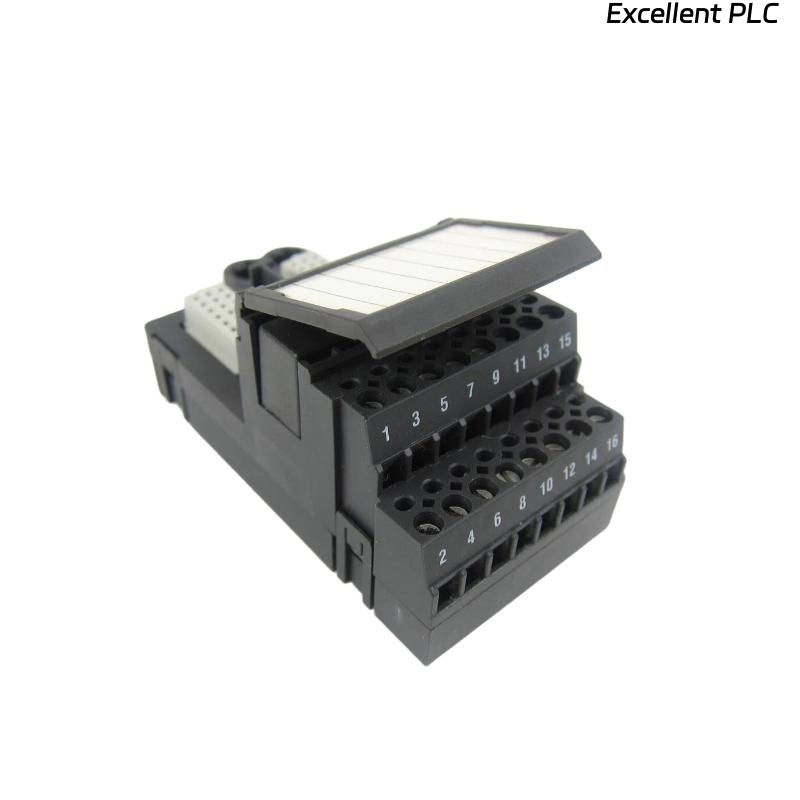

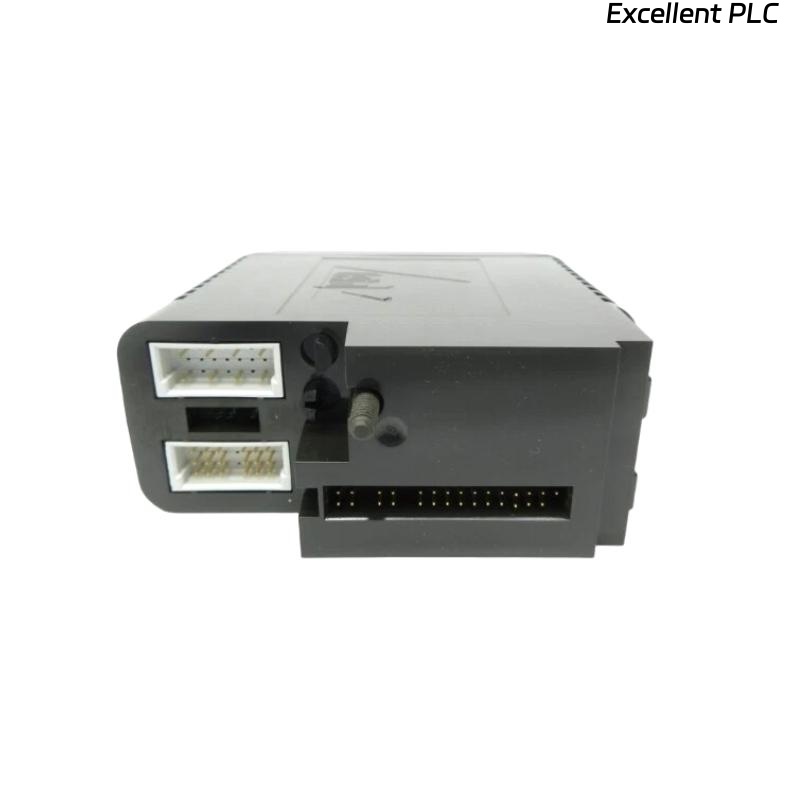

The Emerson KJ3221X1-BA1+KJ4001X1-CA1 Output Module with Terminal Blocks is a high-performance S-series output module designed for use in Emerson’s DeltaV distributed control system (DCS). This combination provides precise control outputs along with reliable terminal block connectivity, making it suitable for mission-critical process automation environments.
The KJ3221X1-BA1 serves as the output module, responsible for driving actuators, control valves, and other field devices, while the KJ4001X1-CA1 terminal block ensures secure wiring, field isolation, and convenient installation. Together, they deliver seamless integration, robust performance, and flexibility for a wide range of industrial applications.
Product Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Emerson |
| Model | KJ3221X1-BA1 + KJ4001X1-CA1 |
| Product Type | S-Series Output Module with Terminal Blocks |
| System Compatibility | DeltaV Distributed Control System |
| Output Channels | 16 isolated output channels |
| Output Signal Type | 24 VDC digital output |
| Load Capacity | Up to 0.5 A per channel |
| Isolation | Channel-to-channel and channel-to-system galvanic isolation |
| Redundancy | Supports redundant configuration for high reliability |
| Diagnostics | Channel status monitoring, fault detection, LED indicators |
| Power Supply | Provided through DeltaV backplane |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Cooling Method | Passive convection within rack |
| Mounting | Plug-in rack with terminal block attachment |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.18 kg |
| Reliability Features | Hot-swappable, self-diagnostics, fault-tolerant operation |
| Certifications | CE, CSA, IEC industrial standards compliance |
Product Applications
The Emerson KJ3221X1-BA1+KJ4001X1-CA1 is widely used in industries requiring reliable control output functions:
-
Valve Actuation: Provides precise digital outputs to drive control and on/off valves.
-
Motor and Drive Control: Interfaces with motor starters, solenoids, and drives.
-
Process Automation: Used in chemical, oil & gas, power, and water treatment facilities for output signaling.
-
Batch Control: Supports batch sequences with accurate digital output control.
-
Alarm and Indication Systems: Drives alarms, lights, and signaling devices for plant safety and monitoring.
-
Redundant Safety Systems: Provides outputs in redundant systems to ensure continuous operation.
Product Advantages
The KJ3221X1-BA1+KJ4001X1-CA1 Output Module with Terminal Blocks offers several operational advantages:
-
High Channel Density: Provides 16 output channels in a compact module.
-
Robust Isolation: Ensures electrical isolation between channels, preventing interference.
-
Enhanced Reliability: Redundancy support guarantees continuous operation in critical applications.
-
Hot-Swappable Design: Modules can be replaced without shutting down the control system.
-
Built-In Diagnostics: Monitors output health and reports issues through DeltaV system diagnostics.
-
Ease of Wiring: Terminal block design ensures secure, organized, and efficient field wiring.
-
Seamless Integration: Fully compatible with DeltaV controllers and system architecture.
-
Industrial Durability: Designed to withstand demanding process environments.
FAQ
-
How many output channels does the KJ3221X1-BA1 provide?
It provides 16 isolated digital output channels. -
What type of signals does the module output?
It outputs 24 VDC digital signals suitable for actuators and control devices. -
Does the module support redundant operation?
Yes, it can be configured in redundant pairs for maximum system availability. -
How are diagnostics handled in the module?
It includes self-diagnostics, LED indicators, and DeltaV system reporting. -
Can the module be hot-swapped during operation?
Yes, the module supports hot-swapping without system shutdown. -
What is the maximum load capacity per output channel?
Each channel supports up to 0.5 A continuous load. -
How does the KJ4001X1-CA1 terminal block support the module?
It provides secure field wiring, electrical isolation, and reliable connectivity. -
What isolation features are provided in the module?
It provides galvanic isolation between channels and between the module and system backplane. -
Does the module require an external power supply?
No, it is powered directly from the DeltaV backplane. -
Which field devices can be connected to the outputs?
Devices such as solenoids, control valves, relays, motors, and alarms can be connected.
