Product Introduction

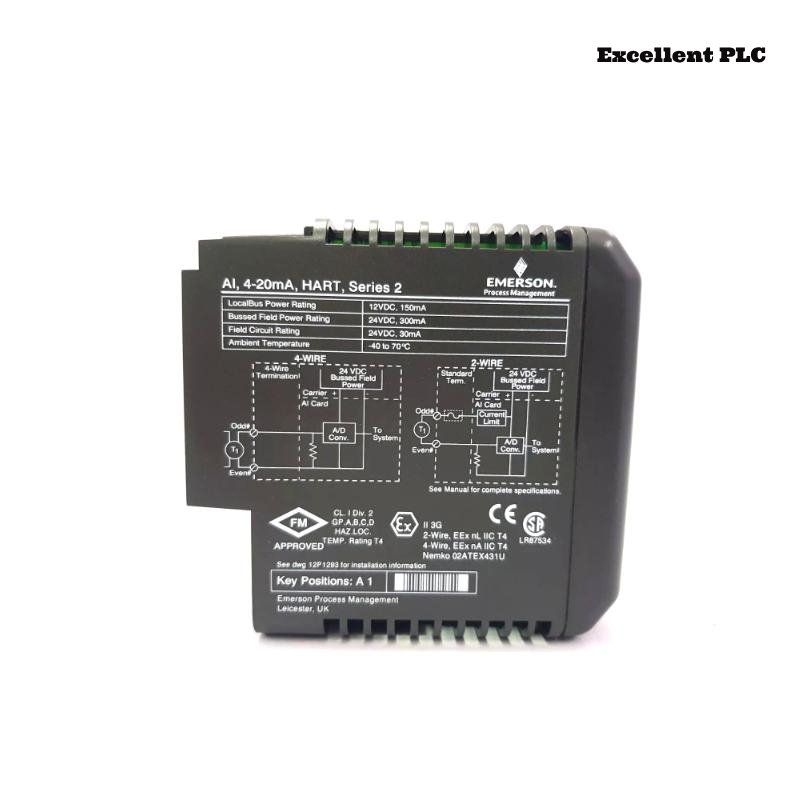

The Emerson KJ3222X1-BA1 12P2532X122 CE4003S2B1 is a high-performance analog input module designed for use in DeltaV distributed control systems (DCS). As part of Emerson’s DeltaV Series, this module ensures precise and reliable data acquisition from field instruments such as temperature sensors, pressure transducers, and flow meters.
With 8 analog input channels, high-resolution data conversion, and advanced diagnostics, the KJ3222X1-BA1 provides robust signal processing capabilities. It supports HART-enabled communication, allowing seamless real-time monitoring and configuration of field devices. This module is designed to enhance efficiency, reliability, and accuracy in process control applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ3222X1-BA1 12P2532X122 CE4003S2B1 |
| Product Type | Analog Input Module |
| Series | DeltaV DCS |
| Number of Inputs | 8 Channels |
| Input Signal Type | 4-20mA, 1-5V, 0-10V, RTD, Thermocouple |
| Resolution | 16-bit High Precision |
| HART Communication | Yes (HART 5, 6, 7 Compatible) |
| Scan Time | 50ms per channel |
| Isolation Voltage | 2500V between channels |
| Input Impedance | 250Ω (for 4-20mA signals) |
| Accuracy | ±0.05% of Full Scale |
| Calibration | Factory Calibrated with Auto-Compensation |
| Power Consumption | 2.5W |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -50°C to 85°C |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions | 80 x 120 x 25 mm |
| Weight | 0.18 kg |
| Mounting | DIN Rail or Panel Mount |
| Protection Rating | IP20 |
Applications
The Emerson KJ3222X1-BA1 Analog Input Module is used in a wide range of industrial process control applications, including:
-
Oil & Gas Industry – Real-time monitoring of pressure, flow, and temperature.
-
Chemical Processing – Accurate data acquisition from analytical instruments.
-
Power Generation – Integration with turbine and generator control systems.
-
Pharmaceutical Manufacturing – Ensuring precise environmental conditions.
-
Water & Wastewater Treatment – Monitoring flow rates, pH levels, and conductivity.
-
Food & Beverage Industry – Controlling temperature-sensitive production processes.
Product Advantages
-
High-Precision Data Acquisition – 16-bit resolution ensures accurate signal measurement.
-
Supports Multiple Signal Types – Works with 4-20mA, voltage, RTD, and thermocouple inputs.
-
HART Compatibility – Enables remote diagnostics and device configuration.
-
Fast Response Time – 50ms per channel for real-time process control.
-
Excellent Electrical Isolation – 2500V isolation enhances safety and reliability.
-
Wide Operating Temperature Range – Suitable for harsh industrial environments.
-
Auto-Compensated Calibration – Reduces maintenance efforts with built-in calibration.
-
Compact and Lightweight Design – Easy to install in space-constrained control panels.
-
Long-Term Reliability – Designed for continuous operation in mission-critical applications.
-
Seamless Integration with DeltaV DCS – Optimized for Emerson automation systems.
