Product Introduction

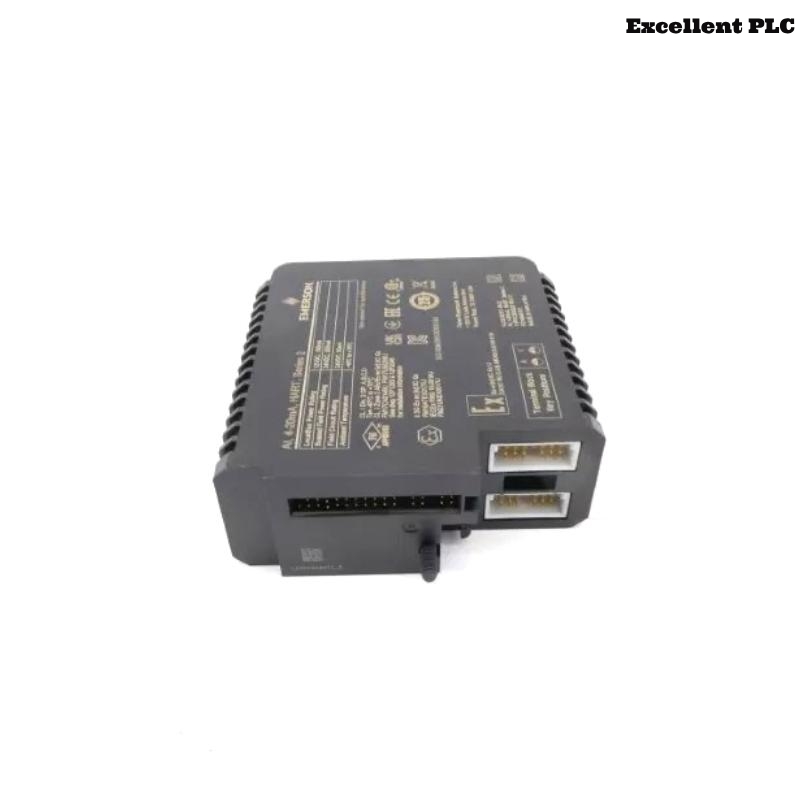

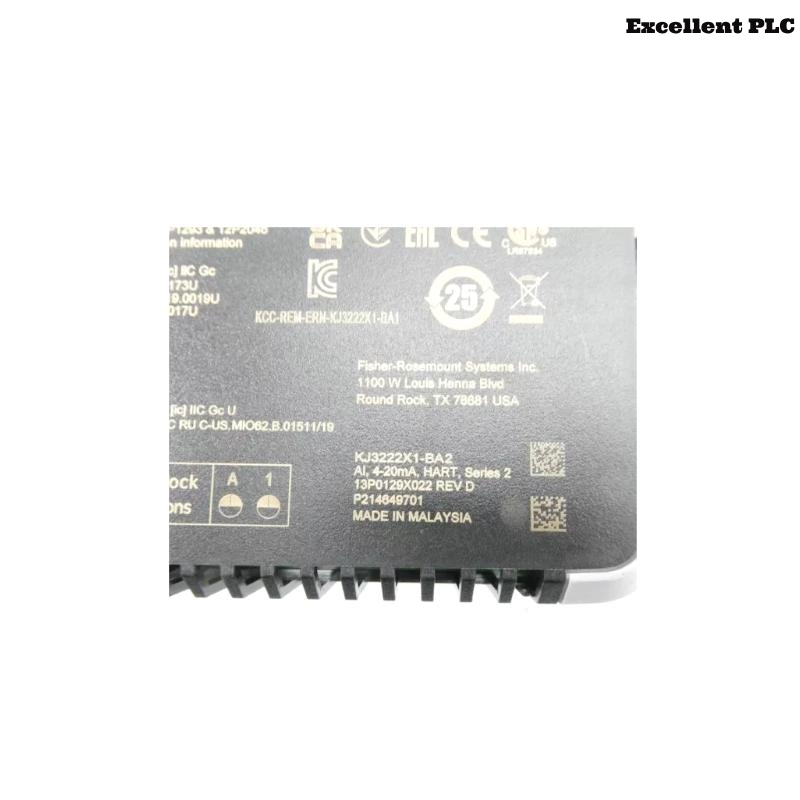

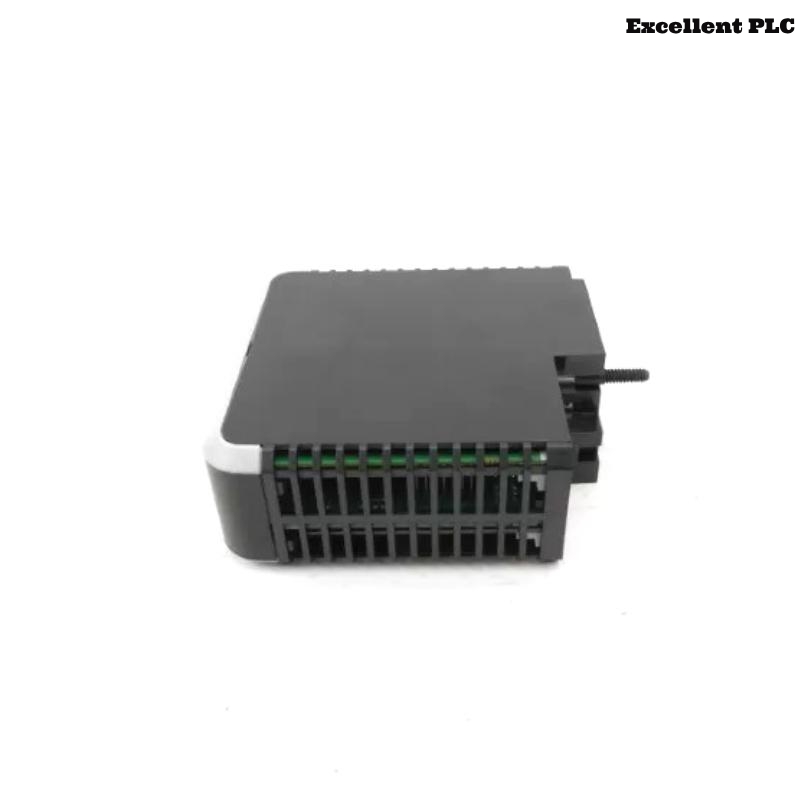

The Emerson KJ3222X1-BA2 is an 8-channel analog input module designed for seamless integration with Emerson’s DeltaV Distributed Control System (DCS). It facilitates precise acquisition of analog signals, particularly 4–20 mA current loops, and supports HART (Highway Addressable Remote Transducer) communication for enhanced device diagnostics and configuration. Engineered for high reliability, this module is suitable for various industrial automation applications, ensuring accurate data collection and efficient process control.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | KJ3222X1-BA2 |
| Input Type | 4–20 mA analog input with HART communication |
| Number of Channels | 8 |
| Power Supply | Local Bus: 12 VDC at 150 mA Field Power: 24 VDC at 300 mA Field Circuit: 24 VDC at 30 mA/channel |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Humidity | 5% to 95% non-condensing |
| Environmental Rating | IP20 |
| Dimensions (W x H x D) | 44 x 108 x 127 mm |
| Weight | 0.45 kg |
| Certifications | ATEX II 3G Ex ec [ic] IIC Gc IECEx FMG 19.0019U FM21UKEX0017U UL, CE |
| Mounting Type | DIN rail mount |
| Communication Interface | RS485 |
Product Applications
The Emerson KJ3222X1-BA2 module is ideal for industries requiring reliable analog signal acquisition and integration with control systems. Typical applications include:
-
Oil and Gas Production: Monitoring pressure, temperature, and flow rates in upstream and downstream processes.
-
Chemical Processing: Acquiring data from various sensors to control reactions and ensure safety.
-
Power Generation: Measuring parameters like steam pressure and turbine speed for efficient energy production.
-
Pulp and Paper Manufacturing: Controlling processes such as bleaching, pulping, and paper formation.
-
Water and Wastewater Treatment: Monitoring water quality parameters and controlling treatment processes.
Product Advantages
-
High Accuracy: Ensures precise measurement of analog signals, critical for process control.
-
HART Communication: Enables two-way digital communication with field devices for diagnostics and configuration.
-
Robust Design: Operates reliably in harsh industrial environments with wide temperature and humidity ranges.
-
Compact Size: Small footprint allows for efficient use of control cabinet space.
-
Easy Integration: Seamlessly integrates with Emerson’s DeltaV DCS, simplifying system architecture.
-
Energy Efficient: Low power consumption reduces operational costs.
-
Enhanced Safety: Certified for use in hazardous areas, ensuring compliance with safety standards.
-
Modular Architecture: Facilitates easy maintenance and scalability of control systems.
Frequently Asked Questions (FAQ)
-
What is the primary function of the KJ3222X1-BA2 module?
It serves as an 8-channel analog input module, converting 4–20 mA signals from field devices into digital data for the control system. -
Does the module support HART communication?
Yes, it supports HART protocol, allowing for enhanced device diagnostics and remote configuration. -
What are the power requirements for this module?
It requires 12 VDC at 150 mA for local bus power and 24 VDC at 300 mA for field power. -
Can the module operate in extreme temperatures?
Yes, it operates within a temperature range of -40°C to +70°C. -
Is the module suitable for hazardous environments?
Yes, it has certifications such as ATEX and IECEx for use in hazardous areas. -
How is the module mounted?
It is designed for DIN rail mounting, facilitating easy installation. -
What is the weight of the module?
The module weighs 0.45 kg. -
What is the environmental protection rating of the module?
It has an IP20 rating, providing protection against solid objects larger than 12.5 mm. -
How many channels does the module have?
It features 8 analog input channels. -
Is the module compatible with other Emerson systems?
Yes, it is designed for seamless integration with Emerson’s DeltaV DCS and other compatible systems.
Related Models (Same Series or Functionality)
| Model Number | Function | Description |
|---|---|---|
| KJ3222X1-BA1 | Analog Input Module | 8-channel 4–20 mA input with HART communication |
| KJ3221X1-BA1 | Analog Input Module | 8-channel 4–20 mA input module |
| KJ3223X1-BA1 | Analog Input Module | 8-channel thermocouple input module |
| KJ3241X1-BA1 | Analog Input Module | 8-channel RTD input module |
| KJ3242X1-FA1 | Analog Input Module | 16-channel 4–20 mA input with HART communication |
| KJ3243X1-BA1 | Analog Input Module | 16-channel thermocouple input module |
