Product Introduction

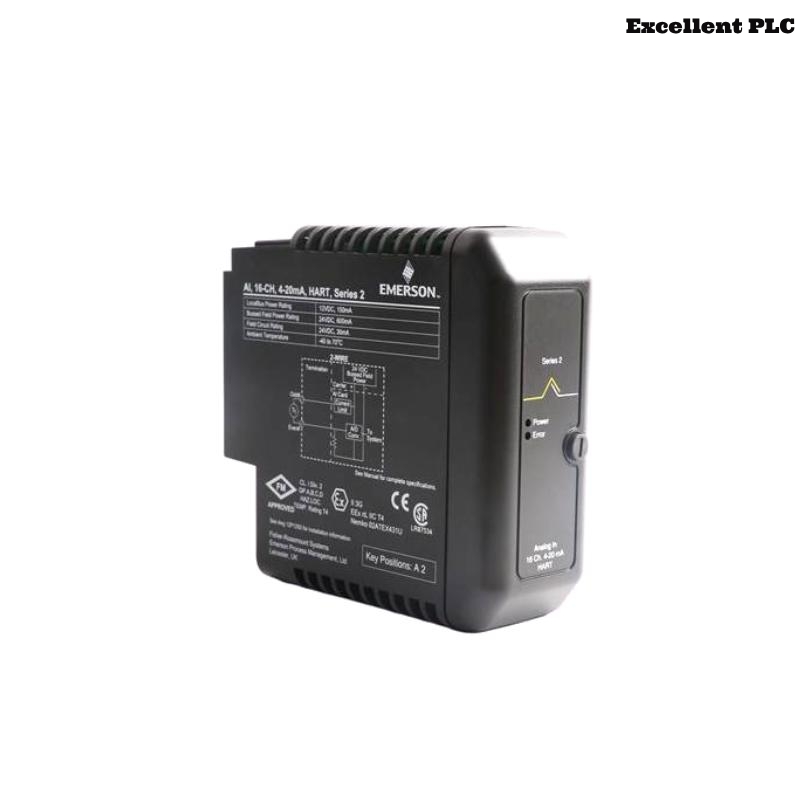

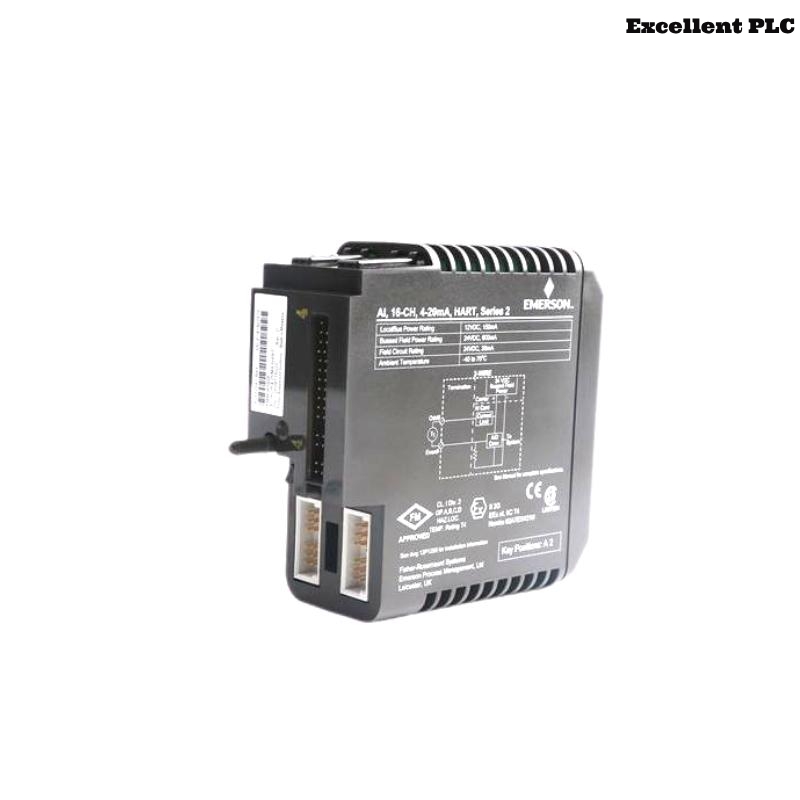

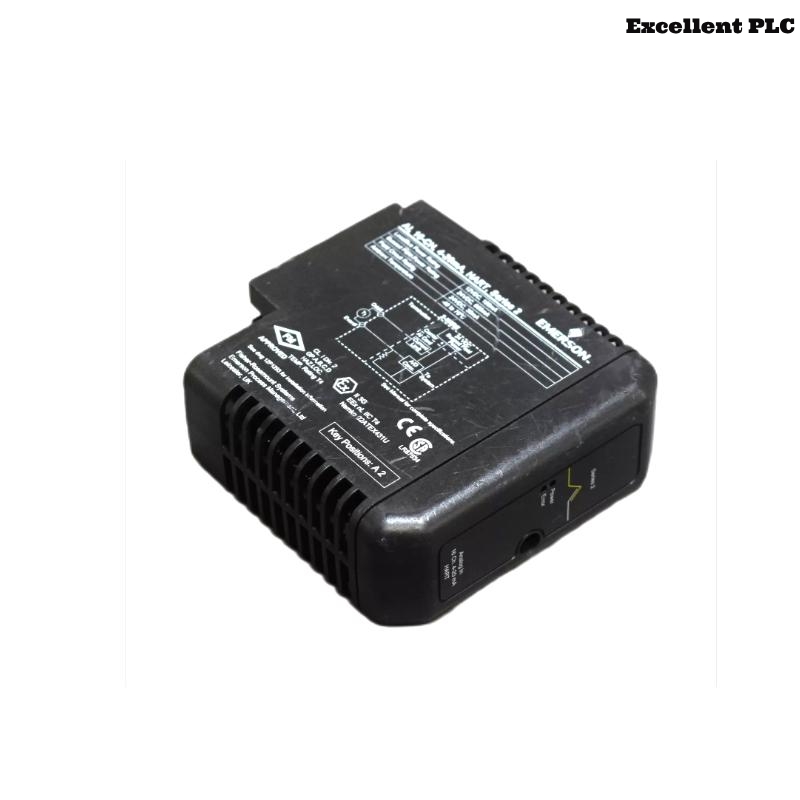

The Emerson KJ3223X1-BA1 Analog Input Module is a versatile and high-performance component designed for use in advanced distributed control systems. This module is part of the DeltaV system, which offers robust and scalable solutions for the process industries. The KJ3223X1-BA1 is specifically engineered to handle analog input signals, converting them into digital form for efficient processing by the system.
With its high accuracy, reliability, and versatility, this module is ideal for handling the critical analog signals that monitor and control process variables such as temperature, pressure, level, and flow. The KJ3223X1-BA1 offers superior performance in demanding industrial environments, ensuring high-quality measurements and system stability.
This module supports a wide range of applications across industries such as oil and gas, chemical processing, pharmaceuticals, food and beverage, and power generation. It provides a cost-effective solution for process monitoring, system diagnostics, and automated control.
Product Specifications
| Parameter | Details |
|---|---|
| Model | KJ3223X1-BA1 |
| Product Type | Analog Input Module |
| Input Channels | 8 analog inputs |
| Input Signal Type | Voltage (0-10 V), Current (4-20 mA), RTD, Thermocouple |
| Signal Conversion | 16-bit resolution |
| Input Range | 0 to 10 V, 4 to 20 mA, ±200 mV, RTD (varied by type) |
| Accuracy | ±0.1% of full scale |
| Sampling Rate | 250 ms for all channels |
| Power Supply | 24 VDC ±20% |
| Input Impedance | 1 MΩ for voltage, 250 Ω for current |
| Input Resolution | 16 bits |
| Diagnostics | Open circuit, short circuit, over-range, under-range detection |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 118 x 102 x 30 mm |
| Weight | 1.13 kg |
| Mounting | DIN rail or panel mount |
| Certifications | CE, UL, CSA, FM, ATEX (for hazardous locations) |
Product Applications
The Emerson KJ3223X1-BA1 Analog Input Module is designed for use in industries requiring precise monitoring and control of analog signals. Its applications span across several critical sectors:
-
Oil and Gas: For monitoring pressure, temperature, and flow in pipelines, wells, and refineries.
-
Chemical Processing: To ensure accurate measurement of chemical reactions, temperatures, and levels in reactors and tanks.
-
Pharmaceuticals: For precise temperature and pressure measurements in sterile environments and production facilities.
-
Food and Beverage: Used for monitoring pH, temperature, and fluid levels in food processing plants.
-
Power Generation: For measuring steam pressure, temperature, and flow in boilers and turbines.
-
Water Treatment: For monitoring flow and chemical levels in water treatment facilities.
Its versatility and reliability make the KJ3223X1-BA1 an essential part of process control in these industries.
Product Advantages
-
High Accuracy: With 16-bit resolution and ±0.1% accuracy, this module ensures precise measurements of analog signals, essential for reliable control and monitoring.
-
Wide Input Compatibility: Supports voltage, current, RTD, and thermocouple inputs, offering flexibility to handle diverse process control requirements.
-
Efficient Signal Conversion: Converts analog inputs to digital form with a fast response time, improving system processing and real-time monitoring.
-
Advanced Diagnostics: Includes built-in diagnostics for fault detection, such as open/short circuit, over-range, and under-range, ensuring smooth operation and minimizing downtime.
-
Robust Design: Built to withstand challenging industrial environments with a wide temperature range and high tolerance to environmental factors like humidity and vibration.
-
Seamless Integration: Easily integrates with the DeltaV control system, ensuring scalability and reliability in large-scale process control systems.
-
Cost-Effective Maintenance: The module’s diagnostics and ease of replacement ensure minimal maintenance downtime, reducing overall operational costs.
-
Flexible Mounting: Can be mounted on a DIN rail or directly onto a panel, providing convenience and adaptability to different installation configurations.
Frequently Asked Questions (FAQ)
-
What types of input signals does the KJ3223X1-BA1 support?
It supports voltage, current, RTD, and thermocouple inputs. -
How many input channels does the KJ3223X1-BA1 have?
The module supports 8 analog input channels. -
What is the accuracy of the KJ3223X1-BA1 module?
The module provides an accuracy of ±0.1% of full scale. -
Can the module be used in hazardous environments?
Yes, the module is certified for hazardous locations with ATEX and FM approvals. -
What is the resolution of the KJ3223X1-BA1?
It offers a 16-bit resolution for precise analog-to-digital conversion. -
What is the power supply requirement for the module?
The module requires a 24 VDC power supply with a ±20% tolerance. -
What is the sampling rate of the KJ3223X1-BA1?
The module has a sampling rate of 250 ms for all channels. -
What is the temperature range of the module?
The operating temperature range is -40°C to +70°C, with a storage range of -40°C to +85°C. -
How is the module mounted?
The KJ3223X1-BA1 can be mounted on a DIN rail or directly to a panel. -
What diagnostic features are included with the module?
It includes diagnostics for open circuit, short circuit, over-range, and under-range conditions.
Related Models in the Same Series
| Model | Description | Type | Compatibility |
|---|---|---|---|
| KJ3223X1-CA1 | Analog Input Module with additional diagnostic features | Analog Input | DeltaV Series |
| KJ3223X1-DA1 | Analog Input Module for high-temperature environments | Analog Input | DeltaV Series |
| KJ3213X1-BA1 | 16-channel Analog Input Module | Analog Input | DeltaV Series |
| KJ3213X1-AA1 | Analog Input Module for general applications | Analog Input | DeltaV Series |
| KJ3223X1-BB1 | Analog Input Module with extended signal types | Analog Input | DeltaV Series |
| KJ3213X1-CA2 | Advanced Analog Input Module with integrated filtering | Analog Input | DeltaV Series |
