Product Introduction

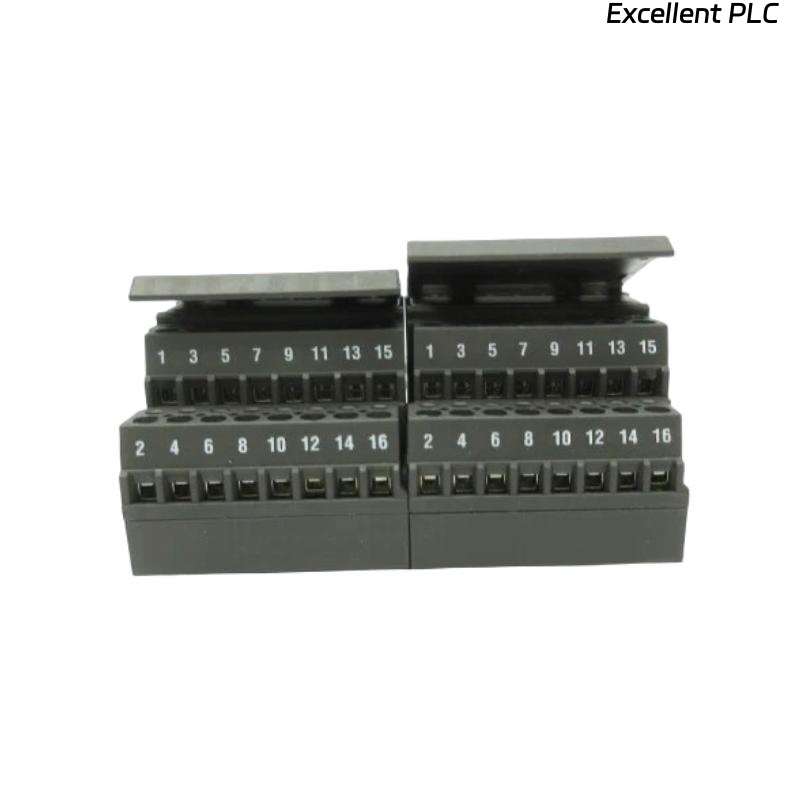

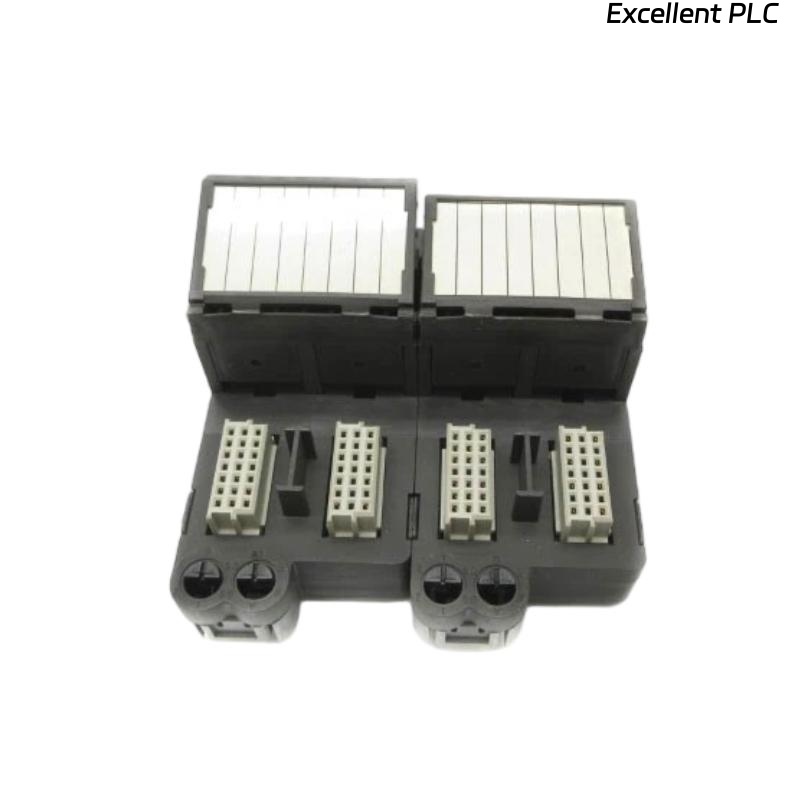

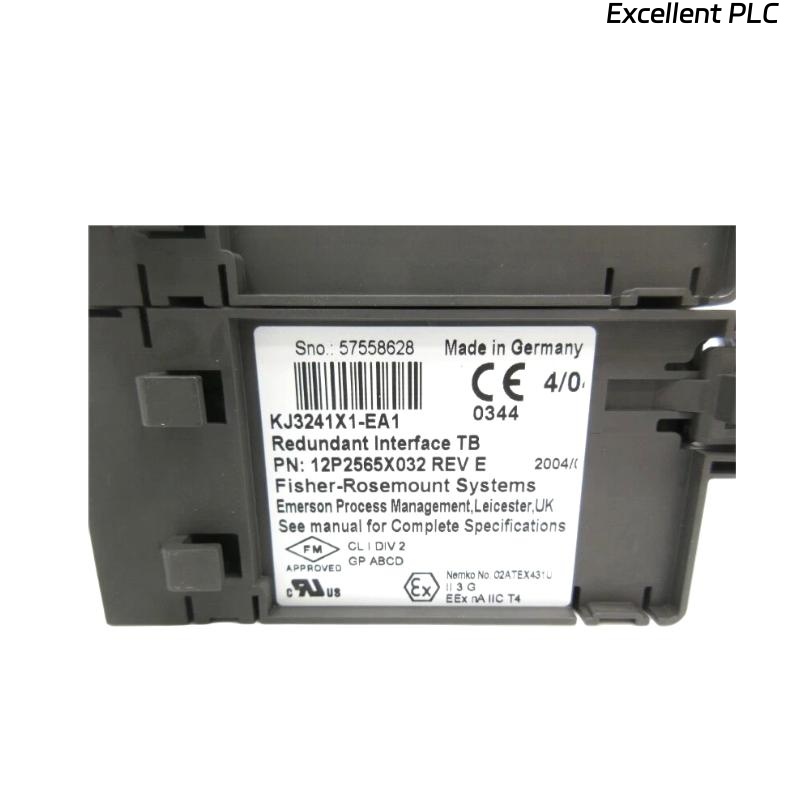

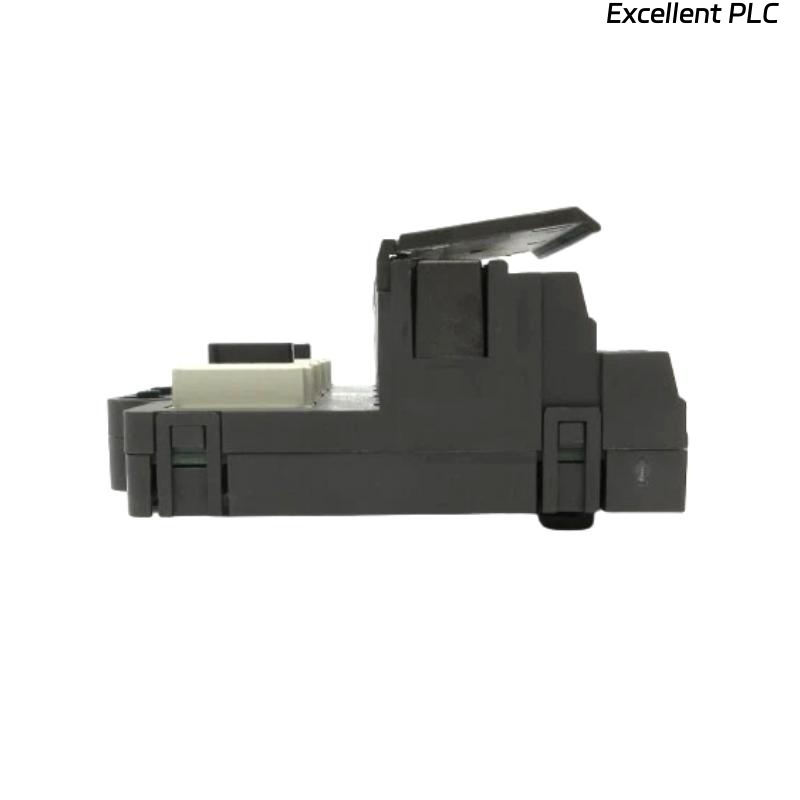

The Emerson KJ3241X1-EA1 Redundant Serial Interface Terminal Block is a critical interface module designed for integration into DeltaV distributed control systems (DCS). This module provides redundant serial communication paths, ensuring continuous and reliable data exchange between control processors and field devices.
Designed for high-availability applications, the KJ3241X1-EA1 supports redundant network architecture, maintaining system integrity in case of communication path failure. It serves as a bridge between serial devices and the DeltaV system, managing data flow with error detection, fault isolation, and high-speed signal transmission.
This terminal block is engineered for industrial environments with high electrical noise, vibration, and temperature variations. Its modular design allows easy integration, replacement, and serviceability while maintaining system uptime in mission-critical process control applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ3241X1-EA1 |
| Product Type | Redundant Serial Interface Terminal Block |
| System Compatibility | Emerson DeltaV DCS |
| Communication Type | RS-232/RS-485 serial communication |
| Redundancy Support | Dual redundant serial paths for high availability |
| Connector Type | Terminal block connections for field wiring |
| Processing Capability | Embedded interface for data routing and error detection |
| Power Supply | +5 VDC / +24 VDC via DeltaV backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Vibration | Designed to IEC industrial standards |
| Compliance | CE, UL, CSA certified |
| Dimensions | 180 × 120 × 40 mm |
| Weight | 0.141 kg |
Applications
The KJ3241X1-EA1 terminal block is widely used in process control and industrial automation environments where reliable serial communication is critical:
-
Chemical and Petrochemical Plants: Supports redundant data communication with sensors, analyzers, and actuators.
-
Oil & Gas Facilities: Ensures continuous operation in distributed control systems monitoring pipelines and processing units.
-
Power Generation Plants: Facilitates reliable communication between field devices and control processors.
-
Water and Wastewater Treatment: Maintains high-availability control system operation.
-
Pharmaceutical Manufacturing: Ensures accurate data flow for automated batch processes.
-
Food & Beverage Processing: Supports redundant serial communication for automated production lines.
Advantages
-
Redundant Communication: Dual serial paths prevent data loss during communication failures.
-
High Reliability: Industrial-grade design ensures robust performance in harsh environments.
-
Error Detection: Embedded mechanisms detect and isolate faults to maintain system integrity.
-
Flexible Integration: Compatible with a wide range of DeltaV field devices and serial protocols.
-
Maintenance-Friendly: Terminal block design allows quick wiring, replacement, and service.
-
Industrial Compliance: Meets CE, UL, and CSA standards for safety and reliability.
-
Noise Immunity: Engineered to minimize effects of electromagnetic interference (EMI).
-
Deterministic Data Flow: Guarantees timely delivery of critical process signals.
FAQ
-
What is the primary function of the KJ3241X1-EA1?
It provides redundant serial communication between DeltaV controllers and field devices. -
Which communication protocols are supported?
RS-232 and RS-485 serial communication protocols are supported. -
How does the module ensure redundancy?
It uses dual independent serial paths to maintain communication if one path fails. -
Can this terminal block be hot-swapped?
It supports modular replacement within the DeltaV cabinet without affecting system operation. -
What types of devices can be connected?
Field devices such as sensors, actuators, analyzers, and other serial-enabled instrumentation. -
Does it include error detection mechanisms?
Yes, it monitors data integrity and isolates faults automatically. -
What power supply does it require?
It draws +5 VDC and +24 VDC from the DeltaV backplane. -
Is it suitable for high-vibration industrial environments?
Yes, it is designed to meet IEC vibration standards for industrial applications. -
How is it integrated into a DeltaV system?
It mounts in DeltaV I/O cabinets and connects via standard terminal block wiring. -
What certifications does this terminal block meet?
CE, UL, and CSA industrial safety and performance standards.
