Product Overview

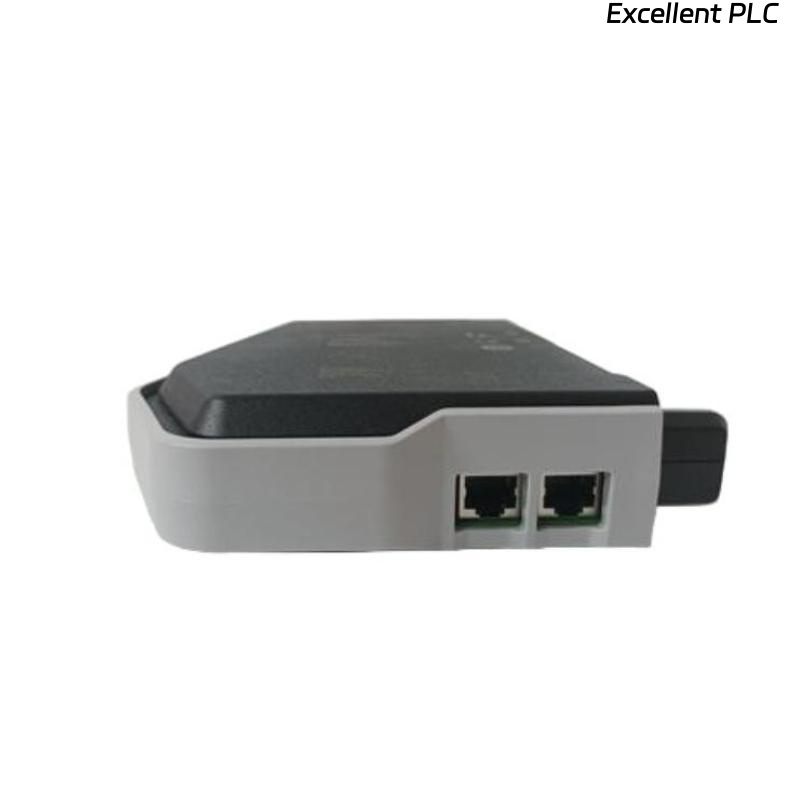

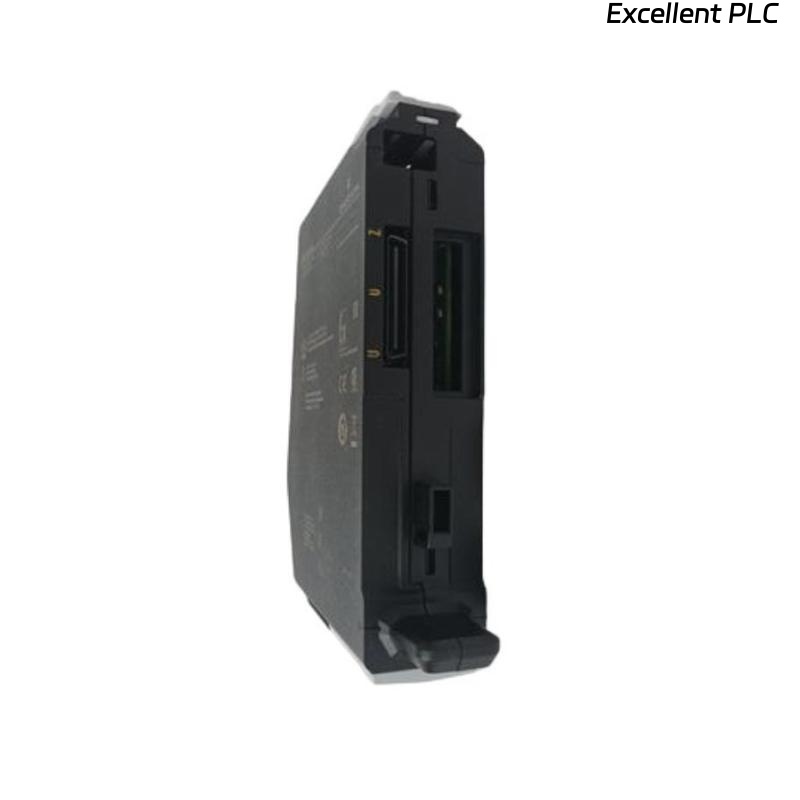

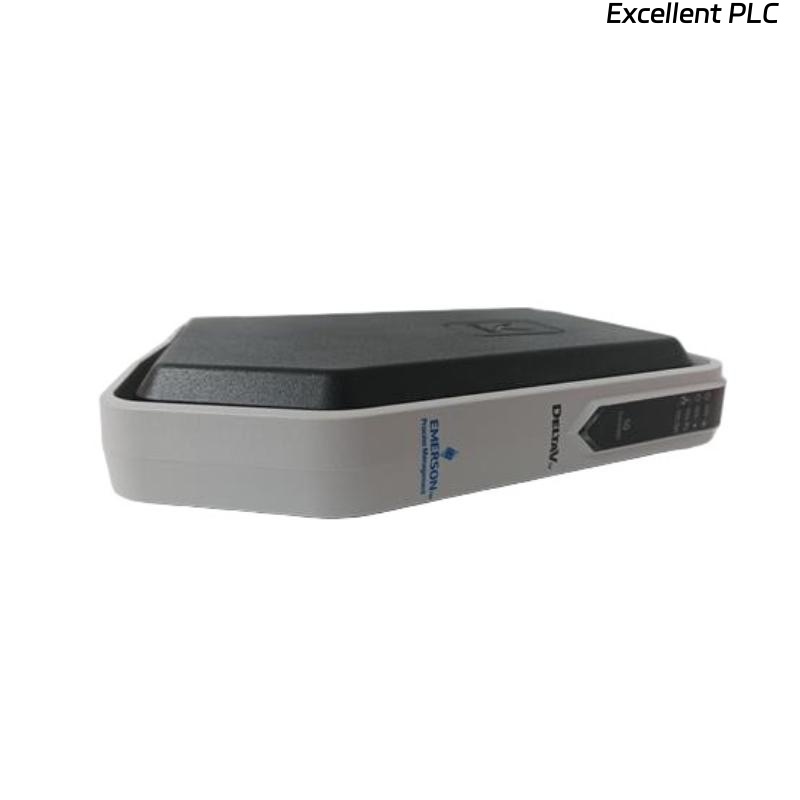

The Emerson KJ3242X1-BK1 Fieldbus H1 Card is a high-performance communication module designed for DeltaV distributed control systems (DCS). It provides H1 Foundation Fieldbus connectivity, enabling integration of smart field devices into the DeltaV control network. The card allows real-time communication, configuration, and monitoring of field instruments such as transmitters, actuators, and sensors. With built-in diagnostics, redundancy support, and hot-swappable functionality, it ensures reliable and uninterrupted process control in demanding industrial environments.
Key Features
-
Supports H1 Foundation Fieldbus communication for smart field devices
-
Enables real-time monitoring, configuration, and diagnostics
-
Compatible with DeltaV DCS and seamless integration with existing network
-
Hot-swappable for minimal downtime during maintenance
-
Built-in redundancy support for critical applications
-
LED indicators for communication status and fault detection
-
Rugged and compact design for industrial environments
-
Enhances process reliability and control system performance
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | KJ3242X1-BK1 |
| Manufacturer | Emerson |
| Product Type | Fieldbus Communication Module |
| System Compatibility | DeltaV Distributed Control System |
| Communication Protocol | H1 Foundation Fieldbus |
| Channels | 2 H1 fieldbus channels per card |
| Redundancy | Supported for high availability networks |
| Hot-Swap Capability | Yes |
| Diagnostics | Built-in module and network diagnostics |
| Indicators | Status, communication, and fault LEDs |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Dimensions | 130 × 40× 160 mm |
| Weight | 0.5 kg |
| Mounting | DeltaV I/O rack or chassis |
| Compliance | CE, UL, RoHS, IEC standards |
Industry Applications
-
Oil & Gas – integration of smart field devices for process control
-
Petrochemical – real-time monitoring of transmitters, valves, and sensors
-
Power Generation – smart device connectivity for turbines and generators
-
Pharmaceuticals – precise control and monitoring of batch processes
-
Water & Wastewater – automation of pumps, motors, and treatment processes
Advantages
-
Facilitates seamless integration of smart field devices via H1 Foundation Fieldbus
-
Provides redundancy and hot-swap capabilities for high system availability
-
Built-in diagnostics improve reliability and reduce troubleshooting time
-
Compact design optimizes control cabinet space
-
Enhances control system accuracy, reliability, and operational efficiency
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the KJ3242X1-BK1?
It provides H1 Foundation Fieldbus connectivity for smart field devices in DeltaV systems.
Q2: How many fieldbus channels does it support?
It supports 2 H1 fieldbus channels per card.
Q3: Is the module hot-swappable?
Yes, it can be replaced without shutting down the control system.
Q4: Does it support redundancy?
Yes, it supports redundant network configurations for critical applications.
Q5: What type of diagnostics does it provide?
It includes module-level and network-level diagnostics for device status and communication integrity.
Q6: Which systems is it compatible with?
It is compatible with Emerson DeltaV Distributed Control Systems.
Q7: What is the operating temperature range?
0 °C to +60 °C.
Q8: How is it mounted?
It is installed in DeltaV I/O racks or chassis.
Q9: What types of devices can it connect to?
It can connect to H1 Foundation Fieldbus smart transmitters, actuators, and other field instruments.
Q10: What standards does it comply with?
It complies with CE, UL, RoHS, and IEC standards.
