Product Introduction

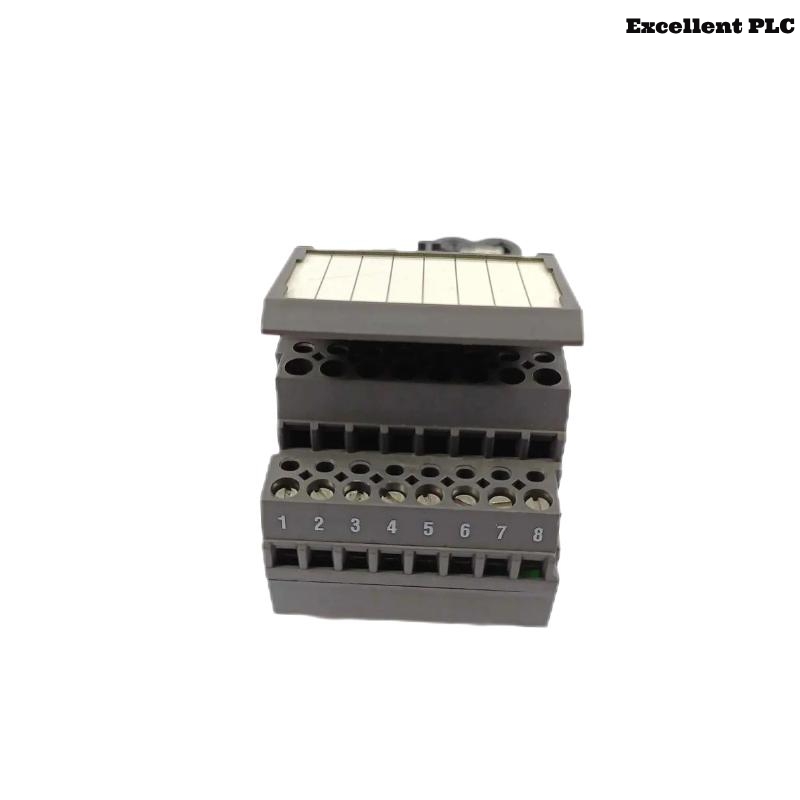

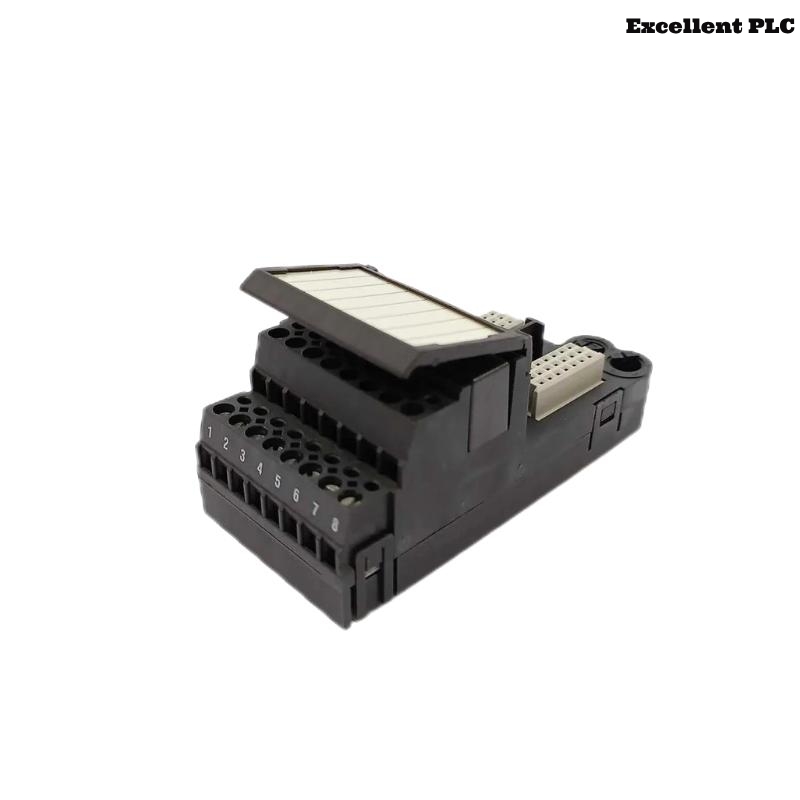

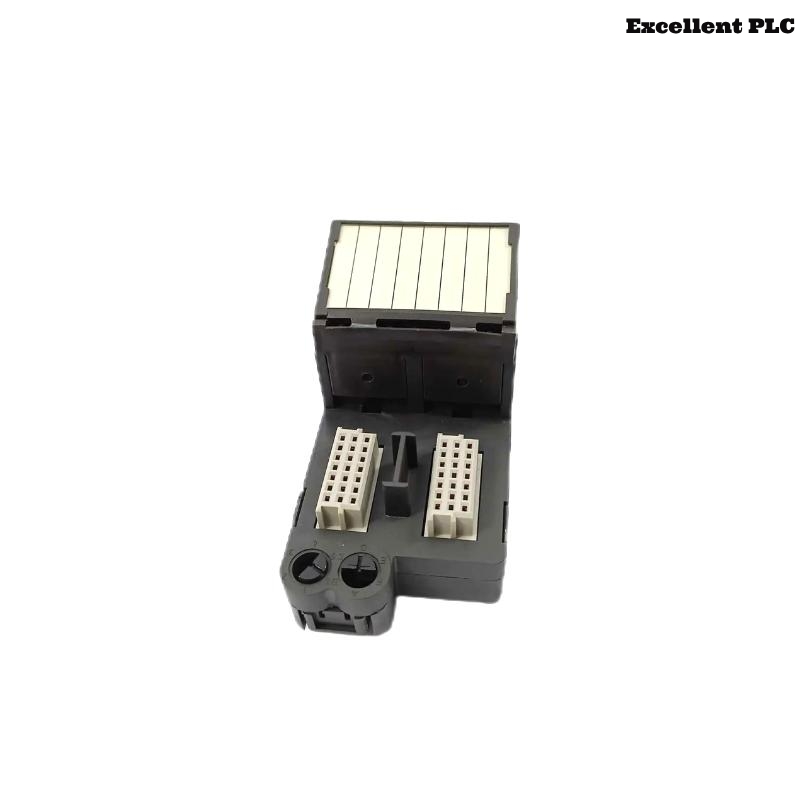

The Emerson KJ3242X1-EA1 is a Fieldbus H1 Terminal Block designed to seamlessly integrate with Emerson’s DeltaV™ digital automation system. This terminal block serves as a physical interface for Fieldbus H1 segments, enabling high-speed, bidirectional digital communication between the control system and intelligent field devices. It is a core component in building reliable, scalable, and intrinsically safe fieldbus architectures in process automation industries.
As part of Emerson’s I/O subsystem, the KJ3242X1-EA1 offers high signal integrity, robust connection stability, and easy installation. This model supports redundant and non-redundant configurations, making it suitable for both safety-critical and standard applications. It is used in conjunction with the Fieldbus I/O card (e.g., KJ4001X1-BA2), acting as the physical terminal interface for wiring multiple field devices across the H1 bus.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson Automation Solutions |
| Model Number | KJ3242X1-EA1 |
| Product Type | Fieldbus H1 Terminal Block |
| System Compatibility | DeltaV™ Distributed Control System |
| Fieldbus Type | FOUNDATION™ Fieldbus H1 |
| Number of Segments Supported | 2 independent H1 segments |
| Redundancy Support | Yes (with redundant I/O card configuration) |
| Cable Termination | Removable terminal strips |
| Terminal Type | Screw-type terminals |
| Connection Interface | 4-pin per channel (2 wires per H1 bus + shield) |
| Max Devices per Segment | Up to 16 field devices (depending on power budget and topology) |
| Power Distribution | Intrinsically safe or non-IS depending on system setup |
| Mounting Type | Baseplate-mounted (standard Emerson carrier) |
| Isolation | Galvanic isolation between segments and the system |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Humidity Tolerance | 5% to 95% RH non-condensing |
| Vibration Resistance | Meets IEC 60068-2-6 standards |
| Dimensions (H x W x D) | 85 x 56 x 35 mm |
| Weight | 0.07 kg |
| Certifications | CE, ATEX, IECEx, CSA, UL (depending on installation) |
Applications
The KJ3242X1-EA1 Fieldbus H1 Terminal Block is used across a wide range of industries requiring digital communications between smart field devices and process control systems:
-
Oil & Gas Facilities: Interfaces with smart pressure transmitters, temperature sensors, and valve positioners in refineries and upstream production units.
-
Power Generation Plants: Connects smart actuators, instrumentation, and analyzers in turbine control and balance of plant operations.
-
Chemical & Petrochemical Plants: Ideal for digital valve controllers, process analyzers, and other intelligent instruments in hazardous environments.
-
Pharmaceutical Manufacturing: Supports closed-loop control for regulated cleanroom and batch process operations.
-
Water Treatment Plants: Ensures digital signal integrity across long cable runs for flow and pressure management.
-
Mining and Metals: Provides robust connectivity for automated material handling and environmental control instrumentation.
Product Advantages
-
Segmented Communication: Supports two independent Fieldbus H1 segments, allowing greater signal distribution efficiency.
-
Enhanced Signal Integrity: Minimizes noise and interference, ensuring high-quality data transmission even in noisy industrial environments.
-
Redundancy Ready: Fully compatible with redundant DeltaV I/O configurations for increased availability.
-
Easy Installation & Maintenance: Features screw-type terminals and clear channel labeling for simplified field wiring.
-
Galvanic Isolation: Provides reliable electrical isolation to protect both the control system and field devices.
-
Versatile Application: Suitable for both intrinsic safety and general-purpose installations, depending on system configuration.
-
Durable Industrial Design: Operates reliably in extreme temperatures and harsh environmental conditions.
-
DeltaV Native Integration: Ensures seamless configuration, diagnostics, and commissioning within DeltaV Explorer.
Frequently Asked Questions (FAQ)
-
Q: What is the primary function of the KJ3242X1-EA1 Terminal Block?
A: It provides the physical wiring interface for two Fieldbus H1 communication segments, connecting smart field devices to the control system. -
Q: Can it be used in redundant configurations?
A: Yes, it supports redundancy when paired with compatible redundant I/O cards like the KJ4001X1-BA2. -
Q: How many field devices can I connect to one terminal block?
A: Up to 16 devices per segment, depending on power consumption and bus topology. -
Q: Is it suitable for hazardous area installations?
A: Yes, when used in conjunction with certified intrinsic safety barriers or systems. -
Q: Does it provide power to the field devices?
A: It allows for powered or non-powered segment configurations depending on the system setup. -
Q: Can I mix IS (Intrinsically Safe) and non-IS devices on the same terminal block?
A: No, each segment must follow a consistent safety classification and configuration. -
Q: Is software configuration needed for the terminal block?
A: No, it’s a passive component. Configuration is done through the associated Fieldbus I/O card in the DeltaV system. -
Q: How do I troubleshoot segment issues with this block?
A: Use DeltaV diagnostics to identify segment faults, and visually inspect the terminal connections. -
Q: Does it come with terminal connectors or are they sold separately?
A: Typically, it is sold with removable terminal connectors, but this depends on the system integrator or vendor. -
Q: What type of wiring is recommended for Fieldbus H1 segments?
A: Shielded twisted pair cable with characteristic impedance of 100–120 ohms is recommended.
