Product Overview

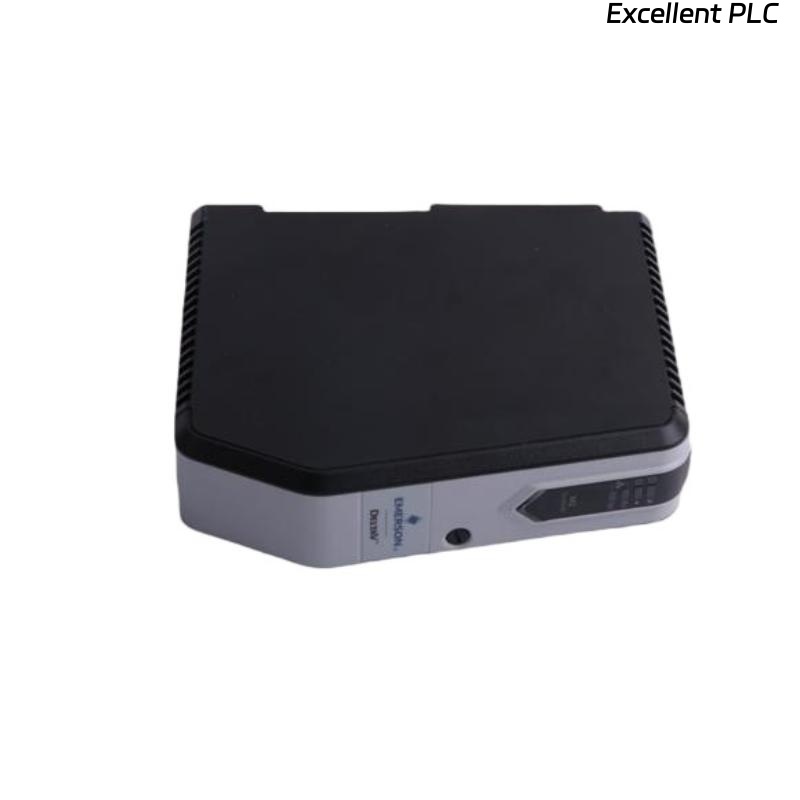

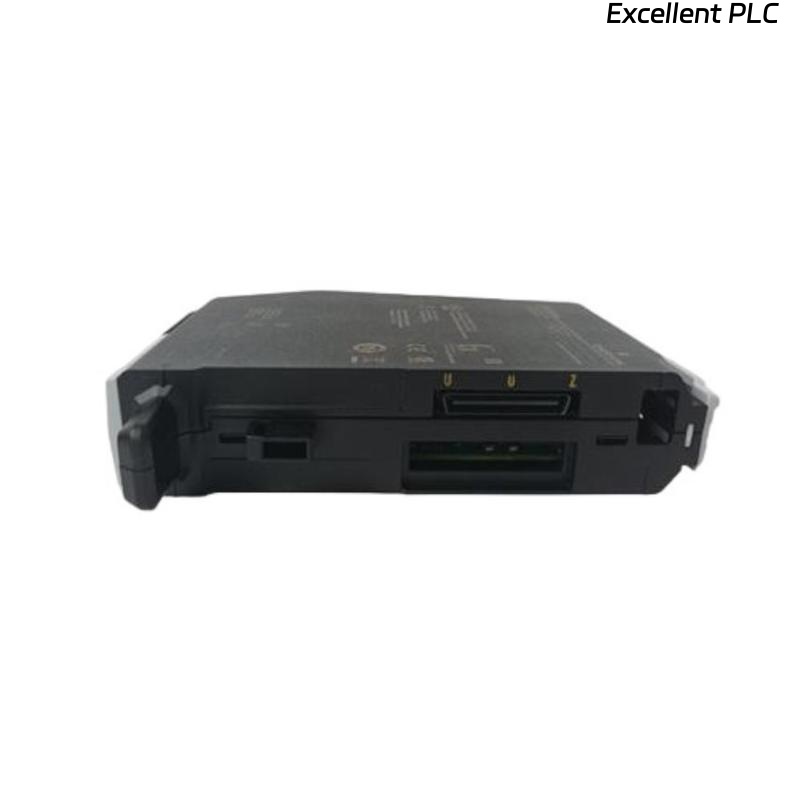

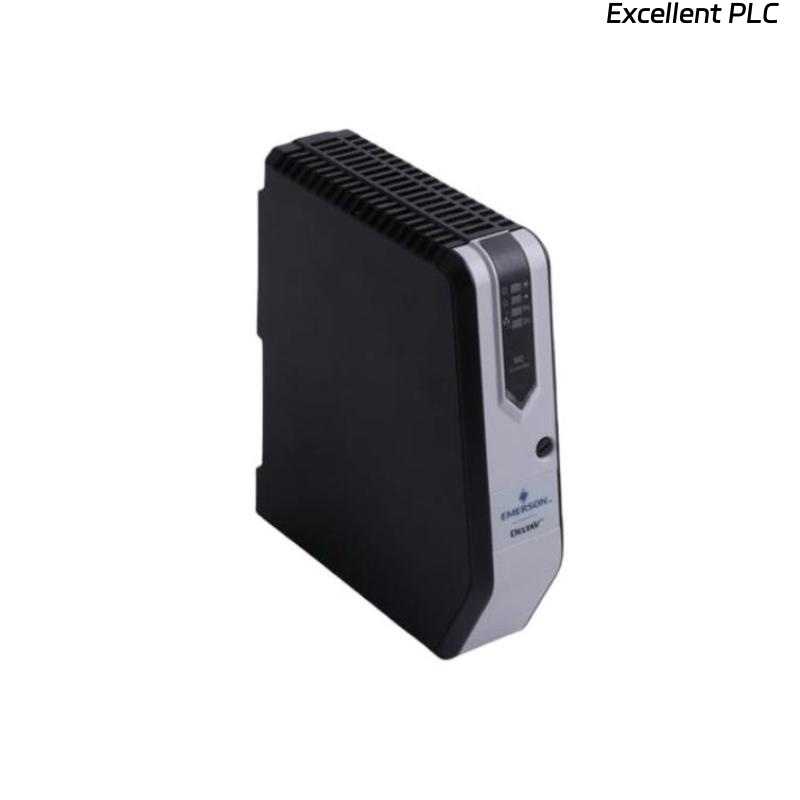

The Emerson KJ3246X1-BA1 Integrated Power Supply is a robust and reliable power module designed for DeltaV™ control systems. It provides stable and efficient power delivery for critical automation applications, ensuring uninterrupted operation of controllers, I/O modules, and communication components. Built with high-quality industrial-grade components, this integrated power supply ensures long-term stability, high availability, and dependable performance in harsh industrial environments.
Key Features
-
Provides stable and regulated power for Emerson DeltaV systems
-
Compact and integrated design for space-efficient installation
-
High reliability with industrial-grade construction
-
Built-in protection against over-voltage, over-current, and short-circuit
-
Easy replacement and integration into DeltaV architecture
-
Supports continuous operation in demanding environments
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | KJ3246X1-BA1 |
| Manufacturer | Emerson |
| Product Type | Integrated Power Supply |
| System Compatibility | DeltaV™ control systems |
| Input Voltage | 24 VDC nominal (typical range 19–30 VDC) |
| Output Voltage | 24 VDC regulated |
| Output Power | Up to 30 W (system dependent) |
| Protection Features | Over-voltage, over-current, and short-circuit protection |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| Dimensions | 127 × 63.5 × 19.05 mm |
| Weight | 0.35 kg |
| Certifications | CE, UL, CSA, RoHS |
Industry Applications
-
Power Generation – reliable power for automation and safety systems
-
Oil & Gas – ensures continuous operation of DeltaV controllers and I/O modules
-
Petrochemical & Chemical – provides stable power for process automation
-
Manufacturing – supplies regulated power for production monitoring systems
-
Water & Wastewater – dependable power source for SCADA and control equipment
Advantages
-
Ensures continuous and stable power supply for DeltaV systems
-
Protects against power faults with built-in safety features
-
Compact size reduces cabinet space requirements
-
Easy installation and integration into existing DeltaV architectures
-
Industrial-grade durability for harsh environments
-
Long service life with minimal maintenance requirements
Frequently Asked Questions (FAQ)
Q1: What is the function of the KJ3246X1-BA1?
It provides integrated, regulated power for Emerson DeltaV control systems.
Q2: What input voltage does it require?
It operates on a 24 VDC nominal input (typical range 19–30 VDC).
Q3: What type of output does it provide?
It delivers a regulated 24 VDC output.
Q4: How much output power can it supply?
Up to 30 W, depending on the system configuration.
Q5: Does it have built-in protection?
Yes, it includes over-voltage, over-current, and short-circuit protection.
Q6: What is the operating temperature range?
0 °C to +60 °C.
Q7: Can it be installed in harsh environments?
Yes, it is designed with industrial-grade components for demanding applications.
Q8: Is it compatible with all DeltaV systems?
Yes, it is designed for seamless integration into Emerson DeltaV architectures.
Q9: What certifications does it have?
It is CE, UL, CSA, and RoHS certified.
Q10: How is it installed?
It is mounted as a standard DeltaV system module for easy integration.
