Product Introduction

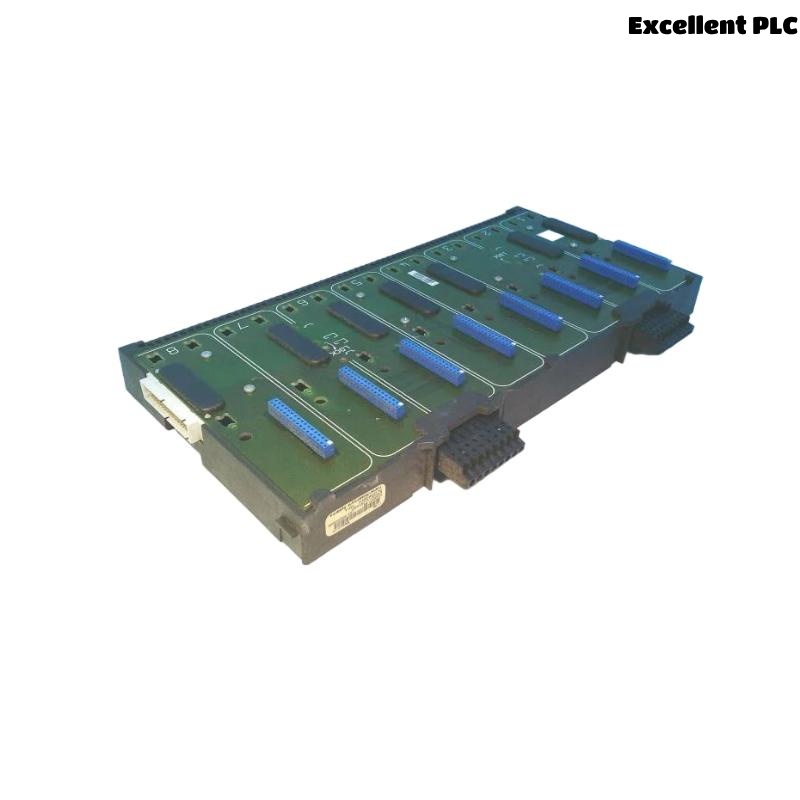

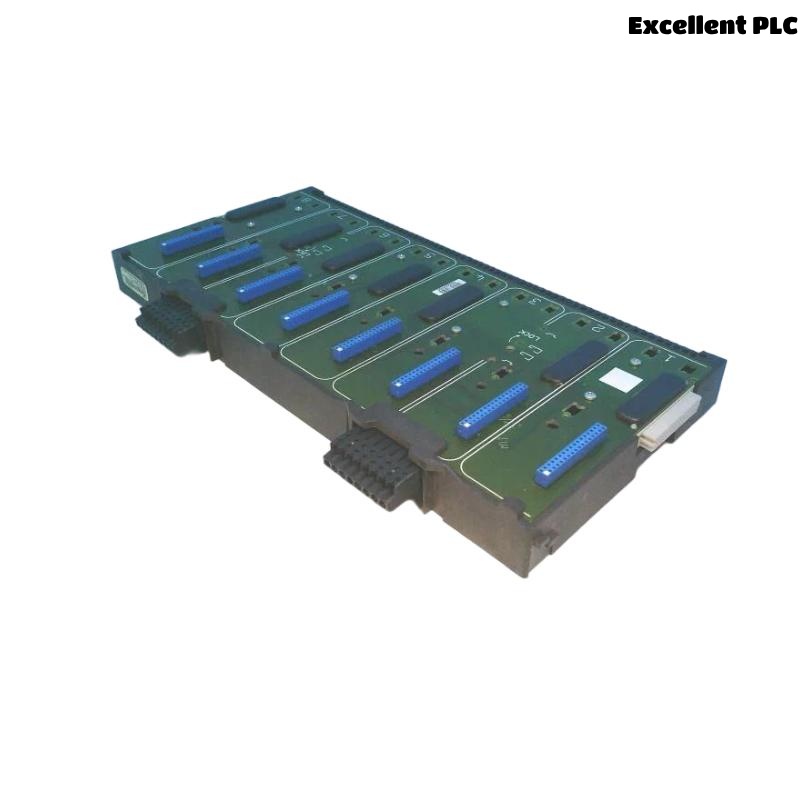

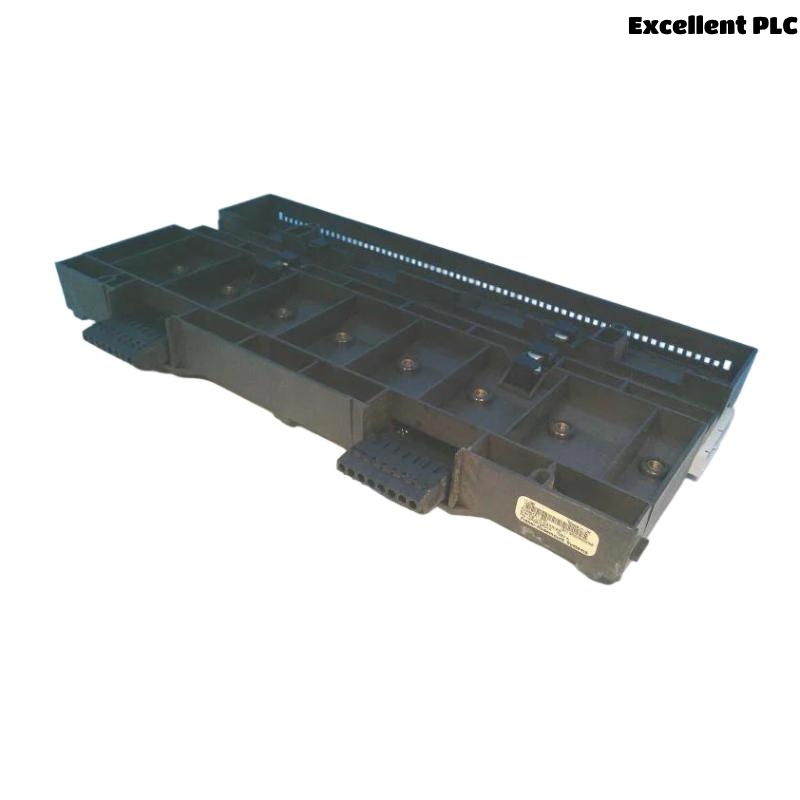

The Emerson KJ4001X1-BB1 12P0619X032 is an 8-wide I/O carrier designed for high-performance process control systems. This input/output carrier module is part of Emerson’s DeltaV™ automation system, ensuring smooth and reliable data communication between field devices and control systems. Its compact design, with dimensions of 177 × 220 × 114 mm and weighing 0.83 kg, allows for seamless integration into industrial control panels and distributed control systems (DCS).
This I/O carrier can accommodate up to 8 I/O modules, providing flexibility and scalability in process automation applications. The Emerson KJ4001X1-BB1 is engineered to handle both analog and digital signals, making it suitable for a wide range of industrial applications, from manufacturing to oil and gas and chemical plants.
Designed to meet the rigorous demands of modern industrial environments, the KJ4001X1-BB1 I/O carrier ensures fast, reliable, and secure communication, making it an essential component for real-time control systems.
Product Specifications
| Parameter | Details |
|---|---|
| Model | KJ4001X1-BB1 12P0619X032 |
| Module Type | 8-Wide I/O Carrier |
| Dimensions (L x W x H) | 177 × 220 × 114 mm |
| Weight | 0.83 kg |
| Input/Output Type | Analog and Digital I/O |
| I/O Capacity | 8 I/O Slots |
| Mounting | Panel Mount, DIN Rail Compatible |
| Power Supply | 24V DC |
| Communication Protocol | DeltaV Fieldbus |
| Environmental Rating | IP20 (Protected from solid objects larger than 12mm) |
| Operating Temperature | -40°C to +70°C |
| Signal Processing | Signal Conditioning |
| Compatibility | DeltaV Control System |
Applications
The Emerson KJ4001X1-BB1 12P0619X032 I/O Carrier is designed to be used in a wide variety of industrial applications where precise signal processing and data communication are required. Some of the key applications include:
-
Process Automation: It is widely used in process automation industries such as chemical plants, refineries, and food processing where high-speed data acquisition and control are essential for maintaining the efficiency and safety of operations.
-
Factory Automation: The module plays a crucial role in factory automation, where it facilitates communication between sensors, actuators, and control systems, ensuring optimal performance and real-time monitoring of production lines.
-
Power Generation: In power plants and energy facilities, this I/O carrier is used to interface with various sensors for monitoring critical parameters such as pressure, temperature, and flow, ensuring the smooth operation of turbines, boilers, and other equipment.
-
Oil and Gas Industry: The KJ4001X1-BB1 I/O carrier is used in both upstream and downstream applications, where accurate control and monitoring of equipment like pumps, compressors, and valves are essential.
-
Building Management Systems (BMS): It can also be used in HVAC systems, lighting control, and energy management, allowing for seamless integration of various sensors and controllers to improve operational efficiency.
-
Water and Wastewater Treatment: The module is commonly used in water treatment plants, where precise control of pumps, valves, and water quality sensors is critical to maintaining proper system performance.
Product Advantages
-
Compact and Efficient Design: With dimensions of 177 × 220 × 114 mm and a weight of 0.83 kg, the Emerson KJ4001X1-BB1 is compact yet efficient, making it suitable for tight installation spaces without compromising on performance.
-
Versatile I/O Support: It supports both analog and digital I/O configurations, providing the flexibility needed to connect various field devices, including temperature sensors, flowmeters, and positioners.
-
Flexible Expansion: This I/O carrier can support up to 8 I/O slots, allowing users to expand the system as needed to meet specific application requirements.
-
Robust Communication: The DeltaV fieldbus protocol ensures high-speed, reliable communication between the I/O carrier and the central control system, providing real-time control and monitoring capabilities.
-
Durability: The module is built to withstand harsh industrial environments, with an IP20 rating providing protection against dust and solid objects larger than 12mm, making it ideal for factory and process applications.
-
Wide Temperature Range: It operates effectively in environments with temperatures ranging from -40°C to +70°C, making it suitable for use in extreme conditions.
-
Easy Installation: The DIN rail mounting capability allows for quick installation and integration into existing control panels and automation systems.
-
Signal Conditioning: The built-in signal conditioning features ensure that the I/O carrier can handle various signal types, providing optimal signal processing for accurate data acquisition.
-
Seamless Integration: It is fully compatible with Emerson DeltaV systems, allowing for a streamlined integration process and reducing installation and setup time.
-
Energy-Efficient: With a 24V DC power supply requirement, it ensures efficient operation without consuming excessive power.
Frequently Asked Questions (FAQs)
Q1: What is the power supply requirement for the Emerson KJ4001X1-BB1 I/O Carrier?
A1: The module operates on a 24V DC power supply, making it suitable for low-power consumption applications.
Q2: How many I/O slots does the Emerson KJ4001X1-BB1 support?
A2: The module supports up to 8 I/O slots, providing ample space for connecting various field devices.
Q3: What is the environmental rating of the Emerson KJ4001X1-BB1 I/O Carrier?
A3: The module has an IP20 rating, offering protection from solid objects larger than 12mm but not against water ingress.
Q4: Can the Emerson KJ4001X1-BB1 I/O Carrier be mounted on a DIN rail?
A4: Yes, the module is DIN rail compatible, allowing for easy and secure installation in control cabinets.
Q5: What communication protocol does the Emerson KJ4001X1-BB1 I/O Carrier use?
A5: The module uses the DeltaV fieldbus protocol, ensuring high-speed, reliable communication with DeltaV control systems.
Q6: What is the operating temperature range of the Emerson KJ4001X1-BB1?
A6: The module operates effectively in temperatures ranging from -40°C to +70°C, making it suitable for harsh industrial environments.
Q7: Is the Emerson KJ4001X1-BB1 I/O Carrier suitable for process automation applications?
A7: Yes, it is designed for process automation, including industries like chemical, oil and gas, and power generation.
Q8: What types of signals can the Emerson KJ4001X1-BB1 handle?
A8: The module supports both analog and digital I/O signals, making it versatile for various applications.
Q9: How much does the Emerson KJ4001X1-BB1 I/O Carrier weigh?
A9: The module weighs 0.83 kg, making it easy to handle and install.
Q10: What is the primary benefit of using the Emerson KJ4001X1-BB1 I/O Carrier in industrial systems?
A10: The module provides reliable signal processing and communication between field devices and control systems, enabling efficient and real-time monitoring and control of industrial processes.
