Product Introduction

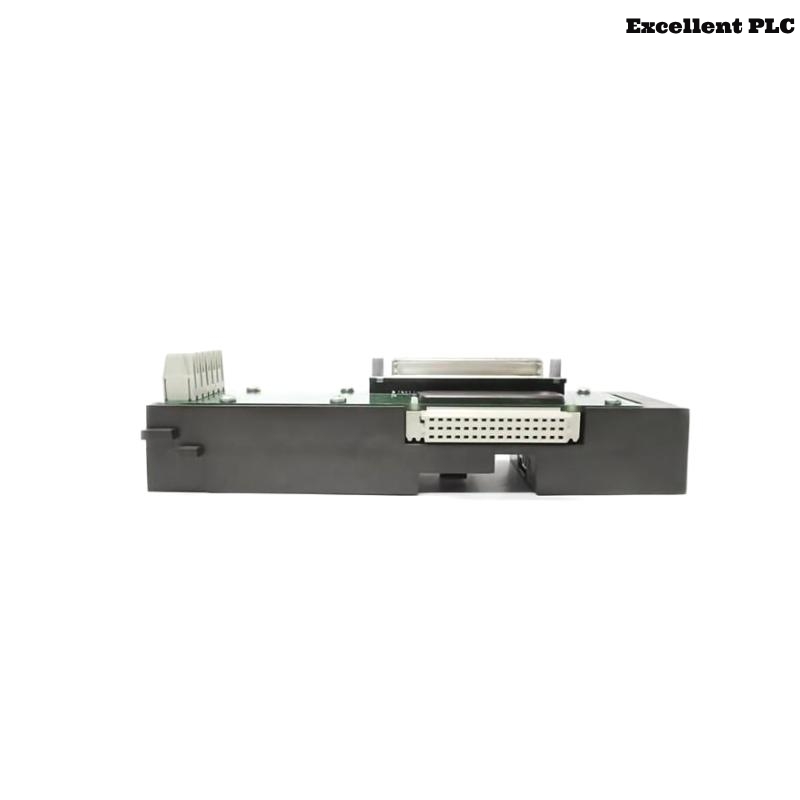

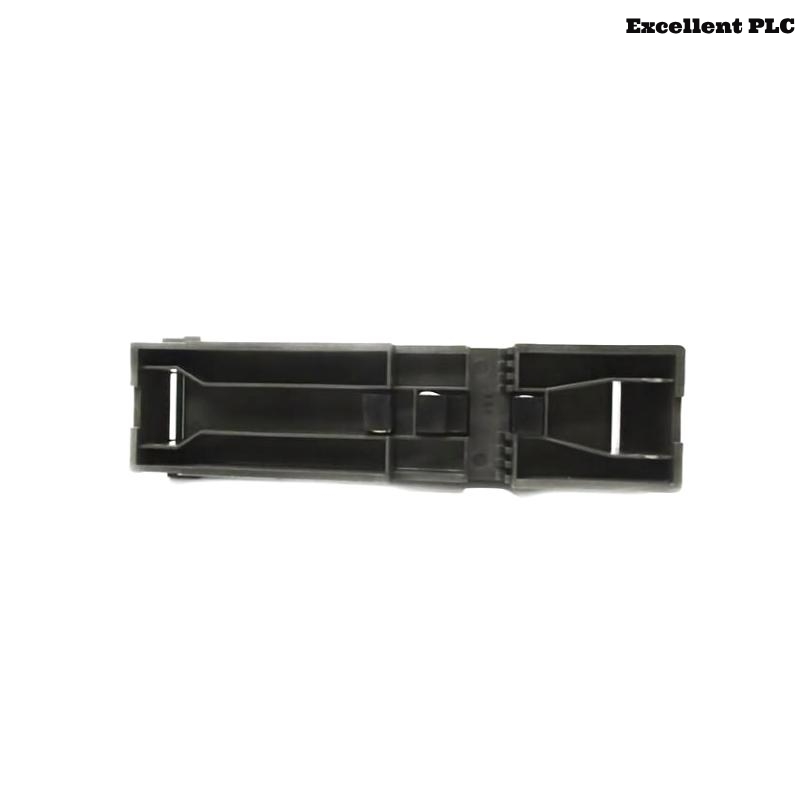

The Emerson KJ4001X1-HB1 Localbus Right Extender is a critical component within the Emerson DeltaV™ Distributed Control System (DCS) architecture. It functions as a Localbus extender, used to connect multiple I/O carriers or expansion carriers in larger and more distributed control environments. As its name suggests, the “Right Extender” is installed on the right side of an I/O carrier and provides a secure and high-speed communication link between adjacent carriers or system backplanes.
This model ensures the continuity of the DeltaV Localbus, which is Emerson’s proprietary internal high-speed bus that supports module-to-module communication within the system. The KJ4001X1-HB1 plays a vital role in achieving the scalability and modularity for which DeltaV systems are known.
Compact, rugged, and easy to install, the KJ4001X1-HB1 provides high availability and performance for mission-critical process control environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson Electric Co. |
| Product Model | KJ4001X1-HB1 |
| Product Type | Localbus Right Extender |
| Function | Extends Localbus on the right side of I/O carriers |
| System Compatibility | DeltaV™ Distributed Control System |
| Installation Position | Right side of I/O baseplates or carrier |
| Mounting Type | Snap-in (tool-free installation) |
| Connection Type | Embedded bus connector |
| Electrical Isolation | Internal insulation from field wiring |
| Shock Resistance | 15 g, 11 ms half-sine pulse |
| Vibration Tolerance | 2 g, 10–500 Hz |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Housing Material | Flame-retardant Polyamide (UL 94 V-0) |
| Certifications | CE, UL, CSA, ATEX (varies by application) |
| Dimensions (W × H × D) | 330 x 100 x 50 mm |
| Weight | 0.13 kg |
Product Applications
The Emerson KJ4001X1-HB1 is widely used in distributed control system infrastructures where extended modular connectivity is required. Its primary application environments include:
-
Large-scale Distributed Process Automation: Facilitates the physical expansion of I/O in segmented layouts across plants.
-
Oil and Gas Refineries: Ensures robust communication between multiple control nodes within modular DCS enclosures.
-
Power Plants: Supports interconnection between different control and I/O racks.
-
Chemical Manufacturing: Vital in I/O-dense environments requiring scalable system growth.
-
Pharmaceutical Facilities: Aids in regulated environments where reliability and integrity of control signals are paramount.
-
Water and Wastewater Plants: Ensures signal consistency across extended process areas.
Product Advantages
-
DeltaV System Compatibility: Seamless integration with Emerson DeltaV control hardware.
-
Compact and Lightweight: Takes minimal space inside control cabinets, allowing dense configurations.
-
Plug-and-Play Design: Tool-free snap-on mounting minimizes installation time and human error.
-
Reliable Bus Continuity: Ensures stable communication between baseplates for uninterrupted control.
-
Wide Operating Range: Performs reliably in harsh industrial temperature and humidity conditions.
-
Maintenance-Free: No moving parts or serviceable components, reducing downtime and cost.
-
Environmentally Rugged: Tolerates vibration and shock from nearby machinery or industrial equipment.
-
Standards Compliant: Complies with CE, UL, CSA, and relevant ATEX certifications.
-
Improved System Scalability: Enables cost-effective expansion without redesigning control layouts.
-
Long Service Life: Built with durable materials for extended use in industrial applications.
Frequently Asked Questions (FAQ)
-
What is the function of the Emerson KJ4001X1-HB1?
It extends the DeltaV Localbus to the right, allowing the connection of additional I/O carriers or modules. -
Can this extender be used independently?
No, it must be used within the DeltaV control architecture, typically alongside I/O baseplates. -
Where should I install the KJ4001X1-HB1?
It is mounted on the right-hand side of a DeltaV I/O carrier or baseplate. -
Is the installation process tool-free?
Yes, it snaps into place without the need for tools, facilitating quick installation. -
Does this unit provide electrical isolation?
Yes, it is electrically insulated from field wiring to avoid interference. -
Is this compatible with legacy DeltaV systems?
It is compatible with DeltaV versions that support Localbus infrastructure, including most modern builds. -
Can it operate in outdoor environments?
Only when placed inside properly rated enclosures as it is not weatherproof by itself. -
What if I install it incorrectly?
Improper installation may cause a Localbus communication fault; always follow manufacturer guidance. -
Does it require firmware or software configuration?
No software configuration is required. It functions automatically upon correct hardware installation. -
Can I use more than one KJ4001X1-HB1 in a system?
Yes, multiple extenders can be used for each required I/O baseplate connection.
Related Models (Same Series or Compatible)
| Model | Description | Purpose |
|---|---|---|
| KJ4001X1-BA2 | Localbus Left Extender | Connects Localbus to left-side baseplates |
| KJ4001X1-BC1 | I/O Carrier for DeltaV | Supports I/O module and field wiring |
| KJ4001X1-CC1 | Terminal Block Carrier | Hosts I/O terminal blocks |
| KJ1501X1-BB1 | Redundant Power Terminal Block | Ensures power continuity |
| KJ3221X1-BA1 | Analog Input Terminal Block | 16-channel analog input terminal |
| KJ4010X1-BE1 | 32-Channel Extended Terminal Block | High-density field connectivity |
