Product Introduction:

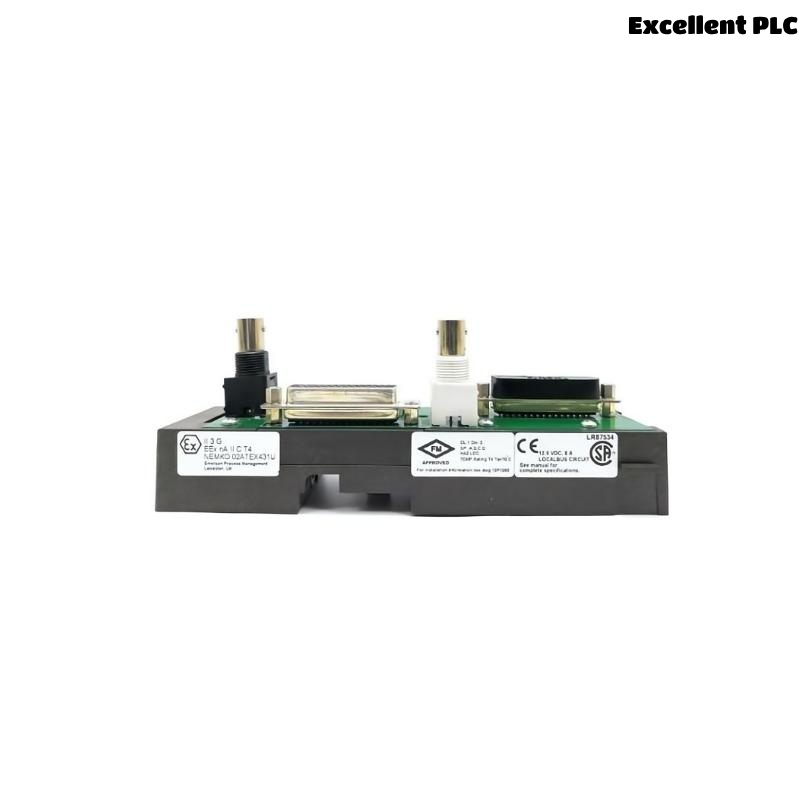

The Emerson KJ4001X1-NA1 is a Horizontal LocalBus Dual Right Cable Extender designed specifically for use with Emerson’s DeltaV distributed control system. This extender facilitates the extension of LocalBus connections, providing a reliable and flexible way to increase the distance between modules or racks without compromising signal integrity.
Engineered for industrial environments, the KJ4001X1-NA1 allows system designers and maintenance personnel to optimize cabinet layouts and expand system architecture with ease. Its dual right cable design supports enhanced cable routing, reducing clutter and improving system serviceability.
The extender is built to withstand harsh industrial conditions, maintaining consistent communication speeds and signal quality across extended distances. It integrates seamlessly with Emerson DeltaV systems, ensuring full compatibility and straightforward installation.
Product Specifications:
| Parameter | Details |
|---|---|
| Product Name | KJ4001X1-NA1 Horizontal LocalBus Dual Right Cable Extender |
| Manufacturer | Emerson |
| Type | LocalBus Cable Extender |
| Orientation | Horizontal, dual right cable connection |
| Compatible System | DeltaV Distributed Control System |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (L x W x H) | 44 × 102 × 108 mm |
| Weight | 0.16 kg |
| Material | Industrial-grade plastic and metal |
| Certifications | CE certified |
Applications:
-
Extending LocalBus cable connections within DeltaV control systems to accommodate flexible panel and rack configurations.
-
Optimizing system cabinet layouts by allowing greater spacing between control modules.
-
Facilitating easier system maintenance and upgrades without the need to rewire or relocate existing modules.
-
Industrial automation systems where precise signal communication and reliability are essential.
-
Suitable for process control environments such as power plants, chemical plants, oil & gas, and manufacturing.
Product Advantages:
-
Flexible System Design: Enables extended LocalBus connections, offering more freedom in control system layout.
-
Reliable Signal Integrity: Maintains communication quality over longer distances without degradation.
-
Easy Installation: Plug-and-play design reduces installation time and complexity.
-
Durable Construction: Built to withstand industrial environmental stresses including temperature extremes and vibration.
-
Improved Cable Management: Dual right cable configuration helps organize and route cables efficiently.
Frequently Asked Questions (FAQ):
-
What is the primary purpose of the KJ4001X1-NA1?
It serves as a LocalBus cable extender to increase the distance between DeltaV control modules. -
Is the extender compatible with all DeltaV system components?
It is compatible with modules and racks designed for the DeltaV system LocalBus network. -
What is the maximum extension length supported?
The maximum extension depends on system specifications, but the extender supports typical LocalBus cable length increments as defined by Emerson guidelines. -
Can it be used in harsh industrial environments?
Yes, it is designed to operate reliably within a wide temperature and humidity range, suitable for industrial conditions. -
Does the extender require any additional power source?
No additional power supply is needed; it functions as a passive extender within the LocalBus network. -
How does the dual right cable configuration benefit cable routing?
It allows for cleaner, more organized cable runs, especially when rack layouts require cable exit from the right side in two directions. -
Are there any certifications associated with this product?
Yes, it carries CE certification indicating compliance with European safety and performance standards. -
What materials are used in the extender’s construction?
Industrial-grade plastic and metal components are used to ensure durability. -
Is the installation process complicated?
Installation is straightforward and involves connecting the extender between two LocalBus cables without specialized tools. -
Can the extender impact signal speed or quality?
When used within recommended specifications, the extender maintains signal integrity without reducing communication speed.
Recommended Related Models:
| Model | Description | Key Feature |
|---|---|---|
| KJ4001X1-NA2 | Horizontal LocalBus Dual Left Cable Extender | Left dual cable configuration |
| KJ4001X1-NA3 | Vertical LocalBus Cable Extender | Vertical orientation for cable extension |
| KJ4001X1-NA4 | LocalBus Single Cable Extender | Single cable extension capability |
| KJ4002X1-NA1 | LocalBus Right-Angle Cable Extender | Right-angle cable routing support |
| KJ4003X1-NA1 | LocalBus Ribbon Cable Extender | Supports ribbon cable types |
| KJ3100X1-NA1 | LocalBus Module Extension Kit | Kit for modular LocalBus expansions |
Popular Emerson Models:
| Model | Description | Application Area |
|---|---|---|
| KJ3102X1-BA1 | Analog Input Module with HART support | Process automation signal acquisition |
| KJ3222X1-BA1 | Analog Input Module | Multi-channel analog signal processing |
| KJ3700X1-BA1 | Digital Output Module | Control of digital field devices |
| KJ3740X1-BA1 | High-Speed Counter Module | Counting and timing applications |
| KJ3104X1-BA1 | Analog Output Module | Analog signal output to field instruments |
| KJ3705X1-BA1 | Communication Module | Facilitates protocol bridging and data exchange |
