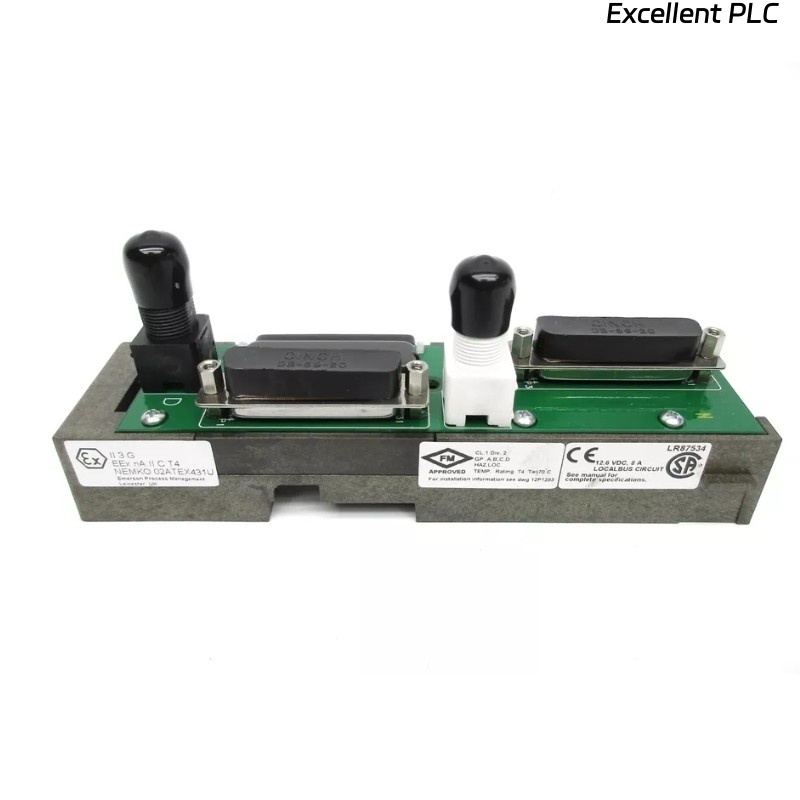

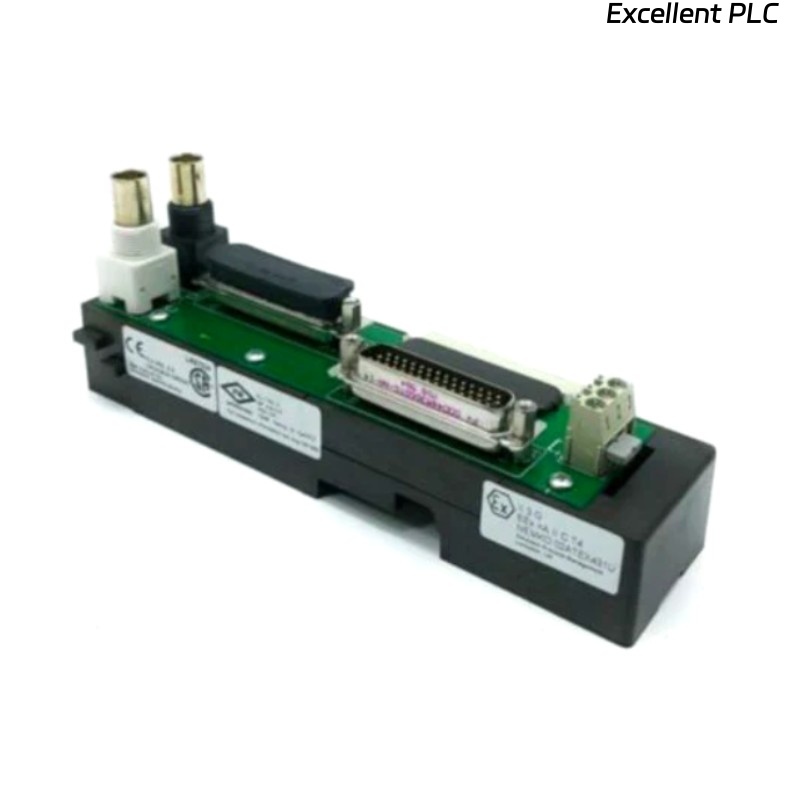

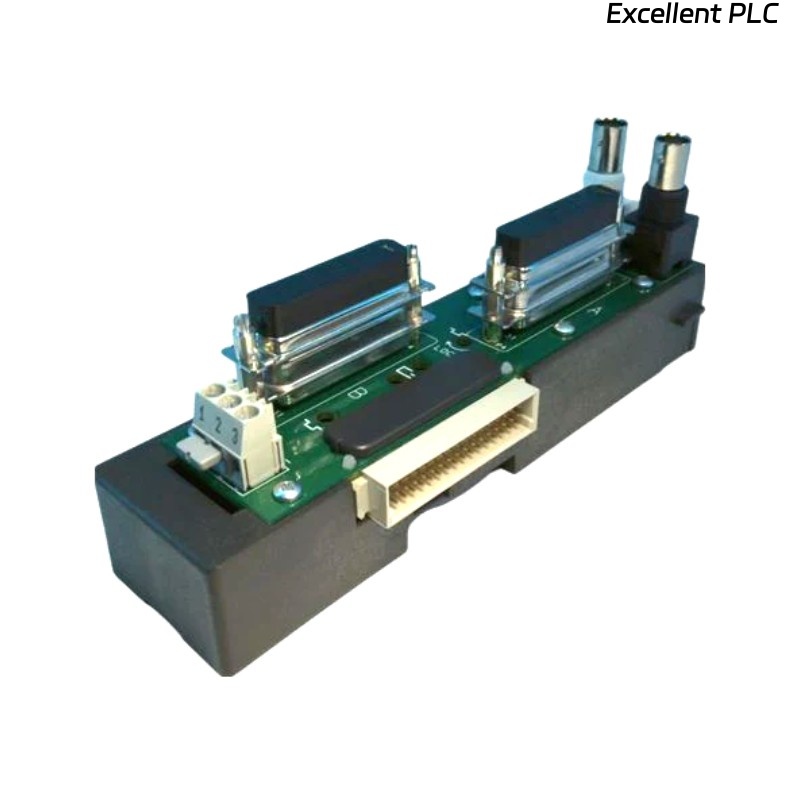

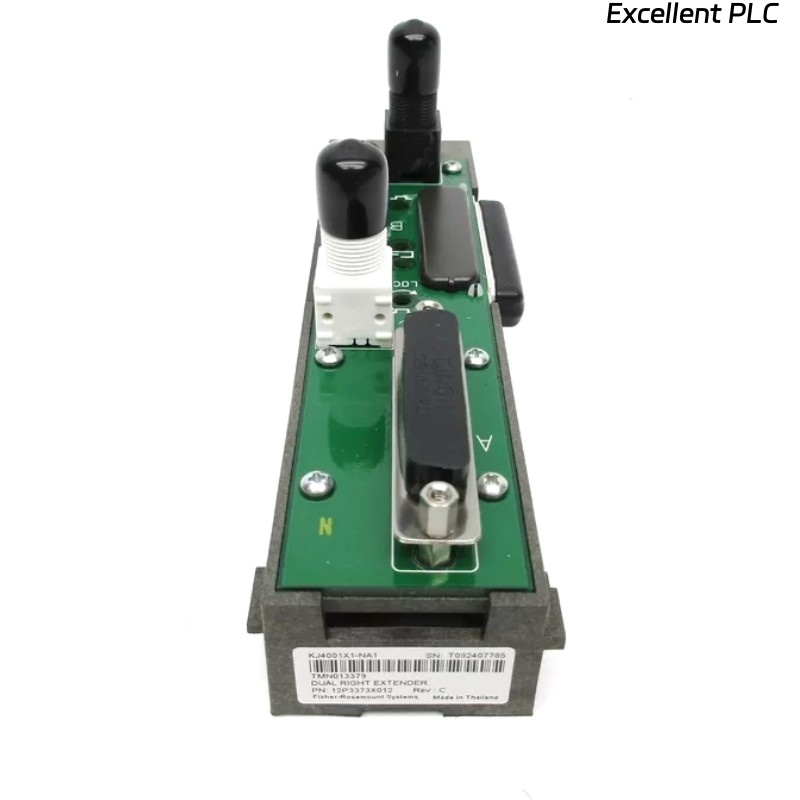

Emerson KJ4001XI-NB1 I/O Bracket Expansion

Product Introduction

The Emerson KJ4001XI-NB1 I/O Bracket Expansion is a high-quality modular expansion solution designed for use with Emerson DeltaV Distributed Control Systems (DCS). It provides additional I/O slots for controllers, allowing for seamless system growth without requiring full module replacement. The bracket ensures robust mechanical stability and secure electrical connections, enabling operators to expand system functionality efficiently and reliably.

This expansion bracket is compatible with various Emerson controller modules and is suitable for both new installations and system upgrades, delivering consistent performance under industrial conditions.

Product Advantages

• Scalable Design: Supports the addition of multiple I/O modules, enabling flexible system expansion.

• Robust Construction: Engineered for industrial environments, ensuring vibration resistance and long-term durability.

• Ease of Integration: Compatible with standard Emerson DCS controllers and I/O modules, minimizing installation complexity.

• Secure Connections: Provides reliable electrical connections between the main controller and expansion modules.

• Maintenance-Friendly: Allows module replacement or addition without complete system shutdown, reducing downtime.

• Cost-Effective: Expanding with brackets is more economical than replacing entire controller units.

Technical Specifications

Product Applications

• Industrial process control systems requiring scalable I/O.

• Chemical, petrochemical, and refining plants for additional sensor and actuator connections.

• Power generation facilities for enhanced monitoring and control capabilities.

• Manufacturing plants needing modular expansion of control systems.

• Upgrading existing Emerson DCS systems without replacing the main controller unit.

FAQ

1. Q: Can this I/O bracket support both analog and digital I/O modules?
   A: Yes, the KJ4001XI-NB1 is compatible with Emerson analog and digital I/O modules, provided the main controller supports them.

2. Q: How many I/O modules can be installed on a single bracket?
   A: The bracket can accommodate up to four standard I/O modules, depending on module size and controller compatibility.

3. Q: Does the bracket require a separate power supply?
   A: No, it receives power directly from the connected Emerson controller.

4. Q: Is hot-swapping of modules possible with this bracket?
   A: Yes, modules can be replaced or added without shutting down the entire control system, following standard Emerson procedures.

5. Q: What types of connections are used between the bracket and the controller?
   A: The bracket uses slot-based edge connectors for secure electrical interfacing.

6. Q: Can multiple brackets be daisy-chained for larger expansions?
   A: Yes, multiple brackets can be installed sequentially, subject to the controller’s maximum I/O capacity.

7. Q: Is the bracket compatible with all Emerson DeltaV controller models?
   A: It is compatible with most standard DeltaV controllers, but users should verify the specific controller model’s I/O slot configuration.

8. Q: How does the bracket handle signal interference?
   A: It is designed with shielding and proper grounding to minimize electrical noise between modules.

9. Q: Are firmware updates required for the bracket?
   A: No, the bracket itself does not require firmware; module firmware updates are managed through the controller.

10. Q: Can the bracket operate in high-humidity environments?
    A: Yes, it supports up to 95% relative humidity, non-condensing.
