Product Introduction

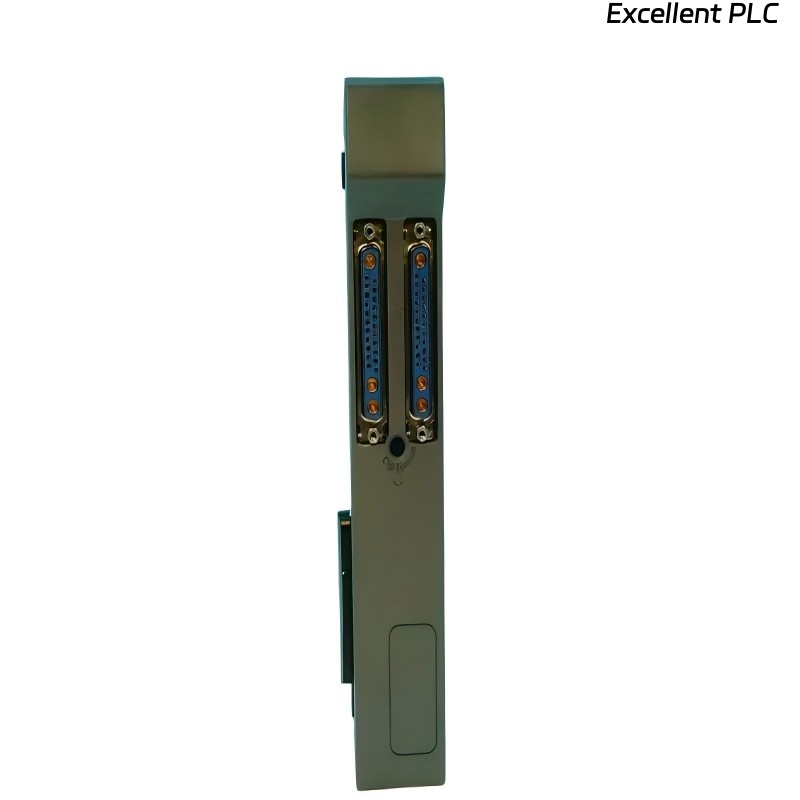

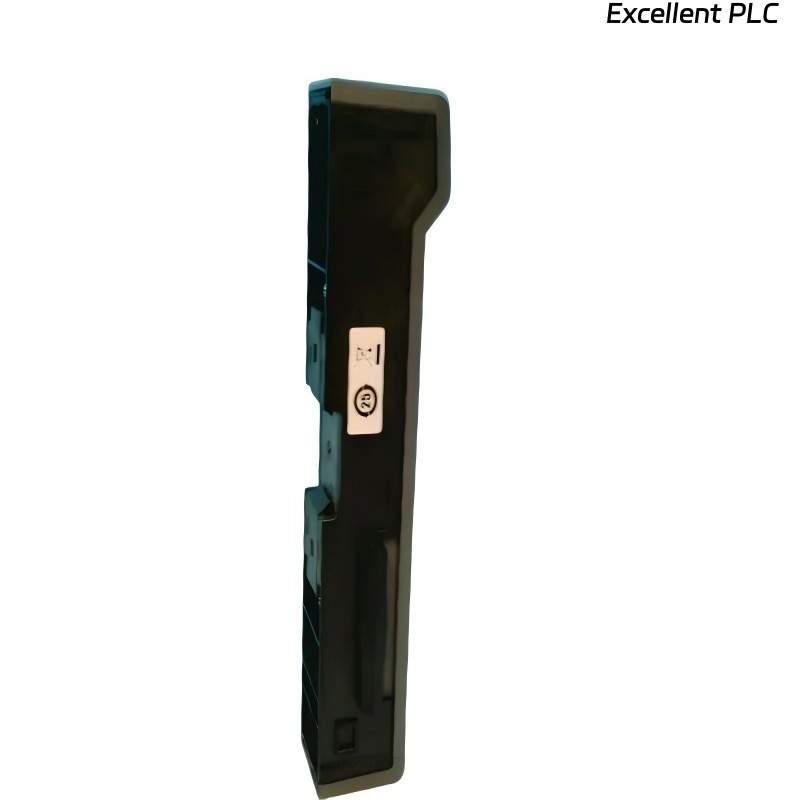

The Emerson KJ4005X1-BB1 (left extender) and KJ4005X1-BC1 (right extender) are modular extensions designed for use with Emerson’s CHARM-based systems. These extenders are used to increase the number of available input/output (I/O) channels in a system by providing additional slots for devices. With a compact design, they maintain the flexibility of Emerson’s modular system architecture while enhancing I/O capabilities. The 1-Wide configuration ensures efficient use of space, making them ideal for applications with limited installation space.
These extenders are commonly used in a variety of industries such as oil & gas, chemical processing, and power generation, where space constraints are an issue but additional I/O capability is still needed.
Product Specifications
| Feature | Specification |
|---|---|
| Model | KJ4005X1-BB1 (Left Extender) + KJ4005X1-BC1 (Right Extender) |
| Type | I/O Extender (1-Wide) |
| Dimensions | 40 x 229 mm |
| Weight | 0.5 kg |
| Compatibility | Emerson CHARM-based Systems |
| Channels Supported | Adds additional I/O capacity to existing system |
| Mounting | DIN rail mountable |
| Operating Temperature | -40°C to +70°C |
| Installation | Easy to integrate into existing systems |
| Environmental Rating | Suitable for industrial environments |
| Power Consumption | Low power requirements |
Applications
The KJ4005X1-BB1 + KJ4005X1-BC1 extenders are designed for applications where space constraints limit the number of I/O channels available, but there is still a need for expansion. Typical applications include:
-
Oil & Gas: Enhances I/O capacity for process monitoring and control in exploration, drilling, and refining systems.
-
Chemical Processing: Increases flexibility for managing temperature, pressure, and flow sensors in chemical plants.
-
Power Generation: Ideal for applications where additional sensors and control systems need to be added to existing control systems.
-
Manufacturing Systems: Useful for expanding system I/O capacity in automation lines without requiring significant changes to infrastructure.
-
Water Treatment Plants: Provides additional slots for monitoring and controlling environmental variables such as pH levels, pressure, and temperature.
Advantages
-
Space Efficiency: The 1-Wide configuration ensures that the extenders fit into tight spaces while maximizing the number of additional I/O channels.
-
Modular Design: Seamless integration with Emerson’s CHARM-based systems allows for easy expansion and customization of the control system.
-
Low Power Consumption: Designed with energy efficiency in mind, the extenders require minimal power to operate.
-
Rugged Construction: Built to withstand harsh industrial environments, ensuring reliable performance in extreme conditions.
-
Easy Installation: The extenders are DIN rail mountable, making installation quick and simple with minimal downtime.
-
Enhanced System Flexibility: Perfect for applications requiring more I/O capacity without the need to overhaul the existing system architecture.
-
Reliable Performance: As part of Emerson’s established product family, these extenders ensure stable and continuous operation for demanding industrial applications.
FAQ
1. How does the KJ4005X1-BB1 + KJ4005X1-BC1 extender increase system I/O capacity?
The extenders add additional I/O slots to Emerson’s CHARM-based systems, increasing the available input/output channels without the need for a major redesign.
2. Can I integrate these extenders with any Emerson system?
These extenders are specifically designed for use with Emerson’s CHARM-based systems. They provide an efficient way to expand I/O capacity for these systems.
3. What is the mounting method for these extenders?
The extenders are DIN rail mountable, ensuring they can be easily installed in existing control panels or enclosures.
4. What industries benefit the most from using these extenders?
Industries such as oil & gas, chemical processing, power generation, and manufacturing can benefit from the additional I/O capacity these extenders provide.
5. Can the extenders be installed in tight spaces?
Yes, the 1-Wide design is specifically created to make these extenders suitable for installation in tight spaces while still providing additional I/O channels.
6. How much power do these extenders consume?
The extenders are designed to be energy-efficient, requiring minimal power to operate, which is ideal for continuous industrial use.
7. Are these extenders suitable for high-temperature environments?
Yes, the KJ4005X1-BB1 + KJ4005X1-BC1 extenders can operate within the temperature range of -40°C to +70°C, making them suitable for a wide range of industrial environments.
8. How easy is it to install these extenders?
Installation is straightforward with DIN rail mounting, reducing setup time and simplifying integration into existing systems.
9. Can these extenders be used for both analog and digital I/O?
Yes, they are compatible with both analog and digital I/O channels, making them versatile for various applications.
10. What type of sensors can be connected to these extenders?
You can connect a wide variety of sensors, including temperature, pressure, flow, and level sensors, depending on the needs of your application.
Recommended Related Models
| Model | Description |
|---|---|
| KJ4005X1-BB2 | Left-side extender (2-Wide) for increased I/O capacity. |
| KJ4005X1-BC2 | Right-side extender (2-Wide) for seamless integration. |
| KJ4005X1-BB1-BC1 | Combination left and right extender for 1-Wide expansion. |
| KJ4005X1-BB3 | Left-side extender (3-Wide) for larger expansion needs. |
| KJ4005X1-BC3 | Right-side extender (3-Wide) for enhanced I/O capacity. |
| KJ4005X1-BB4 | Left-side extender (4-Wide) for maximum I/O scalability. |
