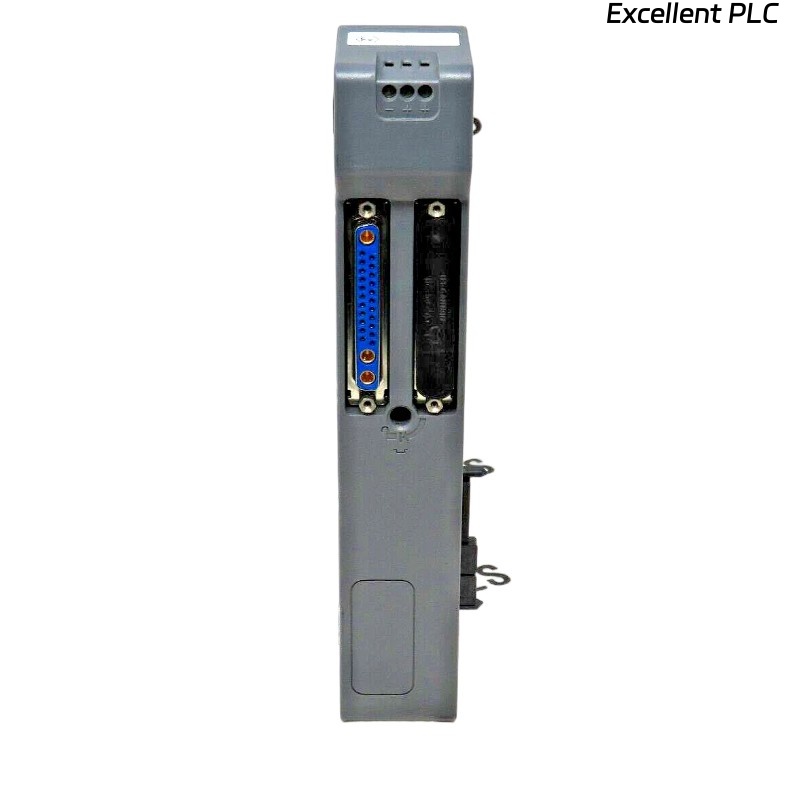

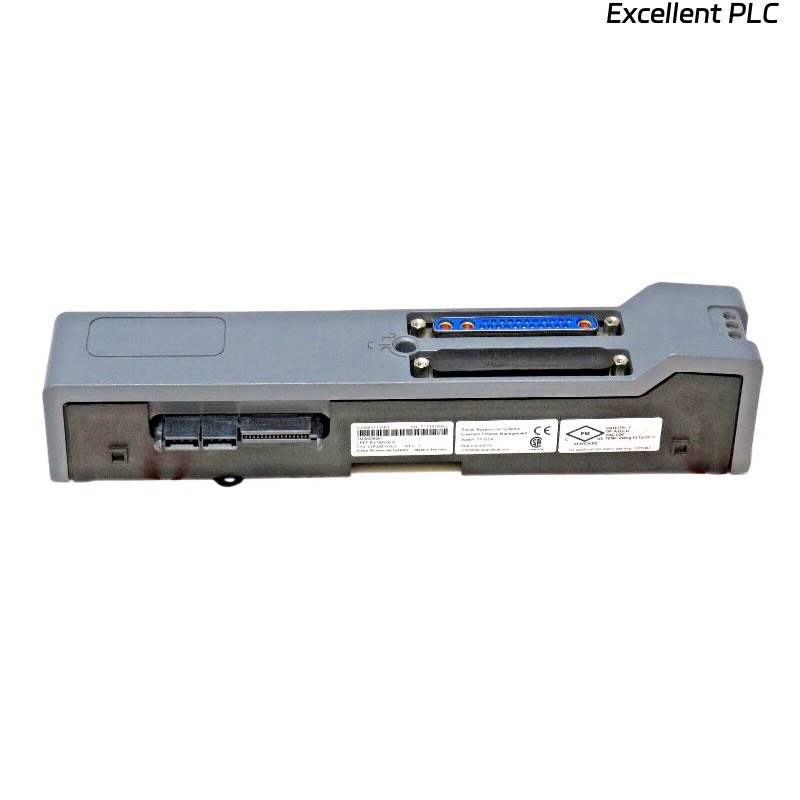

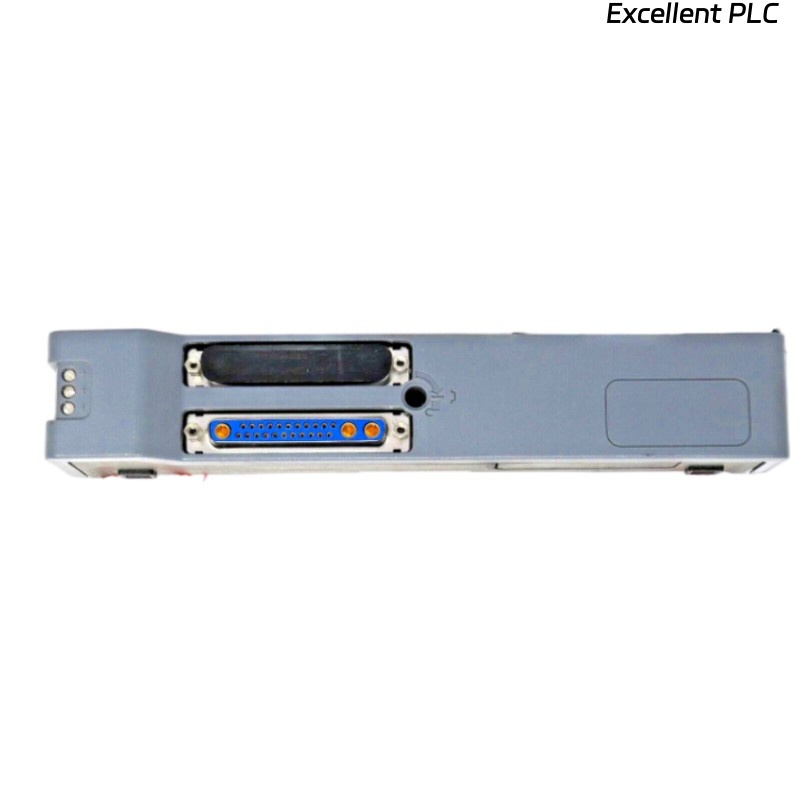

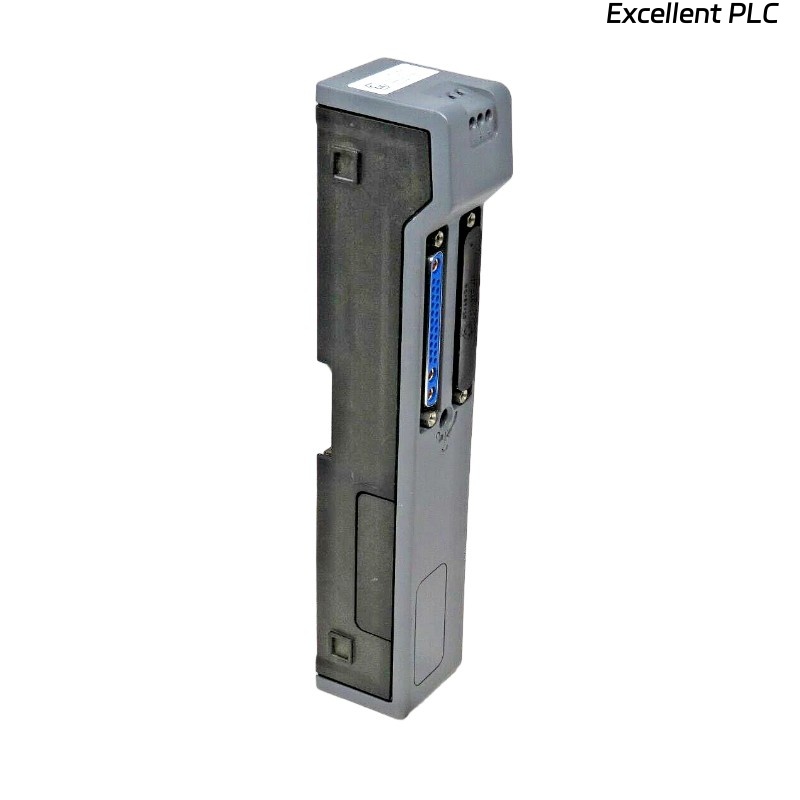

The Emerson KJ4005X1-BB1 Left Extender is a dedicated system component designed for use in DeltaV control systems. It functions as an extender module, providing seamless connectivity and integration between system carriers. This extender is typically installed on the left side of carrier assemblies to expand the system’s configuration flexibility and ensure stable communication across the I/O subsystem. With robust engineering and reliable performance, the KJ4005X1-BB1 enhances system scalability in demanding industrial automation environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | KJ4005X1-BB1 |
| Product Type | Left Extender for DeltaV Carrier Systems |
| Dimensions | 85 x 130 x 20 mm |
| Weight | 0.28 kg |
| Voltage Requirement | Powered through carrier backplane, no external power supply required |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Slot-based carrier mounting |
| Compatibility | DeltaV system carriers and related modules |
Product Applications
-
Extending DeltaV carrier configurations for large-scale process plants
-
Supporting modular installations in distributed control system (DCS) environments
-
Providing stable integration in petrochemical, oil & gas, power generation, and pharmaceutical industries
-
Enabling redundancy setups in safety-critical automation systems
-
Facilitating future system expansion without requiring significant hardware changes
Product Advantages
-
Seamless Expansion: Enables efficient system scaling without disrupting existing configurations.
-
High Reliability: Designed for harsh industrial environments with extended temperature tolerance.
-
Modular Design: Allows easy installation and integration with other DeltaV components.
-
Backplane Power Utilization: Eliminates the need for external power supplies, simplifying installation.
-
Reduced Downtime: Supports redundancy and fault tolerance for continuous operations.
-
Compatibility: Fully integrates with DeltaV carriers and modules, ensuring system-wide consistency.
FAQ
Q1: What is the primary role of the KJ4005X1-BB1 Left Extender in DeltaV systems?
A1: It serves as a connecting extender for carrier assemblies, allowing modular expansion and system flexibility.
Q2: Does this extender require an independent power source?
A2: No, it draws power directly from the backplane of the DeltaV carrier.
Q3: Can the KJ4005X1-BB1 be used with both right and left extenders?
A3: It is specifically designed as a left extender, but it works in conjunction with right extenders for complete expansion.
Q4: Is hot-swapping supported with this module?
A4: No, it must be installed with the system powered down to ensure safety and reliability.
Q5: How does the extender improve system redundancy?
A5: It enables additional module connections that can be configured for redundant pathways in critical operations.
Q6: Can the KJ4005X1-BB1 be used across multiple DeltaV generations?
A6: Yes, it is designed for backward and forward compatibility within supported DeltaV carrier systems.
Q7: What type of signal communication does it support?
A7: It supports DeltaV backplane communication for module-to-carrier data exchange.
Q8: How is the extender secured during installation?
A8: It is locked into position on the left carrier slot using mechanical mounting latches.
Q9: Does the extender affect system latency?
A9: No, it is engineered to maintain communication speed and stability without introducing latency.
Q10: Can this extender be replaced without reconfiguring the entire DeltaV system?
A10: Yes, once replaced, the system resumes operation without requiring full reconfiguration.
