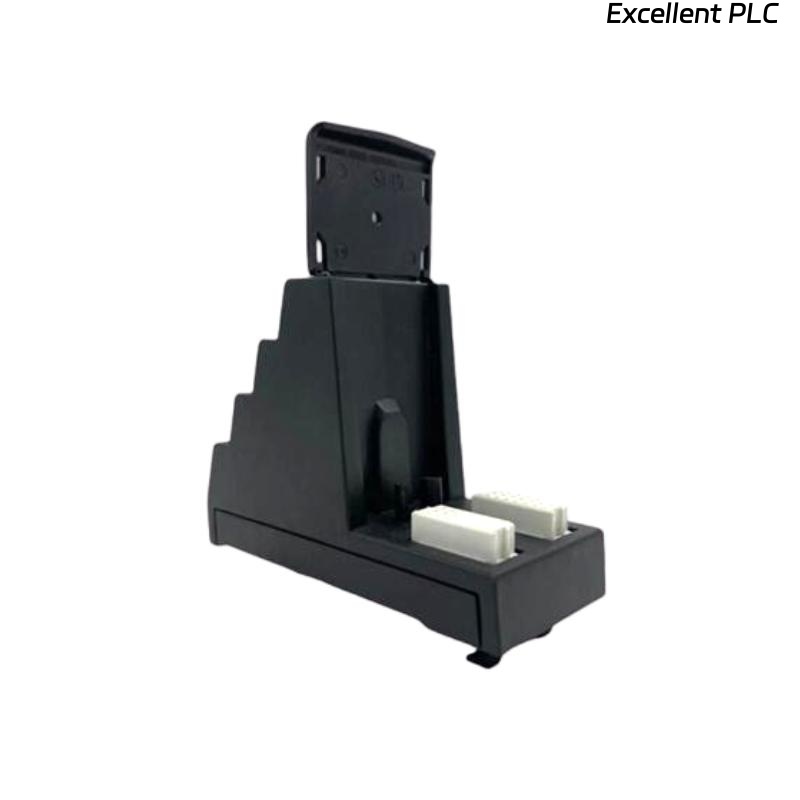

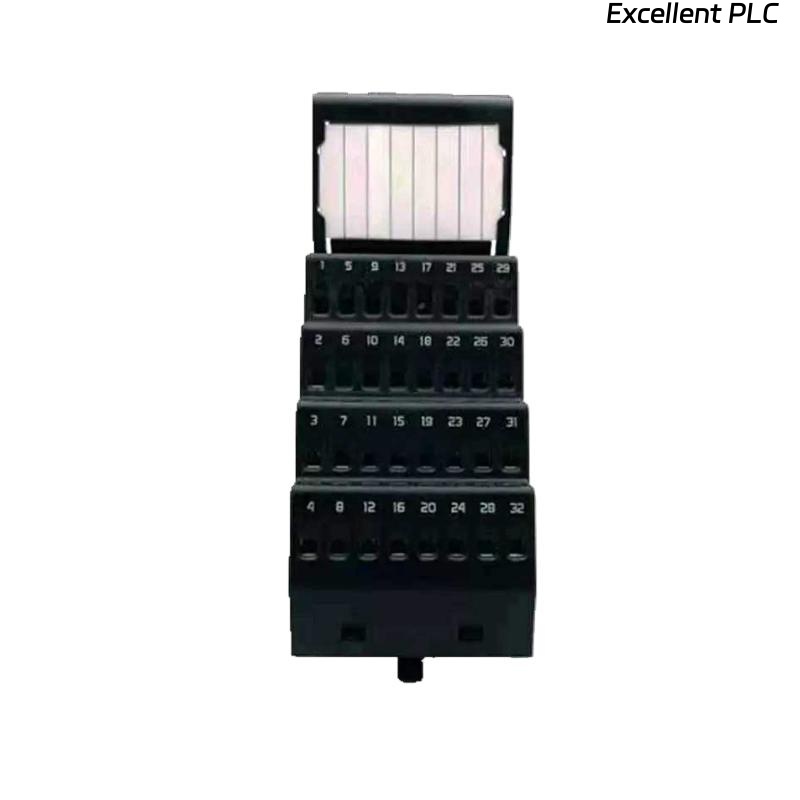

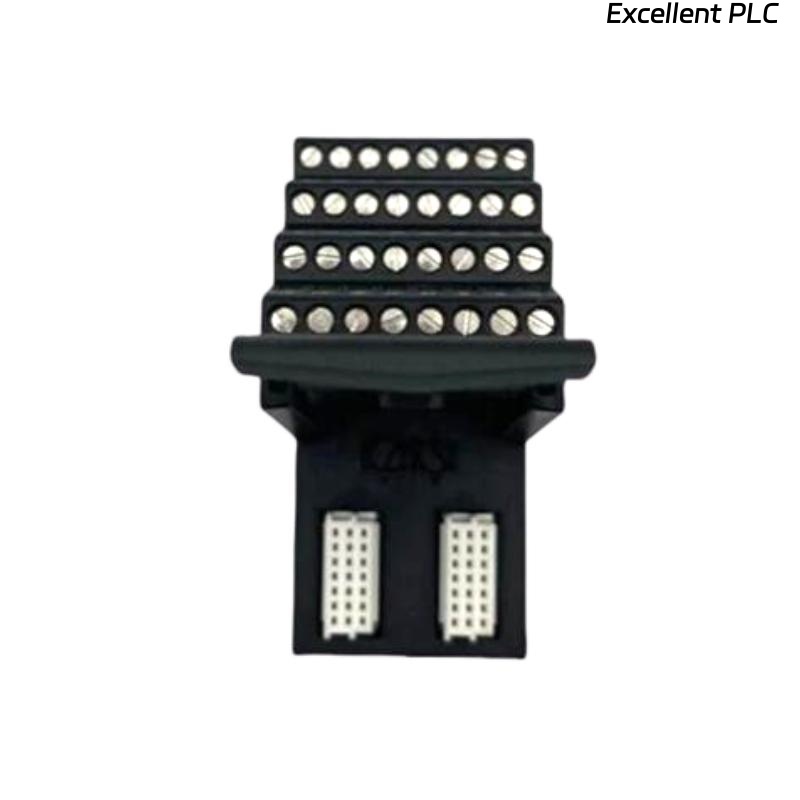

Emerson KJ4006X1-BF1 Discrete 32-Channel Terminal Block

Product Introduction

The Emerson KJ4006X1-BF1 is a high-density discrete terminal block engineered for industrial control racks and field wiring panels. Purpose-built for DeltaV™ and similar DCS/PLC systems, the BF1 consolidates up to 32 discrete channels into a single, compact assembly that simplifies wiring, speeds commissioning, and reduces cabinet clutter. Robust contact design and clear channel identification make it a practical choice for operators and electricians working in power plants, process plants, and factory automation environments.

---

Technical Specifications

---

Typical Applications

• Field wiring aggregation for discrete I/O in DeltaV™, Ovation™, PLC and safety racks.

• Consolidation of permissives, interlocks, alarms, and status signals in power plants and process units.

• Centralized termination for skid packages, PLC cabinets, and remote I/O enclosures.

• Interface for solenoid valves, limit switches, relay contacts and other on/off field devices.

• Retrofit projects where a compact, high-density termination solution reduces rework and panel footprint.

---

Key Advantages

• High channel density — 32 discrete points in a compact module reduce cabinet real estate and simplify BOMs.

• Cleaner wiring & faster service — Removable terminal sections and clear labeling speed commissioning and fault isolation.

• Robust electrical connections — Designed to hold reliable contact under vibration and thermal cycles typical of industrial sites.

• Flexible mounting — DIN-rail or panel mount options fit a wide range of cabinet layouts and retrofit scenarios.

• Modular maintenance — Replaceable terminal modules let you swap a faulty section without disturbing adjacent circuits.

• Good signal integrity — Channel isolation and careful internal routing minimize crosstalk for dependable digital I/O.

• Versatile signal support — Handles both dry contacts and 24 VDC wet contacts; suitable for sinking or sourcing configurations when matched to controller logic.

• Clear diagnostics path — Optional LED modules (if ordered) and straightforward wiring layouts make local troubleshooting faster.

• Standards compliant — Meets common industrial approvals to support system certification processes.

• Cost effective — Consolidation into a single assembly reduces installation time and long-term maintenance costs.

---

FAQ

How are the 32 channels organized for wiring?
Channels are grouped into removable terminal blocks to allow staged wiring and clear labeling; grouping schemes vary by panel practice (e.g., 8×4 or 4×8) — follow your wiring diagram.

Can I use this block for both inputs and outputs on the same unit?
Yes. The block supports discrete inputs and outputs; ensure wiring follows controller logic (sinking vs sourcing) and respect channel current limits.

How is channel isolation implemented?
Isolation is achieved via internal routing and optional common return terminals; this reduces interference between adjacent channels and simplifies return wiring.

Does the product support LED channel indication?
Some SKUs or paired accessory modules provide LED indication for channel status — specify the LED option if local visual diagnostics are required.

What mounting methods are supported and recommended?
Mount on standard DIN rail or use the panel-mount captive fasteners. DIN-rail mounting is recommended for ease of service and modular replacement.

What wiring practice minimizes noise and false triggers?
Separate high-power and signal cables, maintain proper shielding and grounding, use consistent shield termination practices, and avoid routing signal runs alongside power conductors.

How do I handle common returns for multiple channels?
Use designated common terminals or separate return groups to avoid shared impedance issues — size return conductors appropriately for aggregated current.

Are the terminals removable for pre-wiring outside the cabinet?
Yes — removable front-terminal sections let you pre-wire harnesses and then plug them in on site, which speeds commissioning.

What is the recommended approach for surge or transient protection?
Where signals are exposed to transients (long cable runs, inductive loads), include local suppression (RC snubbers or surge modules) and specify a terminal block variant with integrated surge options if available.

How do I verify correct wiring after installation?
Perform continuity and polarity checks, use a functional loop test through the controller, and confirm channel behavior with simulated device signals prior to putting the system in service.

---
