Product Introduction

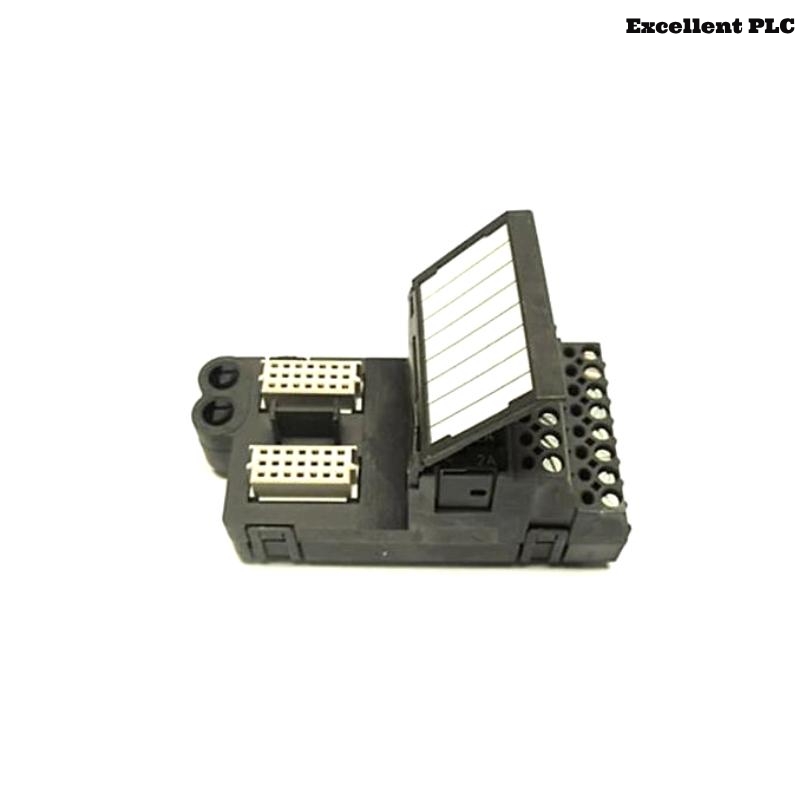

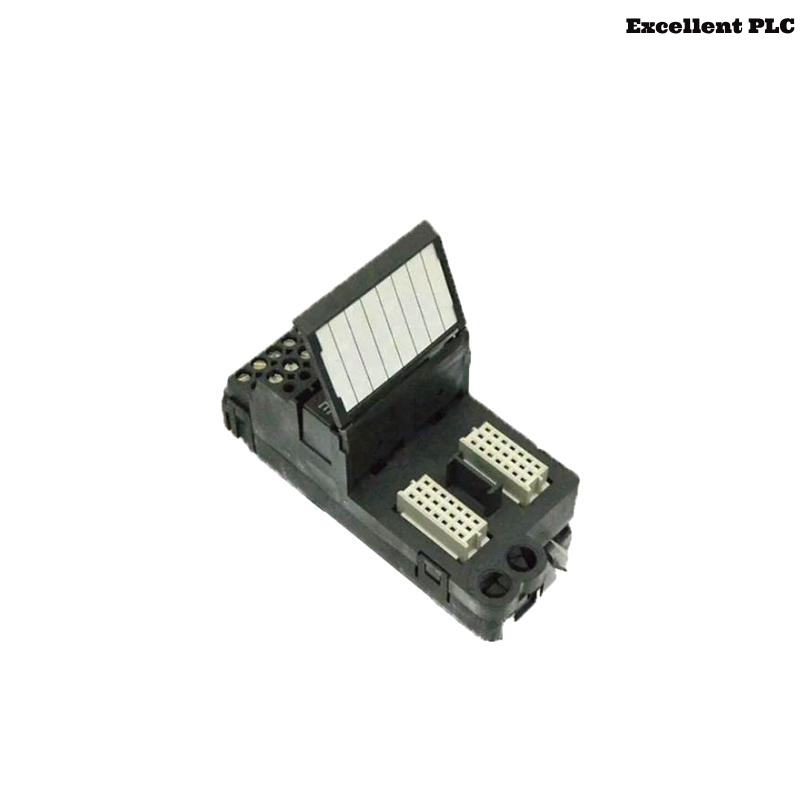

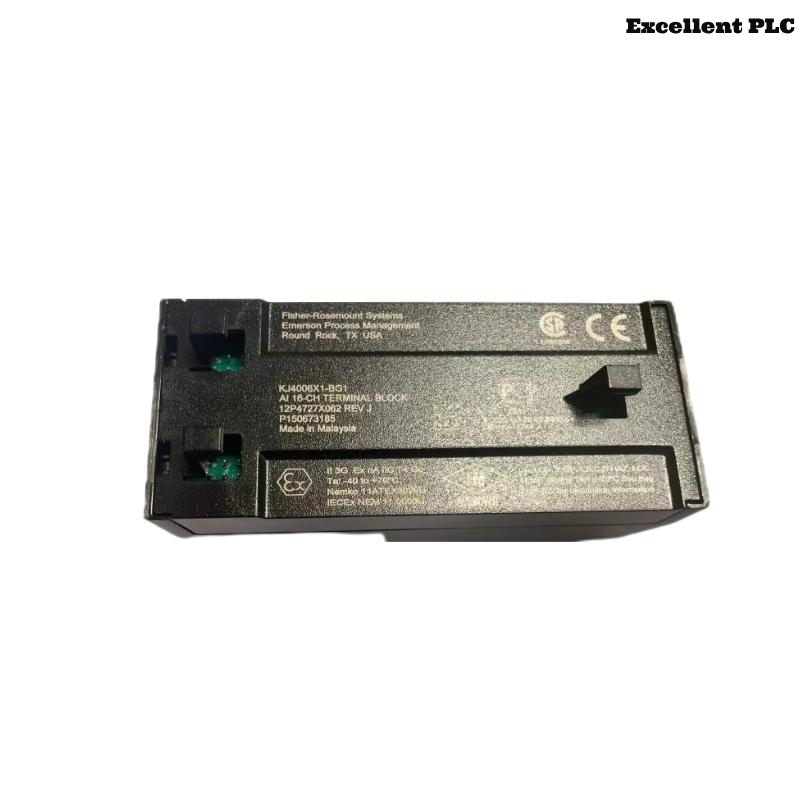

The Emerson KJ4006X1-BG1 16-Channel Terminal Block is a high-density I/O terminal block used in Emerson’s DeltaV™ distributed control systems. This terminal block is designed to interface with I/O cards, providing a reliable, efficient, and maintainable connection point for field wiring. Each unit accommodates up to 16 individual channels, enabling streamlined connectivity in compact panel installations.
The design ensures secure, tool-free wiring and incorporates features such as fuse protection, removable plugs, and convenient labeling, making it ideal for critical industrial control applications where reliability and easy maintenance are essential.
This terminal block is widely used across various industries such as oil & gas, petrochemical, power generation, water treatment, and process automation. Built to withstand harsh industrial environments, it complies with stringent safety and quality standards, ensuring long-term operational performance.
Product Specifications
| Parameter | Details |
|---|---|
| Model | KJ4006X1-BG1 |
| Manufacturer | Emerson Process Management |
| Product Type | 16-Channel Terminal Block |
| Compatible Systems | DeltaV™ Series Control Systems |
| Number of Channels | 16 |
| Channel Type | Discrete/Analog I/O (depends on I/O card) |
| Connection Method | Screw Terminals with Removable Plug |
| Mounting Type | DIN Rail Mount |
| Voltage Rating | Up to 30 VDC |
| Current Rating per Channel | Up to 2 A |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% Non-Condensing |
| Dimensions (W x H x D) | 150 x 100 x 40 mm |
| Weight | 0.23 kg |
| Ingress Protection | IP20 (When Installed in Enclosure) |
| Certifications | CE, ATEX, UL, RoHS |
| Housing Material | Flame-retardant thermoplastic |
Applications
The Emerson KJ4006X1-BG1 16-Channel Terminal Block is widely applied in industrial automation and process control sectors where safe and reliable signal transmission is crucial. Typical applications include:
-
Distributed Control Systems (DCS) for oil and gas pipelines.
-
Power generation plants requiring high-density signal integration.
-
Chemical processing units where safety and precision are critical.
-
Water and wastewater treatment control systems.
-
Pharmaceutical manufacturing environments with complex I/O demands.
-
Mining and metallurgy for equipment control and signal conditioning.
Product Advantages
-
High Channel Density: Supports 16 channels, optimizing space in control cabinets.
-
Tool-Free Wiring: Simplifies maintenance with plug-in terminal connections.
-
Robust Construction: Industrial-grade housing ensures long-term durability.
-
Modular Compatibility: Designed specifically for DeltaV™ systems, allowing seamless integration.
-
Improved Safety: Includes fusing and labeling options to reduce wiring errors and increase circuit protection.
-
Time-Saving Maintenance: Removable plugs allow fast replacement and system diagnostics without disturbing adjacent wiring.
-
Global Certifications: Ensures suitability for international deployment across various industries.
Frequently Asked Questions (FAQ)
-
Is the KJ4006X1-BG1 compatible with all DeltaV™ I/O cards?
Yes, it is designed to work with compatible 16-channel I/O cards in the DeltaV™ system. -
Can this terminal block be mounted on any DIN rail?
Yes, it supports standard DIN rail mounting. -
What is the voltage rating for each channel?
Each channel can handle up to 30 VDC. -
Does it include built-in fuse protection?
Certain versions or configurations can include fuse or diode protection. -
What materials are used in its construction?
The terminal block housing is made of flame-retardant thermoplastic suitable for industrial environments. -
What is the operating temperature range?
The product operates between -40°C and +70°C. -
Can I mix analog and digital signals in one terminal block?
No, signal types depend on the paired I/O module; each terminal block should be used accordingly. -
Does it support hot-swapping during system operation?
While the terminal block itself is passive, hot-swapping should follow DeltaV system procedures to ensure safety. -
Is it certified for use in hazardous locations?
Yes, it has ATEX and other industrial certifications allowing deployment in hazardous areas. -
Can the terminal block be reused if I redesign my panel layout?
Yes, if undamaged, the terminal block can be safely reused in new panel configurations.
