Product Introduction

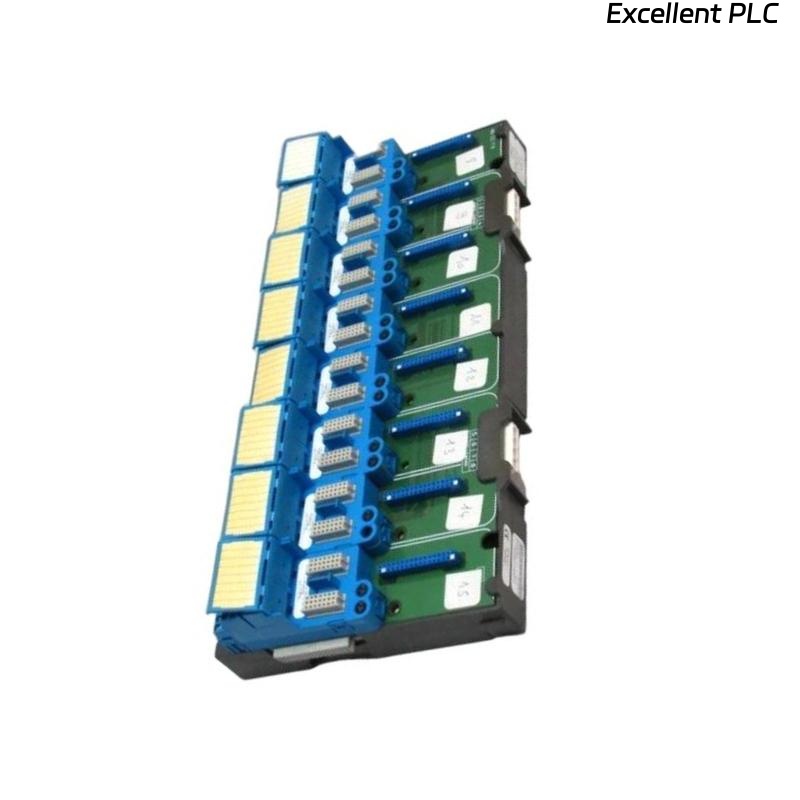

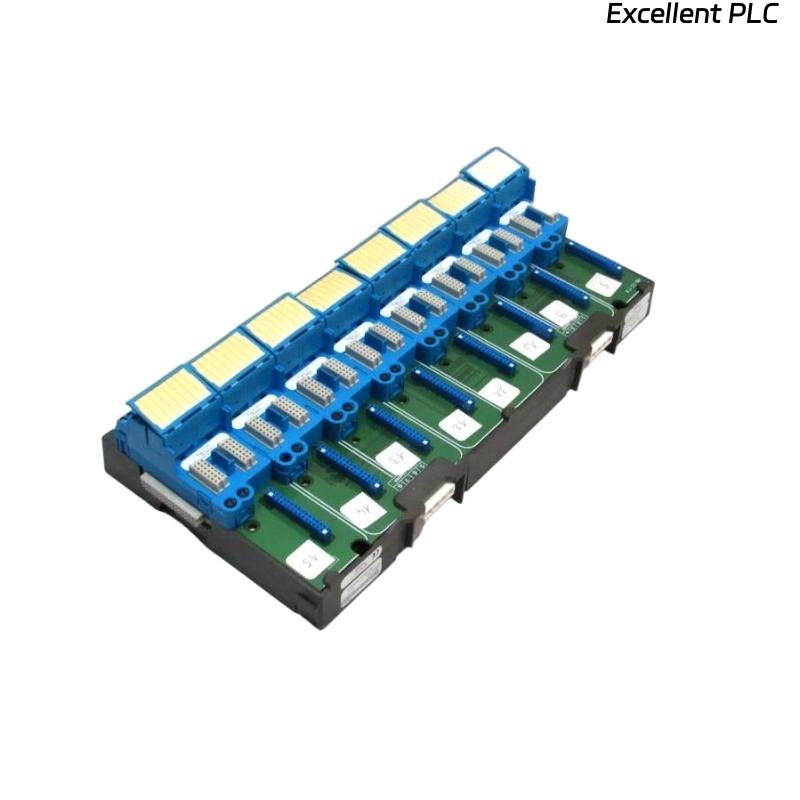

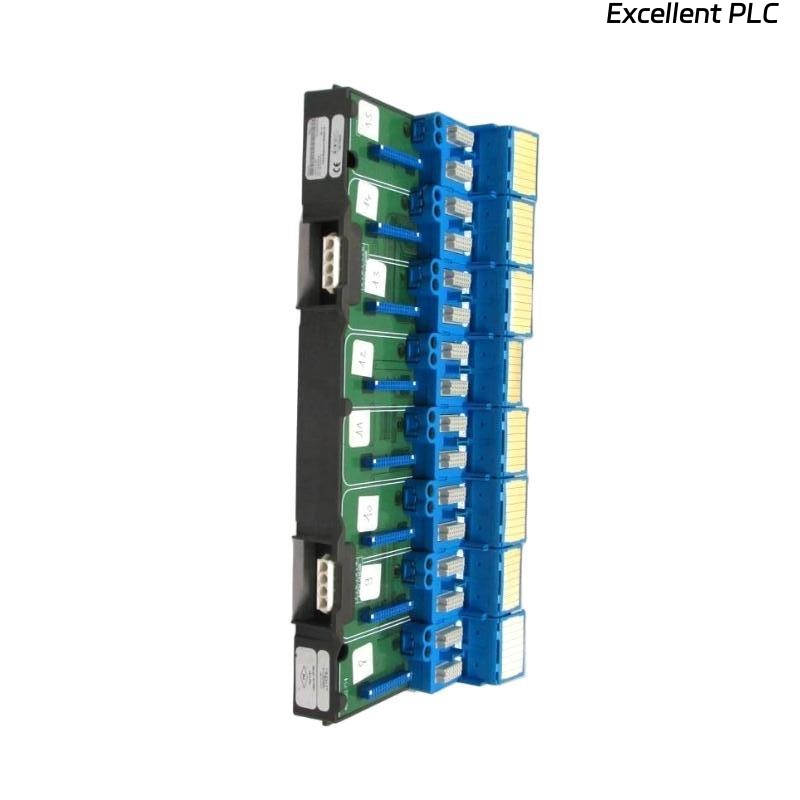

The Emerson KJ4101X1-BA1 8-Wide Carrier is a high-performance carrier module designed for the DeltaV™ distributed control system (DCS). It provides an efficient and organized platform for mounting I/O cards, ensuring optimal connectivity, stable performance, and simplified system integration in complex industrial environments.
With its compact design and robust construction, this carrier is engineered to support up to eight I/O channels while maintaining a lightweight and space-saving footprint. Its compatibility with multiple DeltaV™ system modules makes it a preferred choice for industries requiring high-density, reliable, and scalable I/O solutions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | KJ4101X1-BA1 |
| Type | 8-wide carrier for I/O module integration |
| Dimensions | 188 × 98 × 30 mm |
| Weight | 0.18 kg |
| Channel Capacity | Supports up to 8 I/O modules |
| Power Rating | 24 VDC nominal (system supplied) |
| Material | Industrial-grade, corrosion-resistant construction |
| Mounting | DIN-rail or panel-mounted installation |
| Operating Temperature | –20 °C to +70 °C |
| Humidity Tolerance | Up to 95% non-condensing |
| Certifications | CE, UL, RoHS compliant |
| Compatibility | Fully compatible with Emerson DeltaV™ I/O cards |
| Communication Support | High-speed internal backplane connection |
| Maintenance | Tool-free installation and removal |
Applications
-
Process Automation Systems – Facilitates seamless integration of I/O modules in large-scale automation setups.
-
Oil and Gas Plants – Supports reliable data communication and control operations in critical applications.
-
Power Generation – Ensures high-density module integration in turbine control and monitoring systems.
-
Chemical and Petrochemical Facilities – Provides dependable connections for hazardous area controls and process monitoring.
-
Water and Wastewater Treatment – Simplifies installation of analog and digital I/O for pumps, sensors, and valve controls.
-
Industrial Manufacturing – Ideal for production lines requiring high-accuracy, real-time data processing and control.
Advantages
-
High-Density Support – Accommodates up to 8 I/O modules in a single carrier, optimizing space usage.
-
Compact and Lightweight – Space-saving design allows easy integration into standard cabinets.
-
Superior Compatibility – Designed to work seamlessly with DeltaV™ DCS and other Emerson I/O systems.
-
Robust Construction – Industrial-grade materials ensure durability in demanding environments.
-
Ease of Installation – Supports DIN-rail or panel mounting with quick, tool-free setup.
-
Enhanced Reliability – Provides stable mechanical and electrical connections for critical applications.
-
Efficient Cable Management – Organized layout reduces wiring complexity and installation time.
-
Wide Environmental Tolerance – Performs reliably under harsh conditions, including high temperatures and humidity.
-
Reduced Downtime – Simplified maintenance and replacement processes improve operational efficiency.
-
Proven Performance – Extensively tested for long-term reliability in industrial automation systems.
FAQ
Q1: What is the primary function of the KJ4101X1-BA1 carrier?
A1: It serves as a platform to mount and connect up to eight I/O modules for DeltaV™ systems, ensuring stable communication and efficient power distribution.
Q2: Is the KJ4101X1-BA1 compatible with all DeltaV™ I/O cards?
A2: Yes, it is fully compatible with standard Emerson DeltaV™ I/O modules, both analog and digital.
Q3: Can the carrier support hot-swapping of modules?
A3: Yes, it supports hot-swapping of I/O modules without system downtime.
Q4: What is the operating temperature range for this carrier?
A4: The carrier operates reliably within –20 °C to +70 °C.
Q5: Does the carrier require additional tools for installation?
A5: No, it supports tool-free installation and maintenance, making setup and servicing easier.
Q6: How does the KJ4101X1-BA1 handle communication between modules?
A6: It uses a high-speed internal backplane connection to maintain efficient data communication between mounted I/O modules and the system controller.
Q7: What type of mounting does the KJ4101X1-BA1 support?
A7: It can be mounted on DIN rails or directly onto a control panel.
Q8: Is this carrier suitable for high-humidity environments?
A8: Yes, it is rated for up to 95% non-condensing humidity, ensuring reliable performance in challenging conditions.
Q9: Does the carrier provide surge protection for connected modules?
A9: While it is designed with stable connections, external surge protection should be implemented for optimal system safety.
Q10: Can the carrier be used in redundant system configurations?
A10: Yes, it integrates seamlessly with redundant system architectures for increased reliability in critical processes.
