Product Introduction

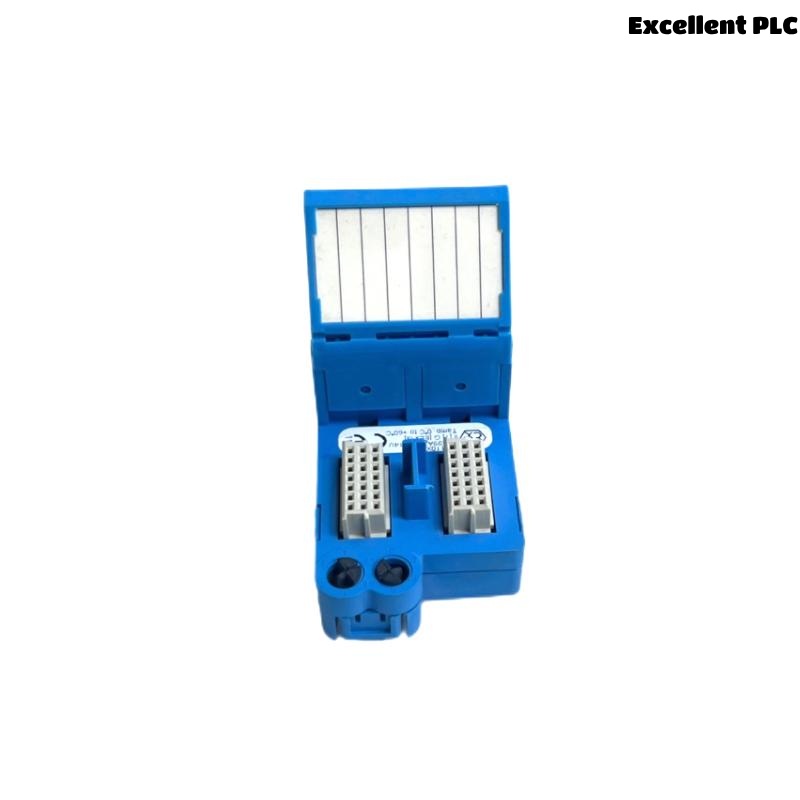

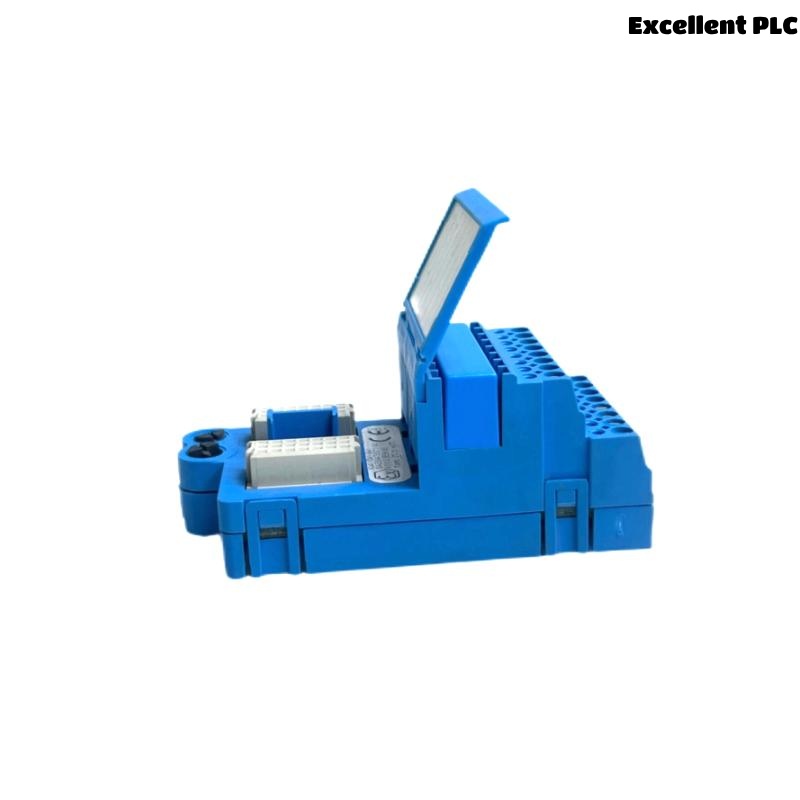

The Emerson KJ4110X1-BB1 8-Channel Loop Disconnect Module is a vital component designed for use in DeltaV and Ovation distributed control systems. This module provides a convenient and reliable way to isolate, test, or remove field devices without disrupting operations or powering down the entire loop. It is particularly useful during maintenance, troubleshooting, or replacement of devices, enabling seamless loop continuity and minimizing process interruptions.
Built to endure harsh industrial environments, the KJ4110X1-BB1 supports eight independent channels, each with dedicated loop disconnect capability. It ensures electrical integrity and loop safety while offering ease of access and integration into Emerson’s control architecture. This module is a key solution for process control applications in sectors like oil & gas, petrochemical, water treatment, and power generation.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | KJ4110X1-BB1 |
| Manufacturer | Emerson |
| Module Type | 8-Channel Loop Disconnect Module |
| Number of Channels | 8 independent loops |
| Compatible System | DeltaV and Ovation |
| Electrical Isolation | Yes (per channel) |
| Operating Voltage Range | 0 to 30 VDC |
| Loop Current Rating | Up to 20 mA per channel |
| Terminal Type | Screw-terminal |
| Hot Swap Capability | Yes |
| Status Indicators | None (passive module) |
| Mounting Type | DIN rail mounted |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Certifications | CE, RoHS compliant, UL Listed |
| Dimensions (H x W x D) | 130 x 80 x 65 mm |
| Weight | 0.35 kg |
Product Applications
The Emerson KJ4110X1-BB1 module is widely used in process industries where loop management, testing, and isolation are critical for safe and efficient plant operation. Typical applications include:
-
Preventive Maintenance: Allows isolation of individual loops for diagnostics or inspection without affecting other channels.
-
Device Replacement: Field devices can be replaced without disrupting control system operations.
-
Loop Testing: Technicians can perform loop tests or inject signals during commissioning or troubleshooting.
-
Shutdown Isolation: Safely disconnect loops during plant shutdowns or partial system downtimes.
-
Field Device Calibration: Enables field technicians to calibrate devices while the rest of the loop remains intact.
Product Advantages
-
Simplified Maintenance: Engineers can isolate and work on individual loops without affecting others, reducing downtime.
-
High Reliability: Designed for robust industrial use with electrical isolation and solid mechanical build quality.
-
System Integration: Seamlessly integrates with DeltaV and Ovation systems, enhancing system flexibility.
-
Compact Footprint: Saves space in crowded control cabinets thanks to its small size and DIN-rail mounting.
-
Hot Swappable: No need to shut down the system when replacing the module, minimizing process disruptions.
-
Passive Design: No power requirement adds reliability and reduces complexity.
-
Industry Certifications: Meets international standards for quality and safety.
-
Cost-Efficient: Helps avoid costly downtime and unnecessary process interruption.
Frequently Asked Questions (FAQ)
-
Q: What control systems are compatible with the KJ4110X1-BB1?
A: It is compatible with Emerson’s DeltaV and Ovation control systems. -
Q: How many loops can be disconnected independently?
A: The module supports 8 independent channels for loop disconnect. -
Q: Can this module be used in hazardous locations?
A: The module itself is not intrinsically safe, but it can be used in systems that are, when installed correctly. -
Q: Does this module support hot-swapping?
A: Yes, it can be removed or replaced without shutting down the system. -
Q: Is the KJ4110X1-BB1 an active or passive module?
A: It is a passive module and does not require external power. -
Q: What kind of field devices can be isolated with this module?
A: It can be used with 4–20 mA transmitters, valves, actuators, and other loop-powered devices. -
Q: What are the environmental limits of this module?
A: Operating temperature is -40°C to +70°C, with humidity up to 95% non-condensing. -
Q: Is there visual indication for loop status?
A: No, the module does not have LEDs; loop testing requires external tools. -
Q: How is the module mounted?
A: It is DIN-rail mounted, suitable for standard industrial panels. -
Q: What certifications does the module have?
A: It is CE-marked, RoHS-compliant, and UL-listed.
Related or Same-Series Emerson Models
| Model | Description | Channel Count | System Compatibility |
|---|---|---|---|
| KJ1501X1-BB1 | 8-Channel Isolated Digital Input Module | 8 | DeltaV |
| KJ3001X1-BB1 | 12-Channel Analog Input Module | 12 | DeltaV |
| KJ4001X1-CA1 | 8-Channel Relay Output Module | 8 | DeltaV |
| KJ2201X1-BA1 | 4-Channel RTD Input Module | 4 | DeltaV |
| KJ3002X1-BB1 | 8-Channel Thermocouple Input Module | 8 | DeltaV |
| KJ4010X1-BG1 | 16-Channel DI/DO Combo Module | 16 | DeltaV |
Popular Emerson Models
| Model | Description | Primary Use | Compatibility |
|---|---|---|---|
| AMS Trex 500 | Field Communicator | Device configuration | HART / FF |
| DeltaV S-series | Modular I/O Controllers | DCS control processing | DeltaV |
| Ovation OCR1100 | Controller Module | Turbine/boiler control | Ovation |
| ROC800 Series | Remote Operations Controller | Oil and gas RTU | ROC system |
| Fisher FIELDVUE DVC6200 | Digital Valve Controller | Valve diagnostics | HART |
| KJ2003X1-BB1 | 4-Channel AI HART Input Module | Analog signal monitoring | DeltaV |
