Product Overview

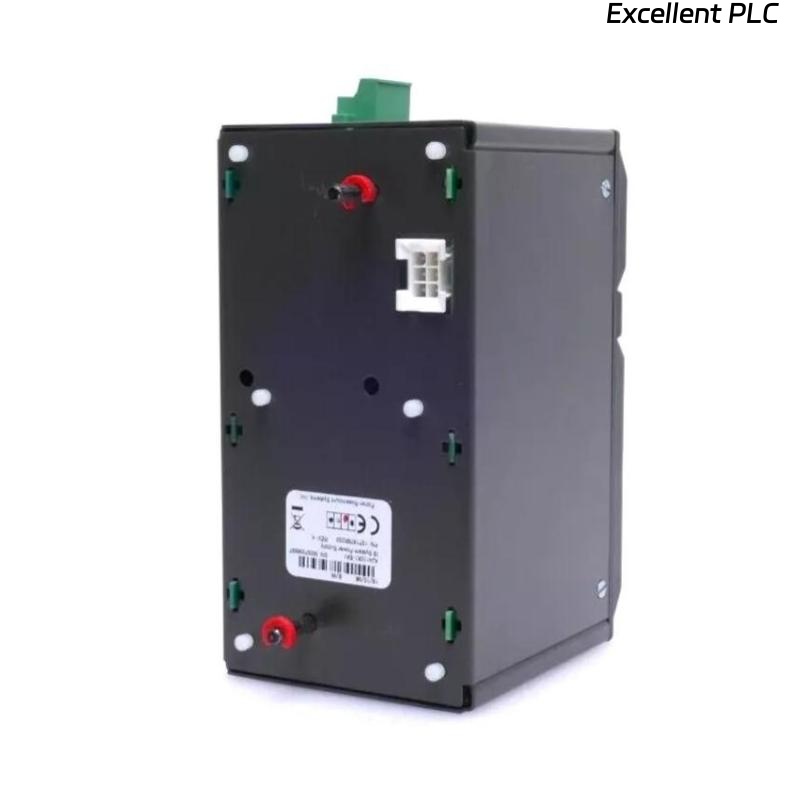

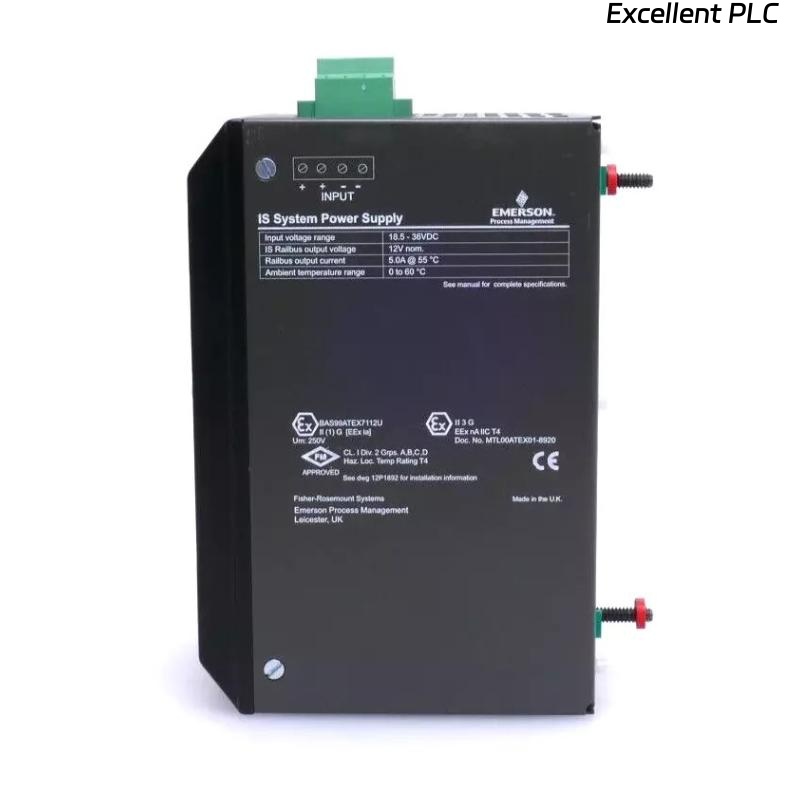

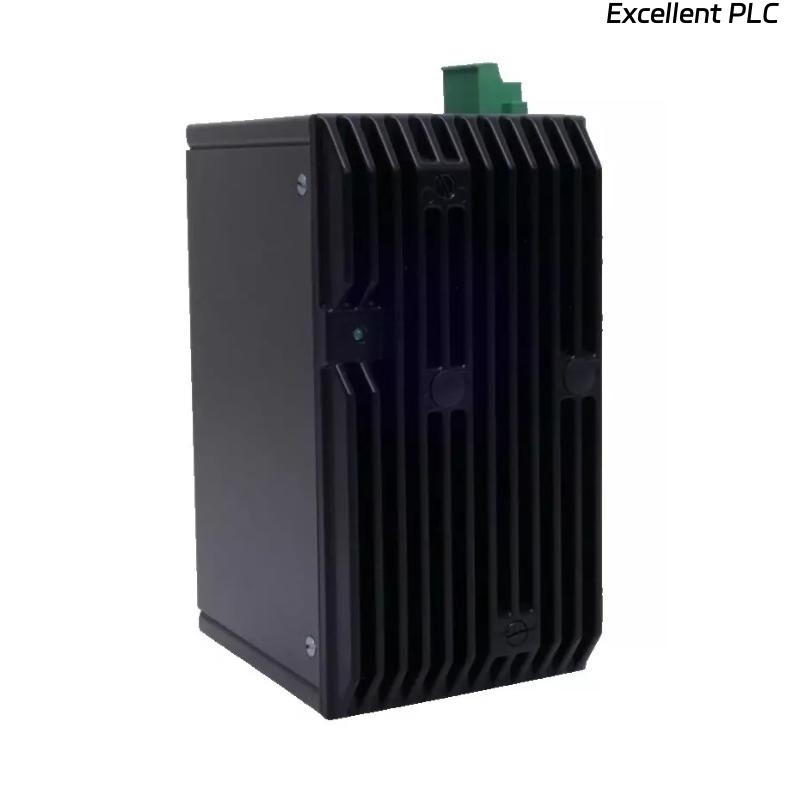

The Emerson KJ4110X1-EA1 is a high-reliability power supply designed for DeltaV distributed control systems. It provides stable and regulated power to I/O modules, controllers, and field devices, ensuring continuous operation and protection of the control system.
Key Features
-
Provides regulated DC power for DeltaV I/O modules and controllers
-
High efficiency with low power loss
-
Supports both standard and redundant power configurations
-
Monitors voltage and current for system protection
-
Protects against overvoltage, undervoltage, and short circuits
-
Rugged design suitable for industrial environments
-
Easy integration with DeltaV distributed control systems
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | KJ4110X1-EA1 |
| Type | Power Supply |
| Output Voltage | 24 V DC nominal |
| Output Current | Up to 15 A |
| Redundancy | Supports redundant configurations |
| Efficiency | >92% typical |
| Monitoring | Voltage and current status |
| Protection | Overvoltage, undervoltage, short circuit |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| Mounting | DIN rail or rack mount |
| Dimensions | 220 x 110 x 60 mm |
| Weight | 0.5 kg |
| Compliance | CE, UL, RoHS |
Industry Applications
-
Power Generation – turbine and generator control systems
-
Oil & Gas – process automation and field device power management
-
Chemical & Petrochemical – industrial control system power supply
-
Manufacturing – automated machinery and process control
-
Water & Wastewater – pump station and treatment plant power management
Advantages
-
Provides stable and regulated power for DeltaV modules and devices
-
Protects systems from overvoltage, undervoltage, and short circuits
-
Supports redundant power configurations for enhanced reliability
-
Monitors voltage and current in real-time for system protection
-
Rugged and durable design for industrial environments
-
Ensures high operational efficiency and system reliability
-
Easy installation and maintenance within DeltaV systems
Frequently Asked Questions (FAQ)
Q1: What is the main function of this power supply?
It provides stable and regulated DC power for DeltaV I/O modules, controllers, and field devices.
Q2: What is the output voltage?
24 V DC nominal.
Q3: What is the maximum output current?
Up to 15 A.
Q4: Does it support redundant power configurations?
Yes, it supports redundant configurations for enhanced system reliability.
Q5: What protections are included?
Overvoltage, undervoltage, and short circuit protection.
Q6: What is the operating temperature range?
0 °C to +60 °C.
Q7: How is it mounted?
DIN rail or rack mount.
Q8: What are the dimensions?
Approx. 220 mm × 110 mm × 60 mm.
Q9: Is it suitable for harsh industrial environments?
Yes, it is designed for rugged industrial conditions.
Q10: Which industries commonly use this power supply?
Power Generation, Oil & Gas, Chemical & Petrochemical, Manufacturing, and Water & Wastewater.
