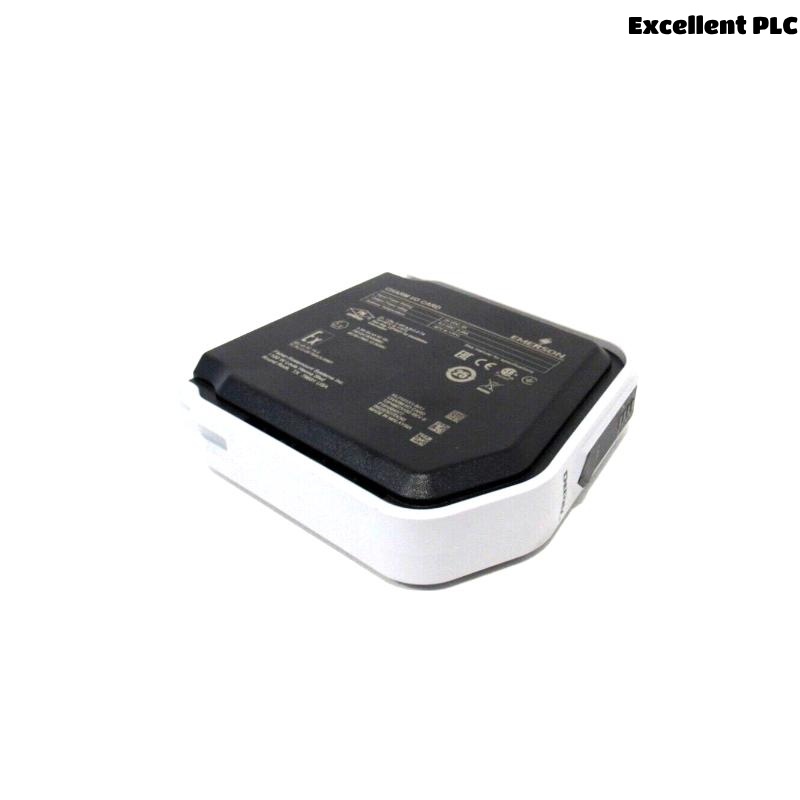

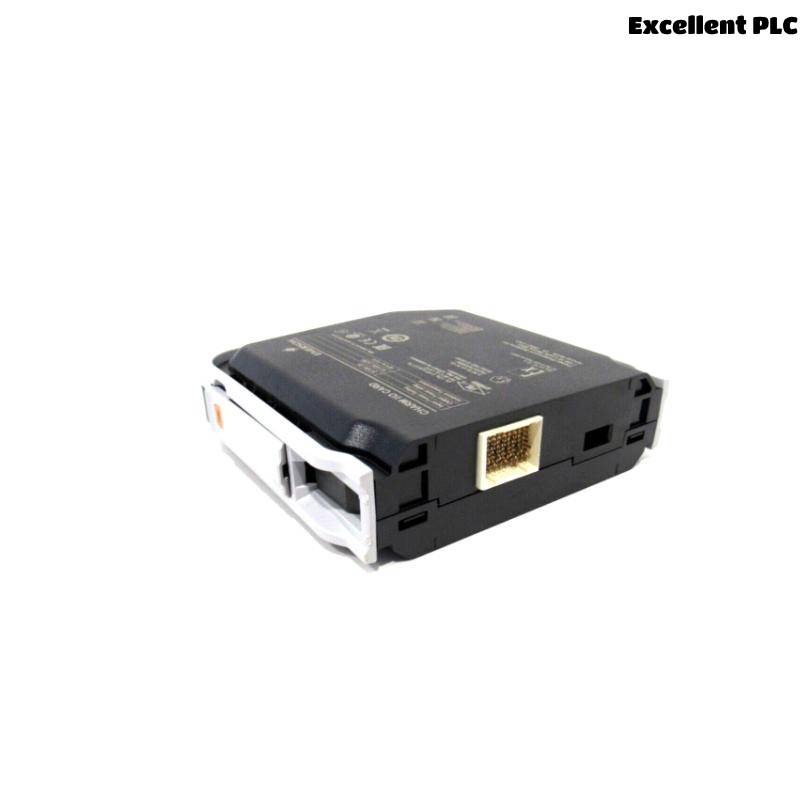

The Emerson KL2101X1-BA1 I/O Card is a critical component within Emerson’s DeltaV™ distributed control system (DCS), designed to provide reliable and precise digital input capabilities for industrial automation applications. This card is engineered to handle high-speed and accurate signal acquisition from a variety of field devices, enabling smooth and effective control system operations.
Built with robust industrial-grade components, the KL2101X1-BA1 ensures exceptional performance in demanding environments such as chemical plants, refineries, power generation, and manufacturing facilities. Its seamless integration with the DeltaV system allows for scalable, modular control architecture, promoting ease of maintenance and system expansion.
The card supports multiple channel inputs with high noise immunity and diagnostic capabilities, making it an indispensable part of process monitoring and control. Its design prioritizes reliability and durability while maintaining a compact footprint to optimize panel space.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | KL2101X1-BA1 I/O Card |
| Function | Digital Input Card |
| Number of Channels | 16 channels |
| Input Type | Sinking or Sourcing Digital Inputs |
| Input Voltage Range | 24 V DC nominal (typical) |
| Input Current | 6 mA per channel (typical) |
| Response Time | < 5 ms |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions (HxWxD) | 144 × 42 × 106 mm |
| Weight | 0.454 kg |
| Communication Interface | DeltaV proprietary backplane interface |
| Diagnostics | Module and channel level diagnostics |
| Certifications | CE, UL, CSA |
Applications
The KL2101X1-BA1 I/O Card is widely used in:
-
Chemical Processing Plants: For capturing status signals from valves, switches, and sensors with high accuracy and reliability.
-
Power Generation Facilities: Monitoring critical input signals from circuit breakers, relays, and safety interlocks.
-
Oil & Gas Industry: Remote monitoring of digital signals from field instrumentation in hazardous environments.
-
Water and Wastewater Treatment: Digital input acquisition from pump status, flow switches, and level sensors.
-
Manufacturing Automation: Real-time monitoring of machine states, conveyor limits, and emergency stops.
-
Pharmaceutical Production: Ensuring precise digital status monitoring in controlled environments to meet regulatory standards.
Advantages
-
High Channel Density: Supports 16 digital input channels per card, maximizing system efficiency and reducing panel space.
-
Reliable Signal Acquisition: Designed to provide accurate and noise-immune digital input readings critical for control processes.
-
Robust Diagnostics: Includes module and channel level diagnostics for quick fault detection and troubleshooting.
-
Compact Size: Slim profile allows for dense packing in I/O racks, saving valuable control panel space.
-
Wide Operating Range: Performs reliably under industrial temperature and humidity conditions.
-
Seamless System Integration: Fully compatible with Emerson DeltaV systems, facilitating easy configuration and expansion.
-
Flexible Input Types: Supports both sinking and sourcing inputs, providing versatility in field device connectivity.
-
Industry Certifications: Meets international safety and quality standards, ensuring reliable operation in industrial environments.
-
Low Power Consumption: Efficient design reduces overall system energy use.
-
Durable Construction: Engineered for long life in harsh industrial settings, reducing maintenance frequency and downtime.
Frequently Asked Questions (FAQ)
-
Q: How many digital input channels does the KL2101X1-BA1 support?
A: It supports 16 digital input channels per card. -
Q: What type of input signals are compatible with this card?
A: It supports both sinking and sourcing 24 V DC digital input signals. -
Q: What is the typical response time for inputs?
A: The response time is typically less than 5 milliseconds. -
Q: Can this card be used in hazardous environments?
A: While the card itself is industrial-grade, hazardous area installations require additional certified enclosures or barriers. -
Q: What diagnostics features does the card provide?
A: It offers module-level and channel-level diagnostics for quick fault isolation. -
Q: What are the dimensions and weight of the card?
A: Dimensions are 144 × 42 × 106 mm, and it weighs 0.454 kg. -
Q: Is the card compatible with all DeltaV I/O racks?
A: It is compatible with standard Emerson DeltaV I/O racks designed for this series. -
Q: What temperature range can the card operate within?
A: The operating temperature range is 0°C to 60°C. -
Q: How does the card handle electrical noise in industrial environments?
A: It features design elements and diagnostics to ensure noise immunity and signal integrity. -
Q: Can I hot-swap this I/O card during system operation?
A: No, hot-swapping is not supported; always follow proper shutdown and safety procedures before replacement.
Related or Similar Models (Same Series/Function)
| Model Number | Description | Function |
|---|---|---|
| KL2102X1-BA1 | 16-Channel Sourcing Digital Input Card | Digital Input |
| KL2201X1-BA1 | 16-Channel Digital Output Card | Digital Output |
| KL2103X1-BA1 | High-Speed Digital Input Card | Digital Input |
| KL2301X1-BA1 | Analog Input Card | Analog Input |
| KL2401X1-BA1 | Analog Output Card | Analog Output |
| KL2501X1-BA1 | Specialty Digital Input Card | Digital Input |
Popular Emerson Automation Products (Same Brand)
| Model Number | Description | Function |
|---|---|---|
| KJ2201X1-BA1 | Smart Logic Solver | Safety Controller |
| KJ4001X1-BE1 | 8-Wide I/O Carrier with Shield | I/O Carrier |
| KJ5001X1-BA1 | Power Supply Module | Power Module |
| KJ2101X1-BA1 | Analog Output Module | Analog Output |
| KJ2301X1-BA1 | Digital Input Module | Digital Input |
| KJ5501X1-BA1 | High-Density I/O Module | I/O Module |
