Product Overview

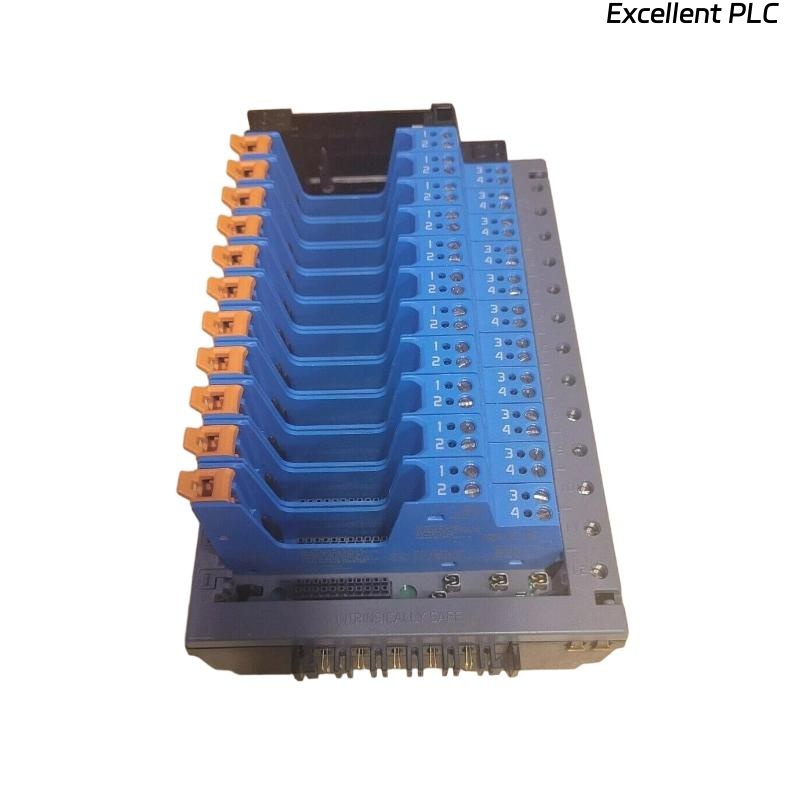

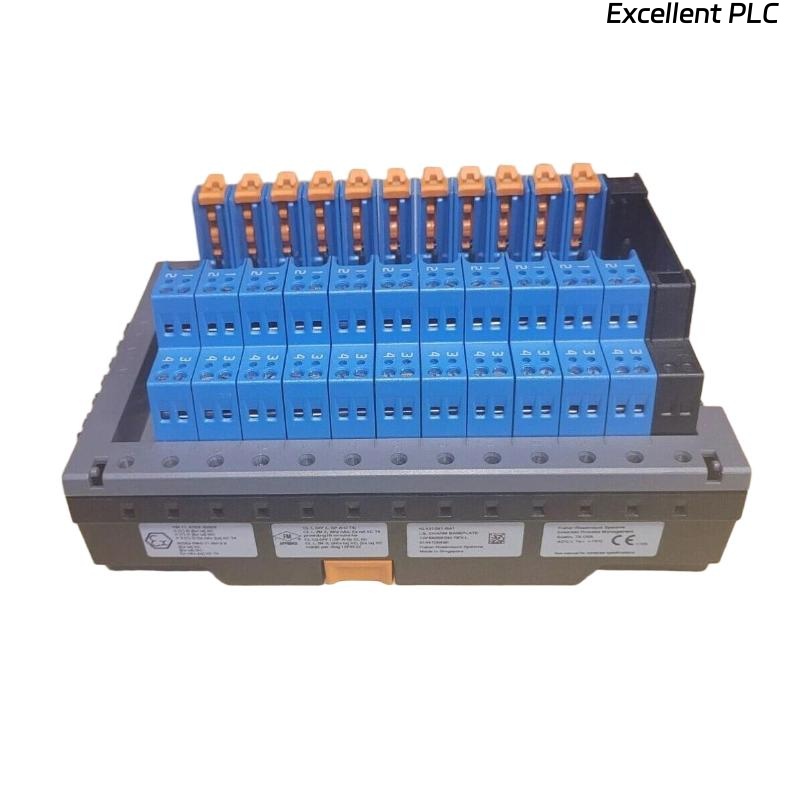

The Emerson KL4210X1-BA1 CHARM Baseplate is a robust and compact component designed for use with Emerson’s CHARM I/O systems. This baseplate is a key part of the CHARM technology, providing the necessary support and connectivity for attaching CHARM modules. Its versatile design allows for seamless integration into distributed control systems (DCS) or other automation systems. The baseplate offers secure mounting and reliable electrical connections for the CHARM modules, ensuring efficient data transmission and stable system performance. With its space-saving design and easy-to-install features, the KL4210X1-BA1 is ideal for industries requiring high-performance, flexible I/O solutions.
Technical Specifications
The following table outlines the key technical specifications of the Emerson KL4210X1-BA1 CHARM Baseplate:
| Specification | Details |
|---|---|
| Model | KL4210X1-BA1 |
| Dimensions | 22 x 124 x 126 mm |
| Weight | 0.1 kg |
| Operating Voltage | 24V DC ±10% |
| Power Consumption | 4 W |
| Mounting Type | Din Rail Mount |
| Input Channels | 10 CHARM slots (for input/output modules) |
| Output Channels | 10 CHARM slots (for input/output modules) |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Communication Protocol | CHARM (Compatible with Emerson systems) |
| Enclosure | IP20 (Protected from solid objects greater than 12 mm) |
Product Applications
The Emerson KL4210X1-BA1 CHARM Baseplate is commonly used in industrial automation systems where flexible and efficient I/O solutions are needed. Its applications include:
-
Process Control Systems: Integrates with Emerson’s process control systems to provide seamless communication between field devices and control systems.
-
Industrial Automation: Used to mount and connect various I/O modules in automation systems, facilitating real-time data collection and control.
-
Oil & Gas: Essential in environments where distributed control and remote monitoring are required for operational efficiency and safety.
-
Manufacturing: Provides high-density I/O connections for manufacturing systems requiring flexible automation solutions.
-
Water and Wastewater Treatment: Ideal for systems that need to collect and control data from multiple sensors and actuators in water treatment facilities.
-
Energy Management: Used in energy management systems to collect data from multiple sensors and provide control over energy usage and distribution.
Product Advantages
-
Compact Design: The KL4210X1-BA1 baseplate’s small form factor ensures it can be easily installed in space-constrained environments, offering flexibility without sacrificing performance.
-
Ease of Integration: The baseplate seamlessly integrates with Emerson’s CHARM I/O modules, enabling quick and easy installation and setup.
-
Durability: With its industrial-grade construction and wide operating temperature range, the baseplate is designed to perform reliably in harsh industrial environments.
-
Cost-Efficiency: Reduces the need for complex wiring and simplifies system setup by using the CHARM modular system, leading to lower installation and maintenance costs.
-
Scalability: The modular nature of the baseplate allows for easy expansion by adding additional CHARM modules as needed, making it ideal for growing systems.
-
Enhanced Connectivity: Supports a variety of input and output channels, providing versatile options for industrial automation applications.
FAQ
1. What is the power supply requirement for the Emerson KL4210X1-BA1 baseplate?
The power supply requirement for the Emerson KL4210X1-BA1 is 24V DC ±10%.
2. How many I/O channels does the baseplate support?
The baseplate supports 10 CHARM slots, which can be used for both input and output modules.
3. Can the KL4210X1-BA1 baseplate be used in high-humidity environments?
Yes, the baseplate can operate in environments with humidity levels ranging from 5% to 95% RH, non-condensing.
4. What is the temperature range for the operation of the baseplate?
The operating temperature range for the baseplate is -20°C to 60°C.
5. Is the KL4210X1-BA1 baseplate easy to install?

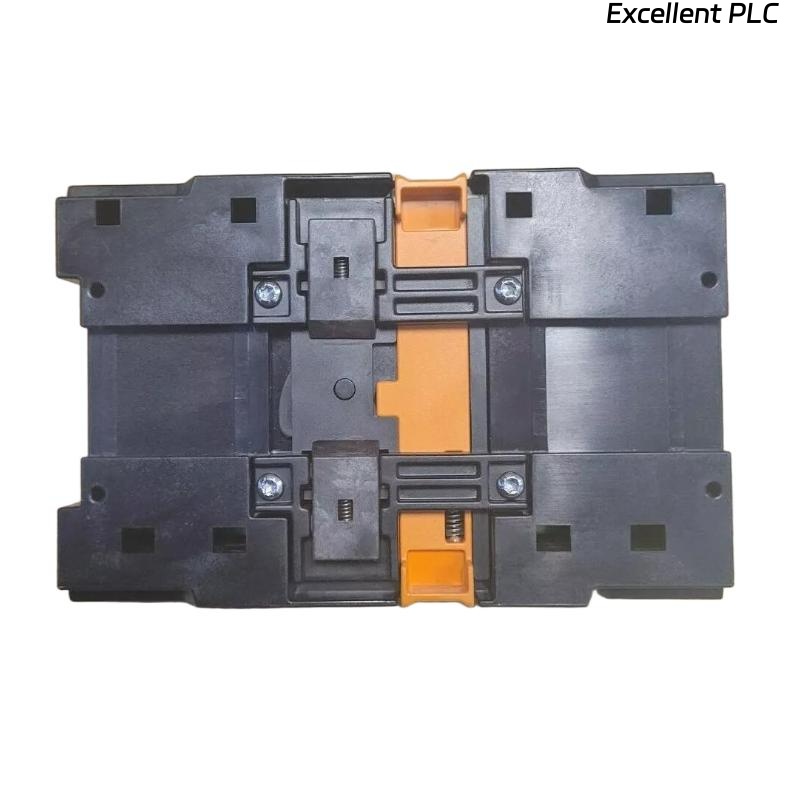

Yes, the baseplate is designed for Din rail mounting, which makes it easy to install in existing systems.
6. What is the power consumption of the baseplate?
The power consumption of the KL4210X1-BA1 is 4 W.
7. Can the baseplate be used in energy management systems?
Yes, it is suitable for use in energy management applications, where efficient data collection and control are required.
8. What is the storage temperature range for the KL4210X1-BA1?
The storage temperature range for the baseplate is -40°C to 85°C.
9. What is the communication protocol used by the KL4210X1-BA1 baseplate?
The baseplate uses Emerson’s CHARM communication protocol, compatible with other Emerson control systems.
10. What type of protection does the baseplate provide?
The baseplate has an IP20 rating, meaning it is protected from solid objects larger than 12 mm but is not protected from water ingress.
Related Models
| Model Number | Description |
|---|---|
| KL4210X2-BA1 | Dual slot baseplate for connecting multiple CHARM modules |
| KL4200X1-BA1 | Standard baseplate with enhanced I/O support |
| KL4310X1-BA1 | High-density baseplate for larger CHARM systems |
| KL4220X1-BA1 | Extended version with more slots and modules |
| KL4200X2-BA1 | Baseplate with additional diagnostic features |
| KL4410X1-BA1 | Advanced baseplate with extended temperature tolerance |
