Product Introduction

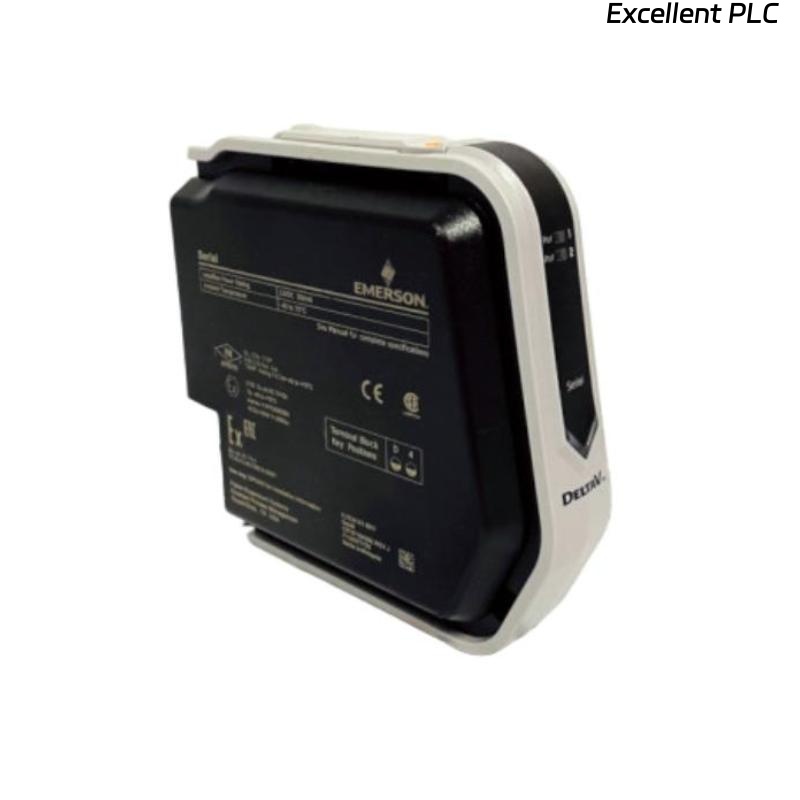

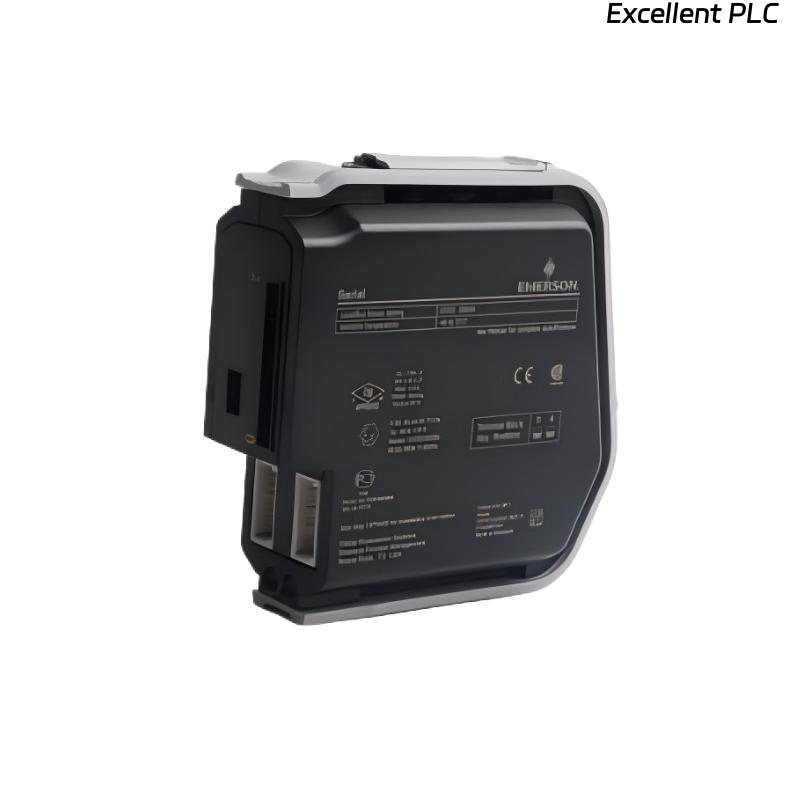

The Emerson SE4006P2 KJ3241X1-BK1 + KJ4006X1-BD1 Serial Interface Card is an industrial-grade communication solution designed to provide seamless integration between different devices in control systems. It enables reliable serial communication for automation processes, ensuring high-performance transmission of data across a variety of industrial applications. The card is widely used for connecting remote field devices to a central control system, offering reliable performance in challenging environments.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | SE4006P2 KJ3241X1-BK1 + KJ4006X1-BD1 |
| Interface Type | Serial Interface |
| Dimensions | 162 x 41.8 x 199.3 mm |
| Weight | 0.29 kg |
| Power Supply | 24V DC |
| Communication Ports | RS-232, RS-485, Modbus RTU |
| Data Rate | Up to 115200 bps |
| Compatibility | Compatible with Emerson controllers |
| Temperature Range | -20°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Environmental Rating | IP20 |
| Mounting Type | DIN Rail Mounted |
Product Applications
The Emerson SE4006P2 KJ3241X1-BK1 + KJ4006X1-BD1 Serial Interface Card is ideal for use in various industrial automation and control applications:
-
Remote Monitoring and Control: Enables communication between field devices and a central control system, allowing for remote operation and diagnostics.
-
Process Automation: Facilitates data exchange between PLCs (Programmable Logic Controllers), DCS (Distributed Control Systems), and other automation systems for process management.
-
Data Acquisition: Collects and transfers data from sensors and field instruments to a central control system for analysis and processing.
-
Factory Automation: Helps integrate machinery, sensors, and control devices in automated manufacturing systems.
-
Energy Management: Connects energy meters and other monitoring devices to central systems for efficient energy management and monitoring.
Product Advantages
-
High-Speed Communication: With data transfer speeds up to 115200 bps, the card ensures fast and reliable communication between devices, optimizing system performance.
-
Flexible Protocols: Supports multiple communication protocols, including RS-232, RS-485, and Modbus RTU, making it adaptable to different industrial settings.
-
Simple Installation: The card is designed for easy installation with DIN rail mounting, ensuring quick setup and integration into existing systems.
-
Durable and Reliable: Built to operate in harsh industrial environments with a wide temperature range of -20°C to +70°C and IP20 protection against dust and foreign objects.
-
Energy-Efficient: Operates on a 24V DC power supply, which reduces energy consumption while maintaining high performance.
-
Cost-Effective: Offers excellent performance at a reasonable cost, making it a practical solution for industrial control applications.
FAQ
Q1: How do I install the SE4006P2 KJ3241X1-BK1 + KJ4006X1-BD1 serial interface card?
Installation is straightforward: mount the card on a DIN rail, connect the appropriate cables to the serial ports (RS-232, RS-485, or Modbus RTU), and power it using a 24V DC supply.
Q2: What communication protocols are supported by this interface card?
The card supports RS-232, RS-485, and Modbus RTU communication protocols, ensuring compatibility with a wide range of devices.
Q3: What is the maximum data transfer rate supported by the card?
The interface card supports data transfer rates of up to 115200 bps, which ensures fast and reliable data communication.
Q4: Can this card be used in extreme temperature conditions?
Yes, the card operates in a temperature range from -20°C to +70°C, making it suitable for use in both cold and hot environments.
Q5: What is the power requirement for the interface card?
The SE4006P2 KJ3241X1-BK1 + KJ4006X1-BD1 requires a 24V DC power supply to operate.
Q6: Is the card compatible with Emerson controllers?
Yes, this serial interface card is fully compatible with Emerson controllers, ensuring easy integration into your control system.
Q7: What is the environmental protection rating of the card?
The card has an IP20 rating, offering protection against dust and direct contact, which makes it suitable for most industrial environments.
Q8: How can I troubleshoot communication issues with the interface card?
Ensure all connections are secure and verify that the correct communication protocol is selected. Check for error codes or warning indicators on the card, and consult the user manual for detailed troubleshooting steps.
Q9: Can this card be used in remote monitoring applications?
Yes, the card is designed to facilitate remote monitoring and control, making it an ideal choice for applications where remote data acquisition and management are required.
Q10: What are the dimensions and weight of the card?
The dimensions are 162 x 41.8 x 199.3 mm, and the weight is 0.29 kg.
