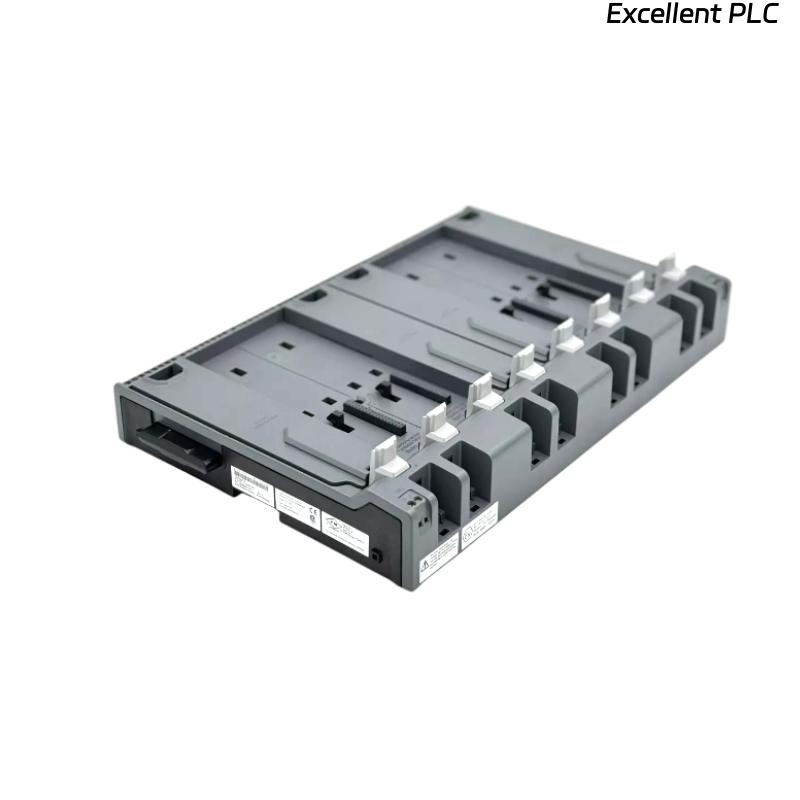

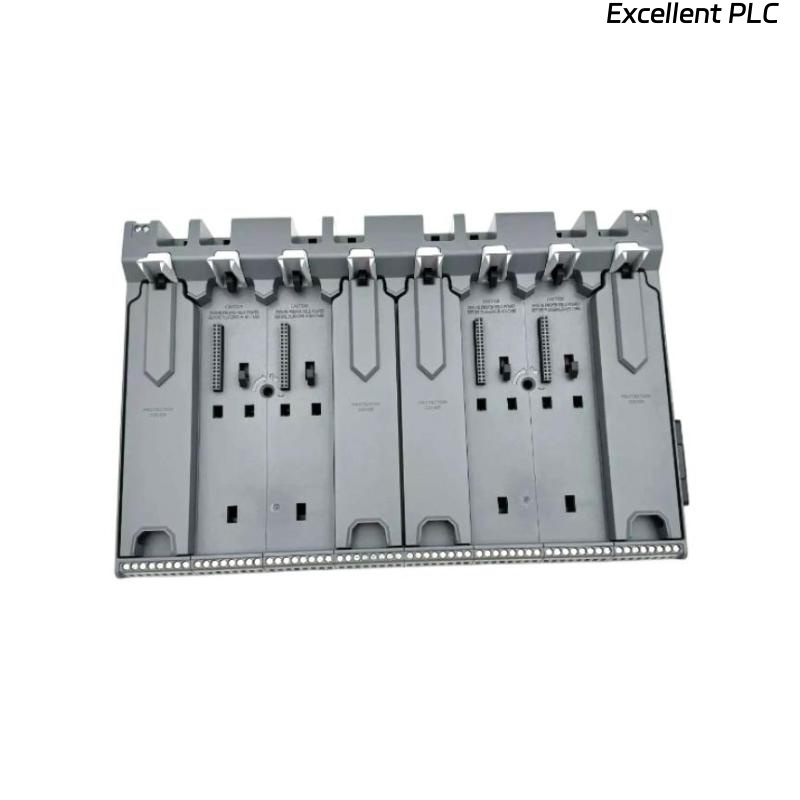

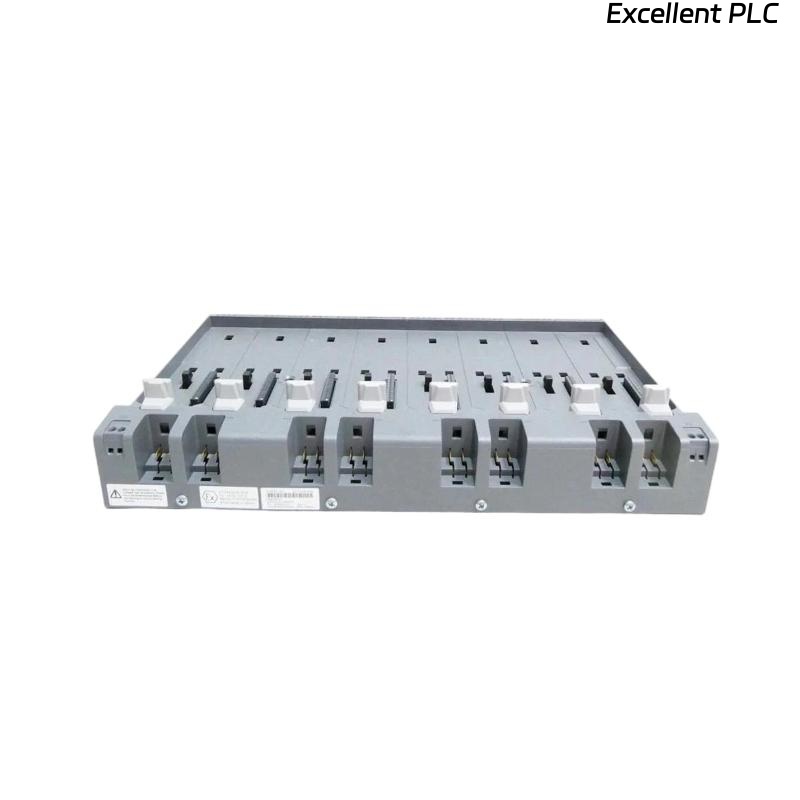

The Emerson SE4050E0C0 KJ4005X1-BE1 8-Wide I/O Interface Chassis is a critical component in industrial automation systems, providing an efficient framework for housing multiple I/O modules. This chassis supports 8 wide I/O slots and is designed to accommodate the KJ4005X1-BE1 communication module for seamless integration of control systems and field devices. It plays a key role in ensuring reliable data transmission between the field and control devices, while supporting a variety of industrial applications requiring high-density I/O configurations.
By combining the robustness of the chassis with the advanced features of the KJ4005X1-BE1 module, this solution provides flexibility, scalability, and high performance for diverse industrial processes. It is designed for easy integration into existing automation systems, making it ideal for various applications including SCADA systems, process control, and manufacturing automation.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | SE4050E0C0 KJ4005X1-BE1 |
| Interface Type | I/O Interface Chassis |
| Dimensions | 348 x 229 mm |
| Weight | 0.5 kg |
| Power Supply | 24V DC |
| I/O Slot Type | 8-Wide |
| Slot Capacity | 8 Modules |
| Cooling Type | Passive (requires ventilation) |
| Temperature Range | -20°C to +60°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | Rack or Panel Mounted |
| Environmental Rating | IP20 |
Product Applications
The Emerson SE4050E0C0 KJ4005X1-BE1 8-Wide I/O Interface Chassis is widely used in environments where high-density I/O module configurations are needed. Some of its key applications include:
-
Industrial Automation: Central hub for connecting multiple I/O modules in automated control systems, enabling the monitoring and control of devices like sensors, actuators, and motors.
-
Process Control: In industries such as oil and gas, chemical, and pharmaceuticals, the chassis helps control critical systems by managing multiple I/O modules within a single framework.
-
Manufacturing Automation: Ideal for use in production lines, where it helps control machinery, conveyors, and other automated processes.
-
SCADA Systems: Enables the connection of I/O modules for remote monitoring and control, ensuring smooth operation and data exchange in SCADA systems.
-
Energy Management: Helps in the integration of field devices like energy meters, enabling real-time data collection and control in power distribution systems.
-
Building Automation: In building management systems, the chassis can connect to various I/O modules that control HVAC, lighting, and security systems.
Product Advantages
-
High-Density Integration: The 8-Wide I/O slots allow for a compact yet highly efficient setup, offering high-density integration of I/O modules for space-constrained environments.
-
Versatile Mounting Options: The chassis can be mounted on either a rack or panel, providing flexible installation options for different system configurations.
-
Efficient Power Supply: Powered by a 24V DC supply, it ensures reliable power distribution to the connected I/O modules.
-
Environmental Protection: With an IP20 rating, the chassis offers protection against dust and direct contact, making it suitable for industrial environments.
-
Passive Cooling Design: The chassis relies on passive cooling, making it ideal for environments with moderate temperature ranges while requiring adequate ventilation.
-
Wide Temperature Range: The chassis can function in environments with temperatures ranging from -20°C to +60°C, providing flexibility for use in both cold and hot industrial settings.
-
Scalable and Modular: The modular design allows for easy expansion of the system by adding more I/O modules as needed.
FAQ
Q1: How do I install the SE4050E0C0 KJ4005X1-BE1 I/O Interface Chassis?
Mount the chassis on a rack or panel, then insert I/O modules into the available 8 slots and connect them to the system. Ensure that you provide a 24V DC power supply.
Q2: What types of I/O modules can be used in this chassis?
The chassis supports 8 wide I/O slots, compatible with various Emerson I/O modules such as digital and analog input/output cards, and communication modules.
Q3: What is the power supply requirement for this chassis?
The chassis requires a 24V DC power supply, which is common in many industrial automation systems.
Q4: Can this chassis be used outdoors?
No, the IP20 rating means it is suitable for indoor use only. It should be installed in an environment with proper ventilation to ensure efficient passive cooling.
Q5: How many I/O modules can be installed in this chassis?
It can accommodate up to 8 I/O modules, offering flexibility for various applications.
Q6: What is the operating temperature range for the chassis?
The chassis operates effectively in environments with temperatures ranging from -20°C to +60°C.
Q7: How does passive cooling work in the SE4050E0C0?
The chassis uses passive cooling, relying on natural airflow to dissipate heat. Ensure that the installation area has proper ventilation for optimal performance.
Q8: Is this chassis suitable for hazardous environments?
No, the chassis is not designed for use in hazardous environments. If required, a more suitable chassis with higher environmental protection should be used.
Q9: How do I maintain the chassis for long-term reliability?
Ensure proper ventilation and dust management in the installation area to prevent overheating and maintain long-term reliability.
Q10: Can I replace I/O modules without affecting the system?
Yes, the modular design allows easy replacement of I/O modules without disrupting system operation.
