Product Introduction

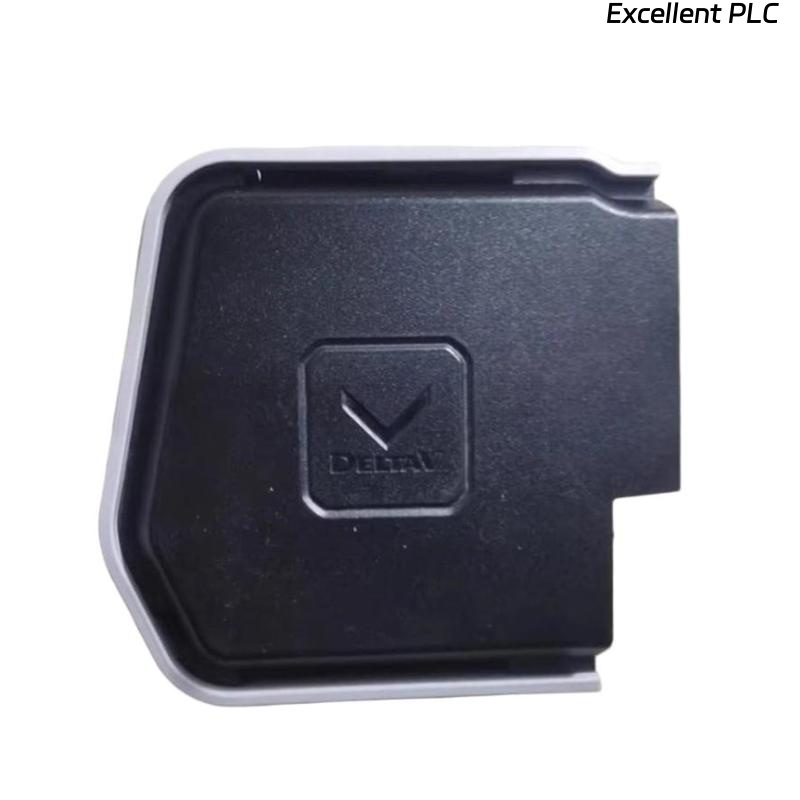

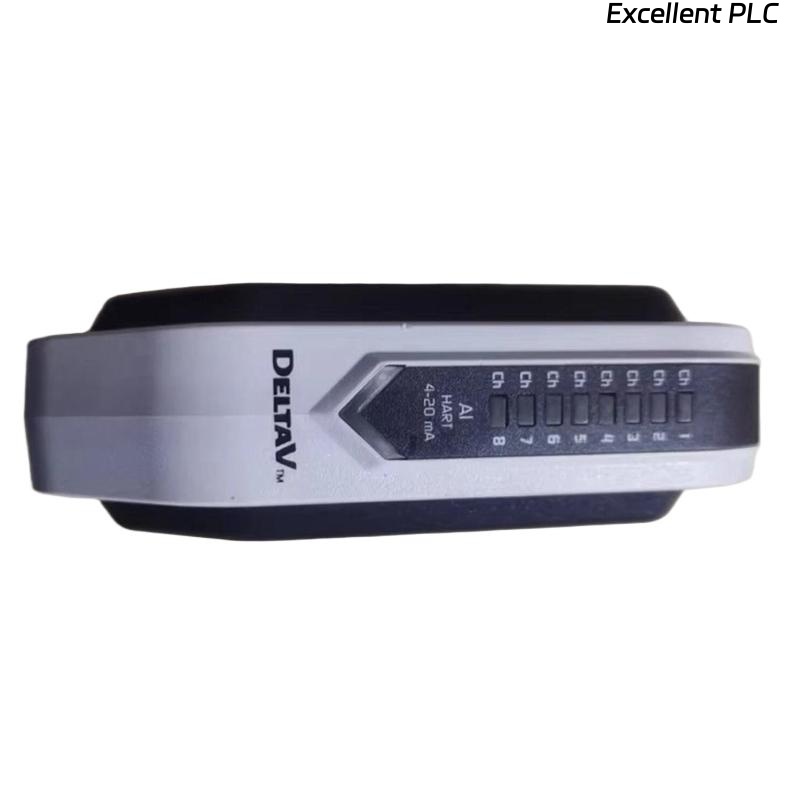

The Emerson SE4053S2B11 Redundant Analog Input is a highly reliable module designed for use in Emerson’s DeltaV distributed control systems. It provides redundant analog input channels, ensuring continuous operation and improved system availability even in the event of module or channel failure. This design supports mission-critical process control applications where data integrity and reliability are paramount. The module seamlessly integrates into the DeltaV I/O subsystem, supporting flexible installation and straightforward configuration.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | Emerson SE4053S2B11 Redundant Analog Input |
| Function | Redundant analog input acquisition for DeltaV |
| Input Signal Type | Analog signals (mA, V, or configurable ranges) |
| Redundancy | Yes, dual-channel redundancy |
| Dimensions | 162 x 41.8 x 199.3 mm |
| Weight | 0.29 kg |
| Mounting | DIN-rail or carrier-based |
| Operating Voltage | 24 VDC nominal |
| Communication | DeltaV system I/O bus |
| Isolation | Galvanic isolation between channels |
| Operating Temperature | -20 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Compliance | CE, UL, CSA, IEC standards |
Product Applications
-
Petrochemical and Refining – for monitoring critical pressure, temperature, and flow analog signals with redundancy.
-
Power Generation – ensuring reliable analog input capture for turbine and boiler systems.
-
Pharmaceutical Manufacturing – guaranteeing data reliability for validated processes.
-
Water and Wastewater Treatment – supporting critical sensor inputs in continuous monitoring systems.
-
Pulp and Paper – enabling fault-tolerant monitoring of key process variables.
Product Advantages
-
Redundancy for Reliability – Dual redundancy ensures no single point of failure for analog data capture.
-
Seamless DeltaV Integration – Native compatibility with Emerson’s DeltaV system for ease of engineering and commissioning.
-
High Signal Integrity – Galvanic isolation and robust input design protect against noise and interference.
-
Scalable System Design – Easily expands capacity in both small and large control system architectures.
-
Operational Continuity – Hot-swap capability allows replacement without system shutdown.
-
Compliance and Safety – Certified to global standards, supporting use in regulated industries.
FAQ
Q1: What type of analog signals does the SE4053S2B11 support?
A1: It supports standard current and voltage signals, including 4–20 mA and configurable voltage ranges.
Q2: Does the module support hot-swapping?
A2: Yes, the SE4053S2B11 can be replaced online without disrupting system operation.
Q3: How is redundancy achieved in this module?
A3: Redundancy is implemented through dual channels and automatic switchover if one path fails.
Q4: Is galvanic isolation provided between input channels?
A4: Yes, galvanic isolation is incorporated to protect signal integrity and system safety.
Q5: How is configuration handled in the DeltaV system?
A5: Configuration is managed through DeltaV Explorer, where users can define channel parameters and redundancy settings.
Q6: What diagnostic features are available?
A6: The module supports diagnostics such as signal status, module health, and redundancy switchover alerts.
Q7: Can the SE4053S2B11 handle high-noise environments?
A7: Yes, it is designed with robust filtering and isolation to ensure accuracy even in noisy industrial conditions.
Q8: How is the module powered?
A8: It is powered by the DeltaV system I/O backplane, typically at 24 VDC.
Q9: What happens if one channel in a redundant pair fails?
A9: The system automatically switches to the healthy channel without interrupting signal acquisition.
Q10: Can the module be mixed with non-redundant modules in the same DeltaV carrier?
A10: Yes, redundant and non-redundant I/O modules can coexist in the same I/O carrier.
Related Models
| Model Number | Description |
|---|---|
| SE4053S2B10 | Standard Analog Input Module |
| SE4056S2B11 | Redundant Analog Output Module |
| SE4052S1B11 | Redundant Discrete Input Module |
| SE4055S2C0 | Right 8-Wide Vertical Carrier |
| VE4001S2T2B1 | Discrete Input Card |
| VE4050E1C0 | DeltaV Input/Output Carrier |
