Product Introduction

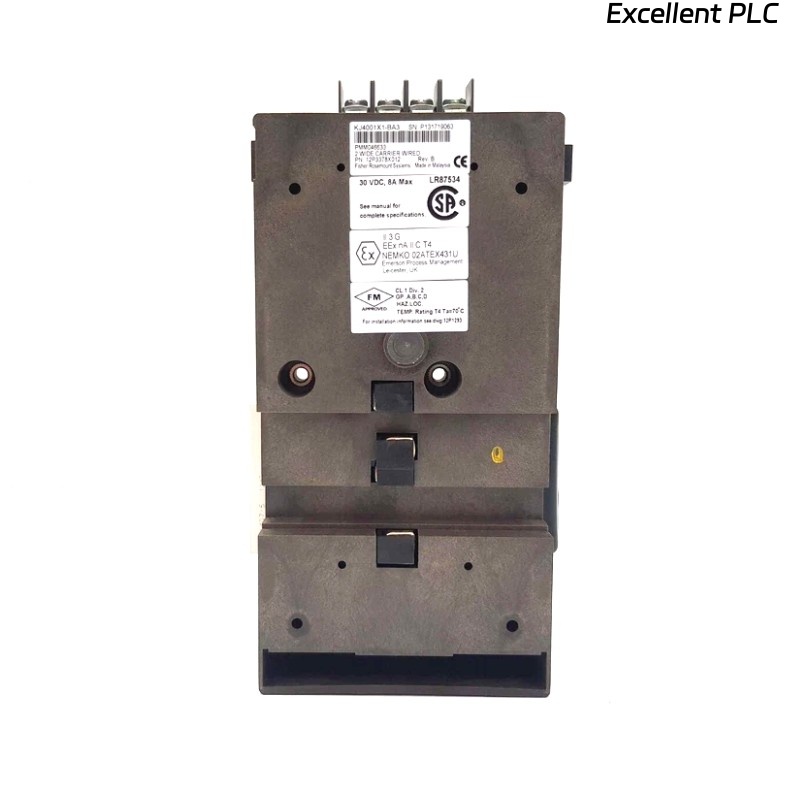

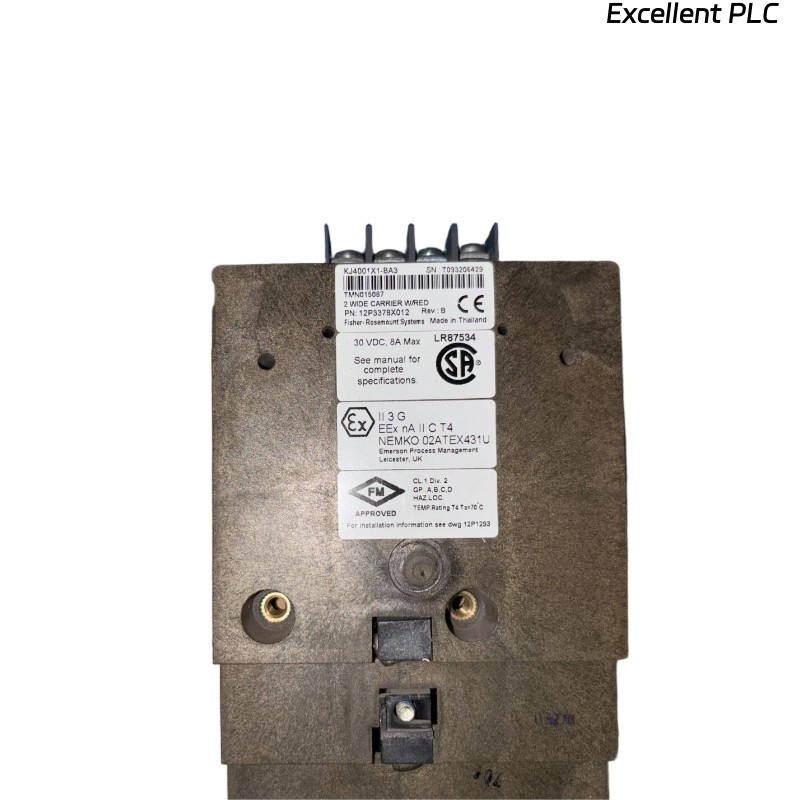

The Emerson VE3051C1 Power/Controller Carrier is an essential component in the DeltaV™ distributed control system (DCS) architecture. It functions as a robust platform to host controller modules and associated power supply modules, providing reliable control and communication between the field devices and the DeltaV system. Designed for industrial environments, the VE3051C1 ensures seamless integration, high availability, and precise control capabilities for complex process automation applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | VE3051C1 |
| Type | Power/Controller Carrier |
| Dimensions | 125 x 330 x 220 mm |
| Weight | 0.38 kg |
| Input Voltage | 24 VDC ± 10% |
| Power Consumption | 50 W typical |
| Controller Slot Capacity | 2 controller modules |
| Power Module Slot Capacity | 2 power modules |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Communication Interfaces | DeltaV I/O network, redundant connections |
| Compliance | CE, UL, cUL |
Applications
-
Centralized control and power management in DeltaV DCS systems.
-
Hosting and interfacing controller modules for continuous process control.
-
Industrial automation in chemical, petrochemical, and refining plants.
-
Power distribution to DeltaV input/output modules.
-
Redundant controller applications for high availability and fault tolerance.
-
Integration with fieldbus and smart field devices for real-time process monitoring.
Advantages
-
High Reliability: Built for industrial-grade environments, ensuring continuous operation under harsh conditions.
-
Redundancy Support: Allows dual controller and dual power module installation for system redundancy.
-
Compact Design: Optimized space usage in control cabinets while maintaining sufficient cooling and accessibility.
-
Seamless Integration: Fully compatible with DeltaV controller modules and system architecture.
-
Simplified Maintenance: Modular design allows easy replacement of controllers and power modules without system shutdown.
-
Enhanced Communication: Supports multiple redundant communication paths to improve process reliability.
FAQ
Q1: What types of controller modules can the VE3051C1 carrier accommodate?
A1: It supports Emerson DeltaV controller modules, including VE3005 and VE3006 series controllers.
Q2: Can the VE3051C1 support redundant power modules?
A2: Yes, it can host two power modules simultaneously for redundancy purposes.
Q3: What is the typical power consumption of the carrier?
A3: The VE3051C1 typically consumes 50 W during normal operation.
Q4: How is the communication handled between the controller modules and DeltaV system?
A4: Communication is facilitated via the DeltaV I/O network with redundant communication paths.
Q5: What operating temperatures are supported?
A5: The carrier supports 0°C to 55°C for normal operation.
Q6: Is the VE3051C1 compatible with all DeltaV I/O modules?
A6: Yes, it is compatible with standard DeltaV I/O modules, including digital, analog, and hybrid types.
Q7: Can I replace a power module without shutting down the system?
A7: Yes, the modular design allows hot-swapping of power modules without impacting system operation.
Q8: How many controller modules can be installed in one VE3051C1?
A8: The carrier can accommodate up to two controller modules simultaneously.
Q9: What type of mounting is required for the carrier?
A9: Standard 19-inch rack mounting or DeltaV cabinet mounting is supported.
Q10: Is the VE3051C1 certified for industrial safety standards?
A10: Yes, it complies with CE, UL, and cUL certifications.
